ELECTRONIC AIR CLEANERS
INSTALLATION AND OPERATION MANUAL
MODEL SE 30
MODEL SE 40
MODEL SE 50

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SE 30 and is the answer not in the manual?

Questions and answers

Related Manuals for Smokeeter SE 30

Summary of Contents for Smokeeter SE 30

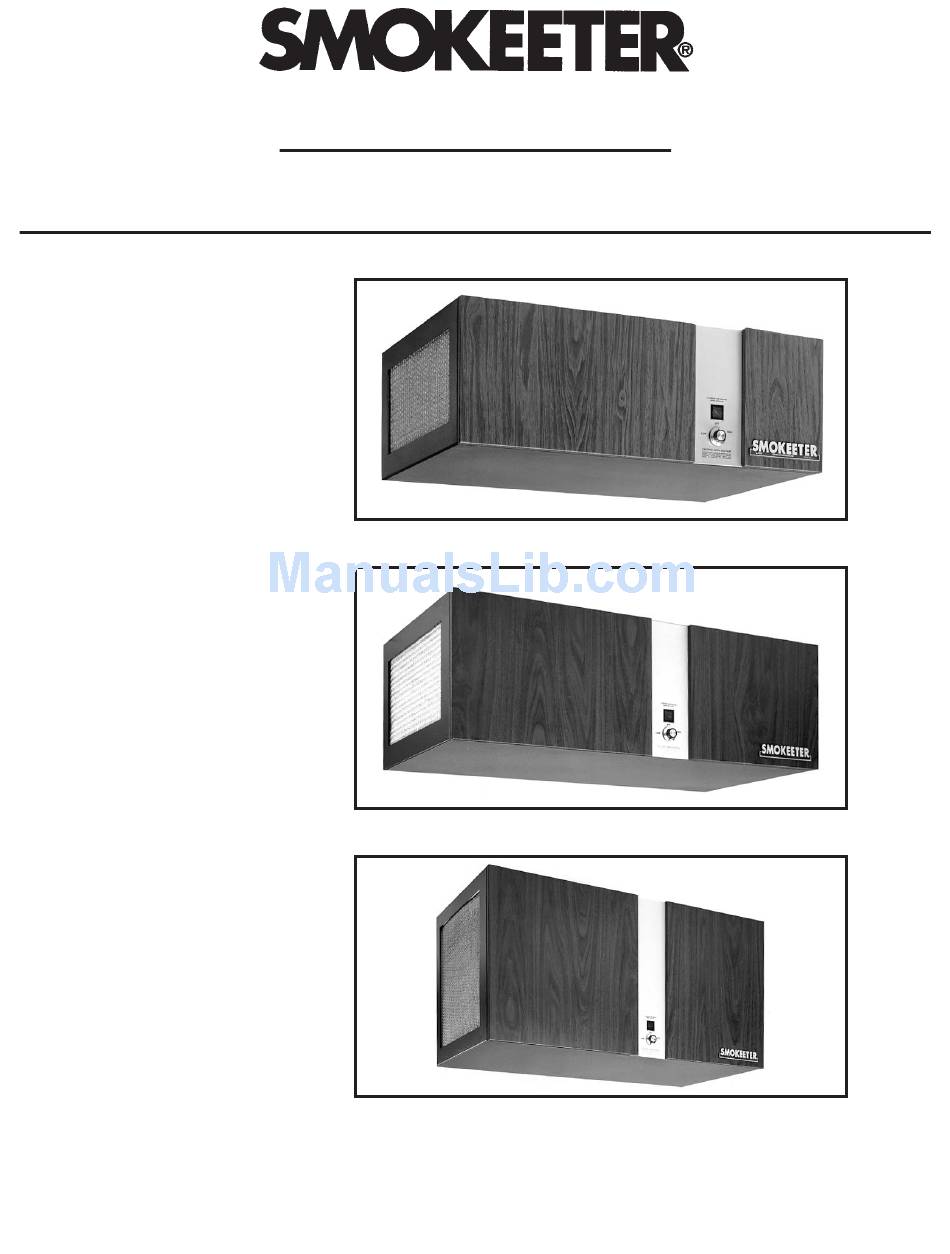

  • Page 1 ELECTRONIC AIR CLEANERS INSTALLATION AND OPERATION MANUAL MODEL SE 30 MODEL SE 40 MODEL SE 50...

  • Page 3: Specifications

    SPECIFICATIONS POWER REQUIREMENTS AIR HANDLING CAPACITY MODEL SE 30 115 VAC, 60 HZ Low - 150 to 420 CFM* 3.2 Amps (max.) WEIGHT POWER CONSUMPTION Hanging..75 lbs. (34 kg) 370 Watts (max.) Shipping..82 lbs. (37 kg)
  • Page 4 DIMENSIONS SE 30 ⁄ " 31" 51 cm 79 cm ⁄ " 28 cm SE 40 21" 40" 53 cm 102 cm ⁄ " 33 cm SE 50 ⁄ " 40" 102 cm 50 cm 20" 51 cm...

  • Page 5: Table Of Contents

    FOR TRAINED SERVICE PERSONNEL ONLY. VII. Periodic Maintenance and Troubleshooting VIII. Parts Ordering Illustrated Parts SE 30 SE 40 SE 50 Wiring Diagrams IMPORTANT NOTICE BEFORE OPERATION, PLEASE REMOVE ALL PACKING MATERIAL FROM INSIDE UNIT. THIS CAN INCLUDE MARKED TIE DOWN SCREWS, CARDBOARD, STYROFOAM AND PLASTIC WRAP ON CARBON FILTER.

  • Page 6: Introduction

    150 and 420 cubic feet of air per minute (CFM) SMOKEETER unit needs periodic maintenance. Properly on the SE 30 and 450 and 950 CFM on the SE 40. The cared for, it will operate at peak efficiency for many switch on the SE 50 allows you to adjust the airflow years to come.
  • Page 7 Use fasteners and anchoring devices screws in the bottom outside holes. Refer to Figure 2. to ensure support of the SMOKEETER. Place the unit on a lifting device. Position the lifting device under the wall mounting cleat. Raise the unit...

  • Page 8: Operation

    Threaded rod, wire or eyebolts and chain may be used For best results and to assure maximum air quality, your for hanging the unit. Four “knockouts,” located as SMOKEETER unit should be started before the air shown in Figure 4, must be removed. becomes contaminated. An indicator lamp indicates that high voltage to the components is on.
  • Page 9 The ionizer, collection cell/unicell and prefilter can be cleaned by soaking in a hot solution of SMOKEETER brand detergent for 30 to 60 minutes. If possible, agitate the solution to aid in dirt removal. If agitation is not possible, soaking time should be increased.

  • Page 10: Periodic Maintenance And Troubleshooting

    EXPOSE HAZARDOUS LIVE AND MOVING PARTS. 5,500 volts DC to the cell. DISCONNECT AIR CLEANER BEFORE PROCEEDING. TOOLS REQUIRED FOR TROUBLESHOOTING All SMOKEETER air cleaners are manufactured to give years of trouble-free performance. As with • Screwdriver — (common type) 8” or longer with any piece of equipment, however, breakdowns insulated handle.
  • Page 11 (follow #7 wire). • Output without the components should read 5 to 7 KV DC positive. SE 30 SE 40 FIGURE 7 (Contact point locations may vary) CHECKING LAMP TERMINAL OUTPUT (Refer to Figure 8) Disconnect unit indicator lamp (neon lamp).

  • Page 12: Parts Ordering

    CHECKING MOTOR CAPACITOR (SE 40 & SE 50) VIII. PARTS ORDERING (Refer to Figure 9) Replacement parts can be ordered from your local The motor capacitor located on the side of the blower is distributor or from UAS. For information on your local designed to start and run the motor when 115 VAC is distributor, call or write: supplied (refer to wiring diagrams, page 30).
  • Page 13 TROUBLESHOOTING TABLE* PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION A. Control switch on, 1. Defective lamp. 1. Replace lamp. indicator lamp off, 2. Faulty connection to lamp. 2. Check connection to lamp. blower operates. 3. Loss of high voltage. 3. Check power pack. 4.

  • Page 14: Illustrated Parts

    ILLUSTRATED PARTS...
  • Page 15 SE 30 FINAL ASSEMBLY 02-2620 ITEM PART DESCRIPTION QUANTITY 02-0090 IONIZER ASSEMBLY+ 02-0522 COLLECTION CELL+ 20-2922 CORD-IEC, 90 DEG. 02-2608 CENTER POST ASSEMBLY+ 02-2662 MOTOR/BLOWER ASSEMBLY+ 03-1076 WIRE KIT (HIGH VOLTAGE) 30-0496 LEVELER, FOOT 39-0120 KNOB-SWITCH 10-2571 HANGING BRACKET 10-2711...
  • Page 16 SE 30 IONIZER ASSEMBLY 02-0090 ITEM PART DESCRIPTION QUANTITY 10-0421 END PLATE 10-0367 CORNER CHANNEL 10-0368 SUPPORT 37-0004 INSULATOR, ” X 2 ” 36-0004 SPRING 02-6274 WIRE-IONIZER W/LOOPED END 10M 10-0420 PLATE 30-0030 LOCKNUT, 35-0061 30-0315 RIVET, SEMI-TUBULAR 30-0142 PAN HD. SCREW, #8-32 X ”...
  • Page 17 SE 30 COLLECTION CELL ASSEMBLY 02-0522 ITEM PART DESCRIPTION QUANTITY 10-0348 END PLATE 10-0158 CELL PLATE, HOT 10-0157 CELL PLATE, GROUND 35-0064 CORNER ANGLE 37-0008 INSULATOR 35-0072 ROD, THREADED 35-0067 SPACER-PLAIN 30-0030 LOCKNUT, 30-0316 RIVET, SEMI-TUBULAR 30-0283 WASHER, SPACER-CELL 10-0779...
  • Page 18 SE 30 CENTER POST ASSEMBLY 02-2608 ITEM PART DESCRIPTION QUANTITY 10-2708 CENTER POST 02-1326 SPEED CONTROL ASSEMBLY 20-0229 PILOT LIGHT 20-0560 INTERLOCK SWITCH 30-0164 RETAINER 30-0165 SCREW, WING HEAD 30-0301 SCREW, PAN HD, #6-32 X 1 ” L 30-0038 LOCKWASHER, #6 INT TOOTH...
  • Page 19 SE 30 MOTOR/BLOWER ASSEMBLY 02-2662 ITEM PART DESCRIPTION QUANTITY 20-0323 WIRE TERMINAL 22-0176 MOTOR, 115/1/50-60 30-0049 WASHER-FLAT, ” DIA. 30-0441 SHOULDER SCREW 30-0443 SCREW 32-0157 BLOWER WHEEL 32-0158 BLOWER HOUSING 32-0159 INLET FLANGE 32-0013 GROMMET...
  • Page 21 SE 40 FINAL ASSEMBLY 02-2724 ITEM PART DESCRIPTION QUANTITY 10-2820 MOTOR/BLOWER ACCESS DOOR (WG) 10-2821 COMPONENT ACCESS DOOR (WG) 02-2544 MOTOR/BLOWER ASSEMBLY + 02-1321 UNICELL ASSEMBLY + 02-2725 CENTER POST ASSEMBLY + 21-1218 POWER PACK (GREY PLASTIC CONSTRUCTION) 03-1078 WIRE KIT HV 03-0667 INSTALLATIONS PARTS KIT 33-0156...
  • Page 22 SE 40 UNICELL ASSEMBLY 02-1321...
  • Page 23 SE 40 UNICELL ASSEMBLY 02-1321 ITEM PART DESCRIPTION QUANTITY 35-0067 CELL SPACER 35-0175 CELL ROD 10-1373 AIR FOIL CORNER CHANNEL 02-1318 CELL ROD TO CONTACT WIRE ASSEMBLY 10-1375 IONIZER SUPPORT 36-0004 IONIZER SPRING 03-0393 IONIZER WIRE ASSEMBLY, SET OF 5 10-1374 AIR FOIL CORNER CHANNEL 37-0014...
  • Page 24 SE 40 MOTOR/BLOWER ASSEMBLY 02-2544 ITEM PART DESCRIPTION QUANTITY 32-0083 BLOWER — DIRECT DRIVE 02-1327 MOTOR 20-0569 CAPACITOR 20-1298 CAPACITOR STRAP 30-0335 SCREW — HEX HD #8-32 x ” SELF TAP 30-0077 SCREW — HEX HD ” x ” SELF TAP...
  • Page 25 SE 40 CENTER POST ASSEMBLY 02-2725 ITEM PART DESCRIPTION QUANTITY 10-2825 EXTRUSION, CENTER POST 02-1326 SWITCH — CONTROL VARIABLE SPEED 20-0229 LIGHT — PILOT, AMBER 20-0560 SWITCH — INTLK — DP NO 30-0164 RETAINER, SOUTHCO 30-0165 SCREW, WING HEAD 30-0301 SCREW —...
  • Page 27 SE 50 FINAL ASSEMBLY 02-2726 ITEM PART DESCRIPTION QUANTITY 18-0800 CABINET WELDMENT 10-2823 COMPONENT ACCESS DOOR 10-2822 BLOWER ACCESS DOOR 02-2576 MOTOR/BLOWER ASSEMBLY + 02-2727 CENTER POST ASSEMBLY + 33-0039 DISCHARGE GRILLE 21-1218 POWER PACK (GREY PLASTIC CONSTRUCTION) 33-0001 MESH FILTER 02-0089 IONIZER ASSEMBLY + 02-0086...
  • Page 28 SE 50 IONIZER ASSEMBLY/AIRFOIL IONIZER 02-0089 ITEM PART PART NO. DESCRIPTION QUANTITY 30-0030 -20 LOCK NUT 30-0049 ” FLAT WASHER 35-0027 10-0465 CORNER CHANNEL 37-0004 INSULATOR 10-0570 IONIZER WIRE SUPPORT RAILS 30-0142 #8-32 X ” PAN HEAD SCREW 30-0081 #8 FLAT WASHER 10-0420 IONIZER PLATE 02-6274...
  • Page 29 SE 50 CELL ASSEMBLY/CP COLLECTION CELL 02-0086 ITEM PART DESCRIPTION QUANTITY 30-0030 -20 LOCK NUT 37-0008 INSULATOR 10-0564 HANDLE 10-0559 COVER PLATE, HANDLE 10-0348 END PLATE 41-0330 WARNING LABEL 10-0157 HOT CELL PLATE 10-0158 GROUND CELL PLATE 35-0067 SPACER 35-0049 CORNER ANGLE 35-0045 CELL ROD...
  • Page 30 SE 50 CENTER/POST ASSEMBLY 02-2727 ITEM PART DESCRIPTION QUANTITY 10-2826 EXTRUSION, CENTER POST 02-1326 SWITCH — CONTROL VARIABLE SPEED 20-0229 LIGHT — PILOT, AMBER 20-0560 SWITCH — INTLK - DP NO 30-0164 RETAINER, SOUTHCO 30-0165 SCREW, WING HEAD 30-0301 SCREW — PAN HD. #6-32 x 1 ”...
  • Page 31 SE 50 MOTOR/BLOWER ASSEMBLY 02-2576 ITEM PART DESCRIPTION QUANTITY 32-0085 BLOWER — DIRECT DRIVE 10-10 02-1357 MOTOR 20-0569 CAPACITOR 42-0153 GASKET 1 ft. 20-1298 CAPACITOR MOUNTING BRACKET 20-0138 WIRE TIE 20-0290 CABLE TIE MOUNTING DEVICE 30-0233 BOLT, HEX HD -20 x 1” L 30-0335 DRILL SCREW #8-32 x ”...

  • Page 32: Wiring Diagrams

    WIRING DIAGRAM MODEL SE 30 41-2487 WIRING DIAGRAM MODEL SE 40 MODEL SE 50 41-2488...
  • Page 36 UNITED AIR SPECIALISTS, INC, LIMITED WARRANTY UAS warrants all equipment manufactured and sold by UAS against defective parts and workmanship for one year from date of shipment to Purchaser, except that commercial or nonindustrial air cleaners (other than engineered systems) are warranted for three years from such date.
