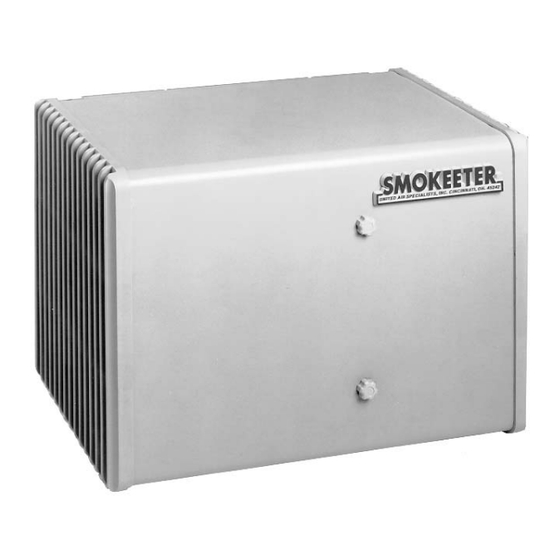

- Page 1 Electronic Air Cleaner MODEL SE 10 OWNER’S MANUAL To Place an Order Call ACS, Inc. @(800) 878-5030...
-
Page 2: Specifications
MODEL SE 10 SPECIFICATIONS POWER REQUIREMENTS AIR HANDLING CAPACITY 115 VAC, 60 Hz, 90 to 250 CFM .9 Amps Max. WEIGHT POWER CORD HANGING ....27 lbs (10 KG) 10' 16 ga. with molded SHIPPING....32 lbs (12 KG) grounded plug DIMENSIONS... -
Page 3: Table Of Contents
MODEL SE 10 TABLE OF CONTENTS SECTION PAGE Introduction Inspection of Equipment Ill. How Your SMOKEETER/CRYSTAL-AIRE Operates Installation Operation Cleaning THE FOLLOWING INFORMATION IS PROVIDED FOR TRAINED SERVICE PERSONNEL ONLY VII. Periodic Maintenance and Troubleshooting VIll. Replacement Parts Illustrated Parts... -
Page 4: Introduction
The motor features an automatic reset Road, Cincinnati, Ohio 45242, 1-800-252-4647. thermal protector. INSPECTION OF EQUIPMENT Upon receipt of your SMOKEETER/CRYSTAL- AIRE, check for any shipping damage. A damaged carton indicates that the equipment may have received rough handling during shipping that may have caused internal damage. -
Page 5: Installation
If you notice a decrease in cleaning efficiency, increase the fan speed to increase the unit’s effectiveness. FOR YOUR INFORMATION — Each SMOKEETER/ CRYSTAL-AIRE has been thoroughly tested prior to shipment from the factory. Even so, there may be some initial arcing of the components at start up. -
Page 6: Cleaning
1. The unicell can be cleaned by soaking in a hot solution of SMOKEETER/CRYSTAL-AIRE brand detergent for This section is defined for cleaning and periodic main- 30-60 minutes. If possible, agitate the solution to aid tenance. The internal components must be removed in dirt removal. -
Page 7: Periodic Maintenance And Troubleshooting
The following sections are for the use of trained service personnel only. WARNING — THE FOLLOWING PROCEDURES WILL EXPOSE HAZARDOUS LIVE AND MOVING PARTS. DIS- CONNECT AIR CLEANER BEFORE PROCEEDING. All SMOKEETER/CRYSTAL-AIRE air cleaners are manufactured give years trouble-free performance. As with any piece of equipment, however, breakdowns can occur. - Page 8 MEASURING UNICELL IONIZER VOLTAGE MEASURING UNICELL COLLECTOR VOLTAGE (See Figure 5) (See Figure 6) 1. Turn the unit off and remove the cabinet. This will 1. Connect the ground clip of the positive polarity disengage the safety interlock. probe to the base unit. 2.
-
Page 9: Replacement Parts
UNITED AIR SPECIALISTS, INC. 4440 CREEK ROAD CINCINNATI, OHIO 45242 1-800-551-5401 ATTN: SMOKEETER/CRYSTAL-AIRE CUSTOMER SERVICE The following information will be required for prompt service: 1. Unit Model No. on bottom of base unit at air mover end. -
Page 10: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION A. Control switch on, 1. Defective lamp. 1. Replace lamp. indicator lamp off, 2. Faulty connection to lamp. 2. Check connection to lamp. air mover operates. 3. Loss of high voltage. 3. Check power pack. B. -
Page 11: Illustrated Parts
IX. ILLUSTRATED PARTS... - Page 12 SE 10 REPLACEMENT PARTS ITEM NO. PART NO. DESCRIPTION QTY. CHOOSE 1 10-8878 WRAPPER, OYSTER 10-3048 WRAPPER, WOODGRAIN CHOOSE 1 33-0136 GRILLE, OYSTER 33-0146 GRILLE, BLACK CHOOSE 1 30-0589 KNOB, OYSTER 30-0588 KNOB, BLACK CHOOSE 1 41-1026 SMOKEETER LOGO, OYSTER...
-
Page 13: Unicell Assembly
SE 10 UNICELL ASSEMBLY 02-2723 ITEM PART DESCRIPTION QTY. 10-2780 END PLATE 10-0946 CELL PLATE, NARROW 10-0944 CELL PLATE, WIDE 10-2805 IONIZER GROUND PLATE 35-0072 CELL ROD 8-15/16" LG 35-0067 CELL SPACER 37-0008 CELL INSULATOR, DISK 30-0449 HEX NUT-1/4-20 10-2811... -
Page 14: Wiring Diagrams
WIRING DIAGRAMS SE 10 230 VAC, 2-Speed SE 10 120 VAC, Variable Speed... - Page 16 UNITED AIR SPECIALISTS, INC, LIMITED WARRANTY UAS warrants all equipment manufactured and sold by UAS against defective parts and workmanship for one year from date of shipment to Purchaser, except that commercial or nonindustrial air cleaners (other than engineered systems) are warranted for three years from such date.
