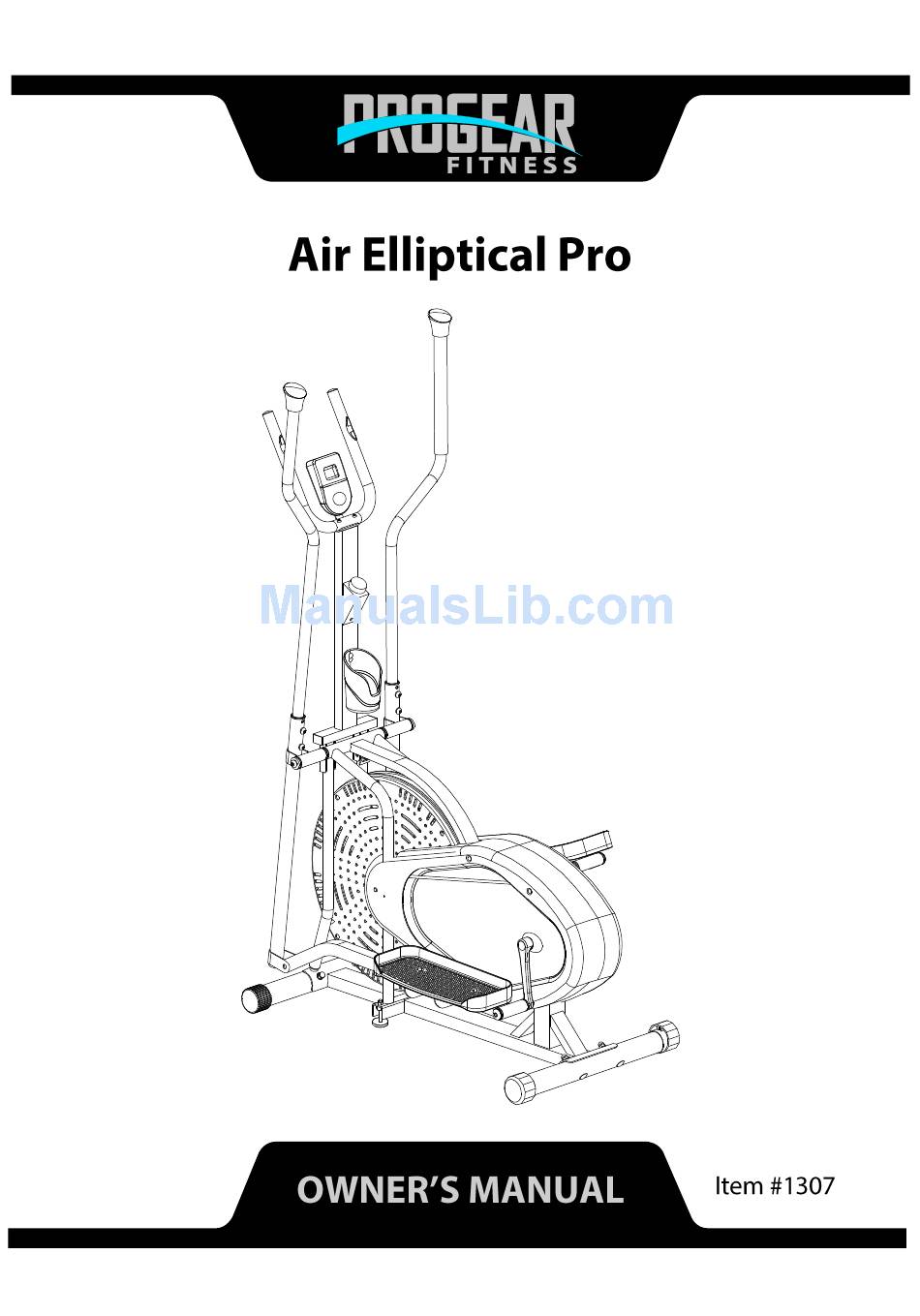

Progear Fitness Air elliptical pro 1307 Owner's Manual
  1. Manuals
  2. Brands
  3. Progear Fitness Manuals
  4. Elliptical Trainer
  5. Air elliptical pro 1307
  6. Owner's manual

Progear Fitness Air elliptical pro 1307 Owner's Manual

Hide thumbs Also See for Air elliptical pro 1307:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Air elliptical pro 1307 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Progear Fitness Air elliptical pro 1307

Summary of Contents for Progear Fitness Air elliptical pro 1307

  • Page 2: Table Of Contents

    SERVICE ------------------------------------------------------------------------- 2 IMPORTANT LABELS -------------------------------------------------------- 3 PRODUCT SAFETY ----------------------------------------------------------- 4 PART DRAWING --------------------------------------------------------------- 5 PART LIST ----------------------------------------------------------------------- 6 INCLUDED HARDWARE & TOOLS --------------------------------------- 8 ASSEMBLY ---------------------------------------------------------------------- 9 COMPUTER --------------------------------------------------------------------- 17 ADJUSTMENTS ---------------------------------------------------------------- 19 MAINTENANCE ---------------------------------------------------------------- 20 TROUBLE SHOOTING ------------------------------------------------------- 21 WARM UP ----------------------------------------------------------------------- 22 WARRANTY -------------------------------------------------------------------- 23 FAX FORM ---------------------------------------------------------------------- 24...

  • Page 3: Service

    IMPORTANT: FOR NORTH AMERICA ONLY To request product service and order replacement parts, please call our customer service department at: 1-866-924-1688 Monday through Friday, 8:00 AM-5:00 PM Pacific Standard Time, service@paradigmhw.com or email us at: Please visit our website at www.paradigmhw.com. Please have the following information ready when requesting for service: Your name Phone number...

  • Page 5: Product Safety

    Basic precautions should always be followed, including the following safety instructions when using this equipment: Read all instructions before using this equipment. 1. Read all the instructions in this manual and do warm up exercises before using this equipment. 2. Before exercise, in order to avoid injuring your muscles, warm-up exercise for every muscle group is highly recommended.

  • Page 7: Part List

    Description Qty No. Description 001 Handrail Arm End Cap Ø25 2 023 Bolt M8x43 002 Right Handrail Arm Ø25x2 1 024 Washer Ø8.2xØ16x1.5 Handrail Arm Foam Grip 2 025 Nylon Nut M8 Ø23xØ30x310 Handrail Arm Plastic Bushing 2 026 Right Crank 7" Ø32x1.5 005 Bolt 3/8"x20 2 027 Spring Washer 1/2"...
  • Page 8 Description Qty No. Description 046 Tension Bracket 2 072 Bearing Nut I 7/8" 047 Spring Washer Ø6 2 073 Washer 7/8" 048 Nut M6 2 074 Nut 7/8" 049 Fan Wheel Ø510x56.5 1 075 Left Crank 7" 050 Fan Wheel Axle M10x154 1 076 Left Foot Bar 051 Spacer Ø14xØ10.2x19 1 077 Left Handrail...
  • Page 10 Tool: Multi Hex Tool 13#, 17#, 19# 1. Front and Rear Stabilizers Installation Position the Front Stabilizer (54) in front of Main Frame (59) and align bolt holes. Attach the Front Stabilizer (54) onto the front curve of the Main Frame (59) with two M10x60 Bolts (52), two Ø10.5xØ20x2 Curve Washers (55), and two M10 Cap Nuts (56).
  • Page 11 Tool: Allen Wrench 6# Allen Wrench with Phillips Screwdriver 6# Multi Hex Tool 13#, 17#, 19# Allen Wrench 8# 2. Left/Right Handrails and Left/Right Foot Bars Installation Remove two M10x55 Bolts (11), two Ø10.5xØ20x2 Washers (13), and two M10 Nylon Nuts (14) from both Right and Left Foot Bars (17, 76).

  • Page 12: Assembly

    Place the Ø15.8x373 Rotation Rod (60) into the hole on the Main Frame (59). Slide the Right/Left Handrails (9, 77) onto the Ø15.8x373 Rotation Rod (60) and secure in place with two 3/8"x20 Bolts (5), two 3/8" Spring Washers (6), and two Ø28x4.5 Washers (7) that were removed.
  • Page 13 Hardware: (21) Right Bolt for Right Crank Ø16x119 1 PC (22) Wave Washer Ø16.2xØ26xδ0.3 2 PCS (27) 1/2" Spring Washer 2 PCS (28) 1/2” Nylon Nut for Right Crank 1 PC (64) Left Bolt for Left Crank Ø16x119 1 PC (87) 1/2”...
  • Page 14 Tool: Allen Wrench with Phillips Screwdriver 6# 3. Hand Pulse Handlebar Support Frame, Tension Control Knob, Bottle Holder, and Hand Pulse Handlebar Installation Attach the Hand Pulse Handlebar Support Frame (41) onto the Main Frame (59) with four M8x35 Bolts (36). Tighten bolts with the 6# Allen Wrench with Phillips Screwdriver provided.
  • Page 15 Pulse Handlebar Support Frame (41) and align bolt hole. Then attach the Tension Control Knob (37) onto the Hand Pulse Handlebar Support Frame (41) with one M5x15 Bolt (38), see Figure D. Tighten bolt with the 6# Allen Wrench with Phillips Screwdriver provided.
  • Page 16 Tool: Multi Hex Tool 13#, 17#, 19# Allen Wrench 6# 4. Right and Left Foot Pedals Installation Attach two Foot Pedal Support Brackets (18) onto both Right/Left Foot Bars (17, 76) with four M8x43 Bolts (23), four Ø8.2xØ16x1.5 Washers (24), and four M8 Nylon Nuts (25).
  • Page 17 Tool: Allen Wrench 6# 5. Right/Left Handrail Arms and Computer Installation Insert the Right Handrail Arm (2) into the handrail arm plastic bushing on the tube of the Right Handrail (9) and secure with two M8x35 Bolts (36) and Ø8 Spring Washers (80).

  • Page 18: Computer

    SPECIFICATIONS: TIME ---------------------------------------------- 00:00-99:59 MIN: SEC SPEED ------------------------------------------- 0.0-99.9 MPH DISTANCE -------------------------------------- 0.00-99.99 MILE CALORIES -------------------------------------- 0-9999 CAL PULSE ------------------------------------------- 40-240 BPM USING YOUR COMPUTER The computer can be activated by pressing the MODE button or by pedaling. If you leave the equipment for 4 minutes, the power will shut off automatically. BUTTON FUNCTIONS: Press the MODE button to select each function of the computer.
  • Page 19 HOW TO INSTALL THE BATTERIES: Remove the battery cover on the back of the computer. Place two "SIZE-AA" batteries into the battery housing. Insure batteries are correctly positioned and battery springs are proper contact with batteries. Re-install the battery cover. If the display is illegible or only partial segment appear, remove batteries and wait 15 seconds before reinstalling.

  • Page 20: Adjustments

    Adjusting the Tension Control Knob To increase the tension, turn the tension control knob in a clockwise direction. To decrease the tension, turn the tension control knob in a counterclockwise direction. Tension Control Knob After prolong use of the elliptical trainer, the strap will begin to stretch out and it will become necessary to tighten the strap for optimum performance.

  • Page 21: Maintenance

    Adjusting the Rear Stabilizer End Cap or Adjustable Leveler Turn the rear stabilizer end cap on the rear stabilizer or adjustable leveler on the main frame as Adjustable Leveler needed to level the elliptical trainer. Rear Stabilizer End Cap MAINTENANCE Cleaning The elliptical trainer can be cleaned with a soft cloth and any mild detergent.

  • Page 22: Trouble Shooting

    PROBLEM SOLUTION 1. Remove the Computer (29) and verify the wires that come from the Computer (29) are properly connected to the wires that come from the Hand Pulse Handlebar (33) and There is no display on the computer Hand Pulse Handlebar Support Frame (41). console.

  • Page 23: Warm Up

    Quadriceps Stretch With one hand against a wall for balance, reach behind you and pull your right foot up. Bring your heel as close to your buttocks as possible. Hold for 15 counts and repeat with left foot up. Inner Thigh Stretch Sit with the soles of your feet together with your knees pointing outward.

  • Page 24: Warranty

    Paradigm Health & Wellness, Inc. warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in according to Paradigm Health & Wellness, Inc.’s Owner’s Manual. Paradigm Health &...

  • Page 25: Fax Form

    Paradigm Health & Wellness, Inc. PARTS REQUEST FAX FORM Please fax this form to (1-626-810-2166) OR YOU CAN EMAIL CUSTOMER SERVICE REQUESTS TO service@paradigmhw.com NAME: _______________________________________________________ ADDRESS: ____________________________________________________ CITY ______________ STATE ______________ ZIP ___________________ TELEPHONE: (Day) _____________________________________________ (Night) ____________________________________________ (Email Address) ____________________________________ SERIAL#: __________________________________________ MODEL#: __________________________________________ PURCHASE DATE: ______________________________________________...
