Element ELE8084 Installation Manual

Hdmi extender

Advertisement

Quick Links

EXTENDER
HDMI
TM
ELE8084
INSTALLATION Manual
Made in Taiwan

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELE8084 and is the answer not in the manual?

Questions and answers

Summary of Contents for Element ELE8084

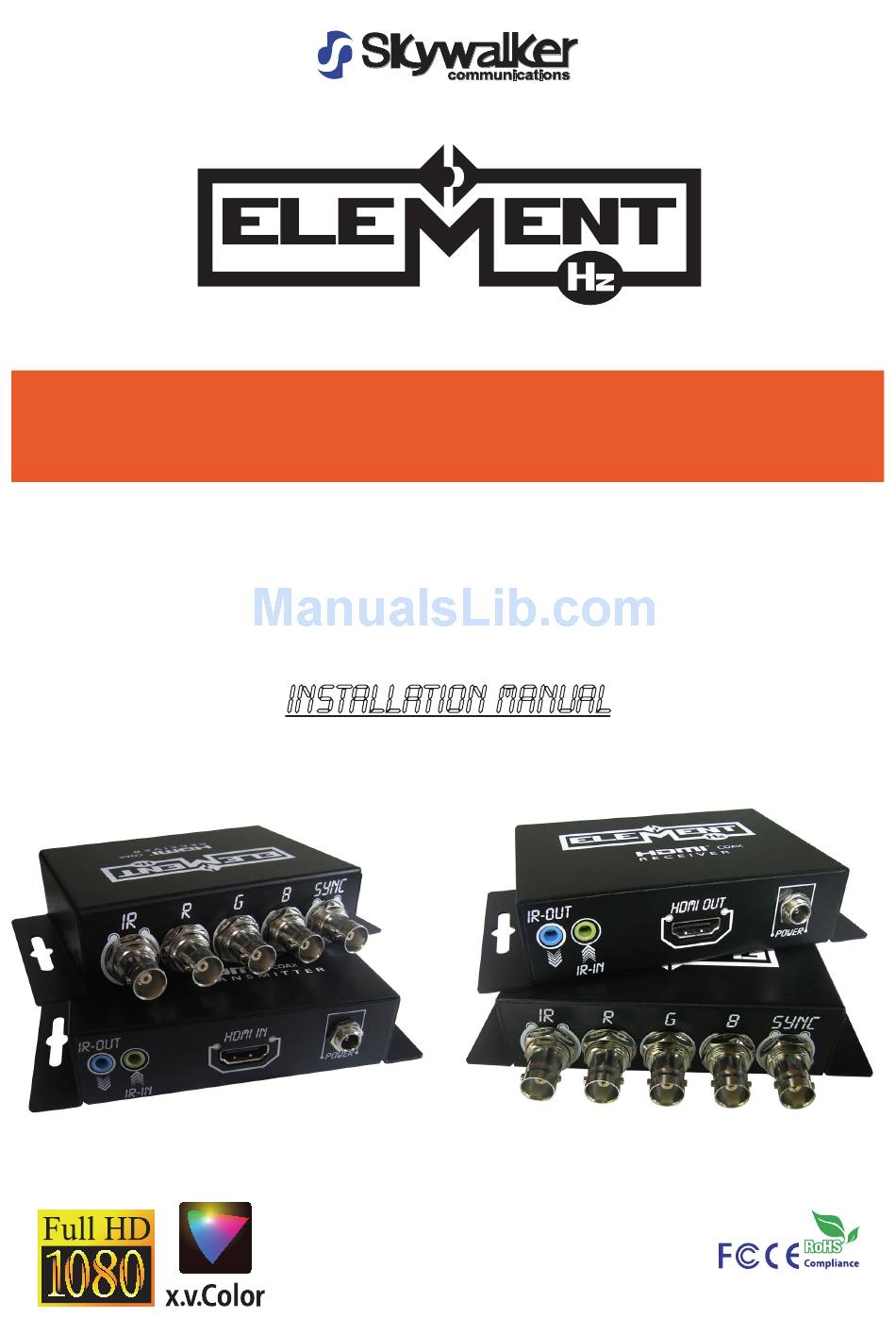

  • Page 1 EXTENDER HDMI ELE8084 INSTALLATION Manual Made in Taiwan...
  • Page 2: Safety And Notice

    However, like all electronic equipments, the ELE8084 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
  • Page 3: Package Contents

    EXTENDER allows user to extend HDMI transmission range up to 330ft (100m) with resolutions as high as 1080p 50/60Hz and also supports 3D. ELE8084 is extremely easy to install and works perfectly with existing RGBHV or RG-6 coaxial cables, even original Component + Audio cables will work, which makes it perfect to retrofit those extenders to the current technology.
  • Page 4: Specifications

    Specifications  Technical Transmitter Receiver Technical 3D Support HDMI compliance HDMI 1.4a (3D) HDCP compliance Video bandwidth Single-link 340MHz (10.2Gbps) Video support 480i / 480p / 720p / 1080i / 1080p60 / 1920x1200@75 / 2560x1600@60 HDMI over Coax Full HD [1080p 24-bit color] @ 330ft (100m) transmission range Deep Color Full HD [1080p 36-bit color] –...
  • Page 5: Input/Output Panels

    INPUT/OUTPUT PANELS Transmitting unit (TX)  Input Panel IR-OUT: 3.5mm socket for plugging in the extension cable of IR blaster IR-IN: 3.5mm socket for plugging in the extension cable of IR receiver HDMI IN: connect to a HDMI source device with a HDMI male-male cable connect to 5V DC power supply unit power:...
  • Page 6 Receiving unit (RX)  input Panel output Panel 3.5mm socket for plugging in the extension cable of IR blaster IR-OUT: IR-IN: 3.5mm socket for plugging in the extension cable of IR receiver HDMI OUT: connect to a HDMI display with a HDMI male-male cable power: connect to 5V DC power supply unit...
  • Page 7: Ir Pass-Through

    IR PASS-THROUGH IR Extenders  IR Blaster IR Receiver IR Sockets  plug in the IR blaster to emit all IR command signals received from the IR receiver IR-OUT: from the other enf to control the devices corresponding to the IR signals. IR-IN: plug in the IR receiver to receive all IR command signals from the IR remote controls of the corresponding devices.
  • Page 8: Supported Ir Data Format

    Supported IR Data Format  Data Format Suitable Not Recommended   TOSHIBA MICOM CODE  GRUNDIG CODE  SONY 12 BIT CODE  SONY 15 BIT CODE  SONY 20 BIT CODE  RCA CODE  RCM CODE  MATSUSHITA CODE ...
  • Page 9 HDMI PIN DEFINITION Type A (Receptacle) HDMI Pin 1 — TMDS Data2+ Pin 8 — TMDS Data0 Shield Pin 15 — SCL Pin 2 — TMDS Data2 Shield Pin 9 — TMDS Data0– Pin 16 — SDA Pin 3 — TMDS Data2– Pin 10 —...
  • Page 10 NOTICE 1. Incorrect placement of IR Blaster and Receiver may result in the failure of the IR extenders. Please check carefully before plugging in the IR extender to the respective IR sockets. Warranty will not cover the damage. 2. All HDMI transmission distances are measured using Belden 7789A coaxial cables and ASTRODESIGN Video Signal Generator VG-859C &...
  • Page 11 Designed & Manufactured by Headquarters: 9390 Veterans Memorial Parkway, O’Fallon, MO 63366  (800) 844 – 9555 / (636) 272 – 8025 (636) 272 – 8214   retailsupport@skywalker.com Branch Office: 4168 North Pecos Rd, Ste 103, Las Vegas, NV 89115 ...
