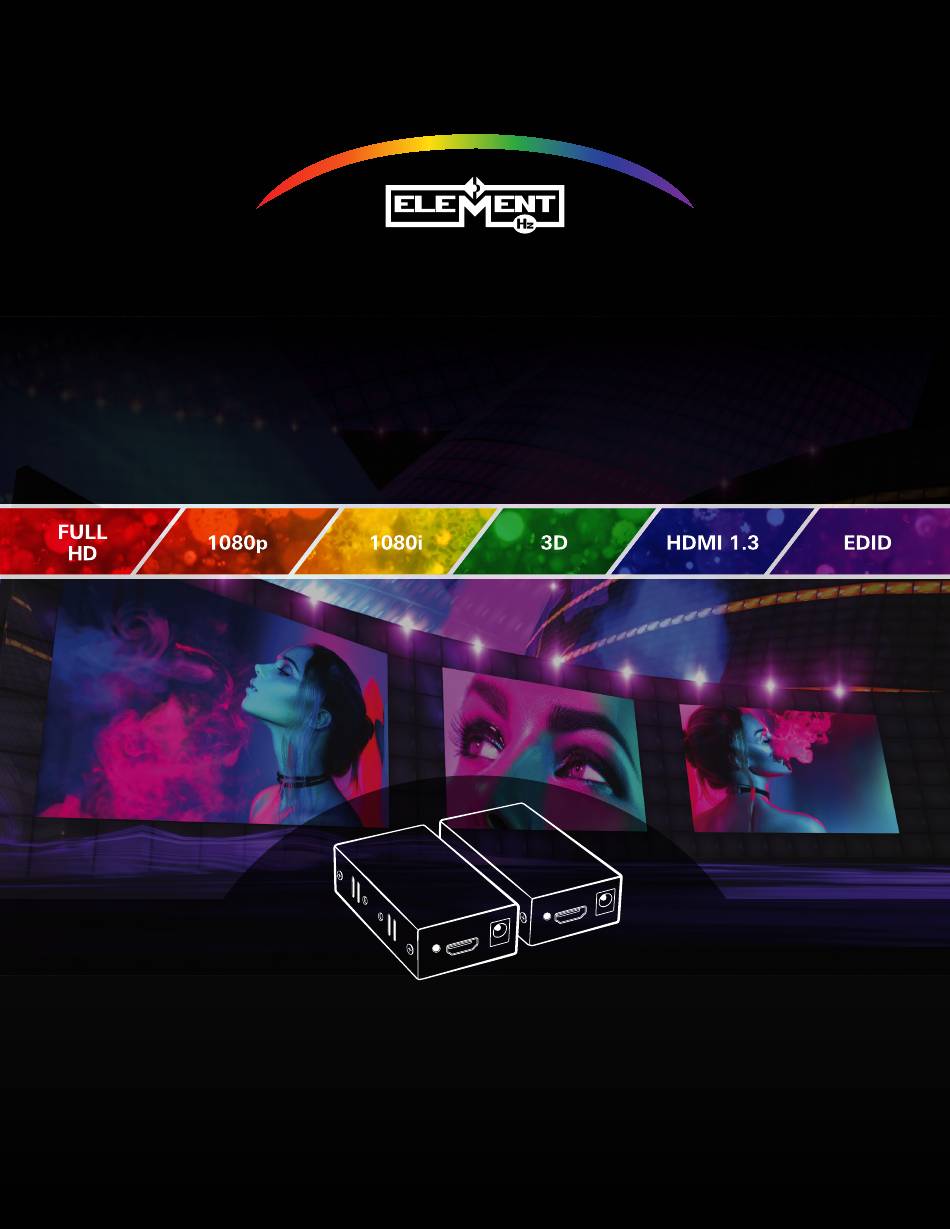

- Page 1 Bringing Colors To Life! HDMI Extender Over Single CAT5e/6 Cable Up To 40M ELE8024 USER MANUAL...
- Page 2 1 Introduction The ELE8024 HDMI Extender transmits over one Cat5e/6 cable to extend your HDTV display up to 40m at 1080p. Reduce the costs of extending HDMI signals over long distances. This provides an easy and a ordable cabling solution for integrating home theater components.
- Page 3 page 2 Cable Use High Quality Cat5e UTP or Cat6 UTP Cable (Terminated T568-B Format). Cat6 Is Recommended For Distances Over 30m. Distance May Vary Based On Di erent HDMI Equipment & Cable Quality. External EDID Setup 1. Press EDID button & unplug HDMI cable. 2.
- Page 4 page 3 Specification Video Bandwidth 2.25 GHz (HDMI 1.3) Resolution 1080p, 1080i, 720p, 576p, 480p, 576i, 480i Transmission Distance 65m @ 1080i / 40m @ 1080p Input TMDS Signal 0.5-1.0 Volts Peak to Peak Input DDC Signal 5 Volts Peak to Peak HDMI Connectors 19-pin HDMI Type Female Connector Cat5e/6 Connector...
