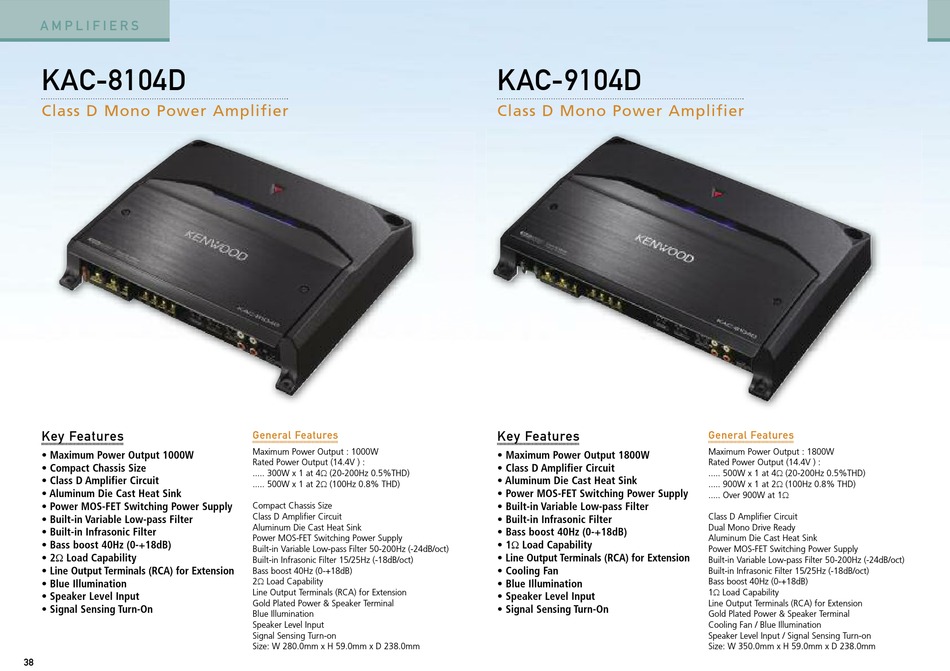

A M P L I F I E R S

KAC-8104D

Class D Mono Power Amplifier

Key Features
• Maximum Power Output 1000W
• Compact Chassis Size
• Class D Amplifier Circuit
• Aluminum Die Cast Heat Sink
• Power MOS-FET Switching Power Supply
• Built-in Variable Low-pass Filter
• Built-in Infrasonic Filter
• Bass boost 40Hz (0-+18dB)
• 2W Load Capability
• Line Output Terminals (RCA) for Extension
• Blue Illumination
• Speaker Level Input
• Signal Sensing Turn-On
38
General Features
Maximum Power Output : 1000W
Rated Power Output (14.4V ) :
..... 300W x 1 at 4W (20-200Hz 0.5%THD)
..... 500W x 1 at 2W (100Hz 0.8% THD)
Compact Chassis Size
Class D Amplifier Circuit
Aluminum Die Cast Heat Sink
Power MOS-FET Switching Power Supply
Built-in Variable Low-pass Filter 50-200Hz (-24dB/oct)
Built-in Infrasonic Filter 15/25Hz (-18dB/oct)
Bass boost 40Hz (0-+18dB)
2W Load Capability
Line Output Terminals (RCA) for Extension
Gold Plated Power & Speaker Terminal
Blue Illumination
Speaker Level Input
Signal Sensing Turn-on
Size: W 280.0mm x H 59.0mm x D 238.0mm

KAC-9104D

Class D Mono Power Amplifier
Key Features
• Maximum Power Output 1800W
• Class D Amplifier Circuit
• Aluminum Die Cast Heat Sink
• Power MOS-FET Switching Power Supply
• Built-in Variable Low-pass Filter
• Built-in Infrasonic Filter
• Bass boost 40Hz (0-+18dB)
• 1W Load Capability
• Line Output Terminals (RCA) for Extension
• Cooling Fan
• Blue Illumination
• Speaker Level Input
• Signal Sensing Turn-On
General Features
Maximum Power Output : 1800W
Rated Power Output (14.4V ) :
..... 500W x 1 at 4W (20-200Hz 0.5%THD)
..... 900W x 1 at 2W (100Hz 0.8% THD)
..... Over 900W at 1W
Class D Amplifier Circuit
Dual Mono Drive Ready
Aluminum Die Cast Heat Sink
Power MOS-FET Switching Power Supply
Built-in Variable Low-pass Filter 50-200Hz (-24dB/oct)
Built-in Infrasonic Filter 15/25Hz (-18dB/oct)
Bass boost 40Hz (0-+18dB)
1W Load Capability
Line Output Terminals (RCA) for Extension
Gold Plated Power & Speaker Terminal
Cooling Fan / Blue Illumination
Speaker Level Input / Signal Sensing Turn-on
Size: W 350.0mm x H 59.0mm x D 238.0mm
