Cobra CDR 830 Product Manual

CDR 830
Product Manual
NOTE: This device complies with part 15 of FCC rules: Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) This device must
accept any interference received including interference that may cause undesired operation.
CAUTION: Modifications or parts not approved by Cobra Electronics Corporation may violate
FCC Rules and void authority to operate this equipment.
This device complies with RSS-310 of Industry Canada. Operation is subject to the
condition that this device does not cause harmful interference.
Thank you for purchasing Drive HD by Cobra.
The CDR 830 is a 1080P HD Digital Video Recorder and
Dash Cam designed to protect your vehicle and give you
peace of mind.

Package Contents Include:

• CDR 830 Dash Cam (not shown)
• Product Manual
• Heavy Duty Suction Cup Mount
with GPS Antenna
• 8GB Micro SD Card
• Cigarette Lighter Adapter
• USB Cable
Please take a moment to read through
this product manual to fully understand
how to properly mount and operate
your CDR 830.

CDR 830 Functions

8
2 1
9
3
10
11
16
12 13
1. Camera Lens 9. Micro SD Slot
2. Microphone 10. Record/Enter Button
3. LCD Display 11. GPS Input Port
4. Menu Button 12. HDMI Interface
5. Up/Fast Forward/Zoom In/ 13. Mounting Bracket Slot
Toggle Microphone Button
14. Reset Button
6. Down/Rewind/Zoom Out/
15. USB Interface
Lock File Button
16. Power Indicator
7. Mode/Screen On/Off Button
8. Power/Toggle IR LEDs
Button

Mounting the CDR 830

4
5
6
7
14

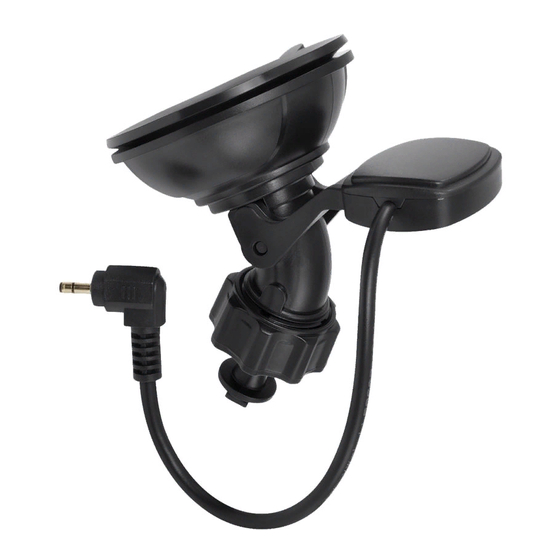

Suction Cup Bracket
The CDR 830 should be mounted to the windshield using
15
the included Suction Cup Mount. Make sure to line the
unit up so that it has a clear view of the road and the sky.
The unit's GPS engine is housed within the suction cup
mount. Make sure to insert the barrel plug coming from
the mount into the GPS input port at the top of the dash
cam in order to record GPS location.
When the unit detects that the GPS is connected a white
icon will appear on the screen. When it has achieved
GPS Lock the icon will turn green
GPS Connected
.
