Alpine KTX-TCMS-5 Installation Kit

Perfect fit 2012-up toyota tacoma (excluding models with jbl)

Download this manual

Perfect Fit 2012-up Toyota Tacoma (Excluding

models with JBL)

KTX-TCM8-S

Caution! Disconnect your vehicle's negative battery terminal before the installation to

help prevent electrical damage. We recommend the use of a digital multimeter to check

vehicle wiring. Do not use a test light! A test light or grounded wire probe can cause

damage to the vehicle's computer and/or diagnostic systems. Avoid all factory airbag

wiring. Airbags can accidentally deploy causing serious injury or even death.

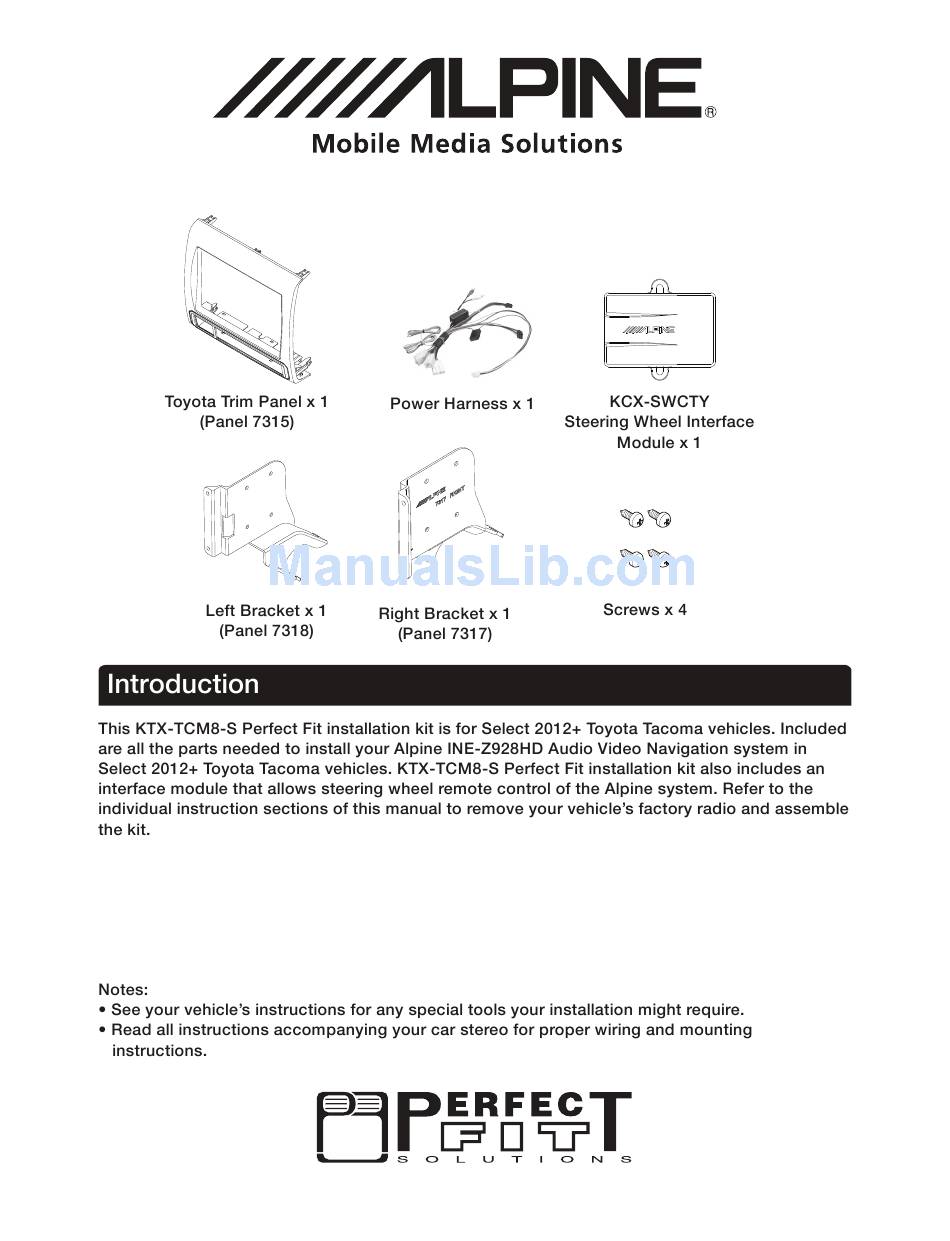

Page 1 Perfect Fit 2012-up Toyota Tacoma (Excluding models with JBL) KTX-TCM8-S Caution! Disconnect your vehicle’s negative battery terminal before the installation to help prevent electrical damage. We recommend the use of a digital multimeter to check vehicle wiring. Do not use a test light! A test light or grounded wire probe can cause damage to the vehicle’s computer and/or diagnostic systems.
Page 3 assembly into dash and mount using the Factory into place Steering Wheel Control Operation (when vehicle is equipped) MODE...
Page 4 Yellow/Black Foot Brake (+) at Blue/White turn on Reverse Trigger Orange/White back up camera (+) light Liability Disclaimer is not responsible for damage that may occur to you or your automobile during the installation ALPINE ELECTRONICS OF AMERICA, INC.,...
