INSTALLATION INSTRUCTIONS FOR INSTALLING A HEAT KIT
FOR USE wITH wINSLOw™ PI40 PELLET FIREPLACE INSERT
KIT CONTENTS (See Figure 1)
Please ensure that all these parts are in one of the two boxes.
1 ea. 2" Lower Trim Piece - Item A.
1 ea. 1" Insulation board - Item B.
2 ea. 1/2" x 10-24" Screws - Item C.
1 ea. Instruction Sheet
Pellet Heat Kit
Cat. No.
Model
79024
PI40-HK
Notes
•
This kit can be used in conjunction with a Zero Clearance Kit (Cat.
No. 79025).
• The heat kit also requires the use of the surround panels and trim piec-
es listed below (sold separately).
Pellet Heat Surround and Trim Kits (sold separately)
79026
PI40-HK30411
79027
PI40-HK3048F
79028
PI40-HK3441F41
79029
PI40-HK3448F
75251
GFHKET-B
75062
GFHKET-G
75063
GFHKET-N

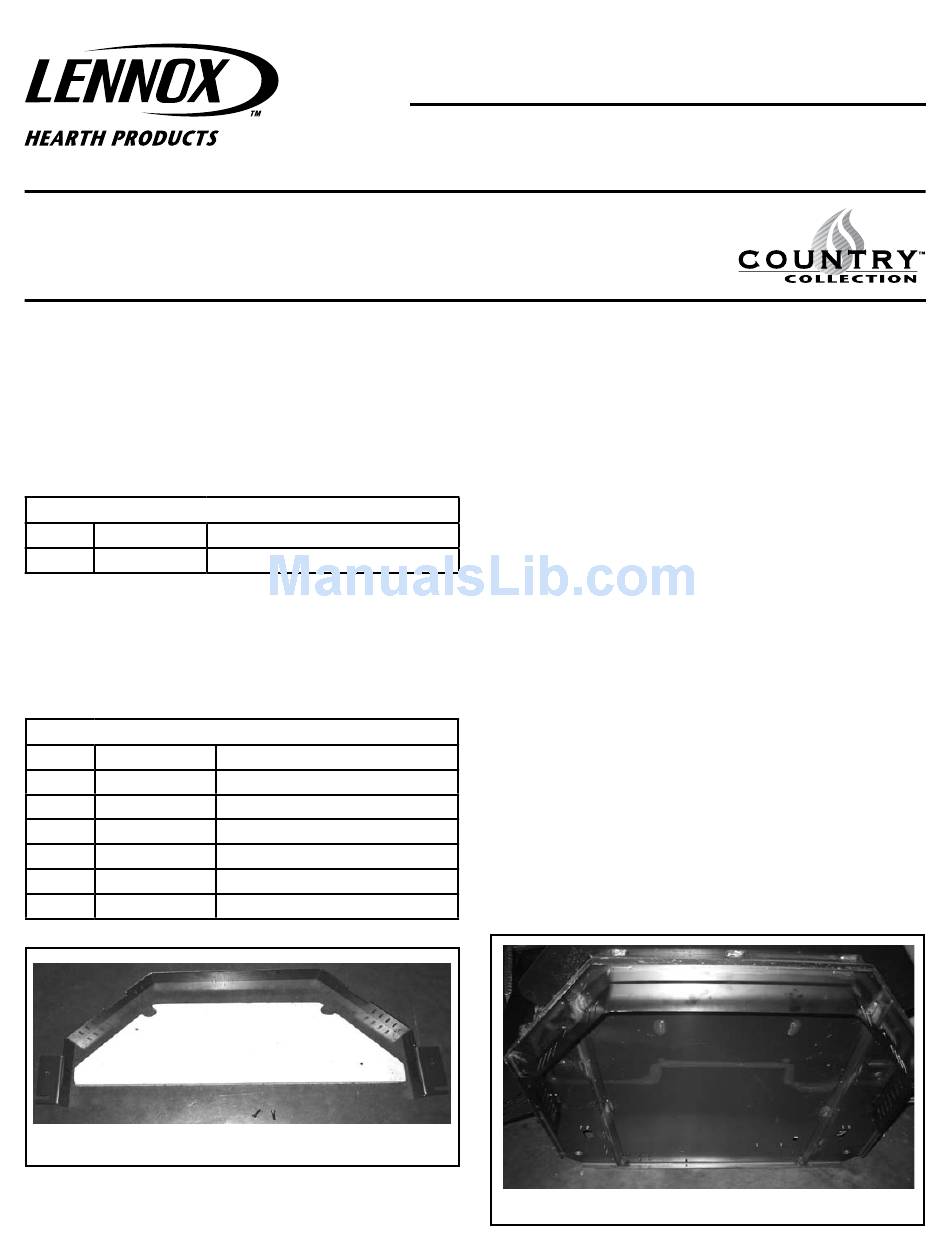

Figure 1 - Pellet Heat Kit
Description
Pellet Heat Kit
30-5/8" Ht. x 41" wd. Surround Panels
30-5/8" Ht. x 48" wd. Surround Panels
34-5/8" Ht. x 41" wd. Surround Panels
34-5/8" Ht. x 48" wd. Surround Panels
Extended Side Trim Kit, Black
(775208M)
Extended Side Trim Kit, Gold
(775208M)
Extended Side Trim Kit, Nickel
(775208M)
A
B
C
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
P/N 506033-01
Rev. A, 02/2009
TOOLS NEEDED:
5/32" Allen Wrench Or T-Handle Wrench
GENERAL INFORMATION
IMPORTANT, IF ANYTHING OTHER THAN A MASONRY HEARTH IS
USED wITH THE wINSLOw FIREPLACE INSERT, YOU MUST USE THIS
HEAT KIT.
If you encounter any problems, need clarification of these instructions
or are not qualified to properly install this kit, contact you local distribu-
tor or dealer.
Read this instruction sheet in its entirety before beginning the installa-
tion.
ALL wARNINGS AND PRECAUTIONS IN THE INSTALLATION AND
OPERATION MANUAL PROVIDED wITH THE APPLIANCE APPLY TO
THESE INSTRUCTIONS.
TURN OFF THE FIREPLACE INSERT AND ALLOw IT TO COMPLETELY
COOL BEFORE PROCEEDING.
INSTALLATION INSTRUCTIONS
Step 1. Install the 2" lower trim piece - Fasten the 2" trim piece under-
neath the base of the front of the insert as follows; use a 5/32"
allen wrench or T-handle wrench to secure the 2 screws (Item C)
provided, one at the left side and one at the right side base of the
insert. Note: This process will be simplified by very cautiously
tilting the insert back (see Figure 3).
Figure 2
HEARTH PRODUCTS
KITS AND ACCESSORIES
PI40 HEAT KIT
Lower Trim
Bottom of
Insert
