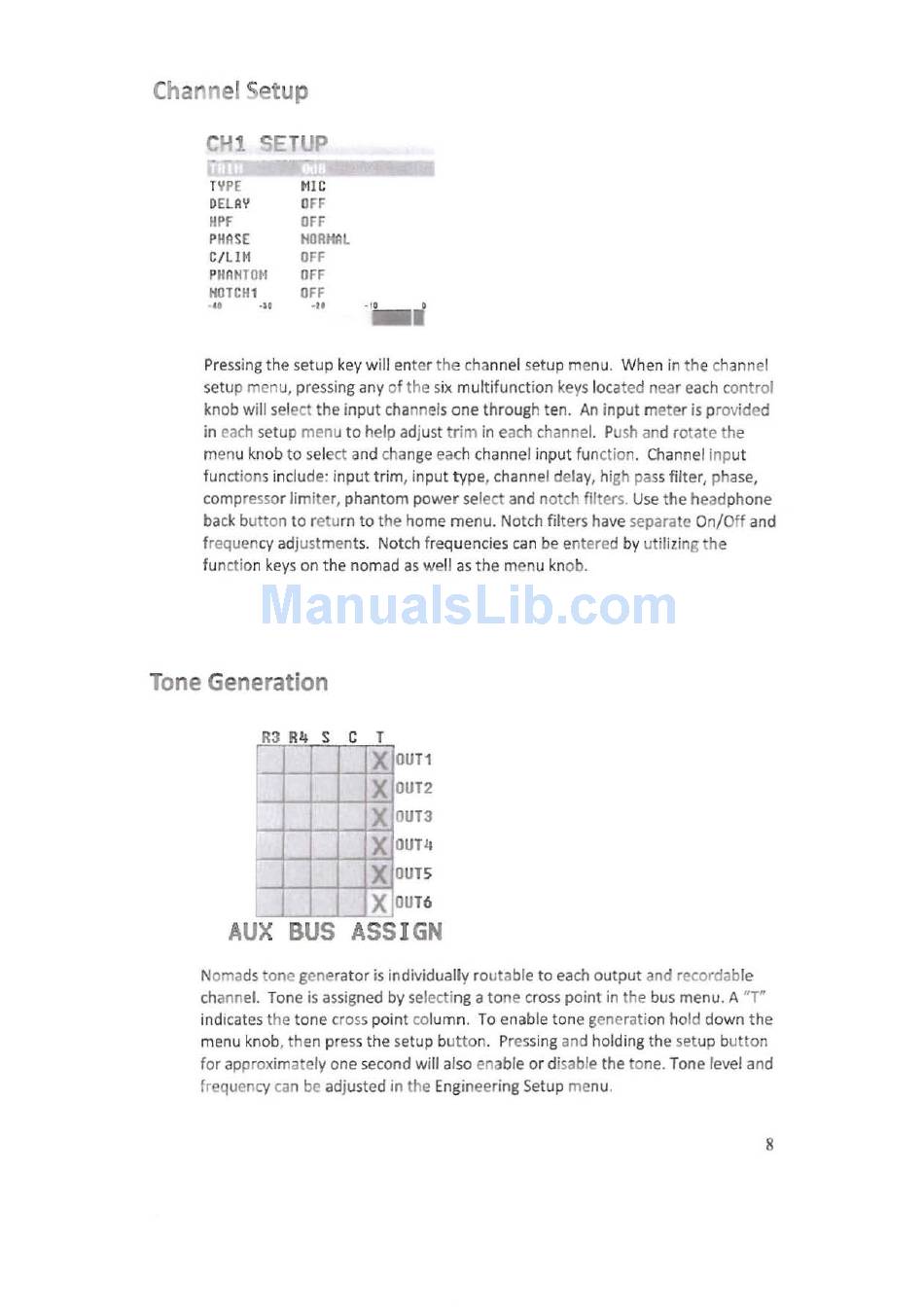

Channel Setup
CHI SETUP
TYPE
Mle
DELAY
OFF
HPF OFF
PH ASE NORMAL
[ t LIM
OFF
PHANTOM OFF
HOTCH1
OFF
••
.,.
.,.
·' . . i
Pressing the setup key will enter the cha nnel setup menu. When in the channel
setup menu, pressing any ofthe six multifunction keys located near each control
knob will select the input channels one th rough ten . An input meter is provided
in each setup menu to help adjust trim in each channel. Push and rotate the
menu knob to select and cha nge each channel input fun ction . Channel input
functions include: input trim, input type, channel delay, high pass filtef, phase,
compressor lim ite r, phantom power select and notch filters. Use the head phone
back button to return to th e home menu. Notch filters have separate On/Off and
frequency adjustments. Notch freq ue ncies can be entered by utilizing the
fun ction keys on the nomad as well as the menu knob.
Tone Generation
R3 R4 s e T
x
X
0
X
0
X
0
X
0
oUT1
UT2
UT3
UT4
UT5
UT6
XO
AUX BUS ASSIGN
Noma ds tone generator is ind ividually ro uta ble to each output and recordable
channel. Tone is assigned by selecting a tone cross point in the bus menu. A
''1''
indicates the tone cross point column. To enable tone generati on hold down the
menu knob, the n press the setup button. Pressing and holding the setup button
for approximately one second
will
also ena ble or disable the tone. Tone level and
frequency ca n be adjusted in the Engineering Setup menu.
8
