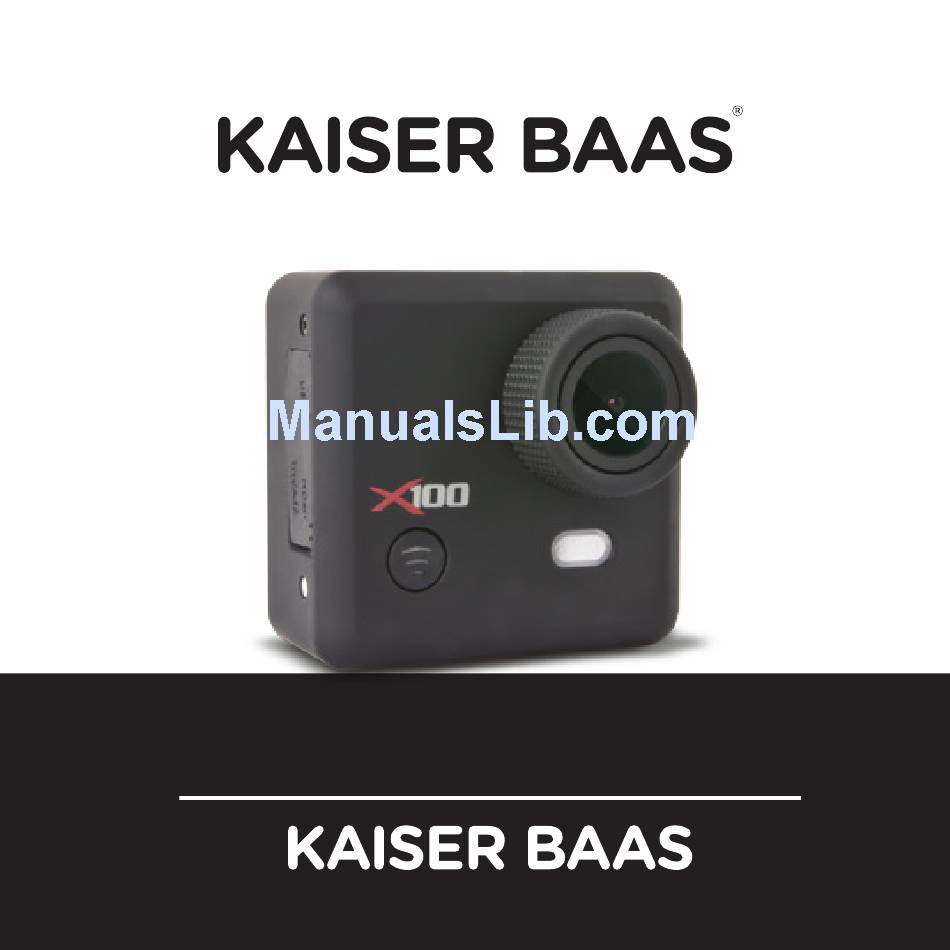

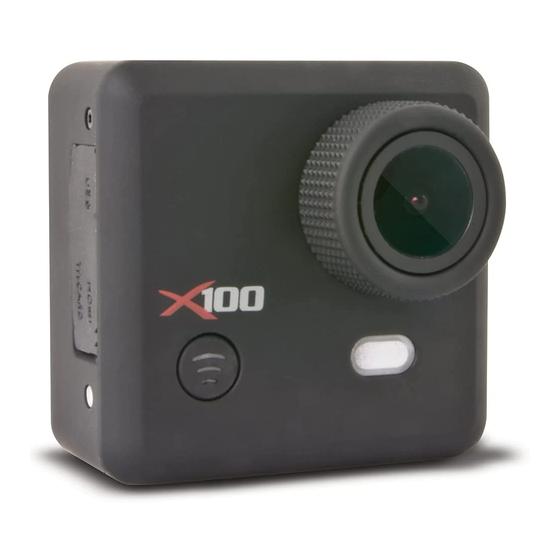

  • Page 1 X100 | Action Camera...
  • Page 2 /kaiserbaas Share your footage with us on our social media Register this product for 12 month warranty and updates. www.kaiserbaas.com/updates Need help? www.kaiserbaas.com/support For the full Kaiser Baas accesories range visit www.kaiserbaas.com...

  • Page 3: Table Of Contents

    Table of Contents Contents Table of Contents Safety Precautions What’s in the Box Product Diagram Remote Diagram Setup Your X100 Camera Video Mode Video Settings General Settings...
  • Page 4 Picture Mode Using Your X100 Camera Playback Mode Wi-Fi Setup Saving And Viewing Options Installing X100 Camera into waterproof case Specifications System Requirements Contact Us...

  • Page 5: Safety Precautions

    Kaiser Baas. • Keep the camera away from water and other liquids (unless used in the waterproof case). Do not handle the X100 camera with wet hands (unless used in the waterproof case). This may cause the camera to malfunction.

  • Page 6: What's In The Box

    What’s in the Box Please ensure the product package has the following contents: X100 Camera Screw Bolt Waterproof case Curved Mount USB Cable 2 x Adhesive Pads Wrist Remote control (not waterproof)

  • Page 7: Product Diagram

    Product Diagram Wi-Fi Activation button POWER (and menu) LED power indicator USB interface LCD screen Micro SD card port SHOOT(menu select) Mini HDMI interface Microphone Battery Front Back...

  • Page 8: Left Side

    POWER SHOOT Left Side Right Side...

  • Page 9: Remote Diagram

    Remote Diagram Please note: with the remote control you cannot turn the camera on. Please ensure the camera is switched on before using the remote. This item is not waterproof. LED Indicators Shoot Photo Record Video Power Off Micro USB Charge Port On the Back of Remote...

  • Page 10: Setup Your X100

    Turn the camera on – press and hold the POWER button for several seconds. When the camera is on the X100 logo will appear on the screen and the three red LED lights will glow red. The camera is now in video mode.

  • Page 11: Video Mode

    Video Mode 30fps 00:56:20 Video Mode Screen Once the camera is turned on, it goes to the video capture mode by default. Press SHOOT button to start recording. When the recording starts, you will see the red lights start flashing. To end recording, press the SHOOT button again.

  • Page 12: Video Settings

    Video Settings Resolution Video Looping White Balance Microphone Timelapse+Video Enter Back SHOOT POWER Video Settings Screen (Page 1) This allows user to adjust Video quality settings. Navigation: Use Wi-Fi button to navigate, Shoot button to Enter/Confirm selection, Power button to go back Resolution This allows user to set the recording video resolution: • 1080P 30fps...
  • Page 13 Video Looping This allows user to set recording duration: • OFF– In this mode, camera will generate new file on every 30 min • 2 Min – In this mode, camera will generate new file on every 2 min • 5 Min- In this mode, camera will generate new file on every 5 mins White Balance Factory default is Auto.
  • Page 14 Date Stamp Enter Back SHOOT POWER Video Settings Screen (Page 2) Timelapse + Video This will enable auto image capture during the video recording: • Off – Disable Auto Image Capture • 10 Sec – Auto capture every 10 sec • 20 Sec- Auto capture every 20 sec • 30 Sec- Auto capture every 30 sec • 60 Sec- Auto capture every 60 sec...

  • Page 15: General Settings

    Date Stamp • Off: to turn off displaying date stamp on captures • Date: to display date on captures • Date & Time: to display date & time on captures General Settings Auto Power O Auto LCD O Screen Rotation Date &...
  • Page 16 by pressing POWER button, then press and hold the shoot button for 3 secs Navigation: Use Wi-Fi button to navigate, Shoot button to Enter/Confirm selection, Power button to go back Auto Power Off • To set Auto Power off function Auto LCD Off This will determine if the LCD will turn off after 1min, 3min or 5min.
  • Page 17 Light Frequency System Format Enter Back SHOOT POWER General Settings Screen (Page 2) Language To select the device language Light Frequency Selecting the correct light frequency will avoid the pos- sibility for strobing*.
  • Page 18 System • Factory Reset; To reset the camera to factory default. • System Info; To check the firmware version • Card Info; To see the SD card information Format This is to format the card. Choosing to format the card will permanently erase all data on the card.

  • Page 19: Picture Mode

    Picture Mode This mode will allow users to take snapshots 9999 Picture Mode Screen To activate this mode: • Turn the camera on • Press and hold the SHOOT button for 3 secs • You will see P ( ) on top left corner of the screen • Press SHOOT button to take snapshots...

  • Page 20: Picture Settings

    Picture Settings Resolution Quality Metering White Balance AUTO Enter Back SHOOT POWER Picture Settings Screen 1 To enter the SETUP menu for Picture Mode, press the POWER button (press and release immediately – if it is held too long the camera will switch off). Resolution To select the image resolution.
  • Page 21 Metering Metering mode refers to the way in which a camera determines the exposure. White Balance Factory default is Auto. If you switch Auto OFF, remem- ber to adjust when lighting conditions change Exposure Self Timer Date Stamp Timelapse Enter Back SHOOT POWER...
  • Page 22 Exposure This allows user to set the light exposure value Self-timer This allows user to set the timer for auto image capture Date & Time This allows user to adjust the date &time. Note: Use the Wi-Fi button to change the date and time, use shoot button to confirm.

  • Page 23: Using Your X100

    Using Your X100 Camera Preparation Charging the battery Before using the X100 camera for the first time you should fully charge the battery. Procedure: 1. Connect X100 camera to a computer (or other USB power source) using the USB cable (provided) 2.
  • Page 24 Insert the Micro SD* • It is recommended to use Class 6 (or higher) TF card to shoot smooth video files. Lower class cards may cause the video to be blurry or jerky. • * Micro SD cards are also called TF cards. • There is only one correct direction to insert the Micro SD (TF) card into the slot.
  • Page 25 Video Recording Once the camera is turned on, it goes to the video capture mode by default. Press the SHOOT button to start recording. When the recording starts, you will see the red lights start flashing. To end recording, press the SHOOT button again.

  • Page 26: Playback Mode

    Playback Mode Navigation: Use Wi-Fi button to navigate, Shoot button to Enter/Confirm selection, Power button to go back This will allow you to watch the captured videos & images. Enter the Picture mode first , then press and hold the SHOOT button for 3 secs. To watch a captured video, Go to Video and select the file.
  • Page 27 Connecting to TV You can display the camera LCD screen on a TV Screen Note: You will need a Mini HDMI to HDMI cable • Turn the camera on • Connect Mini HDMI end to the port on the camera and HDMI end to HDMI port on the TV • Select the right source on the TV • Turn the camera on...

  • Page 28: Wi-Fi Setup

    1. Download the App onto your Smart Phone: www.kaiserbaas.com/apps/x100-app Kaiser Baas X100 2. Activate Wi-Fi on your X100 camera by pressing Wi-Fi button. 3. Go to the Wi-Fi settings on your Phone, you will see Kaiser Baas X100 in the list of available Wireless networks...
  • Page 29 4. Connect your Phone to the Kaiser Baas X100 via Wi-Fi 5. The WiFi Password for the X100 is: 1234567890 6. Open the app ‘Kaiser Baas X100’ Important: Before connecting camera via Wi-Fi, you need to download the ‘Kaiser Baas X100’ app on your smartphone or tablet.

  • Page 30: Saving And Viewing Options

    Saving And Viewing Options Transferring files to PC Use the USB cable supplied (C) to connect the camera to your computer. The camera LCD will display MSDC icon and your com- puter will see your camera as an external storage device. Alternatively you can remove the Micro SD card and use a card reader (not included) to achieve the same result.
  • Page 31 Using the camera as a Webcam Connect the camera to PC using supplied USB cable, when you see MSDC on the camera LCD screen, press and hold the SHOOT button for 3 secs. Then you will see PCCAM on the camera Screen. Note: You will not be able to record when the camera is on PCCAM mode.

  • Page 32: Installing X100 Camera Into Waterproof Case

    Installing X100 Camera into waterproof case • The X100 camera is designed to be used in the water proof case (B). Before inserting the X100 camera in the case, select video or picture mode. Notes: • Ensure the case is dry and clean • Insert X100 camera, ensuring the lens fits neatly in...

  • Page 33: Faq

    5 hours). Q. I cannot power the X100 camera/switch it on. Why? A. Hold SHOOT button for 11seconds to reset the X100 camera. After a reset all settings will go back to factory default.

  • Page 34: Specifications

    Specifications Underwater Down to 30m (with waterproof casing) Sensor 1/2.5" 5.0 megapixels CMOS sensor Resolution Video: 1080P@30fps Still photo: 5 megapixel (12 megapixel inter- polated) Storage type Micro SD card up to 32GB (not included) Lens 150°- view fixed lens Lens aperture F/2.5 f=2.65mm Lens Focus...

  • Page 35: System Requirements

    Format Video: MOV H.264 Still photo: JPEG Power supply 3.7V/1000mAh Li-Battery Battery life Video: 2.5 hours without WiFi Language English Dimensions 54x37x51mm Casing 49.5×76×84mm System Requirements Operating Windows XP / Vista / 7 / 8 / MAC OS system Apple iOS & Android Requirements Interface HDMI (HDMI cable not included)

  • Page 36: Contact Us

    Contact Us Need further assistance? Please visit: www.kaiserbaas.com/support Or email: helpdesk@kaiserbaas.com For the full Kaiser Baas accesories range visit www.kaiserbaas.com...
