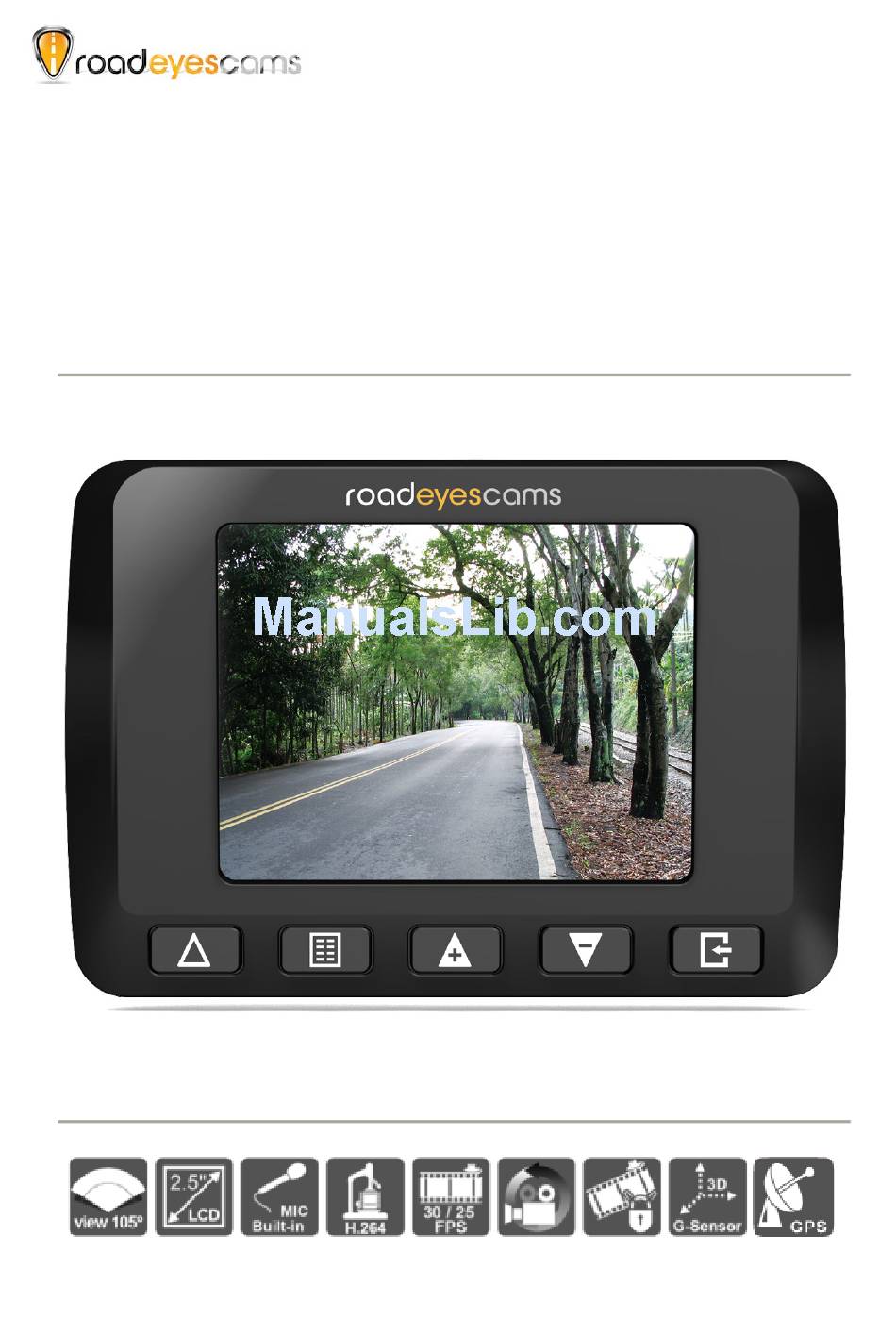

- Page 1 FULL HD Vehicle Video Recorder User Manual 2013 Oct V1.0...
-
Page 2: Safety Precautions
Vehicle Video Recorder User Manual Safety Precautions Record and review some test footage to ensure the device records correctly. Please note that the manufacturer, its subsidiaries, affiliates and distributors are not liable for damages arising from any malfunction of the main device accessories, including the memory card, that fails recording footage in a way that is not machine-readable. -
Page 3: Table Of Contents
Vehicle Video Recorder User Manual Index A. Feature Description ............... 1 B. Specification .................. 2 C. Accessories ................... 2 D. Installation..................3 E. Control Panel/Function Board ............5 F. SD Card Installation ............... 6 G. Function Panel ................7 H. -
Page 4: Feature Description
Vehicle Video Recorder User Manual A. Feature Description n Real-time recording in Full HD (H.264 compression technology). n 105° Wide-angle CMOS Lens. 2.5” TFT LCD. n n GPS sensor. n Record video and sound inside and outside the car. Compatible with SDHC Card up to 32GB. n... -
Page 5: Specification
Vehicle Video Recorder User Manual B. Specification Item Description Sensor CMOS View Angle 105° Wide-angle Full-HD Resolution NTSC 1080P/30 fps ; PAL 1080P/25 fps V / A DC5V±5% / 1A Operating tmp. -10º ~ +60º Display 2.5” TFT LCD 4GB SDHC Card or above (Recommend Storage 『SanDisk』Class 10 or above) Auto recording 30 seconds after power on. -
Page 6: Installation
Vehicle Video Recorder User Manual D. Installation. 1. Install the device on the windshield with 3M or suction cup mount Sticker Adhesive Spot 2. The best position to install 3. To adjust the recording angle the device on the windshield properly 4. - Page 7 Vehicle Video Recorder User Manual 6. VVR installation Best location Cigarette adapter Caution This device should be installed in the area where the (1). windshield will be able to be cleaned. Formatting SD card on the device before beginning to use. (2).
-
Page 8: Control Panel/Function Board
Vehicle Video Recorder User Manual E. Control Panel/Function Board Display SD card Slot Control Panel DC5V Lens Power input Dimension (mm) -
Page 9: Sd Card Installation
Vehicle Video Recorder User Manual F. SD Card Installation (1). Format memory card; please refer to the other chapter “Formatting memory card” for more detail. Caution (1). Recommend Memory Card “SanDisk” Class 10 or above. (Minimum of 4GB) (2). If the memory card is not formatted by our exclusive player, the device will automatically erase all the data inside of the memory card after inserting it, start recording at default setting. -
Page 10: Function Panel
Vehicle Video Recorder User Manual G. Function Panel Playback/Select Force Record Down Manu/Switcher • To press force record any time under operation will trigger force recording. • LED indicators Red: Under normal operation-recording Fast Blinking Red: Force recording Green：Low light indicator... - Page 11 Vehicle Video Recorder User Manual Recording / Stop Recording 1. Power On/Recording When car power on, the device start up automatically. Please wait for 30 Sec. to start recording. 2. Power Off/Stop recording When the car power off, the device will stop to record video and sound.
-
Page 12: Osd Menu Function
Vehicle Video Recorder User Manual H. OSD Menu function In Live view screen press will popup OSD operation menu as follows: NTSC / PAL Calendar Display Power saving Microphone on/off Firmware Version 1. Select to export NTSC or PAL signals 2. -
Page 13: Vacron Viewer Player
Vehicle Video Recorder User Manual recNEO Full HD Player DirectX 9.0 or above is required. Screen Capture Playback Speed Control BAR Playback Capture Setting Sound Configure G-Sensor Data Playback Control File Operation icon introduction Back to previous file Previous image... - Page 14 Vehicle Video Recorder User Manual Capture: Capture the current screen image You can capture the image when play the footage, click button the capture the image, The following windows will shows, the image you captured is showing on the right side. File saving cdirectory are in /Snapshot folder, and the file type is *.bmp.
- Page 15 Vehicle Video Recorder User Manual Format: Format memory card/Langue setting Caution 「Format / Restore」 will clean all the data saved on SD (1). card, Please back up the data before「Format / Restore」. Before「Format / Restore」SD memory card, please (2). ensure to unlock it first. If the card is unlocked but still cannot be formatted, this (3).
- Page 16 Vehicle Video Recorder User Manual 「Format」SD card While applying a brand new SD card, formatting is required. 「Restore」SD card When you have backup the recorded files into PC and want to use the SDHC card for other purposes, you have to restore it first so it can be used correctly.
- Page 17 Vehicle Video Recorder User Manual Configuration: configure default setting Put the SD Card into Card reader and plug-in the card reader into the USB slot of your PC to format the SD card before the first time to record. Then also need to configure video type and display way, When finish the setting, insert the SD card the vehicle video recorder to start recording.
- Page 18 Vehicle Video Recorder User Manual This function can encrypt the SD card to prevent illegal retrieving from others, the password is under 15 character, for example:1234567891234 You will need input 4 Password password when you playback/configuration/fo rmat SD card if you set a password.
- Page 19 Vehicle Video Recorder User Manual File backup: click to choose file save directory. Step1. Choose the source of the memory card. Step2. Choose the designated footage to backup.
- Page 20 Vehicle Video Recorder User Manual Step3. Choose the target file format and start/end record time. File format Our original file format *.sd format (2)AVI File Backup(*.avi) AVI format Note: G-sensor data can only be displayed on manufacturer’s player. Step 4. Set the backup folder: default is C:\BlackBox Step 5.
- Page 21 Vehicle Video Recorder User Manual Play BAR: You can use Mouse to drag the car icon to move footage location Play speed: 4X、8X、16X and quick playback, 1/4X、1/8X、 1/16X and slow playback. Volume control: Click +、- to adjust volume. 10. G-SENSOR G-Sensor will detect the impact form the car, and record 1-3 minutes footage automatically.
-
Page 22: Record Time Estimation
Vehicle Video Recorder User Manual J. Record Time Estimation The chart below is for reference only. The length of time recorded can be varied due to variation in image size may be different. Capacity Video Quality High... -
Page 23: Appendix: The Indication Of Bright And Dark Spot Of Lcd
Vehicle Video Recorder User Manual Appendix: The Indication of Bright and Dark Spot of Q: What is Bright/Dark Spot? A : — Bright Spot: At dark background, we found the abnormal bright spots, we called those spot are “Bright Spot” —... - Page 24 For More Information Please check the RoadEyesCams Website http://www.road-eyes.com Made in Taiwan...
