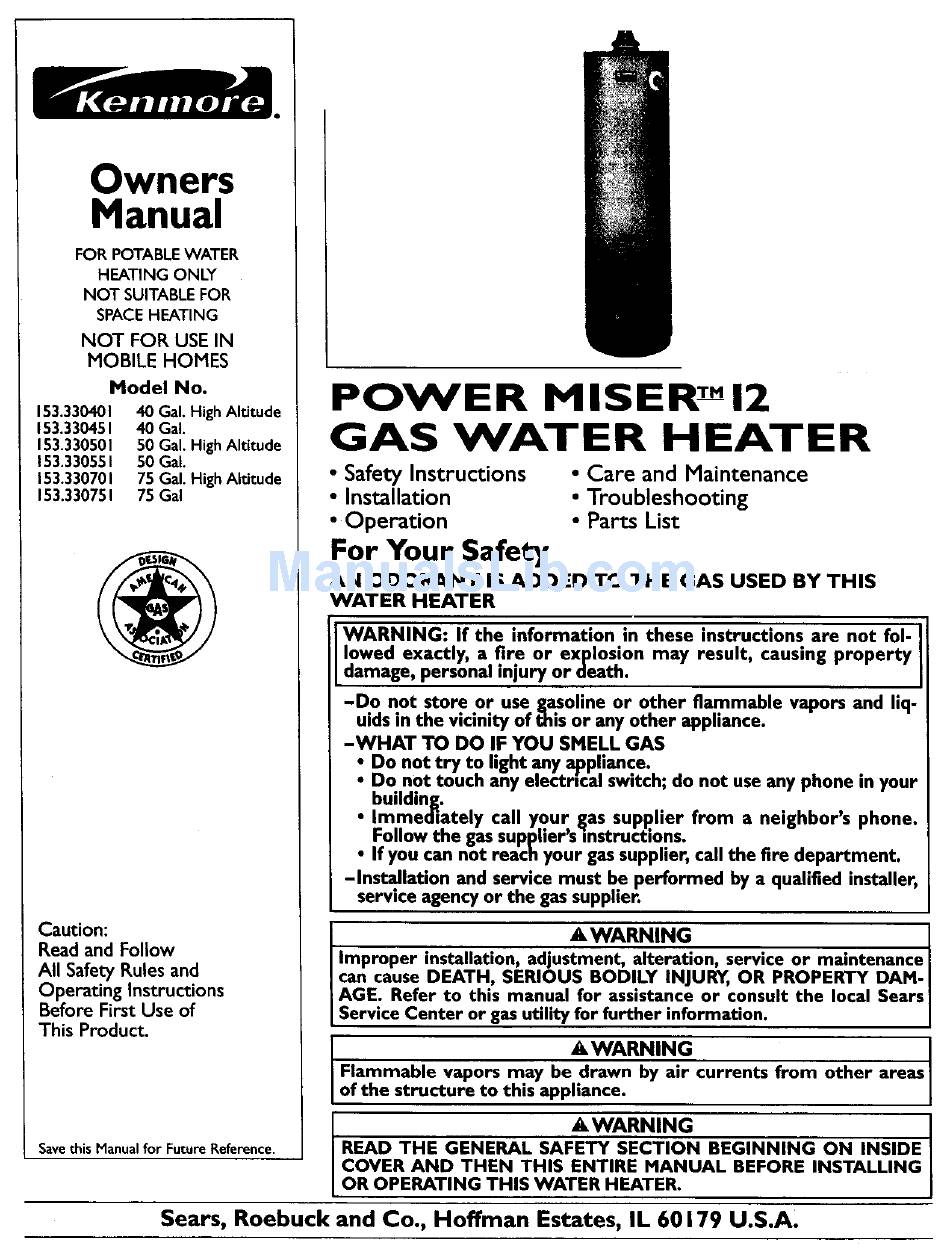

Owners
Manual
FOR POTABLEWATER
HEATING ONLY
NOT SUITABLE FOR
SPACEHEATING
NOT
FOR USE IN
MOBILE
HOMES
Model
No.
153.3304OI
40 Gal. High Altitude
153.330451
40 Gal.
153.330501
S0 Gal. High Altitude
153.330551
50 Gal.
153.330701
75 Gal. High Altitude
153.330751
75 Gal
Caution:
Read and Follow
All Safety Rules and
Operating
Instructions
Before
First Use of
This Product.
Save this Manual for Future Reference.
POWER
MISER'--M 12
GAS
WATER
HEATER
• Safety Instructions
• Installation
•
Operation
For Your Safety
• Care and Maintenance
• Troubleshooting
• Parts List
AN ODORANT
IS ADDED
TO THE GAS USED BY THIS
WATER
HEATER
WARNING:
If the information
in these instructions are not fol-
lowed exactly, a fire or explosion may result, causing property
damage, personal ,nlury or death.
-Do not store or use gasoline or other flammable vapors and liq-
uids in the vicinity of _is or any other appliance.
-WHAT
TO DO IF YOU SMELL GAS
: Do not try to light any appliance.
Do not touch any electr,'cal switch; do not use any phone in your
building.
i Immediately
call your I_as supplier from a neighbor's
phone.
Follow the gas suppher's mstructlons.
If you can not reach your gas supplier, call the fire department.
-Inst_.. lation and service must be performed by a qualified installer,
service agency or the gas suppher.
•
.
.
AWARNING
.
.
I
Improper mstallat,on, adlustment , alteration, service or mmntenance I
can cause DEATH, SERIOUS BOD!LY INJURY, OR PROPERTY DAM- I
AGE: Refer to this manual for ass,stance or consult the local Sears
Servtce Center or gas utility for further nformat,on.
&WARNING
t
Flammable
vapors
may
be _
_
currents
from
other
areas
of the structure to this appliance•
AWARNING
READ THE GENERAL
SAFETY
SECTION
BEGINNING
ON
INSIDE
COVER
AND
THEN
THIS
ENTIRE
MANUAL
BEFORE
INSTALLING
OR OPERATING
THIS WATER
HEATER.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
