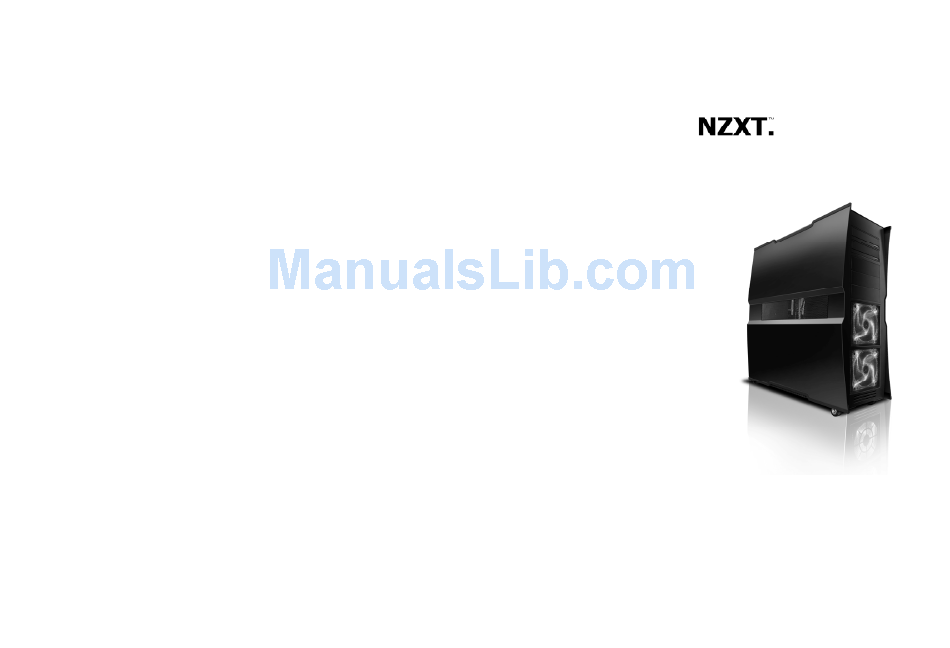

  • Page 1 Khaos User’s manual...
  • Page 3: Thank You

    With every product, we are still breaking more boundaries and limits. Once again, thank you and all NZXT fans for the support and we hope to bring more amazing products in the coming years.
  • Page 4: Khaos Specifications

    Khaos Specifications Features :: Breakthrough Design: Following the success of the Lexa chassis, the NZXT aimed to design a ultra premium chassis based on the theory of “Perfect Symmetry”, matching curves and mirrored design makes the Khaos a major design feat.
  • Page 5: Table Of Contents

    Table of Contents   Thank you..................1   Khaos Specifications ..............2   Before Beginning................4   Getting starting ................4 PSU Installation ................5     Using the motherboard tray installation ......... 6   LED, Power and Reset Installation ..........8  ...
  • Page 6: Before Beginning

    1. Remove the screws at the rear securing the side panels. 2. Slide the side panel backwards, and then tilt the panel to remove it. The same method can be applied to both sides. Opening the side panel NZXT. 4...
  • Page 7: Psu Installation

    PSU Installation The NZXT Khaos supports up to two power supplies in a dual boot fashion, a dual PSU booting cable is included in the packaging. 1. Remove the PSU bracket by unscrewing a total of 6 screws. 2. Secure the PSU(s) onto the PSU bracket. If you wish to install a second PSU, the PSU cover must first be removed.
  • Page 8: Using The Motherboard Tray Installation

    Using the motherboard tray installation The NZXT Khaos allows the MB tray to be tilted out for easier installation, follow the instructions below about usage. 1. Remove the screw behind the motherboard and the four thumbscrews located at the rear of the case.
  • Page 9 2. Slide and tilt the motherboard tray to lay it out. NZXT. 7...
  • Page 10: Led, Power And Reset Installation

    Please refer first to your motherboard manual to locate where the power switch and reset pins are located on the motherboard. The power and reset buttons are located at the top of the chassis. The colors following each instruction designate the color of the wires. NZXT. 8...
  • Page 11 All White and Black Pin Connectors correspond to ground. USB Installation 1. The USB is located of the top on your front panel. 2. Refer to your motherboard manual and match the labels on the USB port connectors with your motherboard in order to install. NZXT. 9...
  • Page 12 L-OUT Front Left Channel Audio Signal Line out_L R-OUT Front Right Channel Audio Signal Line out_R BLINE Line L-RET Rear Left Channel Audio Signal out_L BLINE Line R-RET Rear Right Channel Audio Signal out_R ASUS© Motherboard Pin Assignment NZXT. 10...
  • Page 13: Installing External 5.25" Devices And 3.5" Devices

    Installing external 5.25” devices and 3.5” devices Please follow the directions below to install the 5.25” and 3.5” devices into the NZXT Khaos. 1. [Note: This step is not required if you are not using the 5.25” Stealth CD-ROM covers] Remove the front panel by removing the six screws securing the front panel of the case.
  • Page 14: Internal 3.5" Drive Bay Installation & Front 120Mm Fan Installation12

    5. Secure the devices and reattach the front panel if applicable Internal 3.5” drive bay Installation & front 120mm fan installation The NZXT Khaos comes standard with dual 4HDD cages, please follow the instructions below for installation: 1. Unscrew the screw from inside to release the cage.
  • Page 15 2. Pull the cage out from the front of the case 3. Use screws to secure the hard drive. NZXT. 13...
  • Page 16: Triple 120Mm Mid Fan Installation

    5. Return the cage into the chassis and secure it. Triple 120MM mid fan installation NZXT Khaos supports triple 120mm fans, installing these fans will help move air at the center of the chassis immensely. 1. Remove the bracket by first unscrewing it from behind ( right side of the chassis ) 2.
  • Page 17: Travel

    3. Reinstall the bracket onto the case. Travel Congratulations, you have completed the installation of your next enthusiast rig. The NZXT Khaos has rubberized wheels and a handle for travel. Please refer to the photo below for the recommended method of usage.
  • Page 18 NZXT. 16...
  • Page 19: Support And Service

    You may inquire about replacement parts at rma@nzxt.com. Thank you again for purchasing an NZXT case. If you have any more comments or questions. Please visit our website or send us an email.
