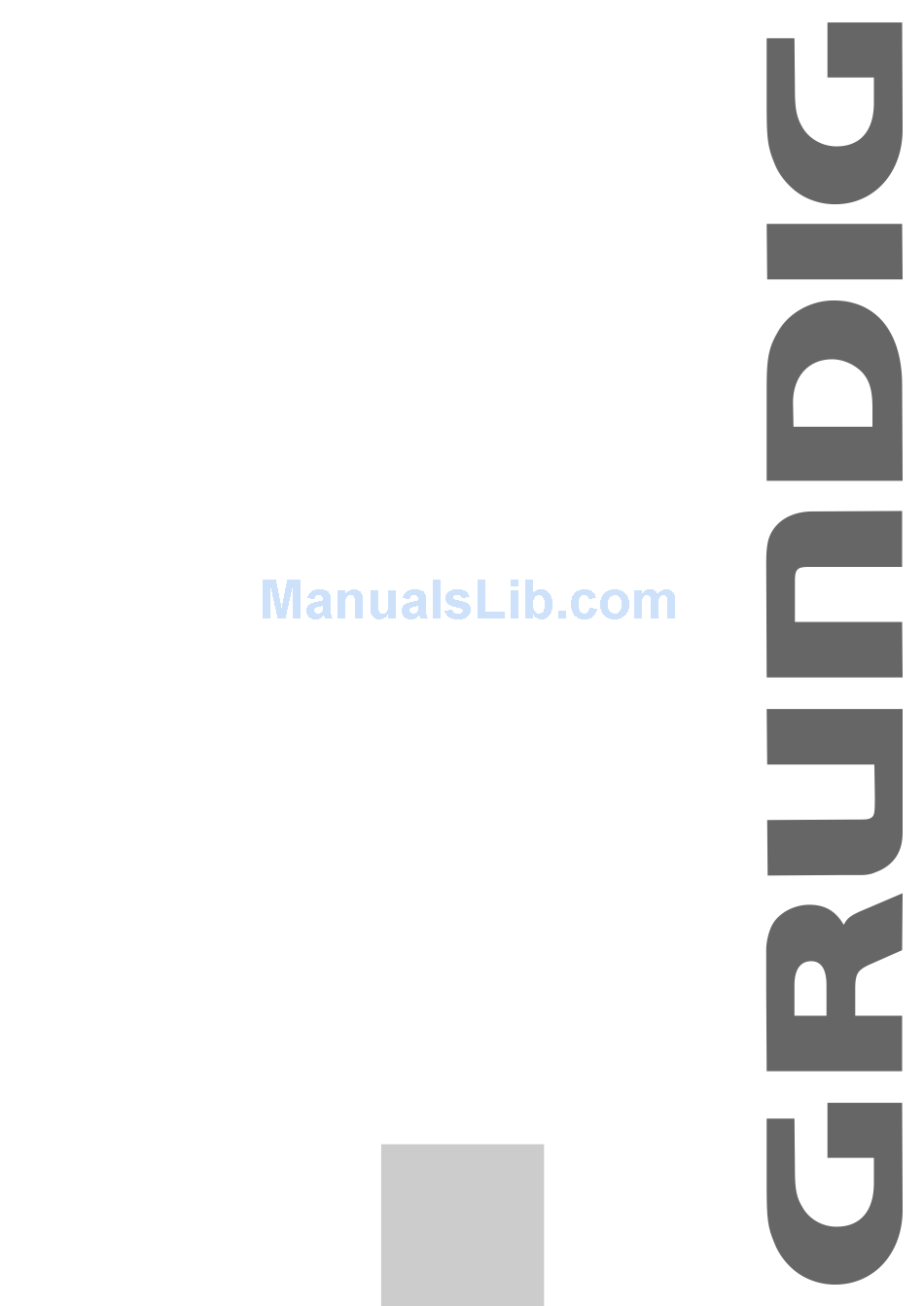

- Page 1 DVD HOME CINEMA MICRO SYSTEM Scenos UMS 6400 DVD DEUTSCH ENGLISH FRANÇAIS ITALIANO PORTUGUÊS...
-
Page 2: Table Of Contents
CONTENTS ________________________________________________________________________ Scenos UMS 6400 DVD Special features of your DVD Micro System Packing contents Dolby Pro Logic, Dolby Digital and DTS Set-up and safety 6-14 Overview The front of the DVD Micro System The displays of the DVD Micro System... - Page 3 CONTENTS __________________________________________________________________________________ 31-37 Disc mode Playback functions Selecting titles or chapters Selecting titles or chapters (in DVD mode) Playback with PBC (playback control) (in Video CD mode) Playback with progressive scan (in DVD mode) Displaying information 34-35 Additional playback functions 35-36 Zero setting (GO TO) Selecting and playing scenes...
-
Page 4: Scenos Ums 6400 Dvd
SCENOS UMS 6400 DVD _________________________________ Special features of your DVD Micro System Your DVD Micro System provides you with perfect digital video playback in studio quality. It also provides superb cinema-quality audio playback – in stereo or with digital multi-channel sound – depending on the type of DVD or CD used. -
Page 5: Set-Up And Safety
SET-UP AND SAFETY ______________________________________________ Please note the following information when setting up the home cinema system: The DVD Micro System and loudspeakers are designed for playing back video and audio signals at use. Any other use is expressly prohibited. DVD MICRO SYSTEM WITH DIGITAL TUNER If you want to set up the DVD Micro System on wall shelves or in cupboards, ON/OFF please ensure that it is adequately ventilated. -
Page 6: Overview
OVERVIEW ________________________________________________________________________ The front of the DVD Micro System DVD MICRO SYSTEM WITH DIGITAL TUNER ON/OFF cenos AM/FM SKIP/PRESET TUNER VOLUME DOWN S U R R O U N D Press briefly: switches the DVD Micro System to standby ON/OFF and back on again with the last source signal selected. - Page 7 OVERVIEW __________________________________________________________________________________ DVD MICRO SYSTEM WITH DIGITAL TUNER ON/OFF c enos AM/FM SKIP/PRESET TUNER VOLUME DOWN S U R R O U N D Selects the TUNER input source (FM). Switches the DVD FM TUNER Micro System from standby with TUNER (FM) selected as the input source.
-
Page 8: The Displays Of The Dvd Micro System
OVERVIEW __________________________________________________________________________________ The displays of the DVD Micro System DVD S VCD MP3 CLASSIC ROCK JAZZ POP BASS P.SCAN DIGITAL PRO LOGIC II ALBUM SLEEP RANDOM REPEAT ALB TIT ALL TIMER TITLE PROG TOTAL REMAIN STEREO MUTING 0000 00 00 0000 : 00.00 Displays the disc format, various functions and settings as well as the name or frequency of the radio station. - Page 9 OVERVIEW __________________________________________________________________________________ DVD S VCD MP3 CLASSIC ROCK JAZZ POP BASS P.SCAN DIGITAL PRO LOGIC II ALBUM SLEEP RANDOM REPEAT ALB TIT ALL TIMER TITLE PROG TOTAL REMAIN STEREO MUTING 0000 00 00 Plays back the tracks or chapters in random order. RANDOM In disc mode: a track or chapter is repeated.
-
Page 10: The Back Of The Dvd Micro System
OVERVIEW __________________________________________________________________________________ The back of the DVD Micro System COAXIAL OUT VIDEO OUT FM ANT AUDIO OUT S VIDEO OUT Pb/Cb Pr/Cr AM ANT EURO AV TO SUBWOOFER 230 V 50/60 Hz FM ANT Connection socket for the FM antenna. AM ANT Connection socket for the AM frame antenna supplied. -
Page 11: Operating Controls And Connections Of The Subwoofer
OVERVIEW __________________________________________________________________________________ Operating controls and connections of the subwoofer POWER Operating indicator (on front of device). Glows blue during operation. POWER Note: If the DVD Micro System is switched to standby or in eco mode, the subwoofer also switches to the same operat- ing mode. -
Page 12: The Remote Control
OVERVIEW __________________________________________________________________________________ The remote control Press briefly: switches the DVD Micro System to standby and ON/OFF ECO back on again with the last source signal selected. Hold down: switches the DVD Micro System from standby to eco mode. ON/OFF DISC/ Selects DISC as the input source. - Page 13 OVERVIEW __________________________________________________________________________________ Move the cursor left and right in the set-up menu (on the TV screen). In standby, switches the demo program on and off. DEMO/OK Activates the selected setting and confirms entries in the set-up menu. ON/OFF DOWN PRESET UP In disc mode: selects the previous or next track, the previous DISC/ RANDOM...
- Page 14 OVERVIEW __________________________________________________________________________________ In DVD mode: for repeating a chapter or title. REPEAT In CD mode: for repeating a track, a file (MP3), all tracks or all files (MP3). Press briefly: switches the switch-on timer on and off. TIMER Press and hold down: activates the switch-on timer setting. ON/OFF MUTE d Switches the system to and from mute mode.
-
Page 15: Connection And Preparation
CONNECTION AND PREPARATION _______ Connection diagram for the loudspeakers Surround right Surround left Centre Scenos UMS 6400 DVD CENTER SPEAKER Subwoofer 0° 180° FROM MAIN UNIT PHASE Front right Front left COAXIAL OUT VIDEO OUT FM ANT AUDIO OUT S VIDEO OUT Pb/Cb Pr/Cr RISK OF ELECTRIC SHOCK... -
Page 16: Connecting The Loudspeakers
CONNECTION AND PREPARATION _______________________________________ Connecting the loudspeakers Note: To connect the loudspeakers, switch off the DVD Micro System and discon- Loudspeakers nect the mains. Front left White Black When you connect the loudspeaker cables to the subwoofer, do not let Front right Black frayed ends protrude, as this can cause short circuits. -
Page 17: Connecting External Devices Digitally
CONNECTION AND PREPARATION _______________________________________ COAXIAL OUT VIDEO OUT Connection using a Y/C (S-Video) cable and a cinch cable FM ANT AUDIO OUT S VIDEO OUT Pb/Cb Pr/Cr Plug a standard Y/C cable into the »S-VIDEO OUT« socket on the DVD AM ANT EURO AV receiver and the corresponding socket (S-VIDEO IN) on the television,... -
Page 18: Connecting The Antennas
CONNECTION AND PREPARATION _______________________________________ Connecting the antennas Plug the antenna cable of the rooftop antenna into the FM antenna socket » ANT«. COAXIAL OUT VIDEO OUT Note: FM ANT AUDIO OUT S VIDEO OUT Pb/Cb Pr/Cr If no rooftop antenna is available, use the auxiliary antenna supplied. This antenna provides reasonably good reception of local FM (VHF) stations. -
Page 19: Additional Information For Units Sold In The Uk
In no circumstance must any of the wires be connected to the terminal marked with the letter “E”, earth symbol “ ”, coloured green, or green & yellow. Replacement mains lead sets can be obtained from your local dealer, or by contacting Grundig Consumer Relations (01788 570088) Moulded 3-pin lead set, suitable for UK use:... -
Page 20: Settings
SETTINGS ____________________________________________________________________________ Setting the time When the DVD Micro System is connected to the mains for the first time, a demo program runs in the display. This can be interrupted with » DEMO/OK«. After- wards the clock flashes to indicate that it needs to be set. The following settings may only be performed in standby mode. -
Page 21: Setting The Video Functions
SETTINGS ____________________________________________________________________________________ Selecting the menu language The set-up menu is the control centre of your DVD Micro System. It is called up in SETUP MENU - - MAIN PAGE disc mode when the device is stopped by pressing »SETUP«. Eight languages GENERAL SETUP are available in the set-up menu. -
Page 22: Setting The Loudspeaker Configuration
SETTINGS ____________________________________________________________________________________ Setting the colour norm for the television Select the »PREFERENCES« menu item with » « or » « and confirm with - - PREFERENCES PAGE - - »DEMO/OK«. TV TYPE MULTI VIDEO OUTPUT NTSC Select »TV TYPE« with » « or » «. AUDIO SUBTITLE DISC MENU... - Page 23 SETTINGS ____________________________________________________________________________________ Change back to the left column with » « and use » « or » « to select - - SPEAKER SETUP PAGE - - »CENTER«. DOWNMIX CENTER Change to the right column with » «, use » « or » « to select »ON« and REAR SUBWOOFER confirm with »DEMO/OK«.
-
Page 24: Setting The Audio Functions
SETTINGS ____________________________________________________________________________________ Setting the audio functions Activating digital audio signal outputs You can make the setting for the coaxial output for the connection to an external device here. If the digital outputs are activated, the analog output signal is deactivated. Select »AUDIO SETUP«... - Page 25 SETTINGS ____________________________________________________________________________________ Select »DYNAMIC« with » « or » «. - - AUDIO SETUP - - AUDIO OUT – – FULL Use » « to move to the right column. DUAL MONO – – – »OFF«, »2/8« ... »6/8«, »FULL«. »OFF« (default setting) means uncom- –...
- Page 26 SETTINGS ____________________________________________________________________________________ Setting and storing radio stations Up to 20 radio stations in the FM range and up to 10 stations in the AM range can be stored. You can see the displays for this on the DVD Micro system. Press »ON/OFF ECO «...
-
Page 27: General Functions
GENERAL FUNCTIONS _________________________________________ Switching on and off Switch on the DVD Micro System from standby or eco mode with »ON/OFF «. – The system switches on with the most recently selected input source. TUNER FM Switch the DVD Micro System to standby with »ON/OFF ECO «. -
Page 28: Muting
GENERAL FUNCTIONS _____________________________________________________________ Muting With this function the DVD Micro System mutes the connected loudspeakers. Press »d« on the remote control to switch it on mute. – Display on the DVD Micro System »MUTING« flashes. MUTING Briefly press »d« on the remote control again to cancel the muting. –... -
Page 29: Disc Features
DISC FEATURES __________________________________________________________ Disc formats Your DVD Micro System can play DVD R/DVD RW in DVD video format and CD-R and CD-RW in CD-DA Format or MP3/WMA format. Due to difference in quality of the recording media and the quality of the record- ing itself, it can occasionally happen that a home-made DVD R/DCD RW or CD-R and CD-RW with audio data cannot be read. -
Page 30: Mp3 Cd Features
DISC FEATURES __________________________________________________________________________ You can control and direct playback of the VCD/S-VCD using the menu of the DVD Micro System on the television screen. S-VCDs can contain different dubbed languages and subtitles. Film Film Film Menü-Anzeige PBC (playback control) Standbild 1 2 3 Standbild PBC is a navigation option for VCDs/S-VCDs. -
Page 31: Disc Mode
DISC MODE ______________________________________________________________________ Playback functions In DVD mode, playback sometimes starts automatically after the disc has been scanned. Sometimes a menu appears on the screen where you can start disc playback. A menu also appears on the screen with VCDs/S-VCDs where you can control the playback of the disc interactively if you switch on the PBC function (see page 27). -
Page 32: Selecting Titles Or Chapters (In Dvd Mode)
DISC MODE _________________________________________________________________________________ Selecting titles or chapters (in DVD mode) ..using the DVD menu If a DVD contains several titles or chapters, you can select these in the DVD menu, if the DVD itself offers this function. Call up the DVD menu with »MENU«. –... -
Page 33: Playback With Progressive Scan (In Dvd Mode)
DISC MODE _________________________________________________________________________________ Playback with progressive scan (in DVD mode) This function results in the transmission of video signals in a high frequency range. The function is only active if the video output has been set to »COMPONENT« in the set-up menu. Before you first switch on the device, please check whether your television, flat screen or projector is suitable for this use. -
Page 34: Additional Playback Functions
DISC MODE _________________________________________________________________________________ Additional playback functions Some of the functions are not available depending on the inserted media. Fast search During playback, press » « or » « on the TUNING TUNING remote control. – The fast search starts either forwards or backwards. Note: The backwards and forwards speed can be changed in four stages by pressing »... -
Page 35: Zero Setting (Go To)
DISC MODE _________________________________________________________________________________ The picture section can be moved with » « or » « or » « or » « on the television screen. To end the function switch »v« to » ZOOM OFF«. ZOOM OFF Switching the dubbed language or the audio format This setting switches away from the preset dubbed language, if the DVD offers alternatives. -
Page 36: Selecting And Playing Scenes
DISC MODE _________________________________________________________________________________ ... In video CD and CD mode Press »GOTO« on the remote control. – The line for the time display appears. Enter the desired time with »1 … 0« and confirm with »DEMO/OK«. – Playback starts at the corresponding point. Selecting and playing scenes You can make a bookmark for a scene on a DVD. -
Page 37: Repeat Functions
DISC MODE _________________________________________________________________________________ Repeat functions Repeating a chapter, file, title or all chapters, files, or titles on a disc During playback, press »REPEAT« on the remote control. – Display: briefly, for example »CHAPTER REPEAT ON« a chapter, file or CHAPTER REPEAT ON title is repeated. -
Page 38: Tuner Mode
TUNER MODE ________________________________________________________________ Selecting the tuner input source Select the input source with »FM TUNER AM« on the DVD Micro System or with »TV AM/FM« on the remote control. – The most recently selected radio station is played (Last Station Memory). FM 100.60 –... - Page 39 TUNER MODE _____________________________________________________________________________ Switching RDS information on and off The RDS information can be switched on and off. To call up this function, press »RDS/P.SCAN« twice. – Display: »INFO OFF« or »INFO ON«. INFO OFF Press »PROGRAM« to switch RDS information on or off. Searching for station types (PTY) Press »RDS/P.SCAN«...
-
Page 40: Timer Mode
TIMER MODE __________________________________________________________________ Your DVD Micro System has two timer modes: – The switch-on timer which switches the DVD Micro System on and off at set times and wakes you in disc or tuner mode. – The sleep-timer, which switches the DVD Micro System off at a time you set. Switch-on timer Setting the switch-on timer Notes:... -
Page 41: Sleep Timer
TIMER MODE ______________________________________________________________________________ Activating and deactivating switch on timer Press »TIMER« to deactivate the timer. – Display: »TIMER« disappears from the display. Press »TIMER« to activate the timer again. – Display: »TIMER«. Sleep timer Setting the sleep timer The sleep timer switches the system off at the set time. To activate the function, press and hold down »CLOCK/SLEEP«... -
Page 42: Child Lock
CHILD LOCK ____________________________________________________________________ Some DVDs have may contain parental guidance warnings concerning age restrictions. The set-up menu enables you to define eight levels of age restrictions for the child lock. »1« is the default setting. If the inserted DVD is not suitable for the defined age category according to the parental lock, then the DVD will not be played. -
Page 43: Additional Settings
ADDITIONAL SETTINGS _______________________________________ Like the basic settings, you can make additional settings in the set-up menu. Setting the picture mode This setting controls contrast and sharpness depending on the medium inserted. Select the »GENERAL SETUP« menu item with » « or » « and - - GENERAL PAGE - - confirm with »DEMO/OK«. -
Page 44: Language Settings
ADDITIONAL SETTINGS ____________________________________________________________ Language settings The preference settings in the set-up menu are not available during playback. To make these settings, playback must be ended first. The default setting is »ENGLISH«. Setting the preferred dubbing language Select the »PREFERENCES« menu item with » « or » « and confirm with - - PREFERENCES PAGE - - »DEMO/OK«. -
Page 45: Information
INFORMATION _____________________________________________________________ Technical data This device is noise-suppressed according to the applicable EU directives. This product fulfils the European directives 89/336/EEC, 73/23/EEC and 93/68/EEC. This device conforms to the safety regulation DIN EN 60065 (VDE 0860) and therefore the international safety regulation IEC 60065. Do not open the DVD Micro System and loudspeakers. -
Page 46: General Instructions For Laser Devices
INFORMATION __________________________________________________________________________ Loudspeakers Dimensions and weight DVD Micro System Music/rated load: Music: W x H x L: 152 x 157 x 260 mm 5 x 50 W (8 Ω) (Front, Centre, Surround), 1 x 100 W 3.7 kg (Subwoofer) Nominal: Front loudspeakers 5 x 30 W (8 Ω), 1 x 75 W (Subwoofer) W x H x L: 90 x 132 x 96 mm... -
Page 47: Rectifying Minor Problems
INFORMATION __________________________________________________________________________ Rectifying minor problems Not every picture or sound problem is caused by a defect in your DVD Micro System. Defects can also be caused by leads having been accidentally pulled out, damaged discs and worn out batteries in the remote control. If the following measures do not do not rectify the problem, consult your authorised dealer.
