Features
. 3 Stereo Channels
. 2 Phono/Line Convertible, 1 CD, and 2 Mic Inputs
. Talkover
. Headphone monitor
. Master output level meter
. Crossfader – Channels A and B

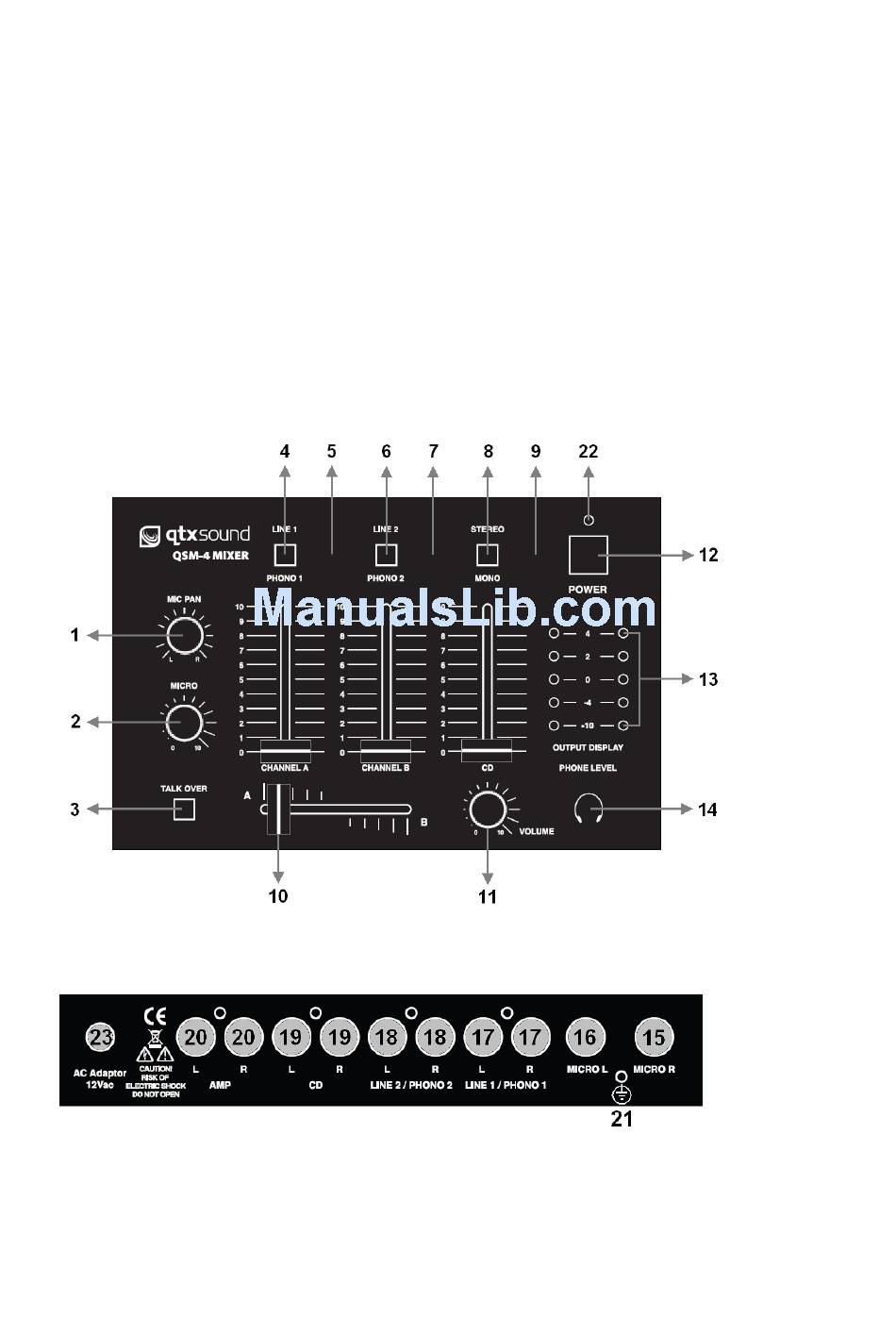

Front panel:
Rear panel:
Cautions
1.
All operating instructions should be read before using this equipment.
2.
Do not expose this unit to direct sunlight or to a heat source such as a radiator or stove.
3.
This unit should be cleaned only with a damp cloth. Avoid solvents or other cleaning detergents.
4.
When moving this equipment, it should be placed in its original carton and packaging. This will
reduce the risk of damage during transit
QTX Sound QSM-4 Mixer
(172.882UK)
Advertisement
Table of Contents
Related Manuals for Qtx QSM-4
Summary of Contents for Qtx QSM-4
- Page 1 QTX Sound QSM-4 Mixer (172.882UK) Features . 3 Stereo Channels . 2 Phono/Line Convertible, 1 CD, and 2 Mic Inputs . Talkover . Headphone monitor . Master output level meter . Crossfader – Channels A and B Front panel: Rear panel: Cautions All operating instructions should be read before using this equipment.
- Page 2 PHONO sencibility……………………………………3mV (47 K ohms) LINE/CD sencibility………………………………..150 mV (22 K ohms) MASTER OUTPUT………………………..nominal 0.775V MAX 1.5 V Frequency Response………………… 20Hz-20KHz ±2dB Talkover Attenuation………………………………………………. -12dB Headphone output……………………………………300mV 8/16 ohms Power source….……………………………………..…..…...220V 50Hz Dimensions………………………………………..…..190 x 135 x 52mm Weight……………………………………………………………….0.9 Kg © QTX Sound 2010...
