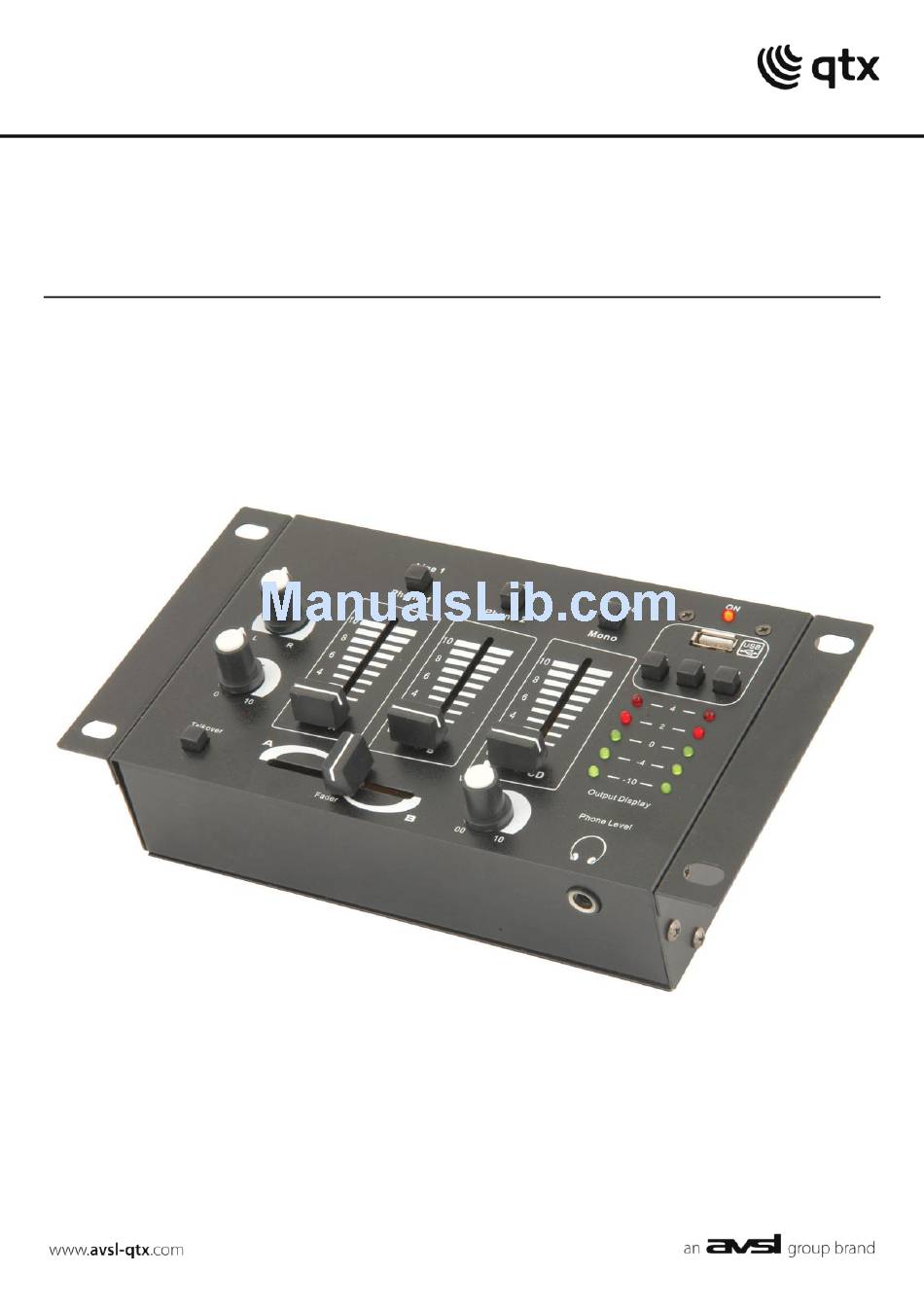

- Page 1 QSM-4USB Item ref: 172.884UK User Manual Compact Mixer + USB player...
- Page 2 Panel Layouts MIC PAN balance between mic 1/2 VU output level indicators MICRO combined mic level control Headphones output (front panel) TALK OVER preset music volume cut MIC R input 6.3mm jack LINE 1/PHONO 1 input selector MIC L input 6.3mm jack CHANNEL A level fader LINE 1/PHONO 1 input: L+R RCA USB/PHONO 2 input selector...
- Page 3 Introduction Thank you for purchasing the qtx QSM-4USB mixer. This product has been designed to provide reliable and accurate performance as part of a sound system or recording setup. Please read and follow the instructions in this manual to get the best from this item and avoid damage through misuse.
-
Page 4: Specifications
CHANNEL A: SWITCH (4) allows you to select the PHONO 1/LINE 1 (17) RCA input as phono or line level input. The CHANNEL FADER (5) controls the input level of this channel. CHANNEL B: SWITCH (6) allows you to select between the PHONO 2 (18) RCA input or internal USB (22) player.
