Page 1: Installation Manual
Control & Security System Installation Manual Includes the SIA CP-01 Control Panel Standard Features for False Alarm Reduction... - Page 3 WARNINGS AND CAUTIONS • Read and understand all instructions. Follow all warnings and instructions marked on the product. • Do not use this product near water - e.g., near a tub, wash basin, kitchen sink or laundry tub, in a wet basement, or near a swimming pool.
-
Page 4: Table Of Contents
CONTROLLER IP ADDRESS, PORT NUMBER, AND ENCRYPTION KEY ..............24 CONTROLLER IP ADDRESS ..............................25 CONTROLLER PORT NUMBER ............................25 ENCRYPTION KEY ................................. 25 OMNIPRO II ETHERNET CONNECTIONS ........................... 25 CONNECTING TO NETWORK VIA PC ACCESS ........................ 26 SYSTEM POWER UP PROCEDURE ....................... 28 CONSOLE CHECK OUT ................................28 TELEPHONE CHECK OUT ................................. - Page 5 DIGITAL COMMUNICATOR ........................32 DESCRIPTION OF CONTACT ID ............................... 32 DESCRIPTION OF 4/2 FORMAT ..............................33 3/1 FORMAT ....................................33 OPENING AND CLOSING REPORTS ............................33 INSTALLER SETUP ........................... 34 SETUP CONTROL ..................................34 X-10 HOUSE CODE ................................. 34 UPB NETWORK ID .................................. 34 X-10 3-PHASE ...................................
- Page 6 FIGURE 9 - RESETTING CONTROLLER OUTPUTS ........................16 FIGURE 10 - REMOTE KEYSWITCH CONNECTIONS ....................... 18 FIGURE 11 - LEVITON THERMOSTAT CONNECTIONS ......................19 FIGURE 12 - TEMPERATURE / HUMIDITY SENSOR CONNECTIONS ................... 21 FIGURE 13 - PESM CONNECTIONS ............................. 22 FIGURE 14 - RS-232 CONNECTIONS ............................
-
Page 8: Introduction

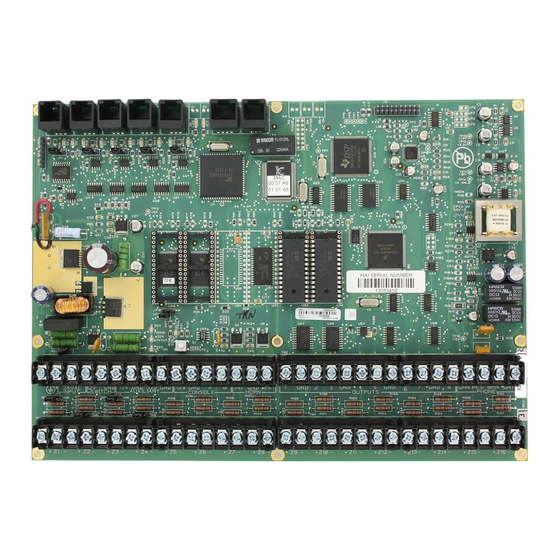

INTRODUCTION This installation guide is intended as an aid to installing the OmniPro II Control & Security System. The installer should also have thoroughly reviewed and understood the OmniPro II Owner's Manual, which has important information regarding final setup of the system. This manual assumes that the installer has a basic understanding of installing a security system. -
Page 9: Installation
X-10 Interface Module (P/N: TW523): Plug one end of the 4-conductor modular cable into the connector marked “J7” (X-10) on the OmniPro II controller and plug the other end into the modular connector on the X-10 Interface Module. Refer to FIGURE 1 (CONTROLLER HOOKUP) for this configuration. -
Page 10: Figure 1 - Controller Hookup
1/4" SPACING BLACK WIRE TO - RED WIRE TO + YUASA NP7-12 BATTERY OR EQUIVALENT 12V 7AH THE BATTERY IS NON-POWER LIMITED. THE BATTERY LEADS MUST BE SEPERATED FROM ALL OTHER POWER LIMITED/CLASS II WIRING IN THE ENCLOSURE BY AT LEAST 1/4" Status COLD WATER PIPE POWER TRANSFORMER... -
Page 11: About Security Zones
ABOUT SECURITY ZONES Each of the 176 security zone inputs on an OmniPro II system may be configured as a burglary zone, a fire zone, a temperature zone, or an auxiliary input. Zones 1-4, however, are the only inputs that can be used with 2-wire smoke detectors. Zones 9-16 (on the controller) and Zones 49-176 (on expansion enclosures) are the only inputs that can be configured as a PESM. -
Page 12: About Fire Zones
Smoke detectors must be powered from SWITCH 12V or an Output configured as a SWITCHED POWER OUTPUT. End of line resistor: 1000 ohms. Maximum loop resistance EXCLUDING end of line resistor is a 150 ohms. Use LEVITON Model 1503A0011 End of Line Resistor Assembly in UL Listed Installations. -
Page 13: Two-Wire Smoke Detectors
2-Wire Smoke Detector Compatibility Chart FOUR-WIRE SMOKE DETECTORS OmniPro II supports four-wire smoke detectors connected to any zone (1-176). Use normally open (closed for alarm) four-wire "SYSTEM" type smoke detectors (System Sensor 2112/24TR or equivalent), rated 8 - 14 VDC. -
Page 14: Figure 3 - Two-Wire Fire Zone Connections
WHEN Z1-Z4 IS CONFIGURED AS A SUPERVISED FIRE OR GAS ZONE, THE CORRESPONDING ZONE JUMPERS J11-J14 MUST BE IN "SMK" POSISTION SYSTEM SENSOR MODEL 2100TS BOTTOM PLATE ZONE ZONE SYSTEM SENSOR MODEL 2100TS BOTTOM PLATE ZONE ZONE MODEL 1503A0011 1K OHM EOL RESISTOR FIGURE 3 - TWO-WIRE FIRE ZONE CONNECTIONS Page 7... -
Page 15: Figure 4 - Four-Wire Fire Zone Connections
WHEN Z1-Z4 IS CONFIGURED AS A SUPERVISED FIRE OR GAS ZONE, THE CORRESPONDING ZONE JUMPERS J11-J14 MUST BE IN "SMK" POSISTION GREEN YELLOW BLACK BLACK SYSTEM SENSOR MODEL 2112/24TR YELLOW BOTTOM GREEN PLATE SYSTEM SENSOR MODEL 2112/24TR BOTTOM PLATE ZONE YELLOW ZONE GREEN... -
Page 16: Telephone Connections
When the RJ31X is installed as shown, locate the green, red, brown, and gray spaded wires from the 8 conductor phone cable and connect to the section on the OmniPro II controller marked 'PHONE'. Plug the modular end of the cable into the RJ31X jack. -
Page 17: Figure 5 - Rj31X Jack Connections
BEND TAB UP IF NECESSARY TO ENSURE TIGHT FIT RED(-) GREEN(+) TELEPHONE NETWORK INTERFACE CUSTOMER ACCESS RED(-) GREEN(+) SURGE ARRESTOR SURGE ARRESTOR MUST BE GROUNDED! RJ11 HOUSE PHONE TO TELCO JACK(S) INTERFACE AT SURGE ARRESTOR TO ALL HOUSE TELEPHONES OR PBX FIGURE 5 - RJ31X JACK CONNECTIONS Page 10... -
Page 18: Lcd Console Hookup
RED(-) GREEN(+) TELEPHONE NETWORK RED(-) GREEN(+) INTERFACE CUSTOMER ACCESS DSL SPLITTER SURGE ARRESTOR VOICE SURGE ARRESTOR LINE IN MUST BE GROUNDED! RJ11 TO ALL HOUSE HOUSE TELEPHONES PHONE DATA JACK(S) DSL MODEM COMPUTER FIGURE 6 – DSL SPLITTER CONNECTIONS LCD CONSOLE HOOKUP 16 LCD Consoles (Models 33A00-1, 33A00-4, 11A00-1, 11A00-2, 11A00-9, and 15A00) MAXIMUM per system, subject to power availability. -
Page 19: Console Setup
CONSOLE SETUP The console has different operating options that can be setup from the console to the user's preference. If more than one console is being used, it is required that you give each console a different address. You can change the address of a console through the console setup mode. -
Page 20: Figure 7 - Console Connections
FOR MODEL NUMBERS SEE NOTE 1 UNDER "LCD CONSOLE HOOKUP" CONSOLE FACE (SNAPS ON TO BOTTOM PLATE) CONTROL SECURITY BUTTONS TEMP STATUS FIRE BOTTOM PLATE EVENTS MESSAGE SETUP CANCEL MENU CONSOLE PC BOARD (MOUNTED TO CONSOLE FACE) SUPPLIED CABLE (PLUGS INTO J1) YELLOW GREEN... -
Page 21: Sounder Outputs
SOUNDER OUTPUTS The Horn Output provides 12VDC to power bells, piezo sirens, self-contained sirens, and siren drivers (do not connect speakers to the Horn Output). Sounders can draw up to 1 amp MAXIMUM, split between the Interior and Exterior Horn Outputs - (See Specifications for UL Ratings). -
Page 22: Figure 8 - Sounder Connections
FIGURE 8 - SOUNDER CONNECTIONS Page 15... -
Page 23: Controller Outputs
CONTROLLER OUTPUTS The OmniPro II provides 8 programmable hardwired voltage outputs and two horn voltage outputs. These outputs are programmable for the following output types: General Purpose low voltage switching applications (12 VDC) - Units 385 - 392 • Sounder triggering (a trigger for siren and voice drivers for BURG and FIRE) •... -
Page 24: Communicator Outputs
This output can be used for radio communications or any other type of auxiliary communications to augment the built-in digital and voice dialers. Any communications device can be used with the OmniPro II, provided that it is powered by 12 VDC, has 12 VDC triggered inputs, and has 2 (or more) channels. -
Page 25: Figure 10 - Remote Keyswitch Connections
1K EOL RESISTOR YELLOW GREEN GREEN BLACK MOMENTARY CONTACT KEYSWITCH FIGURE 10 - REMOTE KEYSWITCH CONNECTIONS Page 18... -
Page 26: Leviton Thermostats
Run a 3 (or 4) conductor wire from OmniPro II to the thermostat location. All thermostats are connected in parallel to Zone 16 and Output 8. Connect the red COMM cable wire with the black COMM cable wire. Make the connections (as shown in Figure 11) using the supplied wire splices. -
Page 27: Programmable Energy Saver Modules
Only zones 9-16 and 49-176 may be configured as an Energy Saver zone. Run a 4-conductor wire from the OmniPro II controller to each PESM. Connect as shown in FIGURE 13 (PESM CONNECTIONS). -
Page 28: Temperature, Outdoor Temperature, And Humidity
When mounting outdoors, plan to mount under an overhang or to the underside of an eave, otherwise known as the soffet, to protect it from direct sunlight and rain. Run a 4-conductor wire from the OmniPro II controller to the selected location. -
Page 29: Figure 13 - Pesm Connections
BLACK YELLOW GREEN EXISTING LOW VOLTAGE THERMOSTAT RED LED ON - ENERGY SAVER IS OVERRIDING THERMOSTAT OFF - THERMOSTAT IS WORKING NORMALLY HEAT / AIR SYSTEM PROGRAMMABLE ENERGY SAVER MODULE FIGURE 13 - PESM CONNECTIONS Page 22... -
Page 30: Built-In Serial Ports
(J1-J5). To connect a serial port to a PC, use the LEVITON Model 21A05-2 Serial Cable Kit. Plug one end of the cable into one of the modular serial port connectors on the controller. Plug the other end into the Model 21A05-1 Communication Cable Adaptor (modular to DB-9 RS-232), which connects the OmniPro II serial port to the computer's DB-9 RS-232 port. -
Page 31: Built-In Ethernet Port
BUILT-IN ETHERNET PORT OmniPro II has an Ethernet port (J6) built onto the controller (labeled ETHERNET). The Ethernet port allows a device to connect to the OmniPro II controller via a network (i.e. Ethernet, Internet) using a secure, encrypted communication link. The Ethernet port transports LEVITON application-level packets containing Omni-Link serial protocol messages over IP. -
Page 32: Controller Ip Address
CONTROLLER IP ADDRESS The controller’s local network IP address is used to identify the OmniPro II controller on the network. To view and assign the controller’s local network IP address, from the Set Up menu, press the 6 (MISC) key. Using the down arrow key (↓), scroll to the... -
Page 33: Connecting To Network Via Pc Access
“Modem”, “Serial” or “Network”. When an account file is opened, the connection type will default to “Serial”. 192.168.0.101 Hub or HAI OmniPro II Router Controller To connect to an OmniPro II controller on 192.168.0.50 a local network using LEVITON PC Access, under Configure >> Network Computer enter the controller’s IP address: (i.e. -
Page 34: Figure 17 - Local / Wide Area Network
(the router/switch) in the local network. This allows you to locate and connect to the OmniPro II controller without having a computer on the local network powered up and running. -
Page 35: System Power Up Procedure
Within one minute, the STATUS LED should begin blinking at a rate of 1 blink per second. This indicates that the OmniPro II processor and software are working. The PHONE LED should be OFF (if all telephones are on-hook and the RJ31X jack is properly connected. -
Page 36: Burglar Zone Check Out
Record the owner's NAME and ADDRESS in the ADDRESS speech memory as shown in SETUP ADDRESS in the OWNER'S MANUAL (Press 8, 9, then 1111 or the current Master code to record the address). NOTE: DO NOT record any TOUCH TONES in the ADDRESS!! Check that all in-house phones are working. -
Page 37: In Case Of Trouble
13.7 volts. If not, make sure that there isn't too much load on the system. Disconnect all loads. If the STATUS LED still won't blink, there is a problem with the controller board and it must be returned to LEVITON for repair. - Page 38 Phone line problems, or problems with the OmniPro II voice are usually the result of the RJ31X jack being improperly wired. Check RJ31X jack wiring and polarity carefully, as described in TELEPHONE CONNECTIONS. In the event that the controller is found defective, the controller board can be removed without disconnecting the entire wiring from their terminals.
-
Page 39: Digital Communicator
When using Contact ID, the alarm codes and/or reporting format cannot be changed. However, if the DCM code (under the 4/2 and 3/1 Alarm Code Formats) is set to “0” or “00”, then OmniPro II will not make a call to the central station to report that code when using Contact ID. -
Page 40: Description Of 4/2 Format
OPENING AND CLOSING REPORTS The OmniPro II system can send opening and closing reports by user to the central station. When the system is disarmed by user code 1-16, the communicator can call the central station and report that the system was disarmed (opened) with the user code that was used. -
Page 41: Installer Setup
INSTALLER SETUP This section describes the items that the installer must setup as part of system installation. The Installer Setup mode is used to configure the general operation of the system, the Outputs, the Areas, the Zone Types, the Digital Communicator, and various other settings. -
Page 42: X-10 3-Phase
When “Status Tracking” is enabled, this is done automatically after a scene is executed. The value set for the UPB Status Time is the amount of seconds that the OmniPro II controller waits before requesting status after a scene is executed. -
Page 43: Z-Wave Node Id
The Node ID is a unique number between 1 and 232 which identifies a Z-Wave device on the Vizia RF Z-Wave Network. Each Node must be associated (mapped) with a unit number in the OmniPro II controller. For Vizia RF Z-Wave pushbutton controllers, enter the Node ID for the Z-Wave pushbutton controller associated with that room (e.g. -
Page 44: Setup Zones
Each Model 17A00 Expansion Enclosure adds 16 hardwired zones to the OmniPro II system. Wireless Receives can also be used to add additional zones to the OmniPro II system. When connected to an OmniPro II, the Wireless Receiver is recognized as an Expansion Enclosure. Each Wireless Receiver can handle up to 64 wireless zones, in groups of 16. -
Page 45: Zone Types
To change a zone type, press the ' # ' key, then use the arrow keys to scroll through the list of zone types. Press the ' # ' key to select a new type The display shows: SELECT TYPE: ↕ PERIMETER ZONE RESPONSE TIME All zones, in the OmniPro II are set to a 300 millisecond fixed response time. ZONE TYPES ZONE TYPE NUMBER DESCRIPTION ENTRY/EXIT Entry/Exit... -
Page 46: Description Of Zone Types
DESCRIPTION OF ZONE TYPES ENTRY/EXIT ENTRY/EXIT ZONE types are intended for doors. ENTRY/EXIT ZONES are armed in security modes DAY, NIGHT, AWAY, and VACATION. In DAY and AWAY modes, there is an entry delay (defined by ENTRY DELAY) on ENTRY/EXIT ZONES to allow you to get into the house and turn off the alarm before it sounds. - Page 47 DURESS EMERGENCY. If this zone is accidentally tripped, you will not know that the OmniPro II is making a silent dial out, and hence won't know to stop it. To stop a silent dial out once it has started, you must go to the console and press OFF then enter your code.
- Page 48 Zones that are not in use should be configured as AUXILIARY. KEYSWITCH INPUT This zone is used to arm AWAY and Disarm the OmniPro II security system using a toggle (to ground) keyswitch or keypad. PROGRAMMABLE ENERGY SAVER MODULE This zone type is for use with the Programmable Energy Saver Modules (PESM).
-
Page 49: Setup Digital Communicator
↕ COMMUNICATOR TYPE This item is used to select the transmitting parameters of the digital communicator. The OmniPro II can transmit in FAST 2300 Hz (20 PPS) mode, in SLOW 1400 Hz (10 PPS) 3/1 format, and in Contact ID. -
Page 50: Report Open/Close
After the transmission of the alarm to the central station, the operator can talk and listen to people and sounds at the premises. TWO-WAY AUDIO: ↕ 0=NO 1=YES If a Two-Way Audio Module is part of the system, select the 1 (YES) key to enable this feature. REPORT OPEN/CLOSE The communicator can be setup to send an opening and a closing report by user code. -
Page 51: Setup Areas
ZONE 1 ALARM CODE: ↕ 0-FF THROUGH USER 16 CLOSE CODE: 76 0-FF ↑ SETUP AREAS To configure the system for multiple areas, from the Installer Setup menu, press the 4 (AREA) key. The number of areas must be specified. Also, consoles, zones, units, thermostats, and buttons must be assigned to areas. By default, the system is setup for one area. - Page 52 0=CLR ↕ 1 2 3 4 5 6 7 8 UNITS 241-256 AREAS: 1 2 3 4 5 6 7 8 0=CLR ↕ EXPANSION ENCLOSURE UNITS UNITS 257-260 AREAS: 0=CLR ↕ 1 2 3 4 5 6 7 8 UNITS 261-264 AREAS: 1 2 3 4 5 6 7 8 0=CLR ↕...
- Page 53 UNITS 285-288 AREAS: UNITS 373-376 AREAS: 0=CLR ↕ 0=CLR ↕ 1 2 3 4 5 6 7 8 UNITS 369-372 AREAS: 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 0=CLR ↕ UNITS 289-292 AREAS: UNITS 377-380 AREAS: 1 2 3 4 5 6 7 8 0=CLR ↕...
- Page 54 UNITS 465-472 AREAS: 0=CLR ↕ UNITS 457-464 AREAS: 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 0=CLR ↕ UNITS 473-480 AREAS: 1 2 3 4 5 6 7 8 0=CLR ↕ UNITS 481-488 AREAS: 0=CLR ↕...
-
Page 55: Setup Areas: Zones
SETUP AREAS: ZONES To assign zones to areas, from the Setup Areas menu, press 2 (ZONE). Each zone must be assigned to one and only one area. ZONE 1 AREA: ↓ THROUGH ZONE 176 AREA ↑ SETUP AREAS: BUTTONS To assign groups of macro buttons to specific areas, from the Setup Areas menu, press the 3 (BTTN) key. Buttons can be configured so that they can only be activated from a particular area or from any area. -
Page 56: Set-Up Areas: Thermostats
SET-UP AREAS: THERMOSTATS To assign thermostats to specific areas, from the Set-up Areas menu, press the 5 (TEMP) key. Thermostats can be set up so that they can only be controlled from a specific area or from all areas. PESMs and Temperature Sensors can only be controlled from a single area, as specified in SETUP AREAS. -
Page 57: Setup Temperatures
↓ THERMOSTAT TYPE If LEVITON thermostats are part of the system, this item specifies the thermostat type for each thermostat (this enables the thermostat). If thermostats are used, they must be configured to the applicable thermostat type. When any THERMOSTAT TYPE is changed from the default setting of "Not Used", Zone 16 and Output 8 is automatically configured for thermostats. -
Page 58: Setup Miscellaneous
Remember this Installer code and do not disable. There is no way to reset or retrieve the code! If the code is forgotten or disabled, the OmniPro II controller must be sent back to the factory. Call for an RA#. -
Page 59: Dial Out Delay
DIAL OUT DELAY The DIAL OUT DELAY is the number of seconds that the OmniPro II waits before making an emergency dial out, AFTER the alarm is "tripped" (activated by burglar or fire) to preclude an accidental activation of the alarm from calling in a false alarm. -
Page 60: Supervise Int Sndr
This unit includes an alarm verification feature that will result in a delay of the system fire alarm signal from the initiating circuit. The total delay (OmniPro II controller plus detector delay) shall not exceed 60 seconds. No other initiating devices shall be connected to these circuits unless approved by the local authority having jurisdiction. -
Page 61: Dead Line Detect
↕ Currently, after the called party or the called party's answering machine hangs up the phone line, OmniPro II picks up the line and make its "Beep". If you wish to turn the Pickup After Hangup OFF, press 0 then ' # '. To turn it back On, press 1 then ' # '. -
Page 62: Reset System Ram
The NuVo Grand Concerto, Speakercraft, or Proficient audio system can not be connected to the LEVITON Model 10A17 Serial Interface Module. It must be connected to the (J2 Serial - J5 Serial) built-in serial port on the OmniPro II controller. -
Page 63: Module 2 Type - Module 4 Type
The NuVo Grand Concerto, Speakercraft, or Proficient audio systems can not be connected to the first built-in serial port (J1 Serial) on the OmniPro II controller. It must be connected to the (J2 Serial - J5 Serial) built-in serial port on the OmniPro II controller. -
Page 64: Serial 3 Function
SERIAL 6 RATE "Serial 6 Rate" selects the baud rate used when a Serial Interface Module is added to the OmniPro II system. If a Serial Interface Module is installed, select its baud rate then press the ' # ' key. -
Page 65: Setup Zone Options
SETUP ZONE OPTIONS Zone options are parameters that define the way that a zone functions. There are global zone options that affect all zones and there are individual zone options that affect how each individual zone functions. To configure zone options, from the Installer Setup menu, press the 8 (ZOPT) key. SWINGER SHUTDOWN NUMBER Swinger Shutdown is a false alarm prevention feature that counts the number of alarms caused by a specific zone. -
Page 66: Sia Cp-01 Compliance
** Combined Entry Delay and Abort Window (Dial Out Delay) should not exceed 1 minute. Minimum Equipment Requirements for a CP-01 Compliant Installation: Quantity Description Applicable Model Numbers OmniPro II Controller Model 20A00-2, 20A00-5, 20A00-8, 20A00-21, 20A00-22 1 - 16 Omni Console Model 33A00-1, 33A00-4... -
Page 67: Omnipro Ii Specifications
OMNIPRO II SPECIFICATIONS Size: Controller: 13 W x 13 H x 4.5 D Console: 4.6 W x 4.5 H x 1.2 D Weight: Controller: approx. 10 lb. Console: approx. 0.5 lb. Operating 32 - 122 degrees F (0 - 50 degrees C) -
Page 68: Underwriter's Laboratories (Ul) Installation Requirements
UNDERWRITER'S LABORATORIES (UL) INSTALLATION REQUIREMENTS The OmniPro II control units (20A00-2, -5, and -22) are suitable for household burglar and fire applications. Refer to UL1641 for installation requirements. Model 20A00-5 is also suitable for use in Commercial Burglar Alarm Applications, Central Station, Local and Police Connect. -
Page 69: 24-Hour Standby Battery Capacity
24-HOUR STANDBY BATTERY CAPACITY Maximum current ratings for 24-hours: Aux 12 VDC, Switch 12 VDC, Console, and Outputs 1-8: 250 mA Interior Horn and Exterior Horn: 350 mA 3M, P/N 952 SNAP CONNECTOR OVER WIRE 12" 12" BLACK BLACK WIRE TO - RED WIRE TO + BATTERY BATTERY... -
Page 70: Smoke Detector Installation Guidelines
SMOKE DETECTOR INSTALLATION GUIDELINES Ceiling mounted smoke detectors should be located in the center of the room or hall, or not less than 4 inches from any wall. When the detector is mounted on a wall, the top of the detector should be 4 to 12 inches from the ceiling. Do not install smoke detectors where normal ambient temperatures are above 100 deg. -
Page 71: Appendix A - Contact Id Reporting Format
APPENDIX A – CONTACT ID REPORTING FORMAT ZONE TYPE TRIP TROUBLE DESCRIPTION Entry/exit (also Double & Quad) Entry/exit burglary Perimeter (also Latching) Perimeter burglary Night Interior (also Latching) Interior burglary Away Interior (also Latching) Interior burglary Panic Panic alarm Police Emergency Panic alarm Silent Duress Silent panic... -
Page 72: Appendix B - Digital Communicator Code Sheet
__________________________________________________ Phone #: __________________________________________________ Relationship: __________________________________________________ 3. Name: __________________________________________________ Phone #: __________________________________________________ Relationship: __________________________________________________ Subscriber Equipment: Home Automation, Inc. - OmniPro II Notes: __________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ First Phone #: ____________________________________________ First Account #: ____________________________________________ Second (Backup) Phone #: __________________________________... - Page 73 CODE ZONE DESCRIPTION ACTION TO TAKE TEST CODE _________________________ __________________________________ ZONE 1: _________________________ __________________________________ ZONE 2: _________________________ __________________________________ ZONE 3: _________________________ __________________________________ ZONE 4: _________________________ __________________________________ ZONE 5: _________________________ __________________________________ ZONE 6: _________________________ __________________________________ ZONE 7: _________________________ __________________________________ ZONE 8: _________________________ __________________________________ ZONE 9:...
- Page 74 CODE ZONE DESCRIPTION ACTION TO TAKE ZONE 58: _________________________ __________________________________ ZONE 59: _________________________ __________________________________ ZONE 60: _________________________ __________________________________ ZONE 61: _________________________ __________________________________ ZONE 62: _________________________ __________________________________ ZONE 63: _________________________ __________________________________ ZONE 64: _________________________ __________________________________ ZONE 65: _________________________ __________________________________ ZONE 66: _________________________ __________________________________ ZONE 67:...
- Page 75 CODE ZONE DESCRIPTION ACTION TO TAKE ZONE 114: _________________________ __________________________________ ZONE 115: _________________________ __________________________________ ZONE 116: _________________________ __________________________________ ZONE 117: _________________________ __________________________________ ZONE 118: _________________________ __________________________________ ZONE 119: _________________________ __________________________________ ZONE 120: _________________________ __________________________________ ZONE 121: _________________________ __________________________________ ZONE 122: _________________________ __________________________________ ZONE 123:...
- Page 76 CODE ZONE DESCRIPTION ACTION TO TAKE ZONE 172: _________________________ __________________________________ ZONE 173: _________________________ __________________________________ ZONE 174: _________________________ __________________________________ ZONE 175: _________________________ __________________________________ ZONE 176: _________________________ __________________________________ FREEZE ALARM _________________________ __________________________________ FIRE EMERG _________________________ __________________________________ POLICE EMERG _________________________ __________________________________ AUX EMERG _________________________ __________________________________ DURESS...
-
Page 77: Appendix C - Zone And Unit Mapping
APPENDIX C - ZONE AND UNIT MAPPING ZONE DEVICE Zones 1-16 Zones 1-16 on Controller Zones 17-32 Zones 1-16 on 1st Model 10A06 Hardwire Expander Zones 33-48 Zones 1-16 on 2nd Model 10A06 Hardwire Expander Zones 49-64 Zones 1-16 on 1st Model 17A00 Expansion Enclosure Zones 65-80 Zones 1-16 on 2nd Model 17A00 Expansion Enclosure Zones 81-96... -
Page 78: Appendix D - Firmware Updates
APPENDIX D – FIRMWARE UPDATES Description The OmniPro II Version 3.2 firmware adds the following new features: Support for Clipsal C-Bus Lighting Control • The OmniPro II Version 3.1 firmware adds the following new features: Support for Lutron HomeWorks Whole Home Lighting Control System •... - Page 79 Note: The NuVo Grand Concerto, Speakercraft, or Proficient audio system can not be connected to the LEVITON Model 10A17 Serial Interface Module. It must be connected to the second through fifth built-in serial port (J2-J5 Serial) on the OmniPro II...
- Page 80 The NuVo Grand Concerto, NuVo Essentia G, Speakercraft, or Proficient audio systems can not be connected to the first built-in serial port (J1 Serial) on the OmniPro II controller. It must be connected to the second through fifth built-in serial port (J2-J3 Serial).
- Page 81 The AC Fail Report Time is used to suspend the “AC Power Off” trouble report to the central station, until the power has been off for the specified amount of time. This is used to prevent the OmniPro II from calling and reporting of AC power failures when there are numerous AC power interruptions at the premises.
- Page 82 Press the ' # ' (#=CFG) key to put the system into configuration mode. The display will show: CONFIGURE READER 1 SWIPE CARD 3 TIMES Go to the Access Control Reader to be enrolled and swipe any LEVITON Access Control Card or Key Tag 3 times in front of the reader: READER 1 ADDRESS: #=DEL ↕...
- Page 83 Area Assignment When more that one Area is configured, each Access Control Reader can be assigned to a specific Area on the controller. When used for security arming and disarming, the security mode of the Area where the Access Control Reader is assigned will be changed.
- Page 84 READER 1 EXIT TIME: 1-60 SECONDS ↕ Enter the Exit Time (1-60 seconds) for the selected Access Control Reader, followed by the ' # ' key. The default time is 5 seconds. Lock Type The Lock Type specifies the type of door lock that is connected to the selected Access Control Reader. The Lock Type can be either be configured for a "Fail Secure"...
- Page 86 Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that products manufactured by Leviton under the Leviton brand name (“Product”) will be free from defects in material and workmanship for the time periods indicated below, whichever is shorter: • OmniPro II and Lumina Pro: three (3) years from installation or 42 months from manufacture date.
