Page 4: Introduction

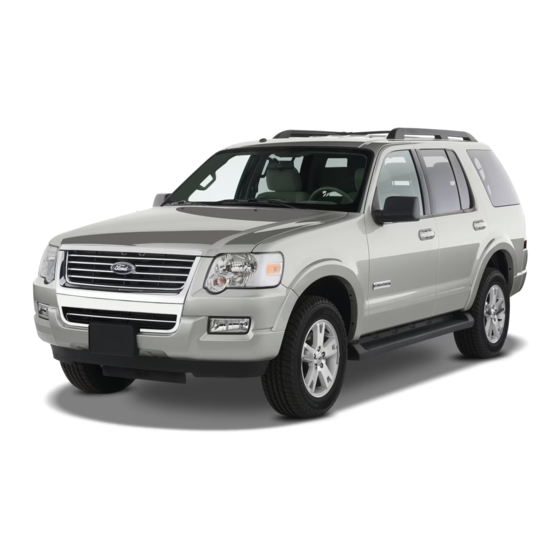

Introduction CONGRATULATIONS Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it.
Page 5 Drive your new vehicle at least 1,000 miles (1,600 km) before towing a trailer. For more detailed information about towing a trailer, refer to Trailer towing in the Tires, Wheels and Loading chapter. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 6 In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle.
Page 7 • where the driver was positioning the steering wheel. To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent,...
Page 8 Your vehicle is not equipped with a snowplowing package. Using your vehicle as an ambulance Do not use this vehicle as an ambulance. Your vehicle is not equipped with the Ford Ambulance Preparation Package. Cell phone use The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs.
Page 9 Owner’s Guide is written primarily for the U.S. and Canadian Markets. Features or equipment listed as standard may be different on units built for Export. Refer to this Owner’s Guide for all other required information and warnings. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 10 Brake Fluid - Parking Aid System Non-Petroleum Based Stability Control System Speed Control Master Lighting Switch Hazard Warning Flasher Fog Lamps-Front Fuse Compartment Fuel Pump Reset Windshield Wash/Wipe Windshield Rear Window Defrost/Demist Defrost/Demist 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 11 Sparks Explosive Gas Fan Warning Maintain Correct Fluid Power Steering Fluid Level Service Engine Soon Engine Air Filter Passenger Compartment Jack Air Filter Low Tire Pressure Check Fuel Cap Warning 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 12: Instrument Cluster
Note: Some warning lights will display in the message center as words and function the same as the warning light. Note: Depending on which options your vehicle has, some indicators may not be present in your vehicle. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 13 Powertrain malfunction indicator: Illuminates when a powertrain, a 4x4 or an AWD fault has been detected. Contact your authorized dealer as soon as possible. • Standard instrument cluster 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 14 A chime will sound if there is a malfunction in the indicator light. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 15 Refer to Engine coolant in the Maintenance and Specifications chapter. • Standard instrument cluster • Optional instrument cluster WARNING: Never remove the coolant reservoir cap while the engine is running or hot. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 16 Illuminates when the speed control is activated. Turns off when the speed control system is deactivated. O/D off: Illuminates when the overdrive function of the transmission has been turned off; refer to the Driving chapter. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 17 Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 18: Gauges
(5 km/h). Message center activation chime: Sounds when the following warnings DOOR AJAR, LOW FUEL LEVEL or LOW TIRE PRESSURE appear in the message center display for the first time. GAUGES 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 19 Odometer: Registers the total miles (kilometers) of the vehicle. • Standard instrument cluster • Optional instrument cluster Refer to Message center in the Driver Controls chapter on how to switch the display from English to Metric. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 20 Refer to Filling the tank in the Maintenance and Specifications chapter for more information. The FUEL icon and arrow indicates which side of the vehicle the fuel door is located. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 21: Entertainment Systems
Quick start — How to get going WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The drivers primary responsibility is the safe operation of their vehicle.
Page 22 Note: The system may take a few moments to turn on. 2. Press CD to enter CD mode. If a disc is already loaded into the system, CD play will begin where it ended last. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 23 While in folder mode, press FOLDER to access the previous folder on MP3 discs, if available. While in folder mode, press FOLDER to access the next folder on MP3 discs, if available. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 24 15 seconds, the system will reload the disc. To auto eject up to six discs, press and hold until the system begins ejecting all loaded discs. If the discs are not removed, the system will reload the discs. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 25: Am/Fm Stereo With Cd
(if equipped) WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle.
Page 26 When the song appears in the display that you would like to replace, press OK. SONG REPLACED will appear in the display. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 27 RBDS: Available only in FM mode. This feature allows you to search RBDS-equipped stations for a certain category of music format: CLASSIC, COUNTRY, INFORM, JAZZ/RB, ROCK, etc. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 28 Recommended level is 1–3; SPEED OFF turns the feature off and level 7 is the maximum setting. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 29 If your vehicle is equipped with SYNC, please refer to the SYNC supplement for further information. 5. SEEK: In radio mode, press to access the previous/next strong station. In CD mode, press access the previous/next CD track. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 30 In MP3 folder mode, the system will randomly play all tracks within the current folder. 8. FOLDER : In folder mode, press FOLDER to access next folder on MP3 discs, if available. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 31 In TEXT MODE, sometimes the display requires additional text to be displayed. When the “>” indicator is active, press SEEK to view the additional display text. When the “<” indicator is active, press SEEK to view the previous display text. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 32 If no CD is loaded, NO DISC will appear in the display. (CD eject): Press to eject a 18. CD slot: Insert a CD label side up in the CD slot. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 33: Am/Fm Stereo With In-Dash Six Cd
(if equipped) WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle.
Page 34 When the song title appears in the display that you would like to replace, press OK. SONG REPLACED will appear in the display. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 35 If there are less than six strong stations, the system will store the last one in the remaining presets. Press OK to close and return to the main menu. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 36 Recommended level is 1–3; SPEED OFF turns the feature off and level 7 is the maximum setting. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 37 If your vehicle is equipped with a Family Entertainment System (FES) please refer to the Family Entertainment DVD system later in this chapter. If your vehicle is equipped with the SYNC, please refer to the SYNC supplement for further information. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 38 To disengage, press SHUFFLE. SHUFFLE OFF will appear in the display. Note: In track mode, all tracks on the current disc will shuffle in random order. In MP3 folder mode, the system will randomly play all tracks within the current folder. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 39 Press and hold to hear a brief sampling of the next channels. Press again to stop. In CATEGORY MODE, press SCAN to hear a brief sampling of the channels in the selected category. Press again to stop. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 40 T001 (track #) in the display. An MP3 disc without folders will show T001 (track#) in the display. Refer to MP3 track and folder structure later in this chapter for further information. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 41: Auxiliary Input Jack (Line In)
Auxiliary input jack (Line in) WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle.
Page 42 (play, pause, etc.) over the attached portable music player. 5. For safety reasons, connecting or adjusting the settings on your portable music player should not be attempted while the vehicle is 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 43: Usb Port
USB port (if equipped) WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle.
Page 44 CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Do not use any irregular shaped CDs or discs with a scratch protection film attached.
Page 45 .mp3 file extension) and all folders containing MP3 files, from F001 (folder) T001 (track) to F253 T255. • Creating discs with only one level of folders will help with navigation through the disc files. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 46: Satellite Radio Information
• Antenna obstructions: For optimal reception performance, keep the antenna clear of snow and ice build-up and keep luggage and other material as far away from the antenna as possible. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 47 Note: SIRIUS reserves the unrestricted right to change, rearrange, add or delete programming including canceling, moving or adding particular channels, and its prices, at any time, with or without notice to you. Ford Motor Company shall not be responsible for any such programming changes.
Page 48 NO TEXT Artist information not Artist information not available. available at this time on this channel. The system is working properly. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 49: Family Entertainment System
FAMILY ENTERTAINMENT DVD SYSTEM (IF EQUIPPED) WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle.
Page 50 To switch back to all four speakers on, press the headphone button. Press VIDEO to change the source displayed on the screen. Press repeatedly to cycle through: DVD-DISC, DVD-AUX, NON-DVD, OFF. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 51 DVD system. It will load and automatically begin to play. If there is already a disc in the system, press PLAY on the DVD player. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 52 DVD-AUX. If your source is properly plugged in, it will appear on the LCD (Liquid Crystal Display) screen. If your auxiliary source does not have a video signal, or if the DVD system does not detect a video signal 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 53 You may listen to channels A and B over wired or wireless headphones. Refer to Using the infrared wireless headphones and Using wired headphones for further information. • Black (4) — wired headphone output (wired headphones not included) 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 54 A will listen to Channel A and headphones plugged into jack B will listen to Channel B. 2. Adjust the volume levels using the volume controls on the DVD system. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 55 Note: Headphone A can access any possible media (AM, FM1, FM2, SAT (if equipped), CD, DVD, DVD-AUX). Headphone B can only access DVD and DVD-AUX. For further information, refer to Single play/Dual play later in this section. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 56 9. LCD screen: The eight inch diagonal screen rotates down to view and up into housing to store when not in use. Ensure that the screen is latched into the housing when being stored. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 57 From the set-up menu, you may select from Angle, Aspect Ratio, Language, Subtitles, Disc resume, Compression, Restore Defaults and Back. For more detailed information, refer to Menu mode. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 58 Unless otherwise stated, all operations can be carried out with the remote control. Always point the remote control directly at the player. Ensure that there are no obstructions between the remote and player. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 59 ) the volume over all speakers. When in Dual Play, press to increase ( ) or decrease ( ) the volume for the wired headphones. (Wireless headphone volume is controlled with the rotary dial on the right ear piece.) 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 60 21. LANGUAGE (DVD dependent): Press to select the desired language. 22. ENTER: Press to select the highlighted menu option. 23. ILLUMINATION: Press to illuminate the remote control and backlight all of the buttons. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 61 DVD player. Remove the screw and unlatch the battery cover to access the batteries. The remote control unit uses two AAA batteries which are supplied with the unit. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 62 Also, wired headphones may be purchased and plugged in where indicated on the left and right hand sides of the system. Refer to Wired Headphones following. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 63 Then, lightly press down on top and slide the cover off. When replacing the batteries, use two new batteries (alkaline recommended) and install them with the correct orientation as indicated in the battery housing. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 64 They will also turn off after two hours of continuous use as a power save feature. If this happens, simply turn the headphones on again and continue use. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 65 (and other media sources) over the headphones. This enables the front and rear seat passengers to listen to a variety of sources a variety of ways. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 66 Channel A and Channel B. Both Channel A and Channel B can be listened to on the wired headphones (not included) or on the infrared (IR) wireless headphones. Press the Headphone Control button A to change the audio source for Channel A. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 67 Channel A and Channel B. Both Channel A and Channel B can be listened to on the wired headphones (not included) or on the infrared (IR) wireless headphones. Press the Headphone Control button A to change the audio source for Channel A. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 68 (Headphone only mode) When the Family Entertainment System (FES) detects that the original radio supplied by Ford Motor Company has been removed from the vehicle, the Family Entertainment System will work in a state referred to as “Headphone Only Mode”.
Page 69 ENTER to confirm. The system default is Angle 1. Aspect ratio Select ASPECT RATIO to select the viewing size and shape of the video displayed on the LCD screen. This is disc dependent. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 70 Once you have made your selection, press ENTER to confirm. The system default is English. Subtitles Select SUBTITLES to turn the subtitle option on or off. The system default is OFF. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 71 1. Ensure that the vehicle is on or the ignition is in accessory mode. 2. Ensure that the DVD system is on. 3. Insert the MP3 disc into the DVD system, label side up. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 72 Follow the PC configuration recommendations of the encoder software vendor. We recommend that you avoid running other software applications on your PC during MP3 encoding to avoid undesirable noise and distortion. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 73 (DVD), DVD-R and R/W discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD and DVD players. Irregular shaped CDs or DVDs, CDs or DVDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the FES DVD system.
Page 74 1/4 and 1/2. These will display on the status bar on top of the screen as the screens cycle through at this rate. Frame by frame 1. With a DVD playing, press pause. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 75 DVD system. Plug in wired headphones (not included) here. Note: The B headphones can only access DVD and AUX modes. They cannot access radio sources. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 76 The radio will ignore button presses that affect the primary (speaker) audio source. LOCKED (disabled): The FES buttons are locked and all FES button presses are ignored by the radio and the FES except for load and eject. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 77 An independent license for such use is required. For details, please visit http:// www.mp3licensing.com. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 78 Safety information WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle.
Page 79 Federal Communication Commission (FCC) Compliance Changes or modifications not approved by Ford Lincoln-Mercury could void user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
Page 80 (headphone only mode) When the Family Entertainment System (FES) detects that the original radio supplied by Ford Motor Company has been removed from the vehicle, the FES will work in a state referred to as “Headphone Only Mode.” This mode allows the FES to operate as a standalone system, without interface to the radio.
Page 81: Navigation System
Your vehicle may be equipped with SYNC, a hands-free communications and entertainment system with special phone and media features. For more information, please refer to the SYNC supplement or to the SYNC section in the Navigation system supplement (if equipped). 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 82: Climate Controls
• To reduce humidity build up inside the vehicle, do not drive with the air flow selector in the off position. • Do not put objects under the front seats that will interfere with the airflow to the rear seats. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 83 To allow windshield defogging and demisting while warming up vehicle: 1. Select floor/defrost mode. 2. Set temperature control to maintain comfort. 3. Set fan to highest setting. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 84: Automatic Temperature Control
(single zone) or allows the passenger to have control of their individual temperature settings (dual zone control). Press to turn on dual zone mode, press again to return to single zone. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 85 16. EXT: Displays the outside air temperature. It will remain displayed until the EXT control is pressed again. The external temperature will be most accurate when the vehicle has been moving for a period of time. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 86 5. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 87: Auxiliary Passenger Climate Control
Controls the direction of the airflow to the rear of the vehicle. • directs air flow primarily through the console panel register. • directs air flow through the console floor register. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 88: Rear Window Defroster
The defroster turns off automatically after 10 minutes or when the ignition is turned to off or the accessory position. To manually turn off the defroster before 10 minutes have passed, push the control again. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 89: Lights
Note: With autolamps, your vehicle has a windshield wiper rainlamp feature. When the headlamp control is in the autolamp position and the windshield wipers are turned on during daylight, the exterior lamps will turn on after a brief delay. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 90 Failure to activate your headlamps under these conditions may result in a collision. High beams Push the lever toward the instrument panel to activate. Pull the lever towards you to deactivate. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 91 The headlamps on your vehicle are properly aimed before leaving the assembly plant. If your vehicle is involved in an accident or if you have problems fixing the alignment of your headlamps, have them checked by a qualified service technician. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 92 (to adjust up). Note: Use a 4 mm socket or box wrench to turn the vertical adjuster control. 6. Horizontal aiming is not required for this vehicle and is non-adjustable. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 93: Turn Signal Control
The reading portion, the two outer lights, can only be toggled on and off at the lamp. The front map lamps are located in the overhead console (if equipped). Press the controls on either side of each map lamp to activate the lamps. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 94: Bulb Replacement
“E” for Europe to ensure lamp performance, light brightness and pattern and safe visibility. Using incorrect bulbs may damage the lamp assembly or void the lamp assembly warranty or may not provide quality bulb burn time. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 95 Check the operation of the bulbs frequently. To replace any of the interior bulbs, see a dealer or qualified technician. Replacing exterior bulbs Check the operation of all the bulbs frequently. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 96 Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated. Reverse steps to reinstall bulb(s). 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 97 Reverse steps to reinstall bulb(s). Replacing tail/brake/turn/backup lamp bulbs 1. Turn the headlamp switch off and open the liftgate. 2. Remove the two bolts from the lamp assembly. 3. Remove the lamp assembly. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 98 3. Remove the bulb socket from the lamp assembly by turning counterclockwise and pull the bulb straight out. Reverse steps to reinstall bulb(s). 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 99 2. Remove the bulb holder from the lamp assembly by depressing the snaps. 3. Pull the bulb straight out of the socket and push in the new bulb. Reverse steps to reinstall bulb(s). 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 100: Driver Controls
For rear wiper operation, rotate the rear window wiper and washer control to the desired position. Select: INT 1 — 8–10 second interval rear wiper. INT 2 — 3–4 second interval rear wiper. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 101: Steering Wheel Adjustment
WARNING: Never adjust the steering column when the vehicle is moving. ILLUMINATED VISOR MIRROR (IF EQUIPPED) Lift the mirror cover to turn on the visor mirror lamps. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 102 OVERHEAD CONSOLE (IF EQUIPPED) The appearance of your vehicle’s overhead console will vary according to your option package. Storage compartment Press the latch to open the storage compartment. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 103 AIJ (Audio Input Jack), USB port and a business/credit card holder The rear side of the console may incorporate the following features: • Air vents • Cupholders 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 104 (accessible from the rear seats). Do not use the power point for operating the cigarette lighter element (if equipped). 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 105: Power Windows
WARNING: When closing the power windows, you should verify they are free of obstructions and ensure that children and/or pets are not in the proximity of the window openings. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 106 ONE TOUCH DOWN position during a ONE TOUCH UP event, the window will stop. If, after 1/2 second the switch is still held, the window will perform a normal open or ONE TOUCH DOWN. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 107 The interior rear view mirror has two pivot points on the support arm which lets you adjust the mirror UP or DOWN and from SIDE to SIDE. WARNING: Do not adjust the mirror while the vehicle is in motion. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 108: Mirrors
Power side view mirrors WARNING: Do not adjust the mirror while the vehicle is in motion. The ignition must be in the accessory or on position to adjust the power side view mirrors. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 109 These actions could cause damage to the glass and mirrors. Do not clean the housing or glass of any mirror with harsh abrasives, fuel or other petroleum-based cleaning products. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 110 To enable/disable the power running board feature, refer to the Message center in this chapter. • When this feature is disabled (OFF), the running boards will move to the stowed position regardless of the position of the doors. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 111: Speed Control
With speed control set, you can maintain a set speed without keeping your foot on the accelerator pedal. WARNING: Do not use the speed control in heavy traffic or on roads that are winding, slippery or unpaved. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 112 • If the vehicle speed decreases more than 10 mph (16 km/h) below your set speed on an uphill, your speed control will disengage. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 113 1 mph or 2 km/h. • Depress the brake pedal until the desired vehicle speed is reached, press the SET + control. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 114 In Satellite radio mode (if equipped): • Press SEEK advance through preset channels. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 115 You will hear a tone and LISTENING will appear in the radio display. Press and hold VOICE to exit voice command. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 116 The moon roof is equipped with an automatic, one-touch, express opening and closing feature. To stop motion at any time during the one-touch operation, press the control a second time. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 117 This feature will learn the radio frequency codes of most transmitters to operate garage doors, entry gate operators, security systems, entry door locks, and home or office lighting. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 118 It is also recommended that a new battery be placed in the hand-held transmitter of the device being programmed to HomeLink for quicker training and accurate transmission of the radio-frequency signal. Console mount 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 119 HomeLink button. Repeat the press/hold/release sequence again and, depending on the brand of the garage door opener (or other rolling code equipped device), repeat this sequence a third time to complete the programming. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 120 HomeLink . The indicator light will flash slowly and then rapidly after HomeLink accepts the radio frequency signal. • Proceed with Step 3 in the Programming section. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 121 For convenience, the hand-held transmitter of the device may also be used at any time. In the event that there are still programming difficulties, contact HomeLink at www.homelink.com or 1–800–355–3515. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 122 2. The indicator light will begin to flash after 20 seconds. Without releasing the HomeLink button, follow Step 1 in the Programming section. For questions or comments, contact HomeLink at www.homelink.com or 1–800–355–3515. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 123: Message Center
The DTE function will display FUEL LEVEL LOW and sound a tone for one second when you have approximately 50 miles (80 km) to empty. If you RESET this warning message, this display and tone will return within 10 minutes. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 124 SETUP MENU sequence from the INFO MENU for the following displays: • System Check • AWD Lock (4.6L engine vehicles only) • Units (English/Metric) • Language • Autolamp • Autolock 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 125 For each of the monitored systems, the message center will indicate either an OK message or a warning message for two seconds. Pressing the SELECT/RESET control switch cycles the message center through each of the systems being monitored. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 126 Selectable languages are English, Spanish, French, or Japanese. 3. Press the SELECT/RESET control switch for the next SETUP MENU item or wait for more than four seconds to return to the INFO MENU. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 127 ON or OFF. 3. Press the SELECT/RESET control switch for the next SETUP MENU item or wait for more than four seconds to return to the INFO MENU. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 128 100% and “OIL LIFE SET TO 100%” is displayed. Note: To change oil life 100% miles value from 7,500 miles (12,000 km) or six months to another value, proceed to Step 3. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 129 This variation is up to four degrees between adjacent zones and will become noticeable as the vehicle crosses multiple zones. A correct zone setting will eliminate this error. Refer to Compass calibration adjustment. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 130 Perform compass calibration in an open area free from steel structures and high voltage lines. For optimum calibration, turn off all electrical accessories (heater/air conditioning, wipers, etc.) and make sure all vehicle doors are shut. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 131 • They will not reappear until an ignition off-on cycle has been completed. • They reappear if the condition clears then reoccurs within the same ignition on-off cycle. This acts as a reminder that these warning conditions still exist within the vehicle. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 132 SERVICE RSC NOW — Displayed when the RSC system is not operating properly. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 133 Understanding your Tire Pressure Monitoring System (TPMS) in the Tires, Wheels and Loading chapter. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 134 TO EXIT 4X4 LOW SHIFT TO N(if equipped) — Displayed when 2WD is selected while the vehicle has been stopped in 4X4 LOW. For more information, refer to Using the Control Trac 4WD system in the Driving chapter. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 135 Selectable features Reset Press the RESET control to select and reset functions shown in the INFO menu, SETUP menu, text warnings and reconfigurable telltale warnings. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 136 500 miles (800 km). This value is not the same as the average fuel economy display. The running average fuel economy is reinitialized to a factory default value if the battery is disconnected. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 137 Your vehicle must be moving to calculate instantaneous fuel economy. When your vehicle is not moving, this function shows one or no bars illuminated. Instantaneous fuel economy cannot be reset. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 138 • System Check INFO SETUP RESET • AWD Lock (4.6L engine vehicles only) • Units (English/Metric) • Language • Autolamp • Autolock • Autounlock • Power Running Boards (if equipped) 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 139 Pressing the RESET control cycles the message center through each of the systems being monitored. The sequence of the system check report and how it appears in the message center is as follows: 1. OIL LIFE 2. CHARGING SYSTEM 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 140 3. Press the RESET control for the next SETUP MENU item or wait for more than four seconds to return to the INFO menu. Autolamp This feature keeps your headlights on for up to three minutes after the ignition is switched off. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 141 2. Press the RESET control to turn the autounlock ON or OFF. 3. Press the RESET control for the next SETUP MENU item or wait for more than four seconds to return to the INFO menu. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 142 Reverse Sensing System (Park Aid) (if equipped) This feature sounds a warning tone to warn the driver of obstacles near the rear bumper, and functions only when R (Reverse) gear is selected. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 143 Note: Compass zone and calibration adjustments can be entered by using the INFO and SETUP MENU controls or using the reset button on top of the compass sensor mounted behind the mirror. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 144 The range of zone values are from 01 to 15 and “wraps” back to 01. 7. Wait four seconds when correct zone is chosen. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 145 To reset the oil monitoring system to 100% after each oil change (approximately 7,500 miles [12,000 km] or six months) perform the following: 1. Press RESET control to display “HOLD RESET IF NEW OIL”. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 146 • They will not reappear until an ignition off-on cycle has been completed. • They reappear if the condition clears then reoccurs within the same ignition on-off cycle. This acts as a reminder that these warning conditions still exist within the vehicle. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 147 CHECK FUEL FILL INLET (if equipped) — Displayed when the fuel fill inlet may not be properly closed. Refer to Easy Fuel™ “no cap” fuel system in the Maintenance and Specifications chapter. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 148 BRAKE FLUID LEVEL LOW — Indicates the brake fluid level is low and the brake system should be inspected immediately. Refer to Brake fluid in the Maintenance and Specifications chapter. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 149 TO EXIT 4X4 LOW SHIFT TO N (if equipped) — Displayed when 2WD is selected while the vehicle has been stopped in 4X4 LOW. For more information, refer to Using the Control Trac 4WD system in the Driving chapter. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 150 WARNING: Do not place any objects on the cargo area cover. They may obstruct your vision or strike occupants of the vehicle in the case of a sudden stop or collision. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 151 REAR LIFTGATE The liftgate area is only intended for cargo, not passengers. You can open and close the liftgate from outside the vehicle. It cannot be opened from inside the cargo area. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 152 100 lb (45 kg), evenly distributed. The cross-bars (if equipped) can be adjusted by using the thumbwheels at each end. Use the tie-down loops on the thumbwheels to secure load. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 153 10 inches from the front end-cap to decrease wind noise. Ford Motor Company recommends loading the roof rack only when equipped with (optional) crossbars, to avoid unintended damage to the roof panel.
Page 154: Locks And Security
9 mph (15 km/h) or lower, and • the vehicle attains a speed greater than 12 mph (20 km/h). Deactivating/activating autolock Your vehicle comes with the autolock feature enabled. There are four methods to enable/disable this feature: 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 155 4. Press and hold the 3 • 4. While holding the 3 • 4 press the 7 • 8. 5. Release the 7 • 8. 6. Release the 3 • 4. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 156 You must complete Steps 1-5 within 30 seconds or the procedure will have to be repeated. If the procedure needs to be repeated, you must wait 30 seconds. Note: All doors must be closed and remain closed throughout the configuration process. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 157 Message center procedure For information on activating/deactivating the autounlock feature using the vehicle’s message center (if equipped), refer to Message center information in the Driver Controls chapter. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 158 (one short and one long chirp) if trim switch inhibit was activated. 7. Turn the ignition to the off position. The horn will chirp once to confirm the procedure is complete. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 159 33 feet (10 meters). A decrease in operating range could be caused by: • weather conditions, • nearby radio towers, • structures around the vehicle, or • other vehicles parked next to your vehicle. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 160: Anti-Theft System
The parklamps will flash twice to indicate that the vehicle has switched to one step unlocking. Repeat the procedure to switch back to two-step unlocking. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 161 (the seat position corresponds to the transmitter being used). Activating the memory seat feature To activate this feature: 1. Position the seat and adjustable pedals to the position desired. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 162 1. Twist a thin coin between the two halves of the remote entry transmitter near the key ring. DO NOT TAKE THE RUBBER COVER AND CIRCUIT BOARD OFF THE FRONT HOUSING OF THE REMOTE ENTRY TRANSMITTER. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 163 Note: Ensure the brake pedal is not depressed during this sequence. To reprogram the remote entry transmitters: 1. Ensure the vehicle is electronically unlocked. 2. Put the key in the ignition. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 164 • they have been turned on with the dimmer control, or • any door is open. The battery saver will shut off the interior lamps 10 minutes after the ignition has been turned to the off position. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 165 • Do not set a code that uses five of the same number. • Do not use five numbers in sequential order. • The factory set code will work even if you have set your own personal code. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 166 This system is designed to help prevent the engine from being started unless a coded key programmed to your vehicle is used. The use of the wrong type of coded key may lead to a “no-start” condition. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 167 Note: The SecuriLock™ passive anti-theft system is not compatible with non-Ford aftermarket remote start systems. Use of these systems may result in vehicle starting problems and a loss of security protection. Note: Large metallic objects, electronic devices that are used to purchase gasoline or similar items, or a second coded key on the same key chain may cause vehicle starting issues.
Page 168 4. Within ten seconds of turning the ignition to the 1 (off) position, insert the second previously coded key into the ignition. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 169 Steps 1 through 5. If failure repeats, bring your vehicle to your authorized dealer to have the new key(s) programmed. To program additional new unprogrammed key(s), wait twenty seconds and then repeat this procedure from Step 1. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 170: Seating And Safety Restraints
: • a trimmed energy absorbing foam and structure (1), • two steel stems (2), • a guide sleeve adjust/release button (3), • and a guide sleeve unlock/remove button (4). 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 171 For occupants of extremely tall stature, adjust the head restraint to its full up position. WARNING: The adjustable head restraint is a safety device. Whenever possible it should be installed and properly adjusted when the seat is occupied. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 172 For occupants of extremely tall stature, adjust the head restraint to its full up position. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 173 An unlatched seat may become dangerous in the event of a sudden stop or collision. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 174 Always sit upright against your seatback, with your feet on the floor. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 175 Press rear to raise or lower the rear portion of the seat cushion. Press the control to move the seat forward, backward, up or down. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 176 Press the SET control. The SET control indicator light will briefly illuminate. While the light is illuminated, press control 1. • To program position 2, repeat the previous procedure using control 2. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 177 2 inches (5 cm) to the desired memory location. See Locks and Security for activating the memory seat feature through the remote entry system. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 178 Note: Do not do the following: • Place heavy objects on the seat • Operate the seat heater if water or any other liquid is spilled on the seat. Allow the seat to dry thoroughly. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 179 To have an unobstructed rear view, you can fold down the second and third row head restraints. Refer to the Folding down the 2nd row 60/40 seats and bucket seats and 3rd row folding seat (if equipped) sections later in this chapter. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 180 Ensure that the head restraint is in the down position and no objects such as books, purses or briefcases are on the floor in front of the second row seats before folding them down. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 181 To return the seat to the upright position (seats not equipped with E-Z entry): 1. Pull up on the handle, and rotate the seatback until you hear a click, locking it in the upright position. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 182 After returning the seatback to its original position, pull on the seatback to ensure that it has fully latched. An unlatched seat may become dangerous in the event of a sudden stop or collision. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 183 To enter the 3rd row seat: 1. Fold down the 2nd row seat and release the handle. Refer to Folding down the 2nd row 60/40 seats and bucket seats earlier in this section. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 184 2. Make sure the seat is latched to the floor. 3. Bring the seat back to an upright position. The seatback should lock into position. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 185 To raise the seat up from the cargo mode (kneeling position), the entire seat should be lifted up using the seat back or the seat cushion area as a grabbing surface. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 186 Pull up on the handle located behind the seatback while pushing the seatback forward and down into the seat cushion. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 187 3rd row seat down. The control buttons are located on the driver-side rear quarter trim panel (accessible from the liftgate area). Push the bottom portion of the control button to lower the desired seatback. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 188: Safety Restraints
Your vehicle’s Personal Safety System consists of: • Driver and passenger dual-stage airbag supplemental restraints. • Front safety belts with pretensioners, energy management retractors, and safety belt usage sensors. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 189 This allows your Personal Safety System to distinguish between different levels of crash severity and modify the deployment strategy of the dual-stage airbags and safety belt pretensioners. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 190 The front safety belt usage sensors detect whether or not the driver and front outboard passenger safety belts are fastened. This information allows your Personal Safety System to tailor the airbag deployment and safety belt pretensioner activation depending upon safety belt usage. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 191 If any of these things happen, even intermittently, contact your authorized dealer as soon as possible. Unless serviced, the system may not function properly in the event of a collision. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 192 3) Never use a single belt for more than one person. WARNING: When possible, all children 12 years old and under should be properly restrained in a rear seating position. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 193 1. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) until you hear a snap and feel it latch. Make sure the tongue is securely fastened in the buckle. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 194 The webbing sensitive locking mode locks the webbing and prevents more belt from being pulled out if the belt is pulled out too quickly. The belt will unlock when you stop pulling on it. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 195 How to disengage the automatic locking mode Unbuckle the combination lap and shoulder belt and allow it to retract completely to disengage the automatic locking mode and activate the vehicle sensitive mode. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 196 Safety Canopy , and safety belt pretensioners. Refer to the Safety belt maintenance section in this chapter. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 197 This guide is attached to the quarter trim panel and is used to adjust the comfort of the shoulder belt for smaller occupants in the outboard second row seats. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 198 Safety belt warning light and indicator chime The safety belt warning light illuminates in the instrument cluster and a chime sounds to remind the occupants to fasten their safety belts. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 199 When the Belt-Minder feature is activated, the safety belt warning light illuminates and the warning chime sounds for six seconds every 30 seconds, repeating for approximately five minutes or until the safety belts are buckled. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 200 30 seconds, repeating for (5 km/h) and more than approximately five minutes or until 1-2 minutes have elapsed since the safety belts are buckled. the ignition switch has been turned to on... 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 201 “The people I’m with don’t Set the example, teen deaths occur 4 wear belts” times more often in vehicles with TWO or MORE people. Children and younger brothers/sisters imitate behavior they see. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 202 Read Steps 1 - 4 thoroughly before proceeding with the deactivation/activation programming procedure. Note: The driver and front passenger Belt-Minder features must be disabled/enabled separately. Both cannot be disable/enabled during the same key cycle. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 203 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 204: Airbags
WARNING: The National Highway Traffic Safety Administration (NHTSA) recommends a minimum distance of at least 10 inches (25 cm) between an occupant’s chest and the driver airbag module. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 205 WARNING: Modifications to the front end of the vehicle, including frame, bumper, front end body structure and non-Ford tow hooks may effect the performance of the airbag sensors increasing the risk of injury. Do not modify the front end of the vehicle with anything other than authorized Ford accessories for your vehicle.
Page 206 Front airbags are designed to activate in frontal and near-frontal collisions, not rollover, side-impact, or rear-impacts unless the collision causes sufficient longitudinal deceleration. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 207 • driver and passenger airbag modules (which include the inflators and airbags). • seat-mounted side airbags. Refer to Seat-mounted side airbag system later in this chapter • Safety Canopy system. Refer to Safety Canopy system later in this chapter. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 208 • the system determines that a small child is present in a booster seat. • a front passenger takes his/her weight off of the seat for a period of time. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 209 • Restart the vehicle and have the person remain in this position for about two minutes. This will allow the system to detect that person and enable the passenger’s frontal airbag. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 210 Even though the passenger airbag is disabled, the pass airbag off lamp may or may not be illuminated according to the table below. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 211 (if equipped). Check the “passenger airbag off” or “pass airbag off” indicator lamp for proper airbag Status. Failure to follow these instructions may interfere with the front passenger seat sensing system. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 212 If it is necessary to modify an advanced front airbag system to accommodate a person with disabilities, contact the Ford Customer Relationship Center at the phone number shown in the Customer Assistance chapter of this Owner’s Guide.
Page 213 SRS, its fuses or the seat cover on a seat containing an airbag. Contact your authorized dealer as soon as possible. WARNING: All occupants of the vehicle should always wear their safety belts even when an airbag SRS is provided. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 214 Side airbags are designed to inflate in side-impact collisions, not roll-over, rear-impact, frontal or near-frontal collisions, unless the collision causes sufficient lateral deceleration. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 215 Safety Canopy system, its fuses, the A, B, or C pillar trim, or the headliner on a vehicle containing a Safety Canopy . Contact your authorized dealer as soon as possible. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 216 • Roll over sensor in the restraints control module (RCM). The Safety Canopy system, in combination with safety belts, can help reduce the risk of severe injuries in the event of a significant side impact collision or rollover event. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 217 (including the A, B and C pillar trim) must be inspected and serviced by an authorized dealer. If the Safety Canopy is not replaced, the unrepaired area will increase the risk of injury in a collision. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 218 The feature will continue to operate until the vehicle runs out of power. Disposal of airbags and airbag equipped vehicles (including pretensioners) Contact your authorized dealer as soon as possible. Airbags MUST BE disposed of by qualified personnel. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 219: Child Restraints
Recommendations for Safety Restraints are based on probable child height, age and weight thresholds from NHTSA and other safety organizations or are the minimum requirements of law. Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician (CPST) and your pediatrician to make sure your child seat is appropriate for your child, and is compatible with and properly installed in the vehicle.
Page 220 Accident statistics suggest that children are safer when properly restrained in the rear seating positions than in a front seating position. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 221 A safety seat that is improperly installed or utilized, is inappropriate for your child’s height, age, or weight or does not properly fit the child may increase the risk of serious injury or death. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 222 Highway Traffic Safety Administration (NHTSA) provides education and training to ensure that all children ages 0 to 16 are properly restrained in the correct restraint system. Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician (CPST) and your pediatrician to make sure your seat is appropriate for your child and properly installed in the vehicle.
Page 223 Children 12 and under should be properly restrained in a rear seating position whenever possible. If all children cannot be seated and restrained properly in a rear seating position, properly restrain the largest child in the front seat. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 224 • Use the correct safety belt buckle for that seating position. • Insert the belt tongue into the proper buckle until you hear a snap and feel it latch. Make sure the tongue is securely fastened in the buckle. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 225 1. Position the child safety seat in a seat with a combination lap and shoulder belt. 2. Pull down on the shoulder belt and then grasp the shoulder belt and lap belt together. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 226 7. Try to pull the belt out of the retractor to make sure the retractor is in the automatic locking mode (you should not be able to pull more belt out). If the retractor is not locked, repeat Steps 5 and 6. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 227 There should be no more than 1 inch (2.5 cm) of movement for proper installation. 11. Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician (CPST) to make certain the child restraint is properly installed.
Page 228 WARNING: Never attach two LATCH child safety seats to the same anchor. In a crash, one anchor may not be strong enough to hold two child safety seat attachments and may break, causing serious injury or death. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 229 WARNING: Never attach two child safety seats to the same anchor. In a crash, one anchor may not be strong enough to hold two child safety seat attachments and may break, causing serious injury or death. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 230 The seat should move less than one inch when you do this for a proper installation. If the safety seat is not anchored properly, the risk of a child being injured in a crash greatly increases. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 231 Once the child safety seat has been installed using either the safety belt or the lower anchors of the LATCH system, you can attach the top tether strap. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 232 5 passenger vehicle, the tether straps may be attached to either of the tether anchors located at the rear of the cargo area. • Behind 2nd row seat • At the rear of the cargo area 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 233 To improve the fit of both the lap and shoulder belt on children who have outgrown child safety seats, Ford Motor Company recommends use of a belt-positioning booster. Booster seats position a child so that vehicle lap/shoulder safety belts fit better.
Page 234 • Does the lap belt rest low across the hips? • Is the shoulder belt centered on the shoulder and chest? • Can the child stay seated like this for the whole trip? 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 235 • High back booster seats If, with a backless booster seat, you cannot find a seating position that adequately supports your child’s head, a high back booster seat would be a better choice. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 236 For this reason, you should never use a booster seat with a lap belt only. It is generally best to use a booster seat with lap/shoulder belts in the back seat. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 237 Refer to the child restraint manufacturer’s instructions for additional inspection and maintenance information specific to the child restraint. Ford Motor Company recommends that all safety belt assemblies in use in vehicles involved in a collision be replaced.
Page 238: Tires, Wheels And Loading
A vehicle equipped with AWD or 4WD (when selected) has the ability to use all four wheels to power itself. This increases traction which may enable you to safely drive over terrain and road conditions that a conventional two-wheel drive vehicle cannot. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 239 All other things held equal, a shorter wheelbase may make your vehicle quicker to respond to steering inputs than a vehicle with a longer wheelbase. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 240: Tire Information
Title 49 Code of Federal Regulations Part 575.104(c)(2). U.S. Department of Transportation-Tire quality grades: The U.S. Department of Transportation requires Ford Motor Company to give you the following information about tire grades exactly as the government has written it.
Page 241 TIRES Tires are designed to give many thousands of miles of service, but they must be maintained in order to get the maximum benefit from them. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 242: Tire Inflation
INFLATING YOUR TIRES Safe operation of your vehicle requires that your tires are properly inflated. Remember that a tire can lose up to half of its air pressure without appearing flat. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 243 Ford Motor Company. You are strongly urged to buy a reliable tire pressure gauge, as automatic service station gauges may be inaccurate. Ford recommends the use of a digital or dial-type tire pressure gauge rather than a stick-type tire pressure gauge.
Page 244 6. Visually inspect the tires to make sure there are no nails or other objects embedded that could poke a hole in the tire and cause an air leak. 7. Check the sidewalls to make sure there are no gouges, cuts or bulges. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 245 If damage is observed or suspected have the tire inspected by a tire professional. Tires can be damaged during off-road use, so inspection after off-road use is also recommended. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 246 This information is used to contact customers if a tire defect requires a recall. Tire replacement requirements Your vehicle is equipped with tires designed to provide a safe ride and handling capability. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 247 (such as P-metric versus LT-metric or all-season versus all-terrain) as those originally provided by Ford. The recommended tire and wheel size may be found on either the Safety Compliance Certification Label or the Tire Label which is located on the B-Pillar or edge of the driver’s door.
Page 248 The tire pressure sensors mounted in the wheels (originally installed on your vehicle) are not designed to be used in aftermarket wheels. The use of wheels or tires not recommended by Ford Motor Company may affect the operation of your Tire Pressure Monitoring System.
Page 249 • Rear Wheel Drive (RWD) vehicles/Four Wheel Drive (4WD)/All Wheel Drive (AWD) vehicles (front tires at top of diagram) Sometimes irregular tire wear can be corrected by rotating the tires. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 250 2. 215: Indicates the nominal width of the tire in millimeters from sidewall edge to sidewall edge. In general, the larger the number, the wider the tire. 3. 65: Indicates the aspect ratio which gives the tire’s ratio of height to width. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 251 Note: For tires with a maximum speed capability over 149 mph (240 km/h), tire manufacturers sometimes use the letters ZR. For those with a maximum speed capability over 186 mph (299 km/h), tire manufacturers always use the letters ZR. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 252 This pressure is normally higher than the manufacturer’s recommended cold inflation pressure which can be found on the Safety Compliance Certification 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 253 4. Maximum Load Single lb. (kg) at psi (kPa) cold: Indicates the maximum load and tire pressure when the tire is used as a single; defined as two tires (total) on the rear axle. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 254 B-Pillar or the edge of the driver’s door. Refer to the payload description and graphic in the Vehicle loading — with and without a trailer section. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 255: Tire Pressure Monitoring System (Tpms)
TPMS from functioning properly. Always check the TPMS malfunction telltale after replacing one or more tires or wheels on your vehicle to ensure that the replacement or alternate tires and wheels allow the TPMS to continue to function properly. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 256 The tire pressure should be checked periodically (at least monthly) using an accurate tire gauge, refer to Inflating your tires in this chapter. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 257 To restore the full functionality of the Tire Pressure Monitoring System, have the damaged road wheel/tire repaired and remounted on your vehicle. For additional information, refer to Changing tires with TPMS in this section. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 258 TPMS If your tires are properly inflated and malfunction your spare tire is not in use and the light remains ON, contact your authorized dealer as soon as possible. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 259 Check air pressure in the road tires. If any tire is under-inflated, carefully drive the vehicle to the nearest location where air can be added to the tires. Inflate all the tires to the recommended inflation pressure. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 260: Vehicle Loading
Using any tire or wheel not recommended by Ford may increase the risk of loss of vehicle control or vehicle rollover, which could result in personal injury or death.
Page 261 Once you have reached the maximum payload of your vehicle, do not add more cargo, even if there is space available. Overloading or improperly loading your vehicle can contribute to loss of vehicle control and vehicle rollover. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 262 GAW (Gross Axle Weight) – is the total weight placed on each axle (front and rear) – including vehicle curb weight and all payload. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 263 The GVWR is shown on the Safety Compliance Certification Label located on the B-Pillar or the edge of the driver’s door. The GVW must never exceed the GVWR. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 264 0.15 and 0.25 to obtain a proper king pin load range of 1,725 to 2,875 lb. (782 to 1,304 kg) WARNING: Do not exceed the GVWR or the GAWR specified on the Safety Compliance Certification Label. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 265 In metric units, the calculation would be: 635 kg - (5 x 99 kg) - (5 x 13.5 kg) = 635 - 495 - 67.5 = 72.5 kg. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 266 Calculating the load your vehicle can carry/tow 1. Use the appropriate maximum GCWR chart (in the Trailer towing section in this chapter) for your type of engine and rear axle ratio. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 267: Trailer Towing
WARNING: Towing trailers beyond the maximum recommended gross trailer weight exceeds the limit of the vehicle and could result in engine damage, transmission damage, structural damage, loss of vehicle control, vehicle rollover and personal injury. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 268 (kg) (0-Maximum) 4.0L SOHC Class 3.55 8500 (3856) 0–3500 (0–1588) II towing 4.6L* Class II 3.55 8500 (3856) 0–3500 (0–1588) towing 4.0L SOHC Class 3.73 10000 (4536) 0–5205 (0–2361) III/IV towing 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 269 To connect the trailer’s safety chains, cross the chains under the trailer tongue and allow slack for turning corners. If you use a rental trailer, follow the instructions that the rental agency gives to you. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 270 Contact your authorized dealer as soon as possible for assistance in proper trailer tow wiring installation. Additional electrical equipment may be required. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 271 • If you are driving down a long or steep hill, shift to a lower gear. Do not apply the brakes continuously, as they may overheat and become less effective. • The trailer tongue weight should be 10–15% of the loaded trailer weight. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 272 Replace the rear axle lubricant any time the axle has been submerged in water. Rear axle lubricant quantities are not to be checked or changed unless a leak is suspected or repair required. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 273: Recreational Towing
(4) wheels off the ground such as when using a car-hauling trailer. Otherwise, no recreational towing is permitted. In case of a roadside emergency with a disabled vehicle, see Wrecker towing in the Roadside Emergencies chapter. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 274: Driving
WARNING: Do not start your vehicle in a closed garage or in other enclosed areas. Exhaust fumes can be toxic. Always open the garage door before you start the engine. See Guarding against exhaust fumes in this chapter for more instructions. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 275 Seating and Safety Restraints chapter. 2. Make sure the headlamps and electrical accessories are off. • Make sure the parking brake is set. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 276 3. Turn the key to 3 (on) without turning the key to 4 (start). Some warning lights will briefly illuminate. See Warning lights and chimes in the Instrument Cluster chapter for more information regarding the warning lights. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 277 If the engine is idling while the vehicle is stopped for a long period of time, open the windows at least one inch (2.5 cm) or adjust the heating or air conditioning to bring in fresh air. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 278 • Make sure that when in operation, the extension cord plug /engine block heater cord plug connection is free and clear of water in order to prevent possible shock or fire. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 279: Brakes
Refer to Brake system warning light in the Instrument Cluster chapter for information on the brake BRAKE system warning light. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 280 ABS may be disabled and may need to be serviced. Even when the ABS is disabled, normal braking is still effective. If your BRAKE warning lamp BRAKE illuminates with the parking brake released, have your brake system serviced immediately. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 281 Since the parking brake applies only the rear brakes, the vehicle’s stopping distance will increase greatly and the handling of your vehicle will be adversely affected. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 282 If your AdvanceTrac with RSC system activates, SLOW DOWN. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 283 If the “sliding car” icon remains steadily illuminated, or if the message center (if equipped) displays SERVICE RSC NOW, have the system serviced by an authorized dealer immediately. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 284: Traction Control™/Advancetrac
The Engine Traction Control and Brake Traction Control system may be deactivated in certain situations. See the Switching Off AdvanceTrac with RSC section following. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 285 • Taking a turn too fast • Quick maneuvering to avoid an accident, pedestrian or obstacle The Roll Stability Control system may be deactivated in certain situations. See the Switching Off AdvanceTrac with RSC section following. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 286 When properly equipped, trailer sway control will use the vehicle’s AdvanceTrac with RSC system to detect and help reduce trailer sway by applying brake force at individual wheels and, if necessary, by reducing engine power. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 287 Sway Control will be re-enabled at each new key cycle. WARNING: Turning off Trailer Sway Control increases the risk of loss of vehicle control, serious injury, or death. Ford does not recommend disabling this feature except in situations where speed reduction may be detrimental (e.g., hill climbing), the driver has...
Page 288 Over-loading or loading the vehicle improperly can deteriorate handling capability and contribute to loss of vehicle control and vehicle rollover. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 289: Transmission Operation
WARNING: If the parking brake is fully released, but the brake warning lamp remains illuminated, the brakes may not be working properly. See your authorized dealer. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 290 This learning process could take several transmission upshifts and downshifts; during this learning process, slightly firmer shifts may occur. After this learning process, normal shift feel and shift scheduling will resume. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 291 Hold the brake pedal down while in this position. D (Drive) with Overdrive The normal driving position for the best fuel economy. Transmission operates in gears one through five. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 292 • Provides maximum engine braking. • Allows upshifts by moving gearshift lever. • Will not downshift into 1 (First) at high speeds; allows for 1 (First) when vehicle reaches slower speeds. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 293 This learning process could take several transmission upshifts and downshifts; during this learning process, slightly firmer shifts may occur. After this learning process, normal shift feel and shift scheduling will resume. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 294 Hold the brake pedal down while in this position. D (Drive) with Overdrive The normal driving position for the best fuel economy. Transmission operates in gears one through six. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 295 Transmission operates in 2nd gear only. Use 2 (Second) to start-up on slippery roads or to provide additional engine braking on downgrades. 1 (First) • Transmission operates in 1st gear only. • Provides maximum engine braking. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 296: Reverse Sensing System
The system is designed to provide a warning to assist the driver in detecting objects to avoid damaging the vehicle. The system may not detect smaller objects, particularly those close to the ground. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 297 While receiving a warning the radio volume will be reduced to a predetermined level. After the warning goes away, the radio will return to the previous value. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 298 Driver Controls chapter. The message center will indicate the system is off and will not allow the driver to switch the system on to indicate a failure of the reverse sensing system. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 299 Illuminates when 4X4 HIGH (4WD High) is selected. • 4X4 LOW – momentarily illuminates when the vehicle is started. Illuminates when 4X4 LOW (4WD Low) is selected. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 300 ALL WHEEL DRIVE (AWD) SYSTEM (IF EQUIPPED) For the lubricant specification and refill capacity of the AWD transfer case refer to Maintenance and Specifications chapter. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 301 • The 4X4 indicator light in the instrument cluster will turn off when the AWD system reaches a safe operating temperature and normal AWD operation is restored. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 302 • It may be safer to stay on the apron or shoulder of the road and slow down gradually before returning to the pavement. You may lose control if you do not slow down or if you turn the steering wheel too sharply or abruptly. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 303 See your authorized dealer. WARNING: Do not spin the wheels at over 35 mph (56 km/h). The tires may fail and injure a passenger or bystander. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 304 Information on transfer case maintenance can be found in the Maintenance and Specifications chapter. You should become thoroughly familiar with this information before you operate your vehicle. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 305 Remember, you may be able to back out the way you came if you proceed with caution. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 306 Ford Motor Company joins the U.S. Forest Service and the Bureau of Land Management in encouraging you to help preserve our national forest and other public and private lands by “treading lightly.”...
Page 307 Should you start to slide while driving on snowy or icy roads, turn the steering wheel in the direction of the slide until you regain control. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 308 Ford Motor Company recommends that caution be used with any vehicle equipped with a high load or device (such as ladder racks or pickup box cover).
Page 309 Once through the water, always dry the brakes by moving your vehicle slowly while applying light pressure on the brake pedal. Wet brakes do not stop the vehicle as quickly as dry brakes. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 310: Roadside Emergencies
Roadside Emergencies ROADSIDE ASSISTANCE Getting roadside assistance To fully assist you should you have a vehicle concern, Ford Motor Company offers a complimentary roadside assistance program. This program is separate from the New Vehicle Limited Warranty. The service is available: •...
Page 311: Hazard Flasher Switch
Assistance, call 1-800-241-3673. Canadian customers who require roadside assistance, call 1-800-665-2006. If you need to arrange roadside assistance for yourself, Ford Motor Company will reimburse a reasonable amount for towing to the nearest dealership within 35 miles. To obtain reimbursement information, U.S.
Page 312: Fuel Pump Shut-Off Switch
4. Turn the ignition to the on position. Pause for a few seconds and return the key to the off position. 5. Make a further check for leaks in the fuel system. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 313: Fuses And Relays
— — Yellow Yellow Yellow Blue Natural Natural — — Green Green Green Pink — — Orange Green — — — — Blue Yellow — — — — — Natural — 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 314 The fuses are coded as follows: Fuse/Relay Fuse Amp Protected Circuits Location Rating Moon roof, Adjustable pedals, Memory seats, Memory lumbar motor Microcontroller power (SJB) Radio, Navigation amplifier OBD II connector 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 315 Reverse park aid, IVD switch, IVD, 4x4 module, 4x4 switch, Heated seat switches, Compass, Electrochromatic mirror, AUX climate control — Not used Manual climate, DEATC, Brake shift — Not used 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 316 Windows The following relays are located on either side of the passenger compartment fuse panel. See your authorized dealer for service of these relays. Fuse/Relay Location Description Relay 1 Delayed ACC 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 317 Power Distribution Box before reconnecting the battery or refilling fluid reservoirs. If the battery has been disconnected and reconnected, refer to the Battery section of the Maintenance and Specifications chapter. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 318 Third row seat (left) 40A** ABS pump 40A** Powertrain Control Module (PCM) — Not used — Not used 30A** Power seat (right) 30A** Starter 30A** Third row seat (right) 30A** Trailer tow battery charger 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 319 Fog lamps Power mirrors 30A* ABS valve 15A* Headlamps (left) 10A* AC clutch 20A* Console bin power point 30A* Driver window motor 15A* 5R Transmission (4.0L engine only) 15A* PCM power 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 320 — One Touch Integrated Start (OTIS) (diode) — Trailer battery charger relay — Front wiper relay — PCM relay — Starter relay — Blower relay * Mini Fuses ** Cartridge Fuses 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 321: Changing Tires
Ford. If the dissimilar spare tire or wheel is damaged, it should be replaced rather than repaired.
Page 322 • Use more than one dissimilar spare tire/wheel at a time • Use commercial car washing equipment • Use snow chains on the end of the vehicle with the dissimilar spare tire/wheel 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 323 3. Turn off the power running boards (if equipped). Refer to Running boards in the Driver Controls chapter. Note: Passengers should not remain in the vehicle when the vehicle is being jacked. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 324 4. Remove the chock and jack tools from the provided bag rotate the wrench socket out from the handle. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 325 1. Open the cover from the carpeting on cargo floor to expose the winch drive nut. 2. Insert the lug wrench on the winch drive nut. The wrench will stop moving and forward resistance to turning will be felt when properly engaged. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 326 WARNING: Turn off the running boards (if equipped) before working under the vehicle, jacking, or placing any object under the vehicle. Never place your hand in the hinge assemblies. A moving running board may cause injury. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 327 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 328 Reinstall the lug nuts, cone side in, until the wheel is snug against the hub. Do not fully tighten the lug nuts until the wheel has been lowered. 8. Lower the wheel by turning the jack handle counterclockwise. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 329 6. Repeat this tightness check procedure when servicing the spare tire pressure (every six months, per scheduled maintenance information), or at any time that the spare tire is disturbed through service of other components. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 330: Wheel Lug Nut Torque
20 * Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford recommended replacement fasteners. WARNING: When a wheel is installed, always remove any corrosion, dirt or foreign materials present on the mounting surfaces of the wheel or the surface of the wheel hub, brake drum or brake disc that contacts the wheel.
Page 331: Jump Starting
Do not attempt to push-start your automatic transmission vehicle. Automatic transmissions do not have push-start capability. Attempting to push-start a vehicle with an automatic transmission may cause transmission damage. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 332 Connecting the jumper cables 1. Connect the positive (+) jumper cable to the positive (+) terminal of the discharged battery. Note: In the illustrations, lightning bolts are used to designate the assisting (boosting) battery. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 333 2. Connect the other end of the positive (+) cable to the positive (+) terminal of the assisting battery. 3. Connect the negative (-) cable to the negative (-) terminal of the assisting battery. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 334 2. Start the engine of the disabled vehicle. 3. Once the disabled vehicle has been started, run both engines for an additional three minutes before disconnecting the jumper cables. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 335 1. Remove the jumper cable from the ground metal surface. 2. Remove the jumper cable on the negative (-) connection of the booster vehicle’s battery. 3. Remove the jumper cable from the positive (+) terminal of the booster vehicle’s battery. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 336 After the disabled vehicle has been started and the jumper cables removed, allow it to idle for several minutes so the engine computer can relearn its idle conditions. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 337: Wrecker Towing
It is recommended that your vehicle be towed with a wheel lift or flatbed equipment. Do not tow with a slingbelt. Ford Motor Company has not approved a slingbelt towing procedure. If the vehicle’s battery is discharged, refer to Automatic transmission operation in the Driving chapter for directions on how to move the gearshift lever out of the P (Park) position, for proper towing.
Page 338 If the vehicle is towed by other means or incorrectly, vehicle damage may occur. Ford Motor Company produces a towing manual for all authorized tow truck operators. Have your tow truck operator refer to this manual for proper hook-up and towing procedures for your vehicle.
Page 339: Customer Assistance
A reasonable time must be allowed to perform a repair after taking your vehicle to the authorized dealer. Repairs will be made using Ford or Motorcraft parts, or remanufactured or other parts that are authorized by Ford.
Page 340 • The name of the authorized dealer and city where located • The vehicle’s current odometer reading In some states, you must directly notify Ford in writing before pursuing remedies under your state’s warranty laws. Ford is also allowed a final repair attempt in some states.
Page 341 In the case of 1 or 2 above, the consumer must also notify the manufacturer of the need for the repair of the nonconformity at the following address: Ford Motor Company 16800 Executive Plaza Drive Mail Drop 3NE-B Dearborn, MI 48126 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 342 THE BETTER BUSINESS BUREAU (BBB) AUTO LINE PROGRAM (U.S. ONLY) Your satisfaction is important to Ford Motor Company and to your dealer. If a warranty concern has not been resolved using the three-step procedure outlined on the first page of the Customer Assistance section, you may be eligible to participate in the BBB AUTO LINE program.
Page 343 (CANADA ONLY) For vehicles delivered to authorized Canadian dealers. In those cases where you continue to feel that the efforts by Ford of Canada and the authorized dealer to resolve a factory-related vehicle service concern have been unsatisfactory, Ford of Canada participates in an impartial third party mediation/arbitration program administered by the Canadian Motor Vehicle Arbitration Plan (CAMVAP).
Page 344 The use of leaded fuel in your vehicle without proper conversion may damage the effectiveness of your emission control system and may cause engine knocking or serious engine damage. Ford Motor Company/Ford of Canada is not responsible for any damage caused by use of improper fuel.
Page 345 (Items in this catalog may be purchased by credit card, check or money order.) Obtaining a French owner’s guide French Owner’s Guides can be obtained from your authorized dealer or by writing to: Ford Motor Company of Canada, Limited Service Publications CHQ202 The Canadian Road P.O. Box 2000 Oakville, ON, Canada...
Page 346: Reporting Safety Defects (U.s. Only)
However, NHTSA cannot become involved in individual problems between you, your dealer, or Ford Motor Company. To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1–888–327–4236 (TTY: 1–800–424–9153);...
Page 347: Cleaning
• Never use abrasive materials such as steel wool or plastic pads as they can scratch the chrome surface. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 348 • Do not use hydrofluoric acid-based or high caustic-based wheel cleaners, steel wool, fuels or strong household detergent. • To remove tar and grease, use Motorcraft Bug and Tar Remover (ZC-42), available from your authorized dealer. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 349 • Cover the highlighted areas to prevent water damage when cleaning the engine. • Never wash or rinse the engine while it is running; water in the running engine may cause internal damage. 4.0L SOHC V6 ENGINE 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 350 Cleaner (ZC-23), available from your authorized dealer. • The wiper blades can be cleaned with isopropyl (rubbing) alcohol or Motorcraft Premium Windshield Washer Concentrate (ZC-32-A), available from your authorized dealer. This washer fluid contains 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 351 If a staining liquid like coffee/juice has been spilled on the instrument panel or on interior trim surfaces, clean as follows: 1. Wipe up spilled liquid using a clean, white, cotton cloth. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 352 Your leather seating surfaces have a clear, protective coating over the leather. • To clean, use a soft cloth with Motorcraft Deluxe Leather and Vinyl Cleaner (ZC-11-A). In Canada, use Motorcraft Vinyl Cleaner (CXC-93). Dry the area with a soft cloth. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 353 FORD AND LINCOLN MERCURY CAR CARE PRODUCTS Your Ford or Lincoln Mercury authorized dealer has many quality products available to clean your vehicle and protect its finishes. These quality products have been specifically engineered to fulfill your automotive needs;...
Page 354 Motorcraft Triple Clean (U.S. only) (ZC-13) Motorcraft Ultra-Clear Spray Glass Cleaner (ZC-23) Motorcraft Vinyl Cleaner (Canada only) (CXC-93) Motorcraft Wash and Wax (Canada only) (CXC-95) Motorcraft Wheel and Tire Cleaner (ZC-37-A) 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 355: Maintenance And Specifications
WARNING: To reduce the risk of vehicle damage and/or personal burn injuries, do not start your engine with the air cleaner removed and do not remove it while the engine is running. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 356 2. Go to the front of the vehicle and release the auxiliary latch that is located under the front center of the hood. 3. Lift the hood. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 357: Engine Compartment
2. Engine oil dipstick (out of view) 3. Brake fluid reservoir 4. Power distribution box 5. Battery 6. Power steering fluid reservoir 7. Radiator cap 8. Engine coolant reservoir 9. Air filter assembly 10. Washer fluid reservoir 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 358 3. Engine oil dipstick 4. Brake fluid reservoir 5. Power distribution box 6. Battery 7. Power steering fluid reservoir 8. Radiator cap 9. Engine coolant reservoir 10. Windshield washer fluid reservoir 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 359 In very cold weather, do not fill the reservoir completely. Only use a washer fluid that meets Ford specification WSB-M8B16–A2. Do not use any special washer fluid such as windshield water repellent type fluid or bug wash. They may cause squeaking, chatter noise, streaking and smearing.
Page 360 2. Grasp the wiper blade and rotate it away from the wiper arm using moderate force until it disengages from the wiper arm. 3. Once the wiper blade is loose, slide it away form the wiper arm. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 361: Engine Oil
3. Set the parking brake and ensure the gearshift is securely latched in P (Park). 4. Open the hood. Protect yourself from engine heat. 5. Locate and carefully remove the engine oil level dipstick. • 4.0L V6 engine 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 362 DO NOT ADD OIL. • If the oil level is below the lower hole, add enough oil to raise the level within the lower and upper holes. • 4.0L V6 engine 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 363 5. Fully install the engine oil filler cap by turning the filler cap clockwise until three clicks can be heard. To avoid possible oil loss, DO NOT operate the vehicle with the engine oil level dipstick and/or the engine oil filler cap removed. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 364 Change your engine oil according to the appropriate schedule listed in the scheduled maintenance information. Ford production and Motorcraft replacement oil filters are designed for added engine protection and long life. If a replacement oil filter is used that does not meet Ford material and design specifications, start-up engine noises or knock may be experienced.
Page 365 Change your engine oil according to the appropriate schedule listed in the scheduled maintenance information. Ford production and Motorcraft replacement oil filters are designed for added engine protection and long life. If a replacement oil filter is used that does not meet Ford material and design specifications, start-up engine noises or knock may be experienced.
Page 366: Battery
Lift the battery with a battery carrier or with your hands on opposite corners. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 367 If the battery has been disconnected or a new battery has been installed, the clock and the preset radio stations must be reset once the battery is reconnected. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 368: Engine Coolant
• Protection against rust and other forms of corrosion. • Enables calibrated gauges to work properly. When the engine is cold, check the level of the engine coolant in the reservoir. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 369 Refer to Adding engine coolant in this chapter. Note: Automotive fluids are not interchangeable; do not use engine coolant, antifreeze or windshield washer fluid outside of its specified function and vehicle location. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 370 Motorcraft Premium Gold Engine Coolant from yellow to golden tan. • Do not add/mix an orange-colored, extended life coolant such as Motorcraft Specialty Orange Engine Coolant, meeting Ford specification WSS-M97B44-D, or DEX-COOL brand with the factory-filled coolant. Mixing Motorcraft Specialty Orange Engine...
Page 371 If you have to add more than 1.0 quart (1.0 liter) of engine coolant per month, have your authorized dealer check the engine cooling system. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 372 Recycled engine coolant Ford Motor Company does NOT recommend the use of recycled engine coolant in vehicles originally equipped with Motorcraft Premium Gold Engine Coolant since a Ford-approved recycling process is not yet available.
Page 373 Once engine coolant temperature cools, the engine can be restarted. • Engine Oil Overheat Mode: The (Engine coolant temperature) indicator will be on. The instrument cluster has no separate oil temperature indicator. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 374 Replace the fuel filter with an authorized Motorcraft part. The customer warranty may be void for any damage to the fuel system if an authorized Motorcraft fuel filter is not used. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 375: Fuel Information
• Avoid getting fuel liquid in your eyes. If fuel is splashed in the eyes, remove contact lenses (if worn), flush with water for 15 minutes and seek medical attention. Failure to seek proper medical attention could lead to permanent injury. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 376 • Stay outside your vehicle and do not leave the fuel pump unattended when refueling your vehicle — this is against the law in some places; • Keep children away from the fuel pump; never let children pump fuel. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 377 Continuing to drive with the Check Fuel Fill Inlet lamp or Check Fuel Fill Inlet message on may cause the Service Engine Soon lamp to turn on as well. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 378 Do not be concerned if your engine sometimes knocks lightly. However, if it knocks heavily under most driving conditions while you are using fuel with the recommended octane rating, see your authorized dealer to prevent any engine damage. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 379 Ask your fuel supplier about gasolines that meet the World-Wide Fuel Charter. Cleaner air Ford endorses the use of reformulated “cleaner-burning” gasolines to improve air quality, per the recommendations in the Choosing the right fuel section. Running out of fuel Avoid running out of fuel because this situation may have an adverse effect on powertrain components.
Page 380 Do not use aftermarket funnels; they will not work with the Easy Fuel™ system and can damage it. The included funnel has been specially designed to work safely with your vehicle. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 381 • Use the same side of the same pump and have the vehicle facing the same direction each time you fill up. • Have the vehicle loading and distribution the same every time. Your results will be most accurate if your filling method is consistent. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 382 65 mph [105 km/h]). • Revving the engine before turning it off may reduce fuel economy. • Using the air conditioner or defroster may reduce fuel economy. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 383 • Transmissions give their best fuel economy when operated in the top cruise gear and with steady pressure on the gas pedal. • Four-wheel-drive operation (if equipped) is less fuel efficient than two-wheel-drive operation. • Close windows for high speed driving. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 384 If other than Ford, Motorcraft or Ford-authorized parts are used for maintenance replacements or for service of components affecting emission control, such non-Ford parts should be equivalent to genuine Ford Motor Company parts in performance and durability.
Page 385 A driving cycle consists of a cold engine startup followed by mixed city/highway driving. No additional vehicle service is required. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 386 If the vehicle is still not ready for I/M testing, the above driving cycle will have to be repeated. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 387 If the fluid levels are outside of the normal operating range the performance of the system could be compromised; seek service from your authorized dealer immediately. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 388 A moving running board may cause injury. 1. Clean the filler plug. 2. Remove the filler plug and inspect the fluid level. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 389: Air Filter(S)
Use only fluid that meets Ford specifications. Refer to the Maintenance product specifications and capacities section in this chapter. DRIVELINE UNIVERSAL JOINT, DRIVESHAFT AND SLIP YOKE...
Page 390 Note: Failure to use the correct air filter element may result in severe engine damage. The customer warranty may be void for any damage to the engine if the correct air filter element is not used. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 391: Part Numbers
PCV valve. Replace the PCV valve with one that meets Ford material and design specifications for your vehicle, such as a Motorcraft or equivalent replacement part. The customer warranty may be void for any damage to the emissions system if such a PCV valve is not used.
Page 392: Maintenance Product Specifications And Capacities
Maintenance and Specifications 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 393 Maintenance and Specifications 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 394 Maintenance and Specifications 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 395 Maintenance and Specifications 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 396: Engine Data
Ignition system EDIS Coil on Plug Spark plug gap 0.052–0.056 inch 0.039–0.043 inch (1.32–1.42 mm) (1.0–1.1mm) Compression ratio 9.7:1 9.8:1 Engine drivebelt routing • 4.0L V6 Engine • 4.6L V8 Engine 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 397 Vehicle identification number (VIN) The vehicle identification number is located on the driver side instrument panel. XXXXXXXXXXXXXXXXX Please note that in the graphic, XXXX is representative of your vehicle identification number. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 398 TRANSMISSION CODE DESIGNATIONS You can find a transmission code on the Safety Compliance Certification Label. The following table tells you which transmission each code represents. Description Code Five-speed automatic (5R55S) Six-speed automatic (6R80) 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 399: Accessories
GENUINE FORD ACCESSORIES FOR YOUR VEHICLE A wide selection of Genuine Ford Accessories are available for your vehicle through your local Ford or Ford of Canada dealer. These quality accessories have been specifically engineered to fulfill your automotive needs; they are custom designed to complement the style and aerodynamic appearance of your vehicle.
Page 400 • Electrical or electronic accessories or components that are added to the vehicle by the authorized dealer or the owner may adversely affect battery performance and durability. 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 401: Index
....392 in rear seat ......224 Auxiliary input jack (Line in) ..41 LATCH ........227 recommendations ....221 Auxiliary power point ....104 Axle Child safety seats - booster seats ...........234 lubricant specifications ..392 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 402 U.S. and Canada .....344 Getting roadside assistance ...310 Engine ........396 Getting the service you cleaning ........349 need .........339 coolant ........368 Ordering additional owner’s fail-safe cooling .......373 literature .........345 idle speed control ....366 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 403 Heating economy estimates ....384 heating and air conditioning detergent in fuel .....379 system .........82, 84 filler funnel ......379 filling your vehicle with Homelink wireless control fuel ......375, 377, 381 system ........117 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 404 ..274 Motorcraft parts ..353, 374, 391 Lamps bulb replacement Navigation system .......81 specifications chart ....94 daytime running light ....90 fog lamps ........90 headlamps .........89 Octane rating ......378 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 405 Recommendations for child safety seats ....223 attaching safety restraints for easy access/easyout feature ..177 children ........221 front seats .......173 Relays ........313 heated ......178–179 memory seat ....161, 176 Remote entry system ..159–160 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 406 Tires ......240–241, 321 alignment ........249 Warning lights (see Lights) ..12 care ..........245 changing ......321, 326 Washer fluid ......359 checking the pressure ....245 Water, Driving through .....309 inflating ........242 label .........254 Windows ........161 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)
Page 407 Index power ........105 checking and adding fluid ..359 rear wiper/washer ....101 liftgate reservoir .....359 replacing wiper blades ...360 Windshield washer fluid and wipers ........100 Wrecker towing ......337 2009 Explorer (exp) Owners Guide, 1st Printing USA (fus)

Ford 2009 Explorer Owner's Manual

Introduction

Instrument Cluster

Entertainment Systems

Climate Controls

Lights

Driver Controls

Locks and Security

Seating and Safety Restraints

Tires, Wheels and Loading

Driving

Roadside Emergencies

Customer Assistance

Cleaning

Maintenance and Specifications

Accessories

Index

Quick Links

Table of Contents

Related Manuals for Ford 2009 Explorer

Summary of Contents for Ford 2009 Explorer

Table of Contents
