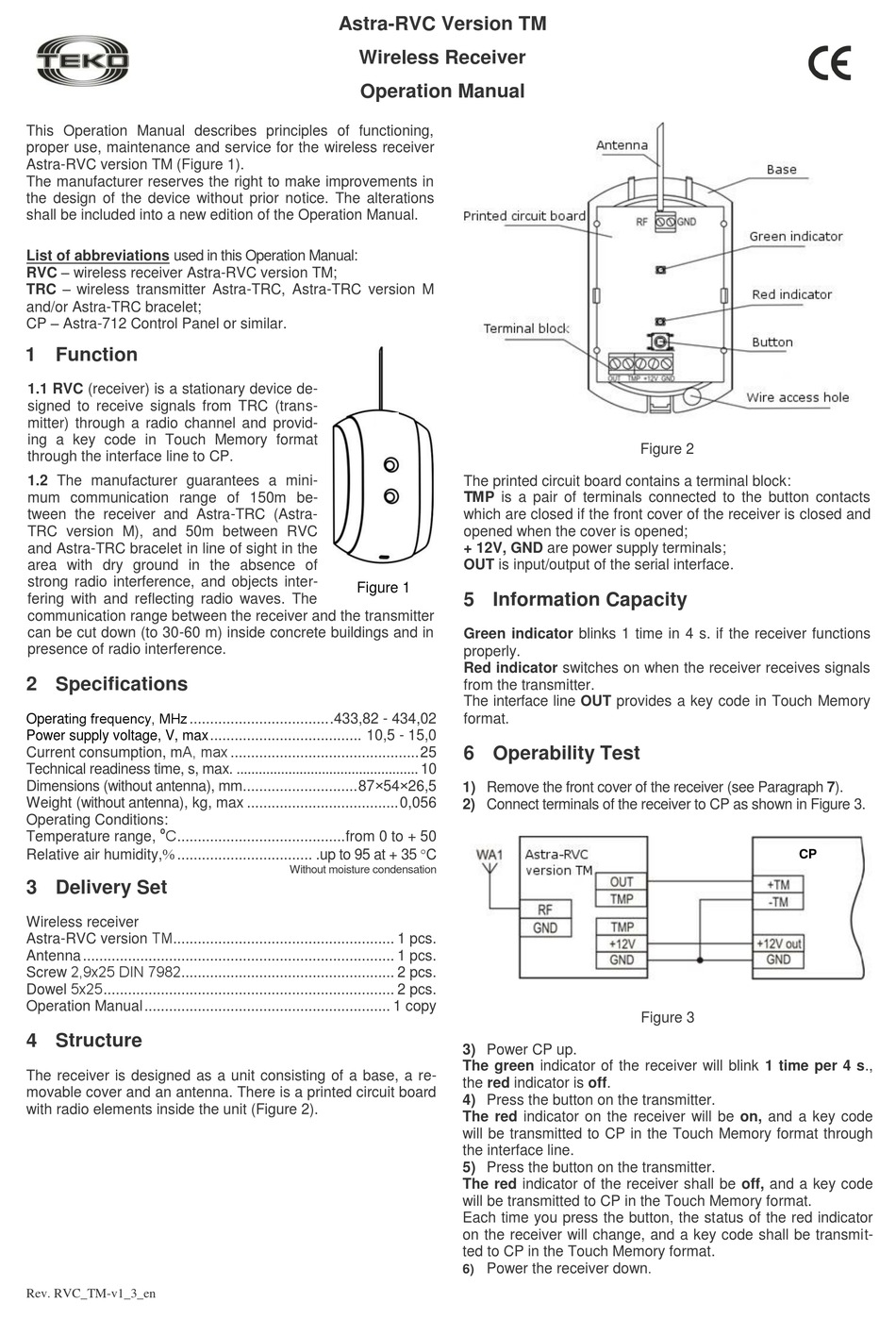

teko astra-rvc version tm Operation Manual

This Operation Manual describes principles of functioning,
proper use, maintenance and service for the wireless receiver
Astra-RVC version TM (Figure 1).
The manufacturer reserves the right to make improvements in
the design of the device without prior notice. The alterations
shall be included into a new edition of the Operation Manual.
List of abbreviations used in this Operation Manual:
RVC – wireless receiver Astra-RVC version TM;
TRC – wireless transmitter Astra-TRC, Astra-TRC version M
and/or Astra-TRC bracelet;
CP – Astra-712 Control Panel or similar.
1 Function
1.1 RVC (receiver) is a stationary device de-
signed to receive signals from TRC (trans-
mitter) through a radio channel and provid-
ing a key code in Touch Memory format
through the interface line to CP.
1.2 The manufacturer guarantees a mini-
mum communication range of 150m be-
tween the receiver and Astra-TRC (Astra-
TRC version M), and 50m between RVC
and Astra-TRC bracelet in line of sight in the
area with dry ground in the absence of
strong radio interference, and objects inter-
fering with and reflecting radio waves. The
communication range between the receiver and the transmitter
can be cut down (to 30-60 m) inside concrete buildings and in
presence of radio interference.

2 Specifications

Operating frequency, МHz
.................................. .433,82 - 434,02
Power supply voltage, V, max
Current consumption, mА, max .............................................. 25
Technical readiness time, s, max. ................................................. 10
Dimensions (without antenna), mm ............................ 87×54×26,5
Weight (without antenna), kg, max ..................................... 0,056
Operating Conditions:
о
С ......................................... from 0 to + 50
Temperature range,
Relative air humidity, ................................. .up to 95 at + 35 C
3 Delivery Set
Wireless receiver
Astra-RVC version ТМ ...................................................... 1 pcs.
Antenna ............................................................................ 1 pcs.
Screw 2,9х25 DIN 7982 .................................................... 2 pcs.
Dowel 5х25 ....................................................................... 2 pcs.
Operation Manual ............................................................ 1 copy
4 Structure
The receiver is designed as a unit consisting of a base, a re-
movable cover and an antenna. There is a printed circuit board
with radio elements inside the unit (Figure 2).
Rev. RVC_TM-v1_3_en
Astra-RVC Version TM
Wireless Receiver
Operation Manual
Figure 1
..................................... 10,5 - 15,0
Without moisture condensation
The printed circuit board contains a terminal block:
ТМP is a pair of terminals connected to the button contacts
which are closed if the front cover of the receiver is closed and
opened when the cover is opened;
+ 12V, GND are power supply terminals;
OUT is input/output of the serial interface.
5 Information Capacity
Green indicator blinks 1 time in 4 s. if the receiver functions
properly.
Red indicator switches on when the receiver receives signals
from the transmitter.
The interface line OUT provides a key code in Touch Memory
format.
6 Operability Test
1) Remove the front cover of the receiver (see Paragraph 7).
2) Connect terminals of the receiver to CP as shown in Figure 3.
3) Power CP up.
The green indicator of the receiver will blink 1 time per 4 s.,
the red indicator is off.
4) Press the button on the transmitter.
The red indicator on the receiver will be on, and a key code
will be transmitted to CP in the Touch Memory format through
the interface line.
5) Press the button on the transmitter.
The red indicator of the receiver shall be off, and a key code
will be transmitted to CP in the Touch Memory format.
Each time you press the button, the status of the red indicator
on the receiver will change, and a key code shall be transmit-
ted to CP in the Touch Memory format.
Power the receiver down
6)
Figure 2
CP
Figure 3
.
