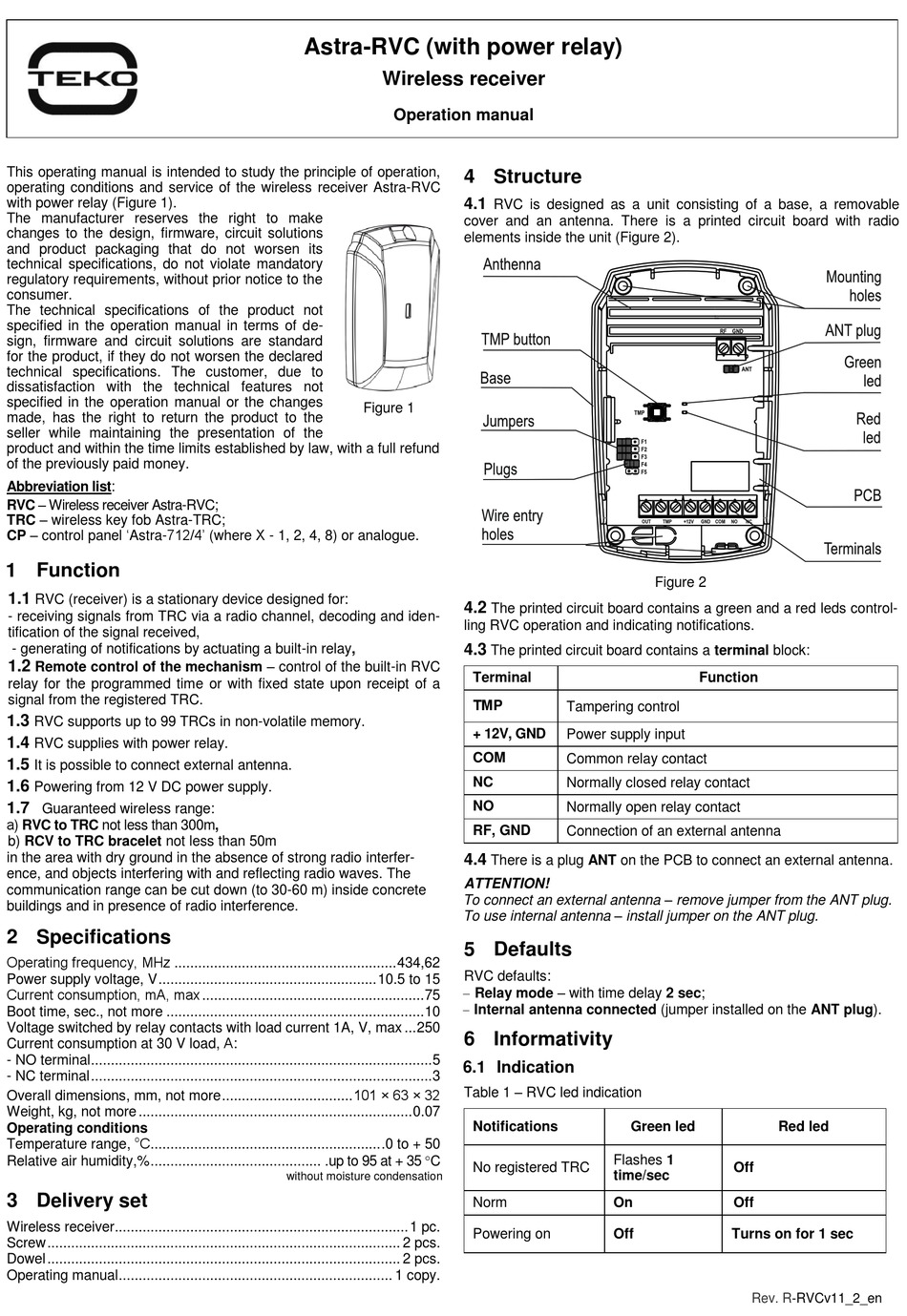

teko Astra-RVC Operation Manual

This operating manual is intended to study the principle of operation,
operating conditions and service of the wireless receiver Astra-RVC

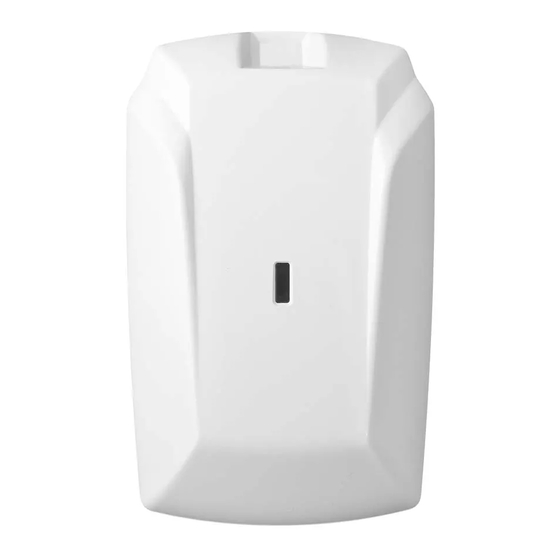

with power relay (Figure 1).
The manufacturer reserves the right to make
changes to the design, firmware, circuit solutions
and product packaging that do not worsen its
technical specifications, do not violate mandatory
regulatory requirements, without prior notice to the
consumer.
The technical specifications of the product not
specified in the operation manual in terms of de-
sign, firmware and circuit solutions are standard
for the product, if they do not worsen the declared
technical specifications. The customer, due to
dissatisfaction with the technical features not
specified in the operation manual or the changes
made, has the right to return the product to the
seller while maintaining the presentation of the
product and within the time limits established by law, with a full refund
of the previously paid money.
Abbreviation list:
RVC – Wireless receiver Astra-RVC;
TRC – wireless key fob Astra-TRC;
CP – control panel 'Astra-712/4' (where Х - 1, 2, 4, 8) or analogue.

1 Function

1.1
RVC (receiver) is a stationary device designed for:
- receiving signals from TRC via a radio channel, decoding and iden-
tification of the signal received,
- generating of notifications by actuating a built-in relay,
Remote control of the mechanism – control of the built-in RVC
1.2
relay for the programmed time or with fixed state upon receipt of a
signal from the registered TRC.
1.3
RVC supports up to 99 TRCs in non-volatile memory.
1.4
RVC supplies with power relay.
1.5
It is possible to connect external antenna.
1.6
Powering from 12 V DC power supply.
1.7
Guaranteed wireless range:
а) RVC to TRC not less than 300m,
b) RCV to TRC bracelet not less than 50m
in the area with dry ground in the absence of strong radio interfer-
ence, and objects interfering with and reflecting radio waves. The
communication range can be cut down (to 30-60 m) inside concrete
buildings and in presence of radio interference.

2 Specifications

Operating frequency, МHz ........................................................ 434,62
Power supply voltage, V ....................................................... 10.5 to 15
Current consumption, mА, max ........................................................ 75
Boot time, sec., not more ................................................................. 10
Voltage switched by relay contacts with load current 1A, V, max ... 250
Current consumption at 30 V load, А:
- NO terminal ...................................................................................... 5
- NC terminal ...................................................................................... 3
Overall dimensions, mm, not more ................................. 101 × 63 × 32
Weight, kg, not more ..................................................................... 0.07
Operating conditions
о
С .......................................................... .0 to + 50
Temperature range,
Relative air humidity,% ........................................... .up to 95 at + 35 C

3 Delivery set

Wireless receiver .......................................................................... 1 pc.
Screw ......................................................................................... 2 pcs.
Dowel ......................................................................................... 2 pcs.
Operating manual ..................................................................... 1 copy.
Astra-RVC (with power relay)
Wireless receiver
Operation manual
Figure 1
without moisture condensation

4 Structure

4.1
RVC is designed as a unit consisting of a base, a removable
cover and an antenna. There is a printed circuit board with radio
elements inside the unit (Figure 2).
4.2
The printed circuit board contains a green and a red leds control-
ling RVC operation and indicating notifications.
4.3
The printed circuit board contains a terminal block:
Terminal
ТМP
Tampering control
+ 12V, GND
Power supply input
COM
Common relay contact
NC Normally closed relay contact
NO
Normally open relay contact
RF, GND
Connection of an external antenna
4.4
There is a plug ANT on the PCB to connect an external antenna.
ATTENTION!
To connect an external antenna – remove jumper from the ANT plug.
To use internal antenna – install jumper on the ANT plug.

5 Defaults

RVC defaults:
 Relay mode – with time delay 2 sec;

Internal antenna connected (jumper installed on the ANT plug).

6 Informativity

6.1 Indication
Table 1 – RVC led indication
Notifications Green led
Flashes 1
No registered TRC
time/sec
Norm On
Powering on Off
Figure 2
Function
Red led
Off
Off
Turns on for 1 sec
