Summary of Contents for NST CVD3IP
-
Page 1: Installation Guide

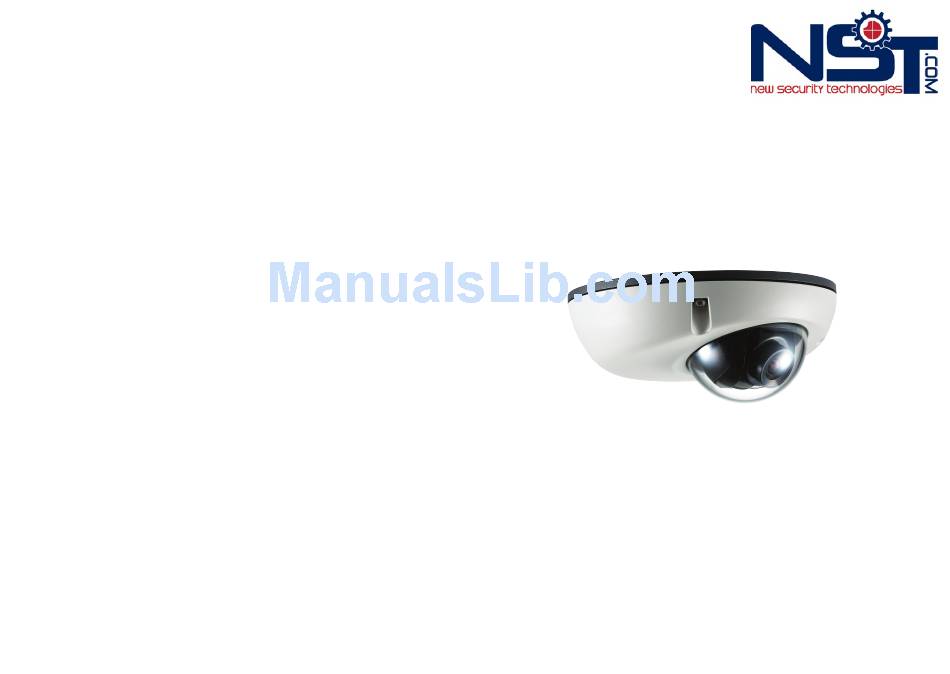

CVD3IP HARDWARE 1-512-756-1678 INSTALLATION GUIDE CVD3IP 1.3 Megapixel(720P) Indoor Dome IP Camera Version 1. 0. 2 Released on 1 of April., 2012 120326-1... -
Page 2: Table Of Contents
Dear Customers! Table of contents By selecting this product, you have decided to use a professional device that guarantees highest quality and reliability. We would like to thank you very much for your 1. Precautions ------------------------------------------------------------- 4 confidence and kindly ask you to read the following instructions carefully before Installation and operation in order to take full advantage of all quality features regarding 2. -
Page 3: Precautions
1. Precautions 2. Limitation of liability · Please read the manual carefully before the installation in order to make use the This publication is provided “AS IS” without warranty of any kind, either express or camera to be set up correctly and to have the best picture quality. implied, including but not limited to, the implied warranties of merchantability, fitness for any particular purpose, or noninfringement of the third party's right. -
Page 4: Package
This IP camera uses 12VDC for power source. Please make sure to use a UL/CE approved and 12VDC regulated power supply for input power. ☞ NOTE 3-Drilling Hole PoE is not available for CVD3IP. Do not connect PoE device into this product. Tapping Screw Drilling template... -
Page 5: Installation
6. Installation 6. Installation 6-1. Tool-free 3-Axis mounting mechanism 6-2. Installation overview Perfect 3-axis -Panning axis up to ±20 degree -Tilting axis up to 90 degree TITLT 90° ROTATION 90° -Rotation axis up to ±90 degree PAN ±20° wall Drilling template Sponge plate Bottom case Tapping screw... -
Page 6: Dimension (Mm)
7. Dimension (mm) 8. Specification Classification Specification 32-bit ARM9 RISC CPU up to 533MHz, 32KB I/D-Cache, MMU Video Buffer 16Mbyte Video Frame Buffer General Flash 16 Mbyte Flash Memory SDRAM 256Mbyte Image sensor 1.3 Megapixel 1/3" SONY progressive scan CMOS image sensor Total Pixels 1384(H) x 1076(V) 1.49 Megapixel Image... - Page 7 8. Specification MEMO Motion detection up to 1280x720 System Intelligent video with 32x24 blocks integration Alarm trigger Motion detection File upload via ftp, e-mail Alarm events Notification via email, FTP and TCP Video buffer 16MB pre-alarm and post-alarm Recording Save to Micro SD card with event mode and continuous mode Firmware upgrade Remote upgrade via network...
- Page 8 MEMO MEMO...
-
Page 9: User Manual
Network Camera & Video Server USER MANUAL Version 1.7.1 Released on 1 of Sept., 2011... - Page 10 Table of Contents Safety and Regulatory Notices ............................3. Section 1: Product Overview 1.1 About Network Cameras and Video Servers..................5 1.2 Main Features and Benefits ..........................5 Section 2: Physical Description 2.1 Package Contents ............................6 2.2 Front View of Indoor Box Camera........................6 2.3 Other Network Camera and Connector ......................
- Page 11 About this Document Thank you for purchasing NST Network Camera or Network Video Server. This user manual includes instructions for using and managing the camera on your network. Networking experience will be helpful when setting up and using this product.
- Page 12 To determine your video standard, refer to the lists below. (Necessary only for i-Series IP Cameras) PAL: Afghanistan, Algeria, Argentina, Austria, Australia, Bangladesh, Belgium, Brazil, China, Denmark, Finland, Germany, Hong Kong, Iceland, India, Indonesia, Iraq, Ireland, Israel, Italy, Jordan, Kenya, Kuwait, Liberia, Malaysia, Netherlands, Nigeria, Norway, New Guinea, Pakistan, Singapore, South Africa, Southwest Africa, Sudan, Sweden, Switzerland, Thailand, Turkey, Uganda, United Kingdom, United Arab Emirates, Yugoslavia, Zambia NTSC: Canada, Chile, Costa Rica, Cuba, Dominican Republic, Ecuador, Japan, Mexico, Nicaragua, Panama, Peru,...
-
Page 13: About Network Cameras And Video Servers
Simply provide power, connect an Ethernet cable and view from any computer on the network. For the Network Video Server, you need a conventional CCTV camera as your video input source. The NST Network Cameras and Network Video Servers are ideal for surveillance applications that require high-quality, full-motion video and audio, as well as comparatively low bandwidth demands on the network. -
Page 14: Package Contents
Full Duplex Two-Way Audio Full duplex two-way audio is available by connecting an external microphone and speaker to the camera. Included Software IP scan utility for quick installation NVR software for for viewing and recording multi cameras up to 16 channels in a screen User Manual pdf version (IP Camera Manual and NVR Manual) 2: Physical Description 2.1 Package Contents... - Page 15 Rear View Reset button SD Card Insert Hole Analog Video Out Sensor/Alarm Connector Power Connector Status LED (Yellow) Microphone-in(Audio-in) Power LED (Green) Speaker-out (Audio-out) Network Connector Power Connector: Only use the supplied AC adapter to avoid any possible damage from electric shock. Network Connector: Connect 10Base-T Ethernet or 100Base-TX Fast Ethernet cable.
-
Page 16: Other Network Camera And Connector
2.3 Other Network Camera and Connector IR night vision cameras, dome cameras, speed dome cameras and mini PTZ cameras usually have connectors on the end of cable coming out of those cameras. Before connecting, users are asked to check each label on the connector. Power Connector Network Connector Analog Video Out... - Page 17 Rear view Power Connector Alarm/Sensor/RS485 Connector Network Connector Reset Button Audio-in Audio-out Power Connector: Only use the supplied AC adapter to avoid any possible damage from electric shock. Alarm/Sensor/RS485 Connector: To connect external devices such as infrared sensors, alarms or motion detectors as well as camera RS485 line for remote control Ethernet (Network Connector): Connect 10Base-T Ethernet or 100Base-TX Fast Ethernet cable.
-
Page 18: Section 3: Installation Summary And Examples
3: Installation Summary and Examples 1. Connect the Ethernet and power to the VISION Network Camera. 2. Install and launch the IP scan utility program on the enclosed CD. 3. Assign an IP address and network settings. 4. Securely mount the camera. Owners need to refer to the included Hardware Installation guide. -
Page 19: Section 4: Assigning An Ip Address And Accessing The Camera's Homepage
Installation Example: Network Video Server Network Video Server Analog BNC Input Network (WAN/LAN) CCTV Camera Analog BNC Output TCP/IP RJ45 Ethernet Remote Access DVR, VCR, Monitor, etc. 4. Assigning an IP Address and Accessing the Camera’s Homepage 4.1 Connecting the Camera to a PC Connect with a direct cable (non-crossover UTP cable) when connecting the camera to a switch, hub or router. -
Page 20: Setting Up The Ip Address Using Ipscanutil Program
4.2 Setting up the IP Address Using IPScanUtil program in the packaged CD To access the camera, you need to assign an appropriate network IP address. Run the IP address installation program (IPscanUtil.exe) on a PC that is connected to the same local network as the camera. You can download IPscanUtil program from http://www.visionipvideo.com. -
Page 21: Accessing The Camera's Homepage
NOTE: If you click “Reset” button, then IP address turns back to factory default address. NOTE: IP address can be set on the NVR software as well by clicking the “Server Discovery” button in “Server Setup”. NOTE: After changing the network configuration, it may take a little time to reboot the camera in order to access the camera’s homepage. - Page 22 Username and Password Enter a ID(username) and password to access the camera. The default ID and password are “admin” and “1234”. NOTE: Please make sure to change password after logging in. ActiveX Installation for MS Explorer Users (automatic) The first time you login to the camera using ActiveX, you are notified that a required plug-in / ActiveX control is required. You need to allow the installation of ActiveX by clicking "Yes"...
-
Page 23: Section 5: Main Page View And Function Icons
5. Main Page View and Function Icons Once the login procedure is complete, you can view the VISION Network Camera homepage. (1) Live View Shows title message of existing page. (2) Live / Setup / Log-out / Emergency Call Live : Moves to live view Setup : Moves to configuration page Logout : Stop existing session and move to login page Emergency Call : sends emergency event to CMA, FTP, SMTP. - Page 24 (4) Preset Panel Select Preset Number Move to Preset Delete Preset Position Preset SET button Saves new preset (5) Audio / Video Control Panel Speaker Microphone Snapshot Alarm Help Video Size UPnP Snapshot : Takes snapshot of live video. Default path is C:\Temp Click “Save”...
- Page 25 (7) Other quick function buttons Full Screen Button Stream 1 Stream 2 Live video on Pause Live video Stop Live video Discontinues video stream from IP camera...
-
Page 26: Section 6: Administrator Menu
6. Administrator Menu You can control the configurations of the camera using the administrator tools, which can be accessed only by an authorized user. If non-authorized users try gaining access, you may see a warning message "ID or Password Mismatch." 6.1 Overview of the Administration Menu The access administrator menu, click setup button ( ) on the top right of main page. -
Page 27: Camera Configuration
6.2 Camera Configuration 6.2.1 Camera Setup Camera setup window for i and Mi Series Camera setup window for M3i Series... - Page 28 (1) Privacy Mask : Sets privacy zone on the video. To set privacy mask, click “CAMERA SETUP” and its sub menu will be shown on the right. On the video window, click right button of mouse and select show. Then choose mask number among 1~5, then black square will be shown on the video. Enlarge that black square with mouse until you make mask to cover privacy zone.
- Page 29 For M3i Series, ‘Day & Night’ setup is as follows; Mode : same as Mi series Day to Night Level (LUX) : Defines the illumination level when IP camera turns into night mode from day mode. Night to Day Level (LUX) : Defines the illumination level when IP camera turns into day mode from night mode. Day to Night Time (SEC) : Defines the time in seconds for switching into night mode from day mode when the illumination level is Day to Night Level (LUX).
- Page 30 ATW(Auto Tracking White Balance) : This mode can be used within the color temperature range of 2,500˚K~7000˚K. In case of indoor use, ATW mode is highly recommended. In ATW mode, color reproduction is better than other AWB mode. PUSH MODE : This mode can be used within the color temperature range of 1,800˚K~10,500˚K. In case of outdoor use, PUSH mode is recommended.
- Page 31 6) 8,000˚K/6,000˚K/4,200˚K/3,200˚K MODE : These modes are just for some specific environment with some specific color temperature. - 8,000˚K : Shade - 6,000˚K : Cloudy weather - 4,200˚K : Fluorescent light - 3,200˚K : Electric light blub (4) Auto Exposure IRIS Mode : Selects Iris mode according to your lens type.
- Page 32 shading of the lens. AGC(Auto Gain Control) : The higher the gain level is, the brighter the screen becomes. But the higher gain level causes more noise. Adjust either analog gain or digital gain between 0~50 until you get best image quality.
- Page 33 6) BLC (Back Light Compensation) : Enables a user to directly select a desired area from a picture, and to view the area more clearly even under backlight environment. - BLC : Used for backlight environment.(Indoor objects can be seen.) - FLC : Compensates the saturation of image when camera faces toward the same direction as sunlight.
- Page 34 1) COLOR ADJUST - COLOR GAIN : Adjusts the COLOR GAIN level in 00 ~ 50(Default 25) - COLOR HUE : Adjusts the COLOR HUE level in 00 ~ 50(Default 25) ☞ NOTE This function enables user to adjust the variation of Color Gain on the monitor when installing camera. 2) SHARPNESS : Adjusts the SHARPNESS level in 00 ~ 50(Default 25) 3) CONTRAST : Adjusts the CONTRAST level in 00 ~ 50(Default 25) 4) REVERSAL: Enables either normal image (NORMAL), mirrored Image ( MIR), vertically reversed image ( VER),...
- Page 35 In this section, users can define streaming format, resolution, frame rate, image quality and bit rate mode, etc. NST Network Camera supports two streaming format. The one is H.264 and the other is M-JPEG. H.264 Setting : This configures primary streaming format of H.264.
- Page 36 selected between 1~30. c) GOP : Set the size of GOP (group of pictures). H.264 video stream consists of continuous GOP, and one GOP consists of one "I" frame plus "P" frames. This value equals the period of one "I" frame. The more the GOP size, the less network bandwidth will be occupied.
-
Page 37: Event Configuration
6.3 EVENT Configuration 6.3.1. EVENT TRIGGER In this section, users can set up motion detection sensitivity, motion detection area and alarm-in mode. Motion Detection Sensitivity: This is to configure the level of motion detection sensitivity. The level is composed of three levels. ‘LOW’ is the least sensitive setting. At this setting, the camera may "overlook" a lot of motion. - Page 38 6.3.2. NOTIFICATION This section configures the action of network camera when event triggered whether by alarm-in, motion detection or user defined event. CMS : Defines the interoperation between network camera and CMS software. a) Event trigger : Check on the event trigger method among alarm-in, motion detection or user defined event.
-
Page 39: User Configuration
6.3.3. Recording Setup This section explains how to record images into local starage(SD/SDHC Card). Scheduled, motion detected and or alarm-triggered recording are all available by users setting on the ‘Recording Schedule’. Recording Schedule : There are eight kinds of check box in this section. Select one of them and click mouse button on the time grid below as shown below. -
Page 40: Network Configuration
6.5. Network Configuration 6.5.1. Network Setting - Use Static IP : Sets IP address, Subnet Mask, Default Gateway Address. To set the IP address, subnet mask and gateway address manually, check on "Use Static IP" and enter each addresses in the blank. If you have any trouble configuring network system information, contact your network administrator. - Page 41 Enter port number for HTTP. If you want to use HTTPs, check on the “HTTPS USE” check box.( HTTPs is checked by default) NOTE :NST Network Cameras are equipped with SSL encryption, a safe way of accessing your camera. SSL encryption ensures that the data traffic between your camera and the computer is encrypted.
- Page 42 SMTP Account Setting a) From : Enter e-mail sender’s address b) To : Enter e-mail notification receiver’s e-mail address. Receiver’s address can be registered up to 5. NOTE : Be sure to click “ CHANGE” button before leaving SMTP Setup window. 6.5.8.
- Page 43 6.5.10. Wireless Configuration This screen is used to configure wireless settings to match your access point for a wireless network connection.
- Page 44 3. Enter “Network Key” and fill in each blank in the “Network Setting”. 4. Click “CONNECT” button to finish wireless setting. 5. When you get back to “LIVE VIEW”, you can find “WIFI” is enabled. NOTE : NST Wireless Network Camera supports wired and wireless simultaneously. 6.5.11. CMS Port Setting This section defines port information with which network camera and CMS or NVR communicate.
-
Page 45: System Configuration
NOTE: If there is any problem in communication with CMS or NVR, it is necessary to check the router settings, firewall environment, etc. 6.6. System Configuration 6.6.1. System Upgrade 1) Download latest firmware to your PC. 2) Click “Browse” button and select firmware from the Windows Explarer, then click “Open”. 3) Click “SYSTEM UPGRADE”... - Page 46 CAUTION : All your network camera settings will be erased upon clicking “Factory Default” button. If you want to backup current settings, please click “EXPORT” button for backup of your current settings. For more details of “Export”, refer to 6.6.4. EXPORT SETTING. 6.6.4.
- Page 47 6.6.6. Date/Time Setting Select time zone from the combo box and click “SAVE” button to apply. Manual setting is used only when NTP server is not set up. 6.6.7. Storage Setting This section shows SD card status and recorded data search and playback. SD Status : Shows total capacity of SD card in your network camera as well as used size and free size.
- Page 48 Recording data : Search and playback or backup recorded data from SD card. 1) Select specific date from the list. 2) Click “SEARCH” button 3) Select avi file from the combo box 4) Click left button of your mouse and playback the recorded video data 5) Or click right button of your mouse and select “Save As”...
-
Page 49: Ptz Configuration
6.6.9. System Information System information shows the detailed information of your network camera such as firmware version, model, network information, etc. 6.7. PTZ Configuration 6.7.1. PTZ Setting - ID : Enter camera ID. Skip if your camera doesn’t have ID. - Baud Rate : Choose baud rate in the combo box. -
Page 50: Section 7: Glossary Of Terms
6.7.2. Preset Setting This section explains about setting the preset position of your network camera. How to set preset position 1) Select preset position number from the combo box. Totally 256 preset positions are available. 2) Enter preset position name, for example, my office entrance cam, etc. 3) Move your network camera using 6 buttons on the bottom. - Page 51 DC-iris - The iris, a mechanism that automatically regulates the amount of light allowed entering to CCD, is electrically controlled by the camera dB (Decibels) - A unit to measure sound level changes. A 3dB change is the smallest level change we can hear. A gain of 0dB will leave the signal level unchanged.
- Page 52 management information between network devices. It is part of the TCP/IP (Transmission Control Protocol/Internet Protocol) protocol suite. Subnet Mask - An IP address consists of two components: the network address and the host address. “Subnetting” enables a network administrator to further divide the host part of the address into two or more subnets. The subnet mask identifies the subnet to which an IP address belongs.
