NST CPT4IP User Manual

Ip wireless / wired camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1-512-756-1678
CPT4IP
IP Wireless / Wired Camera
I
P
C
a
m
e
r
a User Manual
I
P
C
a
m
e
r
a
(For Windows OS)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPT4IP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NST CPT4IP

Summary of Contents for NST CPT4IP

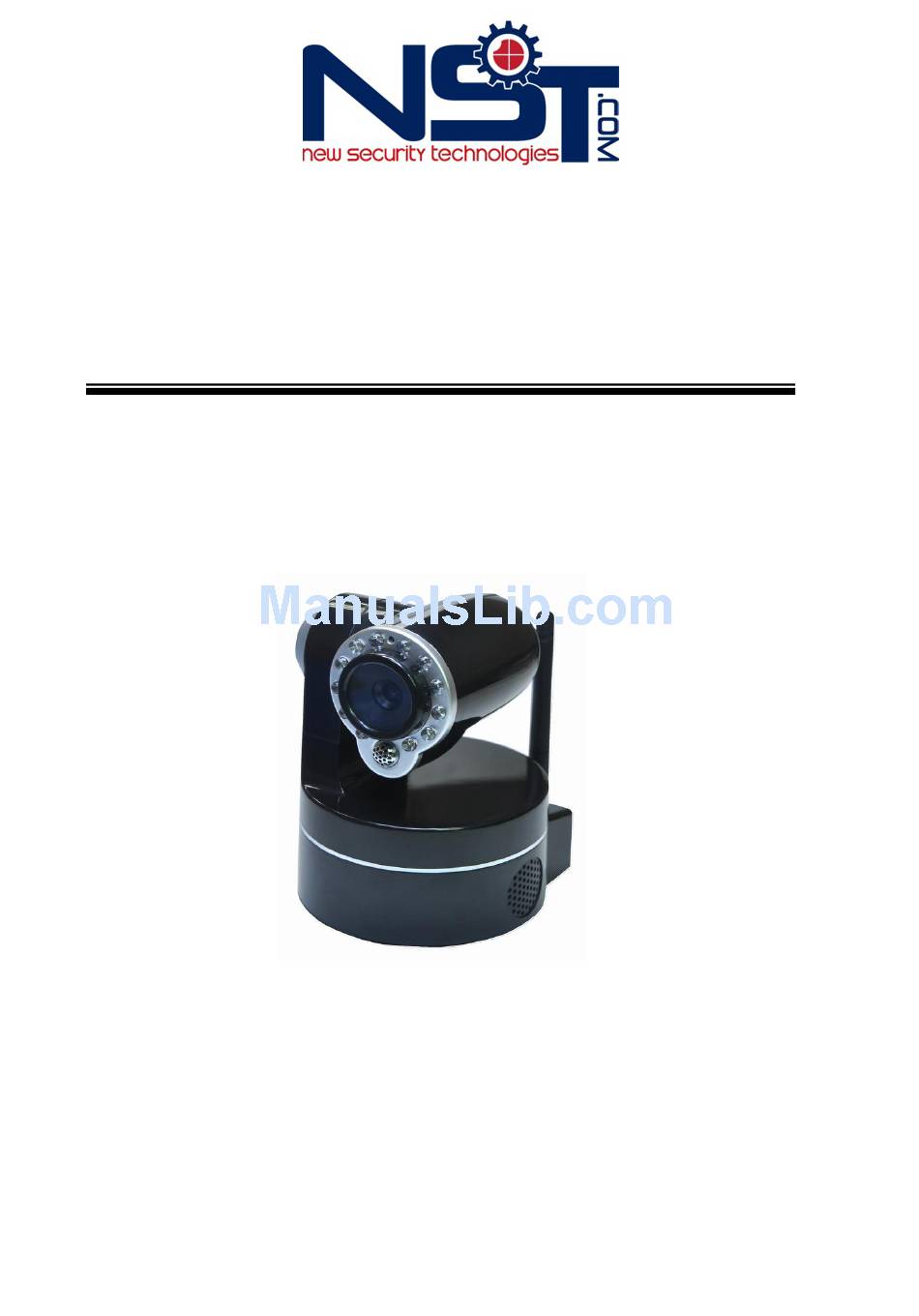

  • Page 1 1-512-756-1678 CPT4IP IP Wireless / Wired Camera a User Manual (For Windows OS)

  • Page 2: Table Of Contents

    IPCAM User Manual Content Product Overview ....................4 Product package ..........................4 Product Characteristics ..................4 Device apprearance and interface installation ................5 Device apprearance ......................... 5 Interface installation ........................6 Device installation ............................6 Hardware installation ........................7 Software installation ........................
  • Page 3 IPCAM User Manual Upgrade Device firmware ......................51 Backup and restore setting ......................51 APPENDIX ..............................52 Register and apply for DDNS Service ..................52 Some special application for IPCAMERA................57 Open IP Camera though flow-media player 8.2.1 ..............57 Frequently Asked Questions ......................

  • Page 4: Product Overview

    IPCAM User Manual 1 Products overview IP Camera is a IP integrated camera solution. For the user based on the local network ( LAN ) and wide area network ( WAN ) remote video surveillance products provides a clear, high integration, low cost solution.

  • Page 5: Device Apprearance And Interface Installation

    IPCAM User Manual 2 Device appearance and interface 2.1 Device appearance Build-in Microphone Sensitive hole HD Glass Lens Built in sound Infrared LED Picture 1 Device appearance 1. Sensitive Hole: According to outside of light decide whether open infrared LED 2.

  • Page 6: Interface Installation

    IPCAM User Manual 2.2 Device interface I/O Alarm input/output WIFI antenna RJ-45 Ethernet Port DC5V Power adapter Audio output Picture 2 Device interface LAN : RJ-45/10-100 Base T DC5V : 5V/2A Power supply I/O PINS: 1)Output(GND) 2)Output (+5V) 3)Alarm input 4)Input (GND) (you can see 3.5.6 For more information) RESET BUTTON...

  • Page 7: Hardware Installation

    IPCAM User Manual 3.1 Install hardware You should install your IP Camera's hardware according to the following step in order to make sure the IP camera can work properly. Especially, pay attention to IP camera's installation environment. IPCAM. Plug DC adapter with IP camera I.Note: Please use Dc adapter which is the standard configuration of IP camera.
  • Page 8 IPCAM User Manual Picture5 4） You can search PC IP and DNS Server as belows： This Server address which is provided by network server Picture 6...
  • Page 9 IPCAM User Manual 5） The device IP Address can be changed, but Its IP address should be at the same with PC's subnet. Device IP address can be changed by yourself Network server provide DNS server Address Picture 7 When we test IP camera and check whether it starts smoothly or it connects properly, we can operate in the Windows(START- RUN-CMD), and then input : ping 192.168.1.111 in the order windows.

  • Page 10: Software Installation

    IPCAM User Manual 3.2 Software installation Software installation It is very easy to install software. You just need to run installation programme then it can ● work properly.。 Please put CD in the PC driver and the CD will automatically run to the software installation interface: User manual Open user manual...

  • Page 11: Visit Ip Camera In Lan

    IPCAM User Manual 4 Visit IP camera in LAN 4.1 Connection ways in LAN Picture 10 Connection between Several IP camera and router 4.2 Search and set device IP address Please note before searching IP camera： 1：Make sure IP camera has a good connection with power and n etwork. 2：Te router should be opened DHCP( Dynamic host configuration protocol) because the factory setting status of IP camera is to obtain automatically IP camera.
  • Page 12 IPCAM User Manual  SIX Options Choose the IP Camera list and Click right mouse button, there are six options, Basic Properties, Network Configuration, Upgrade Firmware, Refresh Camera List, Flush Arp, About IP camera tool as shown Picture 12. Picture 12 Basic Properties There is some device information in the Bas ic Properties, such as Device ID, System Firmware V ersion, Web UI V ersion...
  • Page 13 IPCAM User Manual IP address: Fill in the IP address assigned and make sure it is in the same subnet as the Subnet Mask: The default subnet mask of the equipment is: 255.255.255.0 Gateway: Make sure it is in the same subnet with PC IP address. Default Gateway address is 192.168.1.1 DNS:Server: IP address of IPS network provider.

  • Page 14: Logi Nip Camera

    IPCAM User Manual  Refresh Camera List Refresh camera list manually.  Flush Arp Buffer When cable network and wireless network of the device both are fixed IP address. There is a problem you may encounter is can search the camera IP but can‟ t open the camera web page.you may try to use flush arp buffer.
  • Page 15 IPCAM User Manual Language options:you can choose operation language according to your demand Picture 18 Picture 19 · When Users login in,they can view images. At the same time, users(Administrator, Operator or Visitor) can operate according to their permissions By Firefox and sofari browser as below：...
  • Page 16 IPCAM User Manual Picture 20 Picture 21...

  • Page 17: Ip Camera Operation

    IPCAM User Manual 4.4 IP camera operation 4.41 For Visitor” For example: if is bright ,the first route is at status of Detection(Only IE Broswer can view it) picture Buttom for taking Stop monitor video Open vedio Record Monitor audio Two way audio Picture 22 The right upper is status's indicator area which can show 9 IP camera status.

  • Page 18: For Operator

    IPCAM User Manual The name of the picture received in mailbox is like this: device id(Alias)_ Current time.jpg 4.42 For operator When login as operator, you can operate Pan/Tilt and adjust video parameter. Vertical patrol Stop patrol Horizontal patrol ZOOM I/O output S witch on /off Infrared light s witch Image fluctuation flip...
  • Page 19 IPCAM User Manual 4.43 For Administrator When you login as administrator, you can set all parameters. Please click “For Administrator” and enter into setting interface . View Device ID、 Device Firmware Version and Device Embedded Web UI Version Carry Settings Check Device all kinds of operation function status...

  • Page 20: Visit Ip Camera In Internet

    IPCAM User Manual 5 Visit IP Camera in internet 5.1 Connection way in Internet Picture 25 Related setting and login IP camera 1. If the network your IP camera using is using static IP, you just need to input this IP address and IP camera's port in the browser, then it can visit Ip camera.
  • Page 21 IPCAM User Manual A.According to router's manual, we get Router's IP is 192.168.1.,1 B.Login in router,: Input 192.168.1.1 in the browser. Find the status of Router and find Router's WAN( In this example, WAN'S IP is 116.24.235.122； As shows Picture 27. Picture 27 Now you can visit IP Cam from Internet.
  • Page 22 IPCAM User Manual Our products have been configured the DDNS services, of course, you can also apply for the domain name in registration website for one of your ow n domain name to configuration. For example: www.dyndns.org Factory DDNS DDNS You need fill in DDNS and port.
  • Page 23 IPCAM User Manual The input device user name and passwor d to login to equipment If input domain name , but can't open IP camera in the browser, such as the situation is as blows · Please open the device and check status of IP camera in the local area network, confirm whether UPNP ·...

  • Page 24: Ip Camera

    IPCAM User Manual If you use T PLINK router, please refer to these instructions Through the upnp automatic mapping por t to the networ k: input router IP address in the browser (such · as "http://192.168.1.1/ >, the router IP addresses are written on paper label on the router house---- please set according to your own IP address), open the routers page"...
  • Page 25 IPCAM User Manual Open browser "Safari Input IP camera's IP address, for example: ( http://icam0001.ihome365.org:8999) ● Enter the IP address of the IP camera: (http://icam0001.ihome365.org:8999) Choose language according to your demand and choose login mode according to your browser ● Choose manual settings Picture39...
  • Page 26 IPCAM User Manual enter your account and password on the login page as shown By default，administrator’s username is: ● admin and no password. Input the username and password of Default password：No password the networ k camera Here to select the operating language Here you can choose between two modes landing...
  • Page 27 IPCAM User Manual Select Server Push mode landing ● Picture 43 Now we take Android system device as example: ● Open menu and firstly open the browser, and input IP camera 's IP address in the browser ,for example: ：(http://icam0001.ihome365.org:8999) Open menu Picture 44 Input IP camera's username and password and click "...

  • Page 28: Install Client-Side Software To Access Ipc Amera

    IPCAM User Manual Picture 45 6.2 I IPCamera NSTALL CLIENT SIDE SOFTWARE TO ACCESS There are many client software support IP camera, several third-party software support our IP cameras too. The following are our manufacture software setup process.(the Android version), Pls get the install applications in the CD or you can download from the website: https://play.google.com/store/search?q=reecam&c=apps, Choose the right...
  • Page 29 IPCAM User Manual Refresh LAN cameras Click here to add a video camera Select to add to the client camera IP address Prev iew camera Http port The default password is blank Camera name Preview camera screen， save the camera View or change the configuration of the camera, the camera...
  • Page 30 IPCAM User Manual Continue to add the camera Cameras have Add external network been added camera domain · For the camera added to the camera list, you can watch camera in real time, Control camera's PTZ and set swith-on and switch-off of the camera's audio, int ercom and video：...
  • Page 31 IPCAM User Manual Open the App Store search reecam Search reecam Download and install reecam The run has been installed good reecam program Click to add cameras...
  • Page 32 IPCAM User Manual Fill in the domain address or IP address Completed please click here Fill in the Http port of the camera, login user name and password, click "next" to open the camera Preview video、 click on the next save Save the camera added Selected camera to view images...

  • Page 33: Other Setting

    IPCAM User Manual 7 Other setting 7.1 Network Setting 7.11 Basic Network Settings If the router that the IP camera connect has DHCP function, you can choice “Obain IP from DHCP Server”else fill in the network parameters manually. Http Port: In most cases, you can leave this value as 80, however, if your Internet 85，8080，8888，9000 Etcs.
  • Page 34 IPCAM User Manual Figure 61 As Administrator to Login camera, open wireless LAN Settings page, fill in every Setting (ensure keep the same as router’s ), and then pulled out of the cable, wireless network function can be used. For example: as shown in belows Pls click the scan buttom twice Figure 62...

  • Page 35: Adhoc P To P Wireless Connecti On Setti Ng

    IPCAM User Manual Double click to choose Fill the encryption and routers and key in the same way Figure 63  7.13 Adhoc point to point Wireless connection Setting 1) Open the basic network setting interface,check the device status remember the IP address of IP camera and Http port Picture 64 2) Open the wireless lan setting interface, choose Adhoc...
  • Page 36 IPCAM User Manual Picture 65 3) Unplug the RJ45 from IP camera .Use laptop or other devices which are with wifi function( include smart phone,ipad and so on) searching the SSID you defined on proccess 2,then make a connection. Picture 66 ·Click wireless network and check the link status of ip camera.
  • Page 37 IPCAM User Manual 2：Enter ip address in the browser Enter user name and password in the login interface Picture 69 Click “Sign in”and vis it Picture70...

  • Page 38: Multi-Device Setting

    IPCAM User Manual 7.2 Multi-Device Settings  Add cameras in LAN In the Multi-Device Settings page, you can see all devices searched in LAN. The 1 St Device is this device in default. You can add more cameras list in LAN for monitoring. This Web software supports up to 9 IP Cameras online simultaneous ly.

  • Page 39: Ms Nsetting

    IPCAM User Manual Picture 73 7.3 MSN Settings Fill in your MSN account and password, then add account which need to receive IPCAM’S ip address to IPCAM‟ S MSN list (Picture 67),click submit then you’d better restart IP camera. After it ,login your MSN to add IPCAM’s MSN account to MSN List that you can receive IPCAM’s ip address.
  • Page 40 IPCAM User Manual Figure75 Next： Figure76 . Figure77 When IPCAM’s MSN account shows online you can chat with it, input path command "url?" camera account will show its IP address in chatting box promptly as below :...

  • Page 41: Ddns Setting

    IPCAM User Manual Picture 78 You can input the IP address to browser then can browse ip camera as below: Figure79 Attention:You should fill MSN account in IPCAM first. 7.4 DDNS Service Settings DDNS Service: The system supports protocols from some DDNS providers: Dyndns.org. System support DDNS ,such as topipcam.org，peanut shell，3322.org，DynDNS provided...

  • Page 42: Factory Ddns

    IPCAM User Manual User and Password: the user name and password used when applying for the domain name.. (details : 4.3.2) DDNS Host: the Domain Name 7.4.1 Factory DDNS Device had distributed one DDNS to every product.which was sticked the bottom of the product.

  • Page 43: Mail And Ftp Service

    IPCAM User Manual Note: the third party domain name is the realization of analytical way, input the domain in the browser, it will keep this string of characters. If the port of the device isn’t 80, then need to add colon and port number .For example: http://well888.dyndns.org:8999 7.5 Mail and FTP Service...
  • Page 44 IPCAM User Manual Gmail also set as the same: It only needs you to fill in correct SMTP Sever address, user and password. Picture 84 Mail notes Internet IP address: In this option, When Internet IP and port have changed, IP Will be sent via mail.
  • Page 45 IPCAM User Manual ·FTP Server of LAN as below: Create an account 2. Step by step setting until finish it.！ Picture 88...
  • Page 46 IPCAM User Manual 3.Start Server Continue to finish it ： This is a FTP server address Picture 89 4．IPCAM’S account can be used. Save path Picture 90...

  • Page 47: Motion Detection

    IPCAM User Manual 5. IP camera’s FTP Server set like this Picture 91 6. Set up and complete testing is successful,when it alarms, IP camera will upload pictures to the FTP server Settings of main directory path (as shown ) Picture 92 FTP Server: the FTP server address.
  • Page 48 IPCAM User Manual Send E-mail alarm informatio  Transmit pictures to the FTP server, and can set the time inter val of sending pictures;  1) Alarm time Settings Only in the alarm period, detection device to alarm will only have alarm action. All the time (not check the schedule) also can alarm within specified time.
  • Page 49 IPCAM User Manual Picture94 IO Linkage on Alarm Enable IO linkage on alarm,Pin1 will output +5V when alarm triggered, and output LOW when alarm release automatically. Switch on/off buttons control Pin1 output manually. Send Mail on Alarm Sent picture and mail inform to customer‟ s e-mail after alarmed.(firstly you should finish the Mail Service Settings.) Tick: send to your setted mails Picture 95...
  • Page 50 IPCAM User Manual After Setting up later ,when have the alarm ,the image will send designated email and FTP server Picture 96 REC automatically and save to PC When you enable motion detect and open the camera monitoring page on the PC. If there is an alarm triggered, REC will start automatically for several seconds and save to the PC.

  • Page 51: Time Of Device And Ptz Setti Ng

    IPCAM User Manual 7.7 IP camera's Time & Date setting and PTZ Setting If IP camera connected with Internet, it can automatically check the time & date via running NTP Server. And need to choose properly IP camera's Time zone. Otherwise it need PC Time to check IP camera time & Date. Pre-set and Speed of PT.

  • Page 52: Appendix

    IPCAM User Manual 8 APPENDIX 8.1 R DDNS S EGISTER AND APPLY FOR ERVICE 1、Users use DDNS management system first time.Users need to apply account to manage and inquire the domain state. Step1: enter and Create Account.( Fill in Domain Name .dyndns.org then Click http://www.dyndns.com/ Add) Figure103...
  • Page 53 IPCAM User Manual Figure105 Step3: After a minute, you will receive an E-mail from DynDNS Support and it will give you a confirmation address (e.g. https://account.dyn.com/eml/createconf/lILHMZHRje5oF_6YXTYv1A Figure106...
  • Page 54 IPCAM User Manual Step4: Open the link to active your Domain Name as below.Login in your account after it is activated Figure107 Step5: Check all the DDNS services,we choose the 14-day-trial Figure108 Step6: Click the link,and user will see as below.
  • Page 55 IPCAM User Manual ·enter your information Figure109 Step7: Now you obtained a Dynamic Domain Name(Figure 105),and can use it in the DDNS Service Settings(details: 7.4) Figure110...
  • Page 56 IPCAM User Manual 2.For DDNS which is applied successfully, you can fill in the IP CAMERA. When set successfully, the status of IP of IP will be shown as blows: picture 111 picture 112 3、How to set DDNS on line? The first way：Menu ”start”- “run”—>...

  • Page 57: Some Special Application For Ipcamera

    IPCAM User Manual Through the PING command, this dynamic domain name can be back in the network response information. It proves that the domain name has been online. If the domain name update not success! Possible reasons: (1) DDNS parameter is not correct. (2) may cause DNS address configuration is wrong. 8.2 Some special application for IPCAMERA IPCam：Use some grammar parameter control and Use IPCam user：user...
  • Page 58 IPCAM User Manual From the following picture, we can view that "Ipcam" local IP address is ：http://192.168.1.111:8999， IP Address is ：http://well888.dyndns.org:8999， we can input”IPcam”’S IP address to open in the player。 Picture the "CLC media player" open play position: Picture 116 LAN play address;...
  • Page 59 IPCAM User Manual Picture 118 Open the Internet play position: User Size: 640X480 Picture 119...

  • Page 60: Frequently Asked Questions

    IPCAM User Manual As shown in the following picture, It can see the ipcamera send video streaming format Picture 120 8.3 Frequently Asked Questions Note:1) Any question you would meet, please check Network connections firstly. 2)Check the working status revealed by the indicators on the network server, hub, exchange and network card.

  • Page 61: No Pictures Show

    IPCAM User Manual you are set up port forwarding properly. ( consult your router is documentation for more information ) .If none of these seem to be the problem, it is also possible that your ISP is blocking inbound connections to port 80 –many IPSs have done this because of internet worms such as Code Red, If this is the case, you „ll have to setup your HTTP server on an alternate port (such as 8080).

  • Page 62: Why Pop-Up The Prompt"Fail To Connect The Device

    IPCAM User Manual ·8.3.6 Why pop-up the prompt “Fail to connect to the device…”? This prompt only appeared in the case of using multiple cameras. Enter the Multi-Device Settings page(login as administrator) to check the Device setting is correct or not. When one of the multiple cameras disconnected, the color changed to yellow and pop-up the prompt“Fail to connect to the device…”.

  • Page 63: The Default Parameters

    IPCAM User Manual computer can run normally but IPCAM can’t, Please press heavily when making the cable connector. Confirm the power supply normally. First, check whether power indication light turn on or not, If it is on,then check the yellow light on RJ45 Port (power indication light) and green light (network indication light) are on or not.If they are on,so power supply and cable runs normally.

  • Page 64: Technical Parameters

    IPCAM User Manual 8.6 Technical Parameters ITEM IP CAM （NIP-02BGPWA2） Mage sensor 1/5" Color CMOS Sensor Display 640 x 480 (300K Pixels) Image Sensor Lens f:3.6mm, F:2.4 (IR Lens) Mini.illumination 0.5 Lux Lens Type Glass Lens Lens Viewing Angle 60 Degree Audio Microphone Audio of two way...
