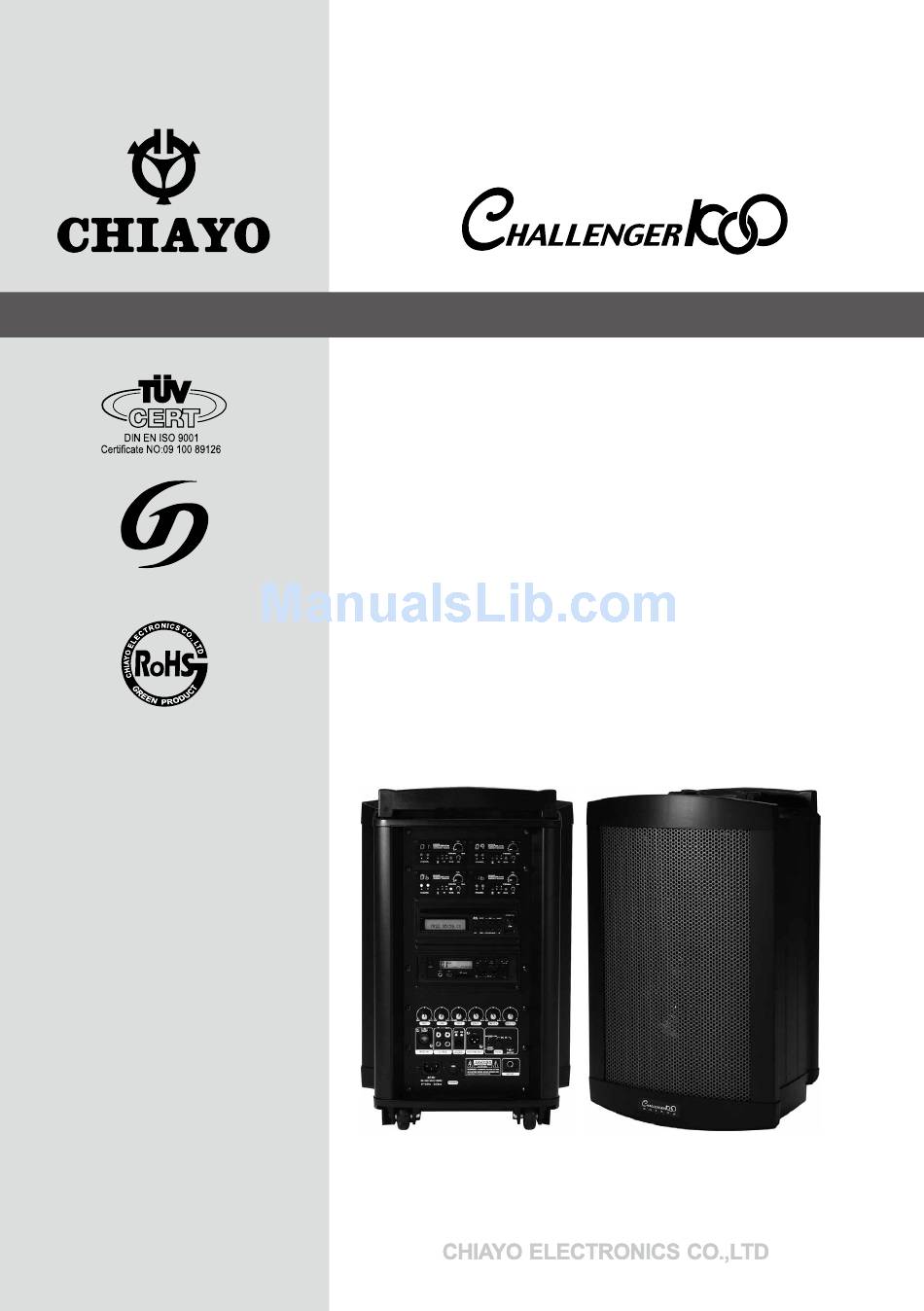

UHF/VHF Modulized wireless portable sound system
Operation maunal
Taiwan Good Design
RoHS Compliant
IC: 3563A-CHALLENGER
I C : 3 5 6 3 A - S Q 5 0 1 6
I C : 3 5 6 3 A - S M 5 0 1 6

Advertisement

loading
Need help?

Need help?

Do you have a question about the Challenger ICOO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Chiayo Challenger ICOO

Summary of Contents for Chiayo Challenger ICOO

  • Page 1 UHF/VHF Modulized wireless portable sound system Operation maunal Taiwan Good Design RoHS Compliant IC: 3563A-CHALLENGER I C : 3 5 6 3 A - S Q 5 0 1 6 I C : 3 5 6 3 A - S M 5 0 1 6...
  • Page 2 Challenger 1000 Operation Manual Congratulations and thank you for purchasing this all-in-one portable sound system. To ensure a trouble-free operation, please read the manual thoroughly to fully understand its controls and functions. Followings are main Challenger 1000 variants : 1. Challenger 1000 portable sound system only.(P2) 2.
  • Page 3 Challenger 1000 (Master) (Basic configuration) A,B,C&D. Receiver or MP3 module C can be Transmitter module 1. Mic volume control 2. Line-in volume control 3. Tape/DVD power+volume control 4. Tone voulme control (BASS) 5. Tone voulme control (TREBLE) 6. Master volume control 7.
  • Page 4 Challenger 1000 (Master) (CD/USB Player & Digital Recorder) CD/USB Player 1. LCD display 2. Play/pause 3. Stop 4. Skip 5. Eject 6. CD selector 7. USB selector 8. Folder skip 9. IR led 10. USB input 11. Power/volume control Digital Recorder 1.
  • Page 5 Challenger 1000 (Master) (DVD/USB Player) 1. Video signal output 2. Power on/off 3. Eject 4. Stop 5. Up 6. Down 7. Play/Pause 8. USB 2.0 input 9. Infrared detector 10. Function selector 11. N/P 12. Cue 13. Rev 14. Repeat 15.
  • Page 6 Challenger 1000 (Master) (CD/USB Player version & Tape Deck) 1. Eject key 2. Counter 3. Variable Speed control 4. Auto reverse indicator 5. Single reverse indicator 6. Single side indicator 7. Mode selector 8. Fast forward 9. Forward play 10. Stop 11.
  • Page 7 Challenger Companion powered speaker (Slave speaker) The Challenger Slave is an active (powered) speaker unit with built-in switching power supply as well as rechargeable batteries, complete with similar charging circuit as that of the Challenger 1000 Master unit. It is an extended and indispensable member of the Challenger Audio Link system.
  • Page 8 Challenger Companion passive speaker The Challenger Speaker is a passive companion speaker for the Challenger 1000 series. It is for connection to the switched or unswitched speaker outs of the Challenger 1000 (Master) or the Challenger Slave units. 1. Speaker input 2.
  • Page 9 Operating procedures After unpacking the unit for the first time, please charge the unit for at least 6 hours before operation. This is absolutely necessary as the built-in rechargeable batteries might have been discharged naturally due to long shipment and storage time, even though it has been fully charged in the factory prior to shipment.

  • Page 10: Frequency Scanning

    First turn on the Power of the main unit. Then turn on the individual power of the SDR- 6216m/SDR-6116m receiver module. Select a desired channel by pressing the ▲ or ▼ button and the corresponding channel on the Transmitter. When transmitter is turned on, either A or B diversity indicator will flash to indicate that signal has been received.
  • Page 11 RP-6100m/RP-6016m Transmitter module 1. Channel indicator 2. Antenna socket(TNC type) 3.Channel selectors: Press ▲(up)▼(down) to increase/decrease channel number. Please select a non-interfering frequency channel to those used in the receiver modules. 4. Power on/off 5. Audio sensitivity: Clockwise to increase its sensitivity level and anticlockwise to reduce.

  • Page 12: Battery Charging

    Operating function On the panel On the remote Play/pause short press Skip forward short press short press Fast forward long press long press short press I Skip backward short press long press I Fast backward long press Track select input track number, (#0-9 buttons) then press USB/SD switch...
  • Page 13 Wired Audio Link The Challenger 1000 could be operated as MASTER as well as SLAVE. This depends on the setting of Master/Slave selector switch. However, the Challenger Slave can only be operated as SLAVE. In order to operate Audio Link, you must have a Challenger 1000 unit that operates as a MASTER.
  • Page 14 Application: For crowds of 1000 to 2000, ex.speeches or forums. Configuration: One Master + several SLAVEs (with receiver module built in) Application: For crowds of over 3000, ex.stadiums. Configuration: One Master + several SLAVEs (with receiver and transmitter module built in) T:Transmitter R: Receiver Channel:1,2,3,...
  • Page 15 Replacing the module button covers To identify different matches of receiver and transmitter, there are 4 extra sets of button covers with different colors for replacement. STEP 1: Power off the module. STEP 2: Screw off the panel. STEP 3: Separate the panel and the board. STEP 4: Use a clamp to hold the button and remove the cover.
  • Page 16 Operating the CD/USB Player Front remotable is a unique feature of Challenger 1000. User can easily control this CD player by clicking its remote from both front and rear Challenger 1000. To begin operation switch on the CD Power after the main power of Challenger 1000 has been turned on.

  • Page 17: Play Mode

    FOLDER-DOWN In stop mode: Skip the starting play folder to previous folder during stop mode, cyclic to the last folder if it is in the first folder. In program entry mode: Change the file for program select to previous folder’s first file, cyclic to the last folder if it is in the first folder.
  • Page 18 Operating the Digital Recorder Player Features - Recording through the Line-in recording directly to a USB or SD Card - Offer USB and SD Card function of each replication. - Recording format is most popular MP3 audio format. - Accept the capacity of 128MB to 16G USB/SD Card/SDHC - With a language learning function, can be broadcast repeatedly at designated areas - Adjustable recording quality, provide choice of 44.1 KHz, 128 Kbps and 192Kbps.
  • Page 19 press STOP button to stop recording. Sound recording through the REC function keys are saved in the directory folder REC -To Play REC track in folder: press FOLDER button, LCD display F. Use REV or F. WD button to select the directory REC, press PLAY/II to start playing. -The track number in the REC Folder will start from “...
  • Page 20 being played - Press 3rd times, LCD screen displays "REP ALL", will be repeated play all tracks. - Press 4th times, cancel repeat playback function. The words on LCD screen will be eliminated. Memory function: Need to operate in the stop-play mode, can be memories up to 99 songs - Single or multi-tracks memory: Press the STOP button to stop playback.
  • Page 21 - To cancel delete function, just wait for LCD stops flashing and cancellation of delete function LCD Display: LINE: Line in audio source DEL: When using delete function : In playing mode II: Pausing REP: Repeatedly playing the single track REP ALL: Repeat all tracks REP F: Repeat specific folder RAN: Playback in random order...
  • Page 22 button to select the directory REC, press PLAY/II to start playing. - The track number in the REC Folder will start from “ REC 001 “, and increase gradually. Therefore if want to check the recording file after finish record, the song will be recorded at the last track in the REC folder.
  • Page 23 stored in the Program. - Whole folder memory: Press the STOP function keys to stop playback Press PROG/REPEAT button, LCD screen display shows PROG, press the FOLDER button with the number of combination of keys or REV keys F. WD button to select the folder Press PROG to store selected folder.
  • Page 24 Operating the DVD/USB Player To begin operation, switch on the DVD player after the main power of Challenger 1000 has been turned on. KEYS FUNCTIONS PANEL REMOTE PLAY/ When this key is pushed during stop, play will start . PAUSE When this key is pushed during CD or DVD is playing, then it is changed to pause.
  • Page 25 PROG After programming , the player will play the title, chapter or songs follow the programmed order. Press PROG button ,the menu will display on the screen as following: PROGRAM 1--:-- 5--:-- 9--:-- 2--:-- 6--:-- 10--:-- 3--:-- 7--:-- 11--:-- 4--:-- 8--:-- 12--:-- 5--:--...
  • Page 26 ↑ Cursor move keys and confirm keys. ← → ↓ ENTER REV- Press one of these keys will skip to the next track, long SKIP press one of these keys will search forward or backward. -REV ANGLE Press “ANGLE” key to choose different angles of the disc that recorded with multi-angle.
  • Page 27 UHF/VHF handheld microphone Parts and functions SQ-216 (VHF 16 ch) SQ-316 (VHF 16 ch) Q-815 (UHF 1 ch) SQ-1016 (UHF 16 ch) SQ-5016/6100/7100 (UHF LCD 16/100/100 ch) Microphone parts and functions SQ-216 SQ-316 Q-815 SQ-1016 SQ-5016 SQ-6100 SQ-7100 Cartridge Battery power LED Power switch Channel switch Sensitivity switch...

  • Page 28: Battery Installation

    Battery installation Insert or replace the batteries according to the correct polarity after opening the compartment. Many batteries are known to have leakage problem of conductive and corrosive liquid. So please remove the batteries if they are not to be used for a long period. Channel setting (SQ-216/316/1016) Please use the attached small screw driver to set the channel.

  • Page 29: Parts And Functions

    UHF/VHF handheld microphone Parts and functions M-815/SM-1016 ▼ SM-5016/7100 ▼ (UHF 1/16CH) (UHF LCD 16/100CH) 14 15 SM-216 ▼SM-316 (VHF 16 CH) (VHF 16 CH) Transmitter parts and functions SM-216 SM-316 M-815 SM-1016 SM-5016 SM-7100 Antenna Battery weak/audio mute indicator Power switch Mini XLR connector Audio mute switch...
  • Page 30 Battery installation Insert or replace the batteries according to the correct polarity after opening the compartment. Many batteries are known to have leakage problem of conductive and corrosive liquid. So please remove the batteries if they are not to be used for a long period. Channel (SM-216/316/1016) and sensitivity setting Please use the attached small screw driver to set the channel and sensitivity level.
  • Page 31 Maintenance-free Lead Acid battery Guidelines for maintenance-free Batteries: 1. Battery should operate at temperatures between 15°C ~ 50°C. To ensure a longer life span, it should be kept between 5°C ~ 35°C. For optimum result, 20°C ~ 25°C will be ideal. When temperature falls 15 degrees below zero, battery will undergo some changes in its chemical contents and therefore cannot be recharged.
  • Page 32 12I1238...
