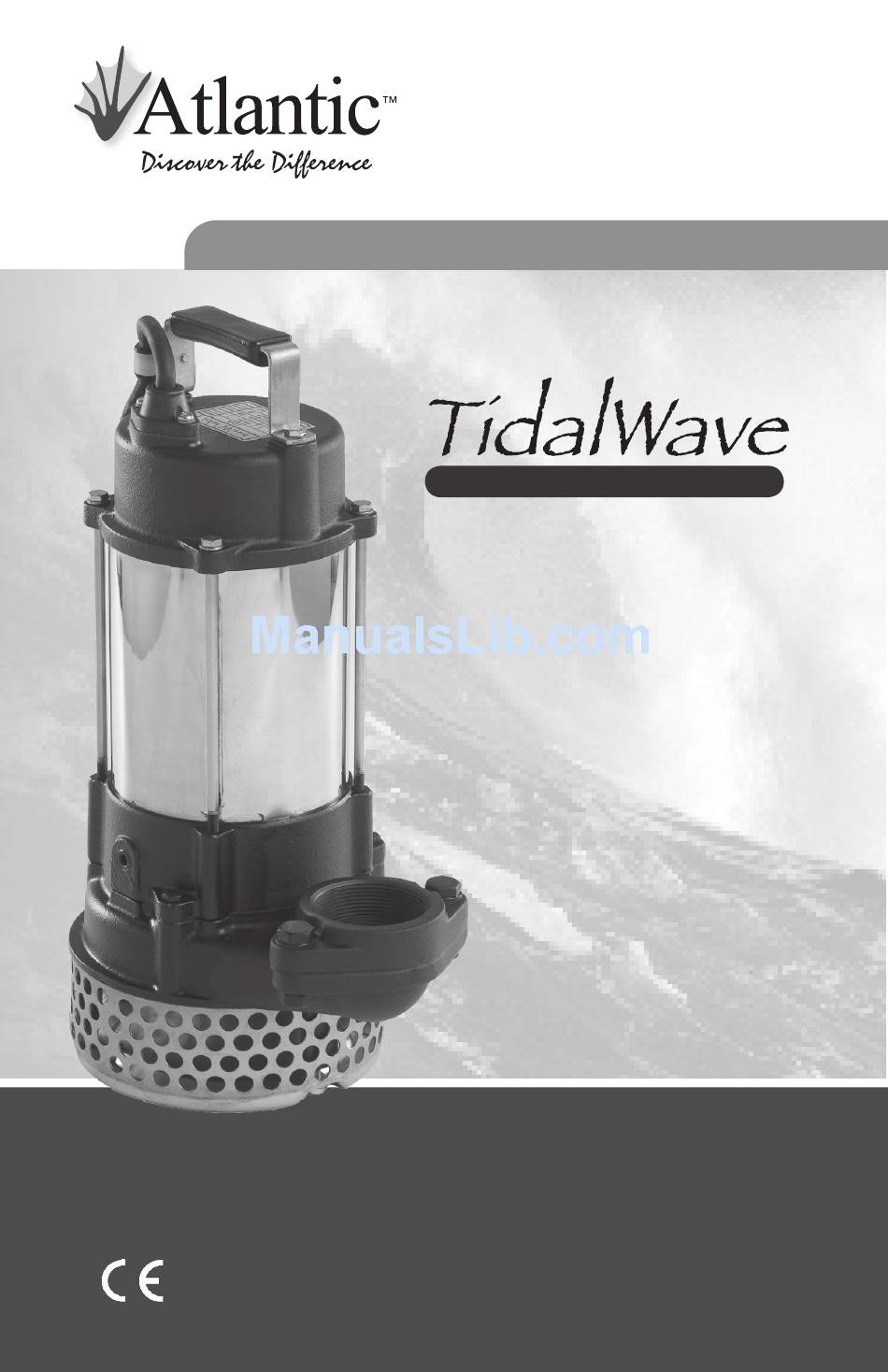

- Page 1 A -SERI E S PU M P S Operating Manual Includes Pumps: A-05 A-21 A-31 A-315 1-877-80-PONDS www.atlanticwatergardens.com...
- Page 2 Introduction Thank you for selecting the Tidal Wave A-05/A-21/A-31/A-315 series pumps. Before using this pump please take a moment to review this manual. To avoid an accident Performance 50’ do not use the pump 45’ in any way other than as described in this 40’...
- Page 3 Prior to Operation and Installation • When the pump is delivered, first perform the following checks. • Check for any damage to pump and power cable that may have occurred during the shipment. • Check the model number to make sure it is the product that was ordered and verify the voltage and frequency are correct. Caution • DO NOT operate this product under any condition other than those for which it is specified. Failure to observe this precaution can lead to elec- trical shock, electrical leakage, fire, water leakage or other problems.
-
Page 4: Before You Start
Before You Start • Check the model name plate to make sure once again that the product is of the correct voltage and frequency rating. • The setting on the circuit breaker or other overload protector should be made in accord with the rated currency of the pump. • Turn off the power supply or circuit breaker before inserting the power supply plug to avoid electrical shock, shorting, or unexpected starting of the pump, which could lead to injury. • Never operate the pump while it is suspended in air. The recoil may result in injury or other major accident. Electrical Safety • Electrical wiring should be installed by a qualified electrician in accor- dance with all applicable safety regulations. Incorrect wiring can lead to a pump malfunction, electrical shock or fire. -
Page 5: Motor Protection System
• In case of very excessive vibration, unusual noise or odor, turn off the power immediately and consult with your nearest dealer. Continuing to operate the pump under abnormal conditions may result in electrical leakage, electrical shock or fire. Motor Protection System • The pump has a built-in motor protection system. The following reasons may cause the pump to stop automatically regardless of water level. Motor overheating Excessive current Change in voltage polarity Open-phase operation or operation under constraint • Repeating cycles of stopping and restarting will damage the water pump. Do not continue operation at low lift, low water level, or while the inlet is clogged with debris. Not only will performance suffer, but... -
Page 6: Warranty Claims
Winterizing • Under no circumstances should the pump be left in frozen water. • When the pump is out of use for an extended period, wash it and dry it thoroughly, then store it indoors. Note: Always run a test operation before putting the pump back into operation. When the pump is left installed in water it should be run at regular intervals (about once per week). Warranty All Tidal Wave Pumps carry a two year limited warranty. This limited warranty is extended solely to the original purchaser commencing from the date of original purchase receipt and is void if any of the following apply: • The pump has been run while not fully submersed causing the thermal... - Page 7 Description Handle Cable Epoxy Cable Base Upper Cover Autocut Bearing (upper) Shaft Stator Rotor Bearing (lower) Motor Case Bearing Bracket Lubricant Mechanical Seal Seal Bracket Lip Seal Impeller Flange Casing Strainer A-05 A-21 A-31 A-315 9” 10” 11” 15” 7.5” 8.5” 9” 13” 6.25”...
-
Page 8: Troubleshooting Guide
Troubleshooting Guide Always turn off power before inspecting the pump. Failure to observe this precaution can result in a serious accident. Before ordering repairs, carefully read through this instruction booklet. If the problem persists, contact your dealer. Problem Possible Cause Possible Solution Power is off Turn power on Check power supply or Power failure contact local power company Pump does not start Voltage drop/...
