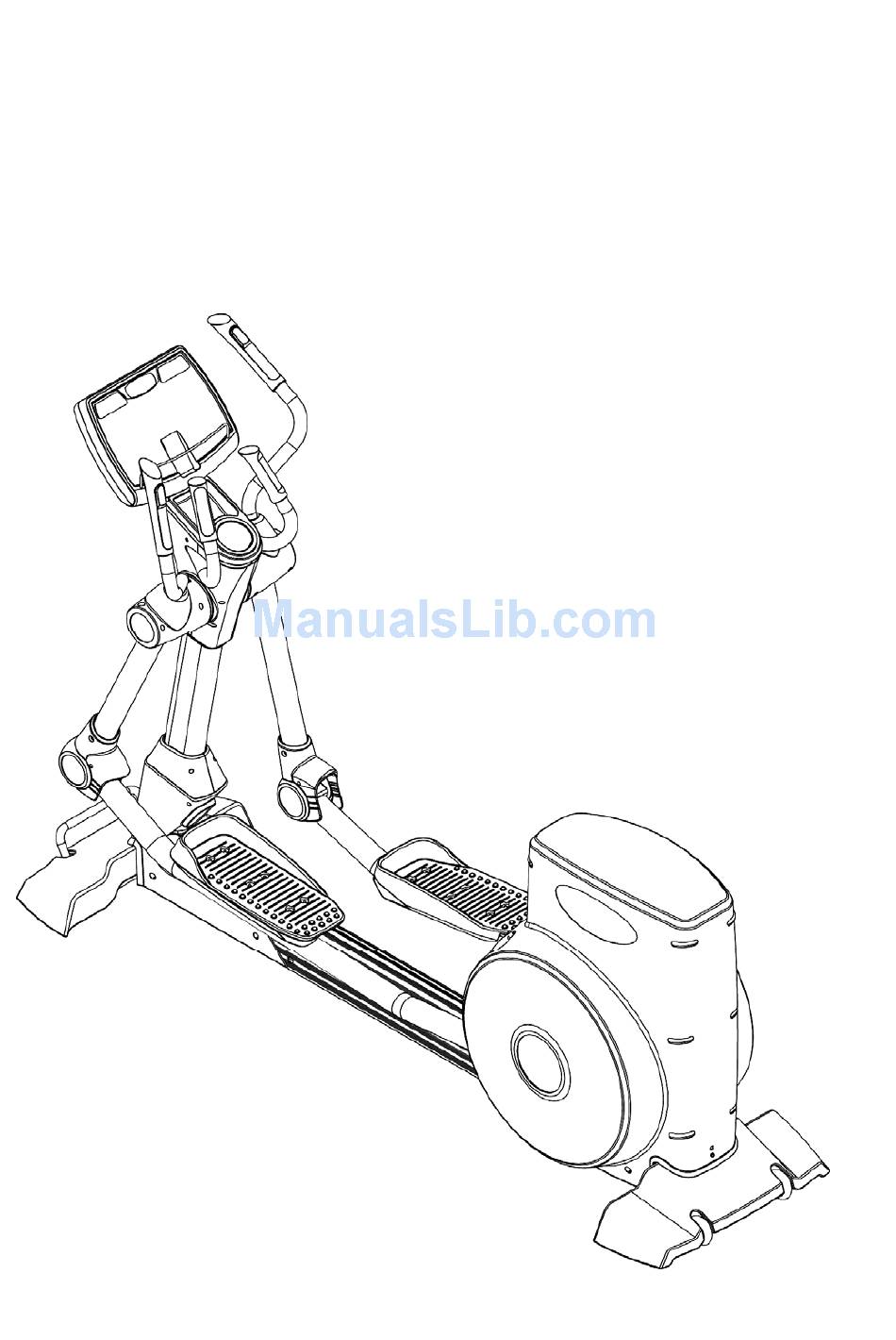

  • Page 1 HC10TVEL OWNER'S MANUAL...

  • Page 2: Table Of Contents

    Index Pre-assembly Attention and Basic Rules………………... ………………………………………02 Selecting Where Your Bike Goes………………………………………………………………. .02 Important Safety Instructions ……………………………………………………………………03 Specifications ……..……………………………………………………………………………..05 Assembly Parts …………………………………………………………………………………..06 Parts Details ………………………………………………………………………..…………...07 Assembly Procedures ……………………………………………………………………………08 Operation Instructions …………………………………………………………………………...11 2009/11/20 Ver1.0+V1.1...

  • Page 3: Pre-Assembly Attention And Basic Rules

    Pre-assembly Attention and Basic Rules The following are tips to aid you in the installation of the 850E Fitness Bike: 1. Prepare all relevant parts before starting, this will save you time! 2. About all screws of the unit, turn rightward is to fasten and turn leftward is to unscrew. 3.

  • Page 4: Important Safety Instructions

    Important Safety Instructions When using this product, basic precautions should always be followed, including the following: Please read the instruction carefully before starting to use this product. Danger – To reduce the risk of electric shock： Always unplug this product from the electrical outlet immediately after using and before cleaning the treadmill.
  • Page 5 Do not carry this product by the supply cord or use the cord as a handle. Keep the cord away from hot surfaces or ground. 10. Never operate the product with the air vents blocked. Keep the air vents free of lint, hair, etc. 11.

  • Page 6: Specifications

    Specifications Attention: All instructions are written as if the user is positioned on the bike facing the computer. Max. User Weight 400Ibs/180kg Size of Machine 2225mm x 698mm x 1496mm Packing Weight of 141kg Machine Net Weight of 128kg Machine Power Supply 15V/2A DC (Charger) 2009/11/20 Ver1.0+V1.1...

  • Page 7: Assembly Parts

    Accessory ITEM Description ITEM Description Frame End Rocker Post Cover A Handrail Set End Rocker Post Cover B Rocker Decoration Cover A Rocker Decoration Cover B 2009/11/20 Ver1.0+V1.1...

  • Page 8: Parts Details

    Screw Bag ITEM Description ITEM Description Truss Philips Screw M5XP0.8X15 Flat Washer Ø10x Ø20x2.0t Truss Philips Screw M6XP1.0X15 Nylon Nut M10XP1.5 CKS Hex Screw M10XP1.5X20 CKS Hex Screw M10XP1.5X15 Spring Washer M10 Lug Wrench SK-455 Philips Screwdriver Washer Ø10x Ø20x1.5t 5mmX40mmX180mm L-shaped Wrench Allen Screw M10XP1.5X75...

  • Page 10: Assembly Procedures

    Assembly Procedures Connect Frame (A) and tighten with (K03), (K04) and (K05) PS: Don’t press the wire Fix Left and Right Handrail (B) to and tighten with (K04) and (K19). Then fasten Rocker Decoration Cover(C, D) with (K01). Fasten pedal Tube with (K04),(K06),(K07),(K08), then tighten (E) and (F) with (K01) and (K02).
  • Page 11 Computer Operation Instructions I. Subject Instruction This computer has touch control 10.1”TFT-LCD window. It can display SPEED, LEVEL, DISTANCE, KCAL, TIME, WATT, BPM, RPM, CHANNEL, VOLUME and PROGRAM figures. II. Display and booting of the starting-up window goals mode：Target TIME, DISTANCE and CALORIE exercise mode. race mode: User can compete with computer according to the distance and time he wants.

  • Page 12: Operation Instructions

    health evaluating) HRC mode：Heartbeat exercise mode which has levels of 65%, 75%, 85% and THR. Set the exercise levels in accordance with the coach or requirements of self-direction. programs mode：There are exercise program, stable exercise program and six different kind of program to choose. user mode: User can set up strength of excise in each level when working by himself.
  • Page 13 to turn off. 12. TV：Touch this key to switch among TV, DTV, AV, MP3 mode (circle). 13. Touch the center of the image area under TV, DTV or AV mode to zoom in or zoom out the screen. 14. ENTER：When entering program control mode to set parameters, touch this key for confirmation.
  • Page 14 use chooses. 8. Programs mode： After choosing PROGRAM, adjust parameter, or press directly to start (It will be start by default if there is no parameter need to be adjust). 9. Workout has 32 levels in all. The setting time will be executed averagely by 32 levels. 10.
  • Page 15 V. General Operation and Instructions： 1. Under start/ready status, press key, it will enter into MANUAL mode and after 3 seconds countdown, the treadmill will start running. 2. MANUAL mode has total 20 levels for your choice as you prefer. 3.
  • Page 16 Fitness Test Mode(Physical fitness training) 1. User enter target value：Press to adjust weight, age, male or female. 2. After setting parameter, press or press during setting to start program (It will be start by default if there is no parameter need to be adjust).The target value will be carried out by count down.

  • Page 17: Hr Control Mode

    HRC Mode(need to wear wireless chest belt) The purpose of this program is self-training based on heart rate. During the training, when heart rate of runner achieves the setting number that you make, the LEVEL value will keep within a certain range for best training effort. 1.
  • Page 18 will decrease 10 automatically, the lowest can reach 50WATT. D. While running, program will compare actual heartbeat value with preset heartbeat value. If actual heartbeat value ≧preset heartbeat value 15, WATT will decrease 20 automatically, the lowest can reach 50WATT. 9.

  • Page 19: Race Mode

    program (It will be start by default if there is no parameter need to be adjust).The target value will be carried out by count down. (Parameter will make measure according value you enter) Race Mode 1. It will ask user set target distance(0.1、0.4、1.0、2.0、5.0、10.0 kilometers/miles) and challenge time of target distance.
  • Page 20 There are total 10 levels of difficulty. 3. After choosing LEVEL, press ，then press to adjust WEIGHT(default : 70KG；range: 23-180KG) and TIME(default:10 minutes；range：0，10-99min) 4. If you want to modify parameter, press return to the first item to re-set or press return to standby directly to choose.
  • Page 21 ◎Program Control Project Figure level review 2009/11/20 Ver1.0+V1.1...
  • Page 22 2009/11/20 Ver1.0+V1.1...
  • Page 23 2009/11/20 Ver1.0+V1.1...
  • Page 24 2009/11/20 Ver1.0+V1.1...
  • Page 25 2009/11/20 Ver1.0+V1.1...
  • Page 26 2009/11/20 Ver1.0+V1.1...
  • Page 27 2009/11/20 Ver1.0+V1.1...
  • Page 28 2009/11/20 Ver1.0+V1.1...
  • Page 29 2009/11/20 Ver1.0+V1.1...
  • Page 30 2009/11/20 Ver1.0+V1.1...
  • Page 31 2009/11/20 Ver1.0+V1.1...
  • Page 32 2009/11/20 Ver1.0+V1.1...

  • Page 33: Program Mode

    Program Mode (When the TV image appears blank or no signal, you can adjust TV system setup in this mode, and non-engineer is not allowed to change the parameters of this mode to avoid error): Under start/ready mode, press and then press Simulation Signal Setup Steps：...
  • Page 34 6. After selected Digital TV，press ENTER key. 7. Choose Factory Default and press ENTER key. 8. ”Enter password” will display，then press FAN key 4 times. 9. Then ”Do you want to perform factory default?” will display，choose Yes. 10. Repeat step 3. P.S.
