Terratek TLICS01 User Manual

Terratek TLICS01 User Manual

3.6v li-ion cordless screwdriver

Advertisement

3.6V LI-ION Cordless Screwdriver
Model: TLICS01
User Manual — Please read and retain for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TLICS01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Terratek TLICS01

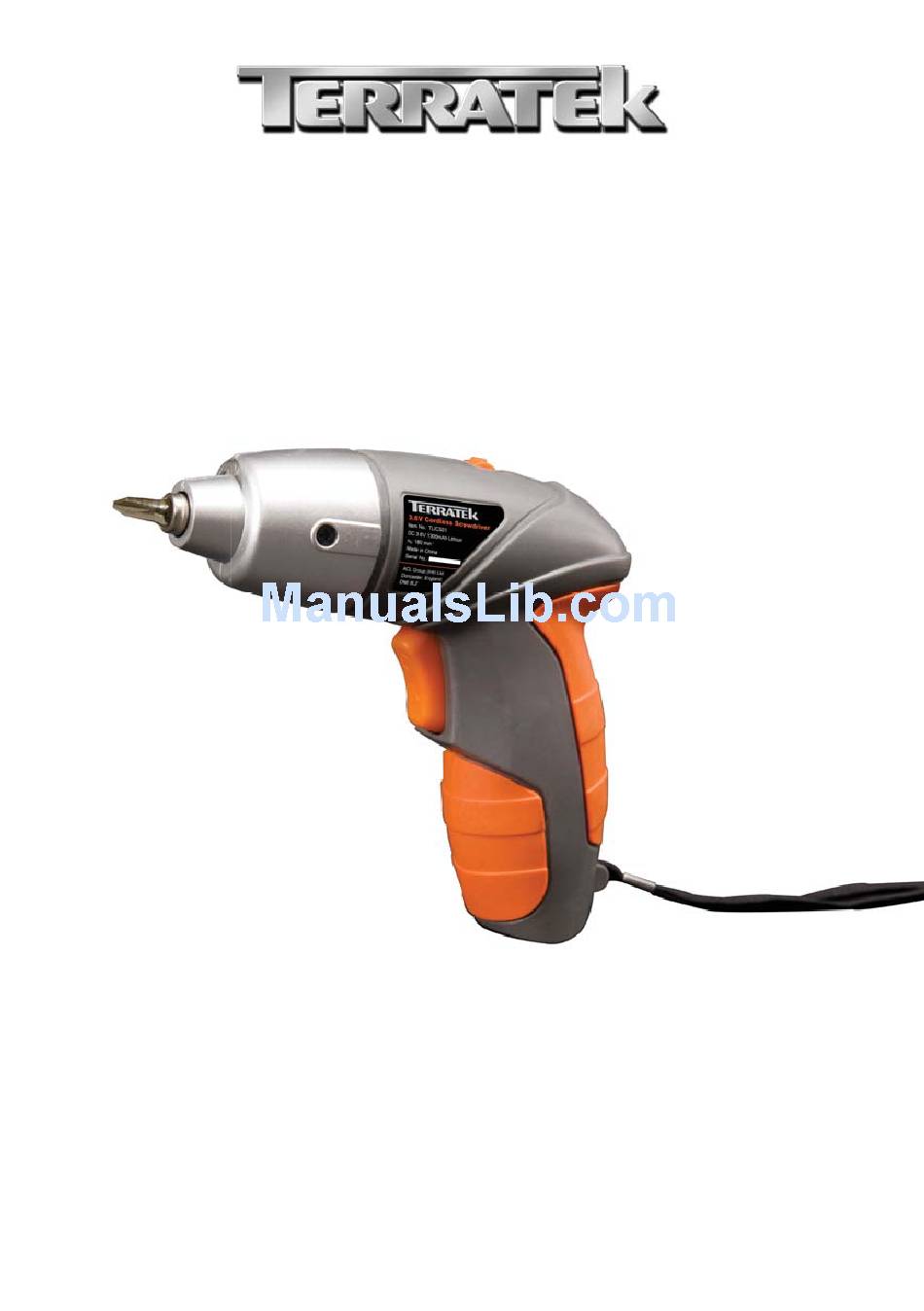

  • Page 1 3.6V LI-ION Cordless Screwdriver Model: TLICS01 User Manual — Please read and retain for future reference.
  • Page 2: Parts List

    Contents Parts List Technical Information Safety Instructions Using your Maintenance Warranty Parts List Part name Part name Part No. Part No. Axis of rotation Transparent cover Washer Rotation handspike for LED light Axis sleeve LED light Gear box Contact chip Locking ring PCB board for light Lock sleeve...
  • Page 3: Exploded Assembly Diagram

    Exploded Assembly Diagram NOTICE: Actual product may vary from pictures shown.
  • Page 4 Fig. 1 Fig. A Controls and Components 1 Keyless chuck 2 Work light 3 Work light On/O switch 4 LED ba ery indicator lights 5 Led ba ery level indicator bu on 6 Charging port 7 For/ Rev switch 8 AC adaptor...
  • Page 5 Fig. 2 Voltage: 3.6V DC Battery: Lithium 1300mAh Torque: 2.5 Nm No load speed: 180 rpm Charging time: 3–5 hours Noise Sound pressure level: L = 59.6 dB(A) Uncertainty K =3dB Sound power level: L = 70.6 dB(A) Uncertainty K =3dB Vibration: ah= 0.380 m/s Uncertainty K=1.5m/s...
  • Page 6: General Safety Rules

    Read and Keep This Manual Please read carefully all instructions within this manual. Failure to follow all safety warnings can result in serious personal injury. The term “Power Tool” in all of the following warnings refers to your mains operated (corded) or battery operated (cordless) power tool.
  • Page 7: Personal Safety

    Always try to avoid body contact with grounded surfaces, such as radiators, cooking ranges and any other fixed appliance with metal surfaces. Do not expose your power tool to wet or damp conditions and NEVER use in rain. Check regularly the power cord of your machine and any extension cord that you are using for damage. Do not carry or pull the machine with the power cord.
  • Page 8 Read this owner's manual completely and make sure you understand all of its safety guidelines. 1. KEEP GUARDS IN PLACE and in working order. 2. REMOVE ADJUSTING KEYS & WRENCHES. Before turning on the power tool, make sure the keys and adjusting wrenches have been removed.
  • Page 9 This power tool is supplied with all the relevant safety guards and features, it should be checked before every operation, this manual should be read and kept in a safe place. Whilst we warn of all the possible risks attached to using power tools any operator must have read and understood the manual and apply their own caution and common sense when using this power tool.
  • Page 10: Package Contents

    Symbols IMPORTANT: Some of the following symbols may be used on your tool. V……………………… volts A……………………… amperes Hz…………………… hertz ~……………………… alternating current …/m………………… revolutions per minute .. ………………… class II construction (double insulated) Kg…………………… kilograms No…………………… No load speed ……………………… ………...
  • Page 11: Operation

    Operation 1. Insert the bit into the chuck until it snaps into place. 2. Grasp the tool firmly with both hands, align the bit with screw and press it firmly into the screw. 3. Start the tool by squeezing the Forward/Reverse trigger switch. (Press the top of the switch to turn Forward. Press the bottom of switch to reverse the screw.) (Fig.
  • Page 12: Maintenance

    Keep tool dry, do not immerse in water. Accessories CAUTION: Use only accessories or attachments recommended for use with your Terratek tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only...
  • Page 13 Accessories CAUTION: Use only accessories or attachments recommended for use with your Terratek tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.
  • Page 14 We ACL Group (Intl.) Ltd, England DN6 8LZ declare that the Cordless screwdriver has been manufactured according to our full quality assurance procedures. The declaration is to certify that it conforms to CE, EMC, MD,WEEE and RoHS directives: EN 55014-1: 2006 + A1: 2009 + A2: 2011 EN 55014-2: 1997 + A1: 2001 + A2: 2008 EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 EN 61000-3-3: 2008...
