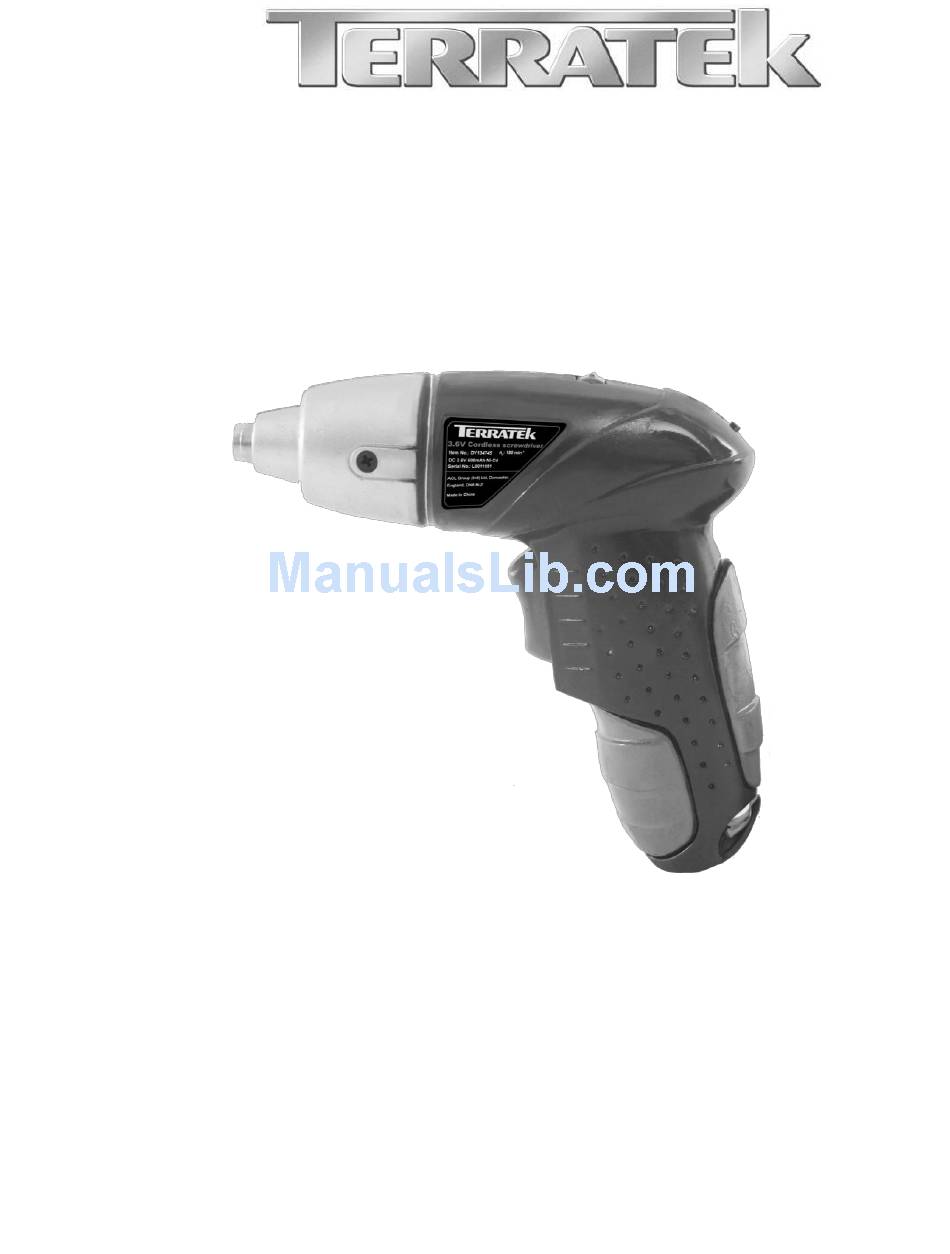

- Page 1 3.6V Cordless Screwdriver TT36HTS User Manual – Please read and retain for future reference.
-
Page 2: Parts List
Contents Parts List Technical Information Safety Instructions Using your Cordless screwdriver Maintenance Warranty Parts List Description Description Light cover Motor fixed screw Screw Mat slice Shell Star gear Power indicator Middle star gear holder Soft rubber Star gear 2 Light switch Lock-self star gear holder Connector pin Connector pin... -
Page 3: Exploded Assembly Diagram
Exploded Assembly Diagram NOTICE: Actual product may vary from pictures shown. - Page 4 Fig.1 1) Chuck 2) Work light 3) Worklight On/Off Switch 4) LED Battery Indicator Lights 5) LED Battery level indicator button 6) Charging port 7) Forward/Reverse Switch 8) Battery charger Fig.2...
-
Page 5: Technical Information
Technical Information Voltage: 3.6V (DC) Battery: Ni-Cd, 600mAh Torque: 2.5 Nm No load speed: 180 rpm Charging time: 3–5 hours Noise Sound pressure level: = 63 dB(A) Uncertainty KPA=3dB Sound power level: = 74 dB(A) Uncertainty KWA=3dB Vibration: = 0.630 m/s Uncertainty K=1.5m/s Charger Input:... -
Page 6: Important Safety Information
Read and Keep This Manual Please read carefully all instructions within this manual. Failure to follow all safety warnings can result in serious personal injury. The term “Power Tool” in all of the following warnings refers to your mains operated (corded) or battery operated (cordless) power tool. -
Page 7: Personal Safety
Check regularly the power cord of your machine and any extension cord that you are using for damage. Do not carry or pull the machine with the power cord. Ensure the cord is clear from hot surfaces, oil or sharp objects. Personal safety Never use your power tool whilst under the influence of alcohol, drugs or medication. - Page 8 3. KEEP WORK AREA CLEAN. Cluttered areas and benches invite accidents. 4. ALWAYS REMAIN ALERT WHEN THE TOOL IS IN USE. Inattention on the part of the operator may lead to serious injury. 5. DON’T USE IN A DANGEROUS ENVIRONMENT. Don’t use power tools in damp or wet locations or expose them to rain.
-
Page 9: Additional Safety Instructions
Additional safety Instructions Use appropriate detectors to determine if utility lines are hidden in the work area or call the local utility company for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Cutting into a water line causes property damage or may cause an electric shock. -
Page 10: Charging The Battery Pack
Use battery operated tool only with specifically designed battery pack. Use of any other batteries may create a risk of fire. NEVER place hands or other body parts near the drill bit or chuck during operation. Hold the Cordless screwdriver by its handle only. Because the cordless driver operates by battery power, be aware of the fact that it can begin to operate at any time. -
Page 11: Functional Description
8) Be careful not to get dust inside the chuck. 9) Do not touch the rotating parts to avoid injury. 10) Do not use the tool continuously for a long period of time. Stop using the tool from time to time to avoid overheating of the motor. -
Page 12: Maintenance
Accessories CAUTION: Use only accessories or attachments recommended for use with your Terratek tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. -
Page 13: Environmental Protection
Environmental Protection RECYCLING: WASTE ELECTRICAL PRODUCTS SHOULD NOT BE DISPOSED OF WITH HOUSEHOLD WASTE. PLEASE RECYCLE WHERE FACILITIES EXIST. CHECK WITH YOUR LOCAL AUTHORITY OR RETAILER FOR RECYCLING ADVICE. Please read the following carefully ACL Group (Intl) Ltd. and/or its distributor have provided the parts list and assembly diagram as a reference tool only. - Page 14 ACL Group (Intl) Ltd Doncaster, England Email: info@terratekintl.com www.terratekintl.com...
