Summary of Contents for Terratek FUT18V01-3

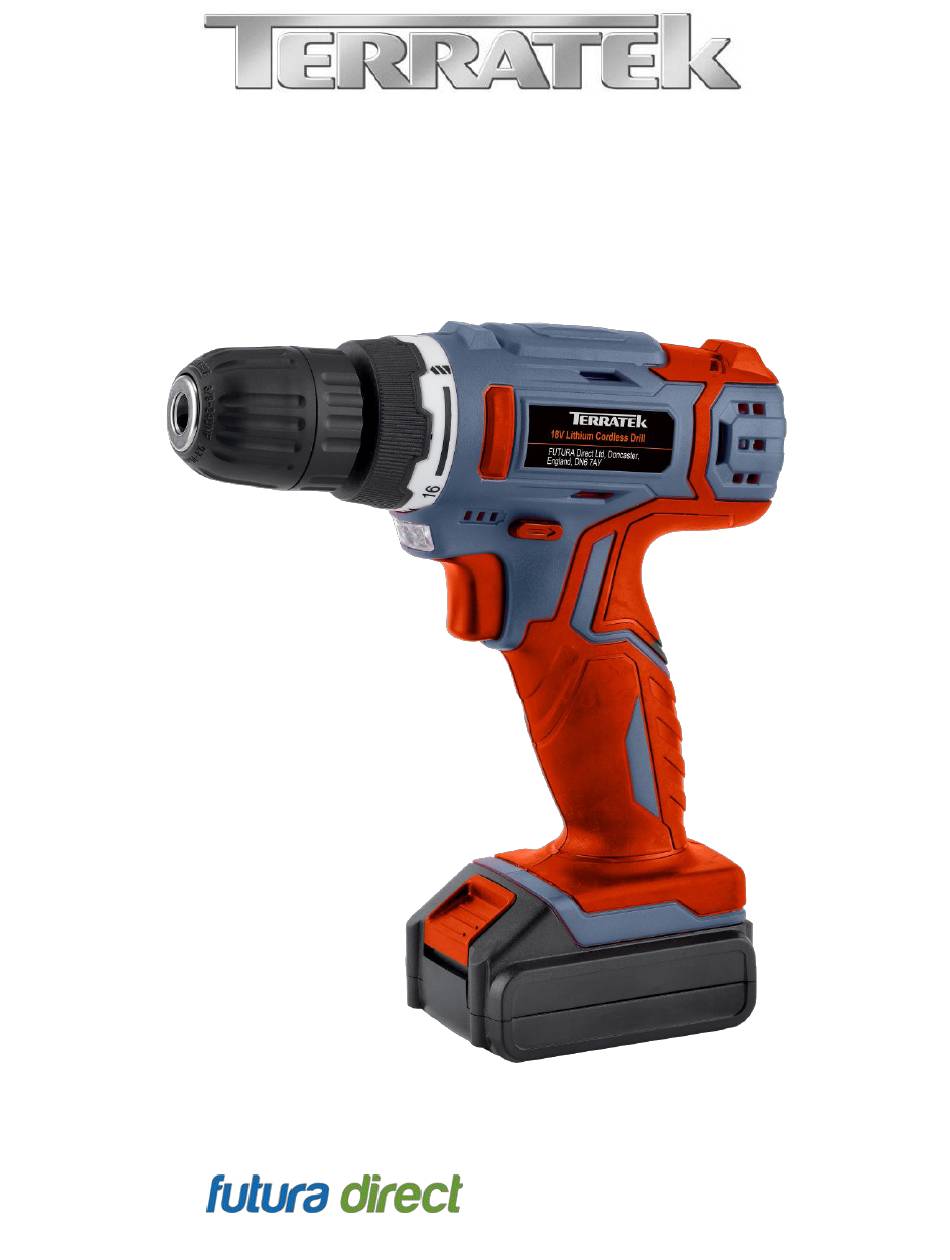

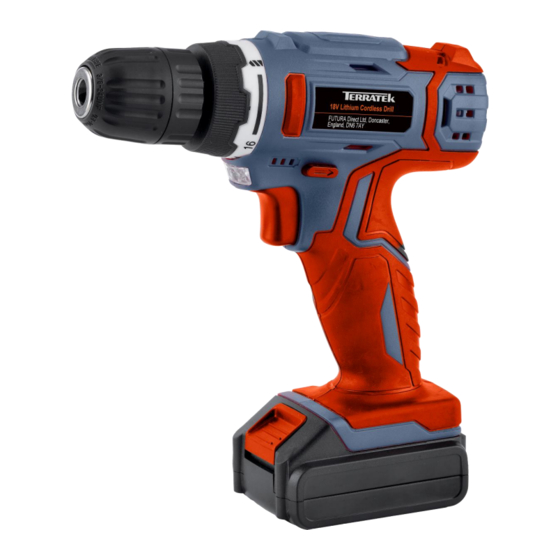

- Page 1 18V Cordless Drill FUT18V01-3 REGISTER YOUR GUARANTEE www. .co.uk/guarantee...
-
Page 2: Part List
User Manual— Please read and retain for future reference Contents Parts List Technical Information Safety Instructions Using your drill Maintenance Warranty Part List Description Description Anti-Screw Sun Gear Chuck Planet Gear Clutch Cap Motor Gear Clutch Cap Washer Adjust Nut Screw Spring Washer... -
Page 3: Exploded Assembly Diagram
Exploded Assembly Diagram NOTICE: Actual product may vary from pictures shown. - Page 4 Overview： Fig. 1 Fig. 2 Fig. 3...
-
Page 5: Technical Information
6. Battery Clip 7. LED lamp 8. Charger Technical Information 18 V Cordless Drill Model: FUT18V01-3 Battery voltage: 18 V Chuck capacity: 0.8 – 10 mm Max drilling capacity (steel) 8 mm Max drilling capacity (wood) 20 mm No load speed: 0 – 650 /min... -
Page 6: Important Safety Information
Ear protection is required for the user. Vibration levels Drilling into metal: a = 1.339 m/s , uncertainty K = 1.5m/s The declared vibration total has been measured in accordance with a standard test method and may be used for comparing one tool with another. This total may also be used in a preliminary assessment of exposure. -
Page 7: Electrical Safety
or fumes. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. Electrical safety Before use, ensure that the power outlet you are using matches the plug on your power tool and that the voltage of the outlet matches that of your power tool. Only use grounded extension cords with power tools fitted with proper plugs and if using outdoors ensure any extension cord is suitable for outdoor use. -
Page 8: Safety Instructions
ALWAYS keep your power tools away from children. Keep cutting tools sharp to ensure less stress on the motor. Only have your power tool serviced by a qualified repair agent using manufacturers recommended parts. WARNING: For your own safety read Instruction Manual before operating your tool. A) Wear eye protection. -
Page 9: Safety Warnings For Battery Pack
11) Keep unused batteries away from paper clips, coins, keys, nails, screws and other metallic objects that could cause a short circuit between the contacts. A short circuit between the battery contacts may cause burns or a fire. 12) In case of incorrect use, fluid may escape from the battery. Avoid contact with it. If you touch it by accident, rinse the affected area with water. - Page 10 8. Do not open the unit and keep out of the reach of children. 9. Do not charge the batteries of other manufacturers or ill-suited models. 10. Ensure that the connection between the battery charger and battery is correctly positioned and is not obstructed by foreign bodies. 11.
- Page 11 C) Charger D) Manual Battery use and care A battery operated tool with integral batteries or a separate battery pack must be recharged only with the specified charger for the battery. A charger that may be suitable for one type of battery may create a risk of fire when used with another battery.
- Page 12 4. To close the drill chuck, rotate the front section to the left to close the jaws. 5. Ensure that the drill bit or tool is seated correctly and centrally as you close the drill chuck. Working LED lamp Pushing the On/Off Switch button (4) will turn on the working LED lamp (7). Leaving the On/Off Switch button (4) will switch off the working LED lamp (7).
-
Page 13: Maintenance
avoid damaging the workpiece at hole breakthrough. • The maximum hole diameter can only be achieved using Forstner bits. Driving wood screws • Where possible use crosshead wood screws. • Ensure that you use the correctly sized screwdriver bit. • Drill an appropriately sized pilot hole before driving in the screw. Driving without pilot drilling increases the risk that the wood may split or that the screw may break. -
Page 14: Declaration Of Conformity
Disposal Power tools, accessories and packaging should be sorted for environmentally-friendly recycling. Only for EC countries: Do not dispose of power tools into household waste! According to the European Directive 2002/96/EC on waste electrical and electronic equipment and its incorporation into national right, products that are no longer suitable for use must be separately collected and sent for recovery in an environmentally-friendly manner. -
Page 15: Please Read The Following Carefully
Please read the following carefully FUTURA Direct Ltd. and/or its distributor have provided the parts list and assembly diagram as a reference tool only. Neither FUTURA Direct Ltd. or its distributor makes any representation or warranty of any kind to the buyer that he or she is qualified to do any repairs or replace any parts of this product. - Page 16 REGISTER YOUR GUARANTEE www. .co.uk/guarantee We FUTURA Direct Ltd, England DN6 7AY declare that the cordless drill is exclusively manufactured for Futura Direct Ltd and has been manufactured according to our full quality assurance procedures.
