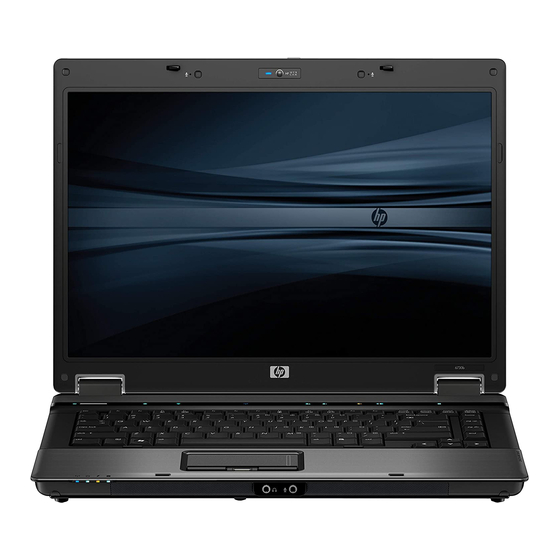

HP Compaq 6730b Overview

Notebook pc
Hide thumbs Also See for Compaq 6730b:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Maintenance and Service Manual, User Manual
QuickSpecs
Overview
1.
Optional VGA webcam
2.
Volume mute button with LED indicator
3.
Volume scroll zone with up/down LED indicators
4.
Serial port
5.
Optical drive/Upgrade Bay
6.
Media Card Reader
7.
(2) USB 2.0 ports
8.
Touchpad with scroll zone
9.
Optional HP Fingerprint Sensor
10. Touchpad buttons
DA - 13053
Worldwide QuickSpecs — Version 3 — 8.13.2008
HP Compaq 6730b Notebook PC
HP recommends Windows Vista
11. Hard drive activity / HP 3D DriveGuard LED indicator
12. Battery charging LED indicator
13. Power/standby LED indicator
14. Wireless on/off LED indicator
15. Power button with LED indicator
16. HP Info Center/ HP QuickLook 2 button with LED indicator
17. HP Presentation button with LED indicator
18. Wireless on/off button with LED indicator
19. Integrated microphone (dual-microphone array with webcam)
20. WLAN and WWAN antennas (select models)
®
Business
Page 1

Advertisement

Table of Contents
loading

Related Manuals for HP Compaq 6730b

Summary of Contents for HP Compaq 6730b

  • Page 1 14. Wireless on/off LED indicator Optical drive/Upgrade Bay 15. Power button with LED indicator Media Card Reader 16. HP Info Center/ HP QuickLook 2 button with LED indicator (2) USB 2.0 ports 17. HP Presentation button with LED indicator Touchpad with scroll zone 18.
  • Page 2 QuickSpecs HP Compaq 6730b Notebook PC Overview 1. Stereo speakers ExpressCard/54 slot or optional Smart Card Reader 2. Stereo headphone/line out Kensington Lock slot 3. Stereo microphone in 10. RJ-11/modem port 4. Display release latch 11. RJ-45/Ethernet port 5. Power connector 12.
  • Page 3 HP QuickLook 2 for instant access to e-mail, calendar, and contact information Up to 250 GB 5400 rpm or 160 GB 7200 rpm user-removable hard drive with HP 3D DriveGuard protection Enhanced reliability with magnesium alloy support structure and HP DuraFinish...
  • Page 4 QuickSpecs HP Compaq 6730b Notebook PC Overview * TPM module disabled where not permitted by law (for example, Russia and China). DA - 13053 Worldwide QuickSpecs — Version 3 — 8.13.2008 Page 4...

  • Page 5: Standard Features

    QuickSpecs HP Compaq 6730b Notebook PC Standard Features Processors Intel Core 2 Duo Processor T9600 (2.80 GHz, 6 MB L2 cache, 1066 MHz FSB)* Intel Core 2 Duo Processor T9400 (2.53 GHz, 6 MB L2 cache, 1066 MHz FSB)* Intel Core 2 Duo Processor P8600 (2.40 GHz, 3 MB L2 cache, 1066 MHz FSB)* Intel Core 2 Duo Processor P8400 (2.26 GHz, 3 MB L2 cache, 1066 MHz...
  • Page 6 Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots. NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
  • Page 7 19 mm x 19 mm key pitch (center-to-center spacing), 2.5 mm stroke, and comfort-dished keycaps. Touch-sensitive controls Touch-sensitive controls provide easy access to the following features: HP Info Center, HP QuickLook 2, HP Presentation button, wireless on/off, mute, and volume up, volume down.
  • Page 8 QuickSpecs HP Compaq 6730b Notebook PC Standard Features Pointing device Touchpad with scroll zone, two pick buttons Expansion card slots ExpressCard/54 slot Supports ExpressCard/54 and ExpressCard/34 Optional Integrated Smart Compatible with ISO 7816 compliant Smart Cards Card Reader (replaces PC/SC interface support...
  • Page 9 Roxio Creator Business (for optional DVD+/-RW and DVD/CDRW drives) McAfee Total Protection* Synaptics Touchpad Driver Microsoft Windows Live Messenger (select models) HP Webcam Software (with optional VGA webcam) DA - 13053 Worldwide QuickSpecs — Version 3 — 8.13.2008 Page 9...
  • Page 10 First update included. Subscription required for updates thereafter. HP Recovery Manager Each unit is shipped with HP Recovery Manager. HP Recovery Manager enables fast recovery of the factory preinstalled image if the system becomes corrupted or if important system files are accidentally deleted.
  • Page 11 Total length including external AC adapter is 12 feet (3.66 meter). HP Fast Charge* * HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast Charge does not apply to 12- cell Ultra-Capacity batteries. Battery...

  • Page 12: Service And Support

    HP Services offers limited 3-year, 1-year and 90-day warranty options depending on country; 1-year limited warranty on primary battery. On-site service and warranty upgrades are also available. HP Care Pack Services extend service contracts beyond the standard warranties. To choose the right level of service for your HP product, use the HP Care Pack Services Lookup Tool at: http://www.hp.com/go/lookuptool.
  • Page 13 QuickSpecs HP Compaq 6730b Notebook PC Standard Features Integrated Wireless Intel WiFi Link 5100 (802.11 a/b/g/n draft 2.0) HP Integrated Module with Bluetooth Wireless Technology Integrated Security Drive Encryption for HP ProtectTools HP Fingerprint Sensor 1.2* Pointing Device Touchpad Battery...

  • Page 14: Integrated Wireless

    Communications Integrated Intel Gigabit Network Connection (10/100/1000 NIC) 56K V.92 modem Integrated Wireless Intel WiFi Link 5100 (802.11 a/b/g/n draft 2.0) HP Integrated Module with Bluetooth Wireless Technology Integrated Security Drive Encryption for HP ProtectTools HP Fingerprint Sensor 1.2* Pointing Device...
  • Page 15 HP Primary SATA 120 GB 7200 rpm Hard Drive AH920AA HP Primary SATA 250 GB 5400 rpm Hard Drive AK072AA HP Upgrade Bay SATA 250 GB 5400 rpm Hard Drive AK868AA HP Upgrade Bay SATA DVD+/-RW SuperMulti DL LightScribe Drive AK869AA...

  • Page 16: Carrying Cases

    HP Executive Leather Case RR316AA HP Deluxe Nylon Backpack RR317AA HP Deluxe Roller Case GD405AA Security HP ExpressCard Smart Card Reader with Java Card AJ451AA HP ProtectTools Java Card - 10 units EL348AA HP/Kensington MicroSaver Security Lock PC766A HP 15.4" Display Privacy Filter AJ358AA Input/Output Devices HP PS/2 Keyboard &...

  • Page 17: Standard Memory

    NOTE: This chart does not represent all possible memory configurations. Due to the non-industry standard nature of some third-party memory modules, we strongly recommend using only HP- branded memory modules to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Full availability of 4 GB or more of memory requires Windows Vista Business 64-bit or Linux.

  • Page 18: Internal Storage Device

    QuickSpecs HP Compaq 6730b Notebook PC Storage Upgrade Bay Drive Support Quantity Supported Drive Bay DVD+/-RW SuperMulti DL Upgrade Bay LightScribe Drive DVD/CD-RW Combo Upgrade Bay Drive DVD-ROM Drive Upgrade Bay 250 GB 5400 rpm Upgrade Bay SMART SATA II Hard Drive...

  • Page 19: Technical Specifications

    QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications System Unit Dimensions (HxWxD) 1.32 in (at front) x 14.02 in x 10.46 in 33.6 mm (at front) x 356.0 mm x 265.4 mm Weight Starting at 5.93 lb (2.69 kg) NOTE: Height varies depending upon where on the notebook the measurement is made. Weight varies by configuration and components.
  • Page 20 QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications NOTE: For accessibility information on HP products, please visit: http://www.hp.com/accessibility. HP 90W Smart AC Dimensions 5.00 x 1.97 x 1.1 in (12.7 x 5.0 x 2.9 cm) Adapter Weight 0.82 lb (370 g)
  • Page 21 QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications Optional HP Extended Life Dimensions (H x W x L) 1.0 x 3.9 x 8.7 in (2.5 x 10.0 x 22.0 cm) Battery Weight 1.00 lb (0.455 kg) Cells/Type 8-cell Li-Ion Energy...
  • Page 22 QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications Displays 15.4-inch WSXGA+ Dimensions (W x H) 13.0 x 8.1 in (33.1 x 20.7 cm) wide-viewing angle, anti- Diagonal Size 15.4 in (39.1 cm) glare Surface Treatment Anti-glare Number of Colors Up to 16M...
  • Page 23 QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications 15.4-inch WXGA Active Area (W x H) 13.0 x 8.1 in (33.1 x 20.7 cm) BrightView Diagonal Size 15.4 in (39.1 cm) Surface Treatment BrightView Number of Colors Up to 16M Contrast Ratio...
  • Page 24 QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications 250 GB 5400 rpm SATA Drive Weight 0.22 lb (101 g) Hard Drive Capacity 250 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-7 / SATA 2.5 Transfer Rate...
  • Page 25 QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications 120 GB 5400 rpm SATA Drive Weight 0.22 lb (101 g) Hard Drive Capacity 120 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-7 / SATA 2.5 Transfer Rate...
  • Page 26 QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications DVD/CD-RW Combo Access Times Random <110 ms CD (typical) Drive <130 ms DVD (typical) Max Data Transfer Rate 24X CD-ROM Up to 3,600 KB/s 8X DVD Up to 10,800 KB/s 24X CD-R...
  • Page 27 QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications Security HP Fingerprint Sensor Mobile Voltage Operation 3.0V–3.6V Single Supply (optional) Operating Temperature32° – 158°F (0° – 70°C) Current Consumption @ Less than 70 mA peak imaging and scrolling 3.3V Less than 25 mA hardware finger detection...
  • Page 28 QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications Integrated Broadcom Ethernet Features 10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14) NetLink Gigabit Ethernet 100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 21- (10/100/1000 NIC) BCM5787M 1000 Mbit/s operation (1000BASE-T; IEEE 802.3z and 802.3ab; IEEE 802.3 clauses 34-42)
  • Page 29 QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications V.21 Bell 212A Bell 103J Fax Mode Capabilities TIA/EIA-578-B (Class 1) T.30, T.4 (Group 3) V.17 V.29 V.27ter V.21 Channel 2 Command Set V.250 (Partial) TIA-602 Identification: +GMI, +GMM, +GMR Port control: +IPR, +ICF, +IFC, +ILRR...
  • Page 30 QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications Voltage, Operating 3.3v +/- 10% Temperature, Operating –22° to 140° F (–30° to 60° C) (full RF performance) (from TIA/EIA/IS-98-D) –22° to 167° F (–30° to 75° C) (reduced RF performance) Temperature, Non- –40°...

  • Page 31: Power Consumption

    QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications Output Power (for OFDM; 15 dBm power varies by data rate) Power Consumption Transmit: 2.3 Watts (average, with one spatial streams) Receive: 1.9 Watts (average with two receive chains) Idle mode : 30 mW (average)
  • Page 32 QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications Vista. Broadcom 4312G Wireless LAN Standards IEEE 802.11b 802.11b/g WiFi IEEE 802.11g Adapter Interoperability Wi-Fi certified (802.11abg only) Cisco Compatible Extensions Program compliant (802.11abg only) with Microsoft Windows Vista and XP (details at: http://www.hp.com/go/notebooks/WLAN)
  • Page 33 QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications Dimensions 0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm) Operating Voltage 3.3v +/- 10% Temperature Operating 14° to 149° F (–10° to 65° C) Non-operating –40° to 176° F (–40° to 80° C)
  • Page 34 QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications Modulation Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM Security Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES, 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP- MSCHAPv2, LEAP, EAP-FAST.

  • Page 35: Electrical Interface

    QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications Microsoft Windows XP Wireless Network Connection Manager Broadcom Wireless Configuration Utility (required for Cisco Compatible Extensions support) Microsoft Windows Vista Microsoft Windows Vista Wireless Network Connection Manager Broadcom IHV extensions for Windows Vista available to support Cisco Compatible Extensions.
  • Page 36 QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications Power Management Microsoft Windows ACPI, and USB Bus Support Self configurable to optimize power conservation in all operating modes, including Standby, Hold, Park, and Sniff Certifications All necessary regulatory approvals for supported countries, including: FCC (47 CFR) Part 15C, Section 15.247 &...
  • Page 37 HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
