QuickSpecs

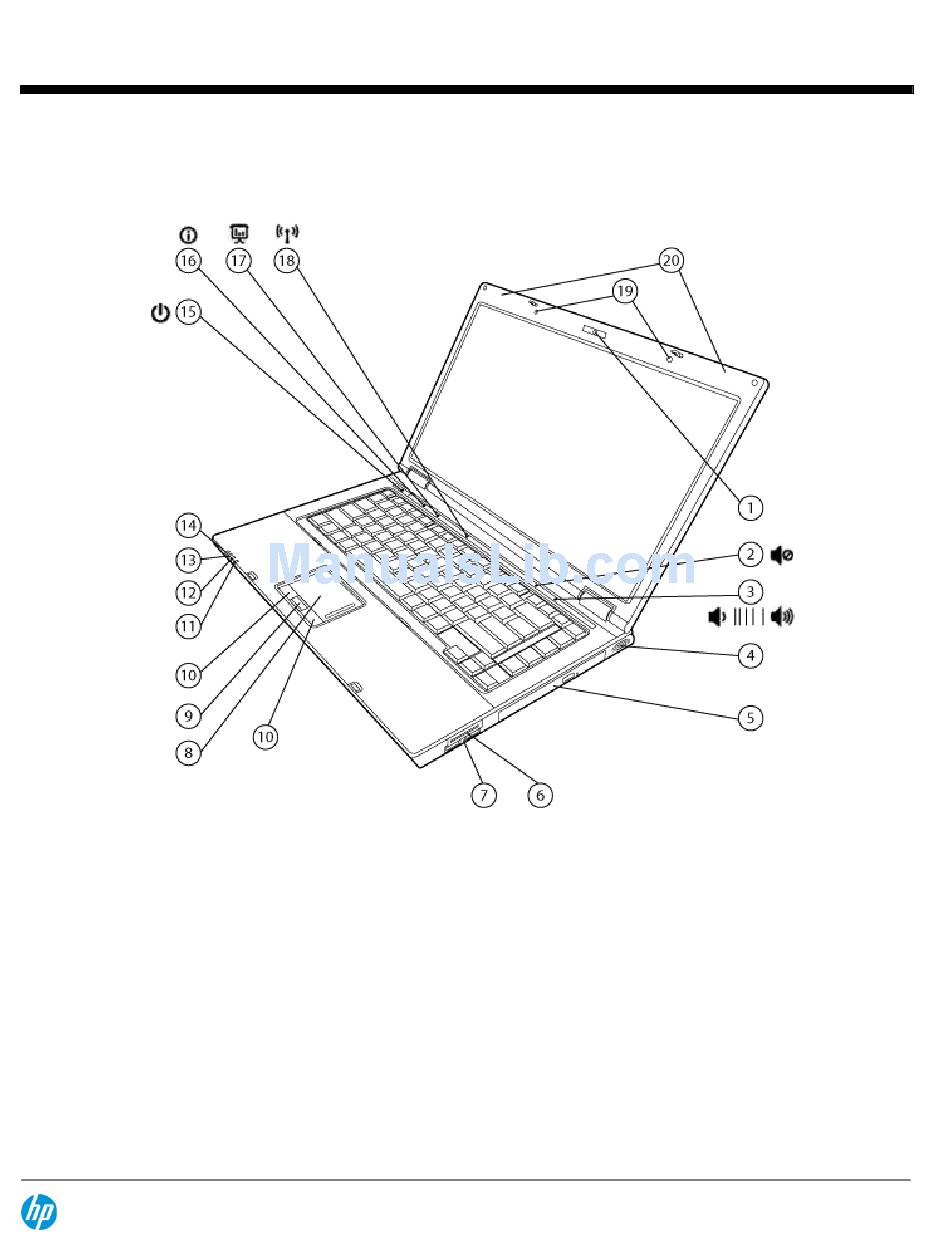

Overview
1.
Optional VGA webcam
2.
Volume mute button with LED indicator
3.
Volume scroll zone with up/down LED indicators
4.
Serial port
5.
Optical drive/Upgrade Bay
6.
Media Card Reader
7.
(2) USB 2.0 ports
8.
Touchpad with scroll zone
9.
Optional HP Fingerprint Sensor
10. Touchpad buttons
DA - 13053 North America — Version 27 — June 17, 2010
HP Compaq 6730b Notebook PC
11. Hard drive activity / HP 3D DriveGuard LED indicator
12. Battery charging LED indicator
13. Power/standby LED indicator
14. Wireless on/off LED indicator
15. Power button with LED indicator
16. HP Info Center/ HP QuickLook 2 button with LED indicator
17. HP Presentation button with LED indicator
18. Wireless on/off button with LED indicator
19. Integrated microphone (dual-microphone array with webcam)
20. WLAN and WWAN antennas (select models)
Page 1

Advertisement

loading

Related Manuals for HP Compaq 6730b

Summary of Contents for HP Compaq 6730b

  • Page 1 14. Wireless on/off LED indicator Optical drive/Upgrade Bay 15. Power button with LED indicator Media Card Reader 16. HP Info Center/ HP QuickLook 2 button with LED indicator (2) USB 2.0 ports 17. HP Presentation button with LED indicator Touchpad with scroll zone 18.
  • Page 2 QuickSpecs HP Compaq 6730b Notebook PC Overview 1. Stereo speakers ExpressCard/54 slot or optional Smart Card Reader 2. Stereo headphone/line out Kensington Lock slot 3. Stereo microphone in 10. RJ-11/modem port 4. Display release latch 11. RJ-45/Ethernet port 5. Power connector 12.
  • Page 3 HP QuickLook 2 for instant access to e-mail, calendar, and contact information Up to 500 GB 5400 rpm or 320 GB 7200 rpm user-removable hard drive with HP 3D DriveGuard protection Enhanced reliability with magnesium alloy support structure and HP DuraFinish Touch-sensitive controls for HP Info Center/HP QuickLook 2, HP Presentation button, wireless on/off, mute, and volume up, DA - 13053 North America —...
  • Page 4 QuickSpecs HP Compaq 6730b Notebook PC Overview volume down Media Card Reader Up to 8 GB of 800 MHz DDR2 SDRAM supported, dual-channel memory support Mobile Intel Graphics Media Accelerator 4500MHD Broadcom NetLink Gigabit Ethernet Controller (10/100/1000 NIC) Touchpad with scroll zone * TPM module disabled where not permitted by law (for example, Russia and China).

  • Page 5: Standard Features

    QuickSpecs HP Compaq 6730b Notebook PC Standard Features Processors Intel Core 2 Duo Processor T9900 (3.06 GHz, 6 MB L2 cache, 1066 MHz FSB)* Intel Core 2 Duo Processor T9600 (2.80 GHz, 6 MB L2 cache, 1066 MHz FSB)* Intel Core 2 Duo Processor T9400 (2.53 GHz, 6 MB L2 cache, 1066 MHz FSB)* Intel Core 2 Duo Processor P8800 (2.66 GHz, 3 MB L2 Cache , 1066 MHz FSB)*...
  • Page 6 Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots. NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
  • Page 7 QuickSpecs HP Compaq 6730b Notebook PC Standard Features Communications Integrated Broadcom NetLink Gigabit Ethernet Controller (10/100/1000 NIC)* 56K V.92 modem** * The term "10/100/1000" or "Gigabit" Ethernet indicates compliance with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required.
  • Page 8 19 mm x 19 mm key pitch (center-to-center spacing), 2.5 mm stroke, and comfort-dished keycaps. Touch-sensitive controls Touch-sensitive controls provide easy access to the following features: HP Info Center, HP QuickLook 2, HP Presentation button, wireless on/off, mute, and volume up, volume down.
  • Page 9 QuickSpecs HP Compaq 6730b Notebook PC Standard Features Storage Hard drives 120/160/250/320/500 GB 5400 rpm SMART SATA II 160/250/320 GB 7200 rpm SMART SATA II NOTE: These hard drives are customer removable and will withstand multiple insertion/removal cycles. Up to 10 GB is reserved for the system recovery software.
  • Page 10 First update included. Subscription required for updates thereafter. HP Recovery Manager Each unit is shipped with HP Recovery Manager. HP Recovery Manager enables fast recovery of the factory preinstalled image if the system becomes corrupted or if important system files are accidentally deleted.
  • Page 11 HP Fast Charge* * HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast Charge does not apply to 12-cell Ultra-Capacity batteries or the HP Long LIfe Battery. DA - 13053 North America — Version 27 — June 17, 2010...
  • Page 12 QuickSpecs HP Compaq 6730b Notebook PC Standard Features Battery Primary battery 6-cell (55 WHr) Li-Ion battery 6-cell (47 WHr) Li-Ion battery Optional HP Extended Life 8-cell (52 WHr) high capacity Li-Ion battery Battery Optional HP Ultra- 12-cell (95 WHr) high capacity Li-Ion battery...
  • Page 13 HP Services offers limited 3-year, 1-year and 90-day warranty options depending on country; 1-year limited warranty on primary battery. On-site service and warranty upgrades are also available. HP Care Pack Services extend service contracts beyond the standard warranties. To choose the right level of service for your HP product, use the HP Care Pack Services Lookup Tool at: http://www.hp.com/go/lookuptool.
  • Page 14 HP Primary SATA 120 GB 7200 rpm Hard Drive AH920AA HP Primary SATA 250 GB 5400 rpm Hard Drive AK072AA HP Upgrade Bay SATA 250 GB 5400 rpm Hard Drive AK868AA HP Upgrade Bay SATA DVD+/-RW SuperMulti DL LightScribe Drive AK869AA...
  • Page 15 HP Executive Leather Case RR316AA HP Deluxe Nylon Backpack RR317AA HP Deluxe Roller Case GD405AA Security HP ExpressCard Smart Card Reader with Java Card AJ451AA HP ProtectTools Java Card - 10 units EL348AA HP/Kensington MicroSaver Security Lock PC766A HP 15.4" Display Privacy Filter...
  • Page 16 NOTE: This chart does not represent all possible memory configurations. Due to the non-industry standard nature of some third-party memory modules, we strongly recommend using only HP- branded memory modules to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Full availability of 4 GB or more of memory requires Windows Vista Business 64-bit or Linux.

  • Page 17: Internal Storage Device

    QuickSpecs HP Compaq 6730b Notebook PC Storage Upgrade Bay Drive Support Quantity Supported Drive Bay DVD+/-RW SuperMulti DL Upgrade Bay LightScribe Drive DVD/CD-RW Combo Drive Upgrade Bay DVD-ROM Drive Upgrade Bay 250 GB 5400 rpm SMART Upgrade Bay SATA II Hard Drive...

  • Page 18: Technical Specifications

    QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications System Unit Dimensions (HxWxD) 1.32 in (at front) x 14.02 in x 10.46 in 33.6 mm (at front) x 356.0 mm x 265.4 mm Weight Starting at 5.93 lb (2.69 kg) NOTE: Height varies depending upon where on the notebook the measurement is made. Weight varies by configuration and components.
  • Page 19 HP Compaq 6730b Notebook PC Technical Specifications UKRSERTCOMPUTER * Configurations of the HP Compaq 6730b that are ENERGY STAR qualified are identified as HP Compaq 6735b ENERGY STAR on HP websites and on www.energystar.gov. ** EPEAT registration varies by country. See www.epeat.net...
  • Page 20 System ON 3 to 5 hours (depending on system power consumption) HP Fast Charge Technology Charges the battery up to 90% within 90 minutes when system is OFF Fuel Gauge When pressed, LEDs light indicating level of charge remaining on battery...
  • Page 21 2.5 hours Standby System ON 3 to 5 hours (depending on system power consumption) HP Fast Charge Technology Charges the battery up to 90% within 90 minutes when system is OFF Displays 15.4-inch WSXGA+ wide- Dimensions (W x H) 13.0 x 8.1 in (33.1 x 20.7 cm)
  • Page 22 QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications 15.4-inch WXGA anti- Active Area (W x H) 13.0 x 8.1 in (33.1 x 20.7 cm) glare Diagonal Size 15.4 in (39.1 cm) Surface Treatment Anti-glare Number of Colors Up to 16M...
  • Page 23 QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications 320 GB 7200 rpm SATA Drive Weight 0.25 lb (115 g) Hard Drive Capacity 320 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
  • Page 24 QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications 160 GB 7200 rpm SATA Drive Weight 0.25 lb (115 g) Hard Drive Capacity 160 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
  • Page 25 QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications 320 GB 5400 rpm SATA Drive Weight 0.22 lb (101 g) Hard Drive Capacity 320 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
  • Page 26 QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications 160 GB 5400 rpm SATA Drive Weight 0.22 lb (101 g) Hard Drive Capacity 160 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
  • Page 27 QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications DVD-ROM Drive Access Times Random <116 ms CD (typical) <125 ms DVD (typical) Max Data Transfer Rate 24X CD-ROM Up to 3,600 KB/s 8X-DVD Up to 10,800 KB/s Transfer Mode UDMA Mode 5...
  • Page 28 QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications DVD+/-RW SuperMulti DL Access Times Random <175 ms CD (typical) LightScribe Drive <230 ms DVD (typical) Max Data Transfer Rate 24X CD-ROM Up to 3,600 KB/s 8X DVD Up to 10,800 KB/s...
  • Page 29 QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications Hardware Implementation ADI1981HD High Definition CODEC Touch-Sensitive Volume Volume up, volume down, and mute Controls Full Duplex Microphone In Stereo Headphone/Line Out Stereo Integrated Microphone Yes, dual-microphone array when equipped with optional webcam...
  • Page 30 QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications Communications V.92 56K Data/Fax Modem Form Factor MDC 1.5 Daughtercard Power Management APM Revision 1.2, ACPI Support Approvals/ UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC Part 15 Class B, Canadian ICES-003 Class B, C.I.S.P.R.22, Australian ACA, CE Mark, Other...

  • Page 31: Configuration Utilities

    QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications HP un2400 Technology/Operating GSM/GPRS/EDGE: 850MHz(Cell), 900MHz(EGSM), 1800MHz(DCS), 1900MHz (PCS) EV-DO/HSPA Mobile Bands UMTS/WCDMA with receive diversity: 2100MHz (UTRA FDD Band I), 1900MHz Broadband Module (UTRA FDD Band II), 850MHz (UTRA FDD Band V)
  • Page 32 QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications * The specifications for 802.11n draft 2.0 are draft specifications and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11n WLAN devices.

  • Page 33: Configuration Utility

    QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications 802.11 b – Typical 1200 feet – Outdoor Open Area (@1 Mbps) 300 feet – Indoor, Office environment 802.11 g – Typical 1200 feet – Outdoor Open Area (@1 Mbps) 300 feet – Indoor, Office environment...
  • Page 34 QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications Data Rates 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps Modulation Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM Security Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES, 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2,...
  • Page 35 QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications Microsoft Windows XP Wireless Network Connection Manager Broadcom Wireless Configuration Utility (required for Cisco Compatible Extensions support) Microsoft Windows Vista Microsoft Windows Vista Wireless Network Connection Manager Broadcom IHV extensions for Windows Vista available to support Cisco Compatible Extensions.
  • Page 36 QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications Sub-channels Multinational support with frequency bands and channels compliant to local regulations. Media Access Protocol CSMA/CA (Collision Avoidance) with ACK Network Architecture Ad-hoc (Peer to Peer) Infrastructure (Access Point Required) Models Roaming IEEE 802.11 compliant roaming between access points...
  • Page 37 QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications Compatible Extensions. LED Activity LED Off – Radio OFF; Solid LED On – Radio ON Check latest software/driver release for updates on supported security features. Maximum output power may vary by country according to local regulations.
  • Page 38 QuickSpecs HP Compaq 6730b Notebook PC Technical Specifications Temperature Operating –4° to 158° F (–20° to 70° C) Non-operating –40° to 176° F (–40° to 80° C) Humidity Operating 10% to 90% Non-operating 5% to 95% Altitude Operating 15,000 ft (4,572 m)

  • Page 39: Additional Information

    This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive – 2002/95/EC. information: This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive - 2002/96/EC. This product is in compliance with California Proposition 65 (State of California;...
  • Page 40 Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards. Material Usage This product does not contain any of the following substances in excess of regulatory limits (for reference of these limits please refer to the HP General Specification of the Environment (http://www.hp.com/hpinfo/globalcitizenship/environment/ supplychain/gen_specifications.html):...
