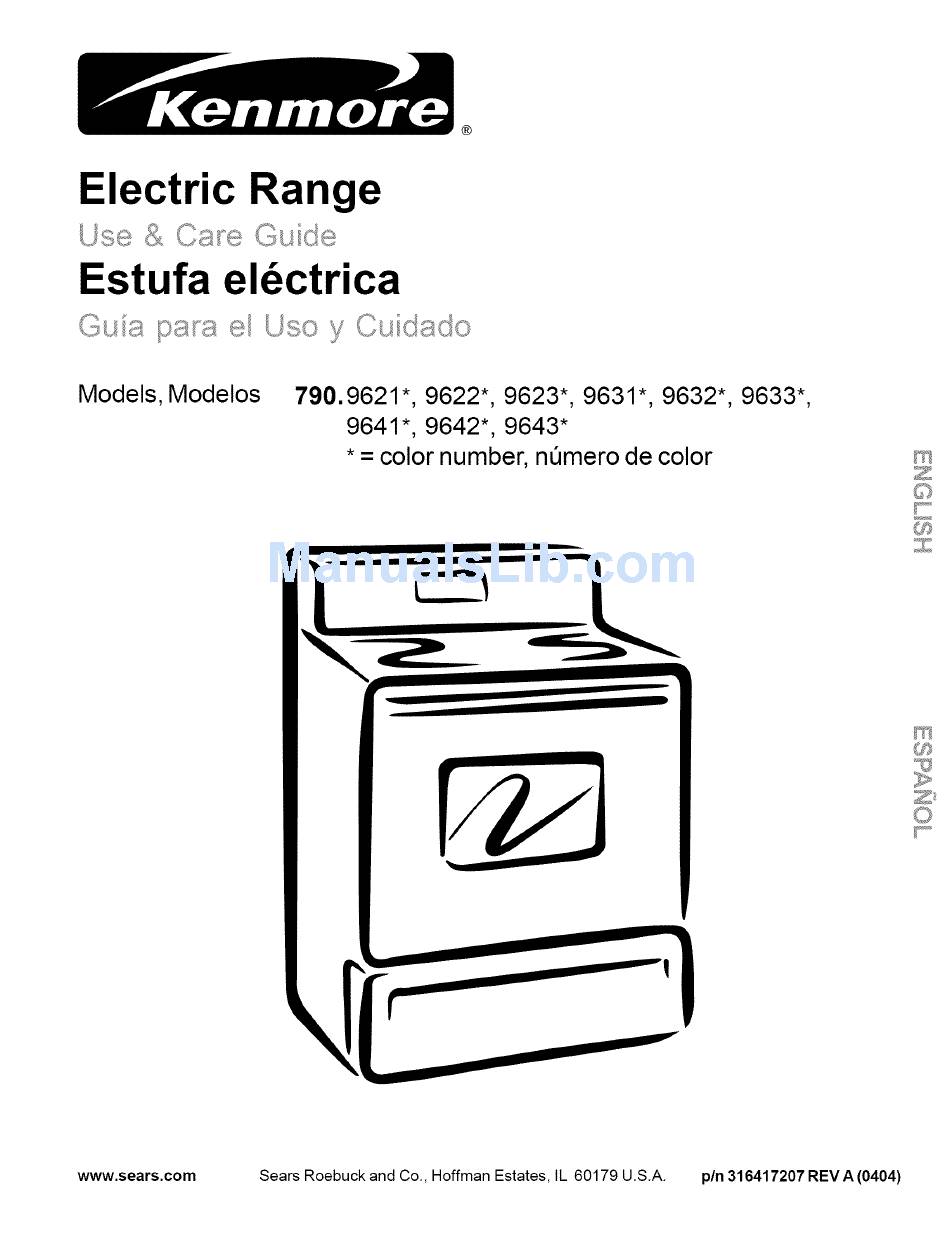

- Page 1 Electric Range Estufa el_ctrica Models, Modelos 790.9621",9622",9623",9631",9632",9633", www.sears.com Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. ® 9641",9642",9643" *= colornumber, n0merodecolor pin 316417207 REV A (0404)
-
Page 2: Table Of Contents
Table of Contents Free-Standing Range Warranty ... Product Record ... IMPORTANT SAFETY INSTRUCTIONS Protection Agreements ... Range Features ... Before Setting Oven Controls ... Setting Surface Controls ... Surface Cooking ... Oven Control Functions ... Setting Oven Controls ... Setting Warmer Drawer Controls ... -
Page 3: Important Safety Instructions
Ask your dealer to recommend a qualified technician and an authorized repair service. Know how to disconnect the power to the range at the circuit breaker or fuse box in case of an emergency. • User servicing--Do... -
Page 4: Important Safety Instructions
INSTRUCTIONS FOR USINGYOUR When Opening Oven Door or Warmer to the side of the range when opening Let hot air or steam escape before in the oven. Ducts Unobstructed. The oven vent is located element... -
Page 5: Protection Agreements
Protection Agreements Congratulations on making a smart purchase. Your new Kenmore ® product is designed and manufactured for years of dependable operation. But like all products, it may require preventive maintenance or repair from time to time. That's when having a Master Protection Agreement can save you money and aggravation. -
Page 6: Range Features
25. 9-12" Dual Radiant Element (some models). 26. Warm & Ready Zone Radiant Element (some models). 27. Broil Pan. 28. Broil Pan Insert. 29. Leveling Legs and Anti-tip Bracket (included). NOTE: The features of your range may vary according to model type & color. Include:... -
Page 7: Before Setting Oven Controls
Turkey, roast or ham Bake Element- Fig. 2 Types of Oven Racks Your range may be equipped with one or more of the oven rack types shown; Flat Rack, Handle Rack and Offset Rack. To maximize cooking space the Offset rack can be used in the lowest rack position to roast large cuts of meat and poultry. -
Page 8: Before Setting Oven Controls
ON and Hot Surface Indicator Your range is equipped with two different types of radiant surface control indicator lights that will glow on your range-- the ELEMENT ON indicator light and the Hot Surface indicator lights (See illustration at left). -
Page 9: Setting Surface Controls
Do not place plastic items such as salt and pepper shakers, spoon holders or plastic wrappings on top of the range when it is in use. These items could melt or ignite. Potholders, towels or wooden spoons could catch fire if placed too close to the surface elements. -
Page 10: Setting Surface Controls
Setting Surface Controls (cont'd) Single setting Dual setting Dual Radiant heating areas on ceramic smooth top (shown in black) Fig. 1 WARMER ZONE Fig. 2 Warmer Zone Recommended Food Settings Table Food Item Heating Level Breads/Pastries Casseroles Dinner Plates with Food Eggs Gravies... -
Page 11: Surface Cooking
Surface Cooking To Set the Cooktop Lockout The _0 pad is used to activate the Cooktop Lockout feature which will lock all surface elements from being accidentally turned ON. This feature will only lock the cooktop. To turn the Cooktop Lockout Feature ON: 1. -
Page 12: Oven Control Functions
Oven Control Functions READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use ofyour oven, become familiar with the various pad functions of the oven as described below. CLOCK SET COOK TIME PAD-- Used PAD-- to set the enter the length of time of day. -
Page 13: Setting Oven Controls
Note: The time of day must first be set in order to operate the oven_ To Set the Clock When the range is first plugged in, or when the power supply to the range has been interrupted, the display will flash "12:00". - Page 14 Setting Oven Controls (cont'd) To Set or Change the Temperature The oven can be programmed to bake at any temperature from 170°F to 550°F (77°C to 287°C). To Set the Controls for Baking: Press B,ke. " "appears in the display. Within 5 seconds, press the /_ the temperature can then be adjusted in 5°F increments (1°C if the control is set to display Celsius).
- Page 15 Setting Oven Controls (cont'd) To Set the Timed Bake and Delay Start Features The @ COOK TIME and @ DELAY START pads operate the features that will turn the oven ON and OFF at the times you select in advance. The oven can be programmed to start immediately and shut off automatically begin baking at a later time with a delayed start time (Delay Start).
- Page 16 Setting Oven Controls (cont'd) To Set for Broiling: Arrange the oven rack while oven is still cool. Position the rack as suggested in the Broil Rack Position Press B,o, ,,__ "will appear in display. Press and hold the A or V the display.
-
Page 17: Setting Oven Controls
Setting Oven Controls (cont'd) Setting the Warm & Hold Feature The ... ,o_ pad turns ON the Serve Warm & Hold feature and will maintain an oven temperature of 170 ° F. The Warm & Hold feature will keep oven baked foods warm for serving up to 3 hours after cooking has finished. After 3 hours the Warm & Hold feature will shut the oven OFF automatically. -
Page 18: Setting Warmer Drawer Controls
Pull the bearing glides to the front of the chassis glide (see figure 2). Align the glide on each side of the drawer with the glide slots on the range. Push the drawer into the range until levers "click" (approximately 2"). Pull the drawer open again to seat bearing glides into position. -
Page 19: Self-Cleaning
Self-Cleaning During the Self-Cleaning cycle, the outside of the range can become very hot to the touch. DO NOT leave small children unattended near the appliance. The health of some birds is extremely sensitive to the fumes given off during the Self-Cleaning cycle of any range. -
Page 20: Select Self Cleaning
Self-Cleaning (cont'd) Starting the Select Self-Clean For satisfactory results, use a 2 hour Self-Clean cycle for light soils and a 3 hour cycle for average or a 4 hour cycle for heavy soils. NOTE: The kitchen area should be well ventilated using an open window, ventitlation fan or exhaust hood during the 1st Self-Clean cycle. -
Page 21: General Care & Cleaning
General Care & Cleaning Cleaning Table Surfaces Aluminum (Trim Pieces) & Vinyl Painted and Plastic Control Knobs, Body Parts, and Decorative Trim Stainless Steel, Chrome Control Panel, Decorative Trim Porcelain Enamel Broiler Pan and Insert, Door Liner, Body Parts, Warmer Drawer (some models) Oven Racks Oven door... - Page 22 General Care & Cleaning (cont'd) Cooktop Cleaning and Maintenance consistent and proper Prior to using your cooktop for the first time, apply the recommended cooktop cleaning creme (visit www.sears.com replacment cleaner) to the ceramic surface. Buff with a non-abrasive cloth or pad. This will make cleaning easier when soiled from cooking.
- Page 23 General Care & Cleaning Cleaning Recommendations for Ceramic Glass Cooktops Door Hinge locations with oven door fully open Fig. 1 Fig. 2 Oven Door Fig. 3 Fig. 4 Do not use the following on the ceramic glass cooktop: • Do not use abrasive cleaners and scouring pads, such as metal and some nylon pads.
-
Page 24: Adjusting Your Oven Temperature
Replace glass shield over bulb and snap wire holder into place. Turn power back on again at the main source (or plug the range back in). The clock will then need to be reset. To reset, see Setting the Clock and Minute Timer in this Use &... -
Page 25: Before You Call
Contact builder or installer to make space so range can be lifted over carpet. Press STOP/CLEAR to clear the display recurs, record fault number. Press STOP/ for assistance (See back cover). - Page 26 Before You Call Solutions to Common Problems OCCURRENCE Oven light does not work. Oven smokes excessively during broiling. Poor baking results. Self-Cleaning cycle does not work. Soil not completely removed after Self- Cleaning cycle. Flames inside oven or smoking from Scratches or abrasions on cooktop...
- Page 27 Notes...
- Page 28 For repair-in your home-of lawn and garden equipment, no matter who made it, no matter who sold it! For the replacement owner's manuals that you need to do-it-yourself. For Sears professional and items like garage door openers and water heaters. 1-800-4-MY-HOME Call anytime, day or night (U.S.A.
