Summary of Contents for Kenmore 790.9660 Series

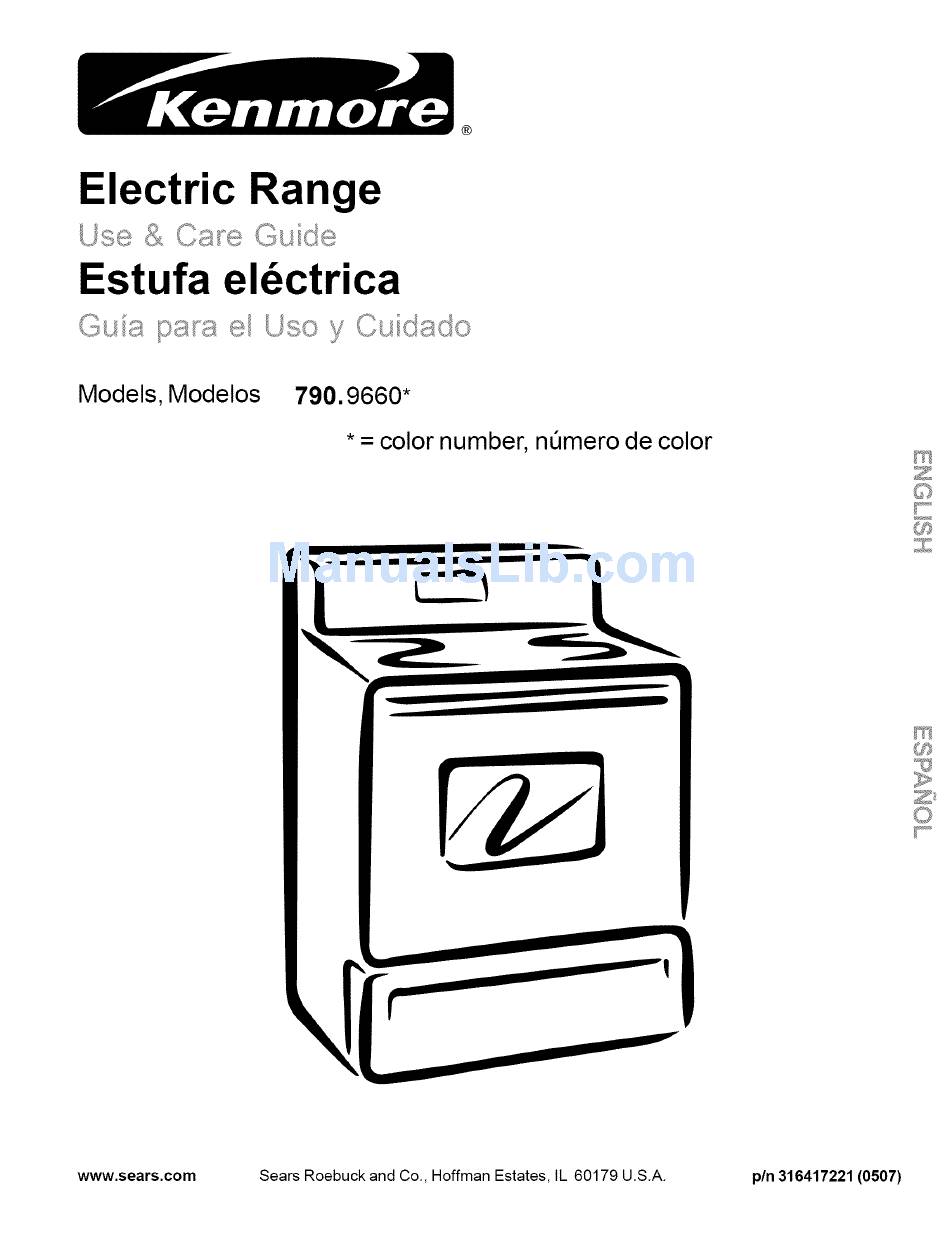

  • Page 1 ® Electric Range Estufa el_ctrica Models, Modelos 790.9660* * = color number, n0mero de color www.sears.com Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. pin 316417221 (0507)
  • Page 2: Table Of Contents

    Table of Contents Product Record Free-Standing Range Warranty ........... In this space below, record the date of purchase, model and Product Record ..............serial number of your product. You will find the model and IMPORTANT SAFETY INSTRUCTIONS ......3-4 serial number printed on an identification plate. This serial Protection Agreements ............
  • Page 3: Important Safety Instructions

    Important Safety Instructions Read all instructions before using this appliance. Save these instructions for future reference. This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given. This symbol wi!! help alert you to situations that may cause serious bodily harm, death or property damage. This symbol Will help alert you to situati0ns that may cause bodily injury or pr0perty damagel •...
  • Page 4: Important Safety Instructions

    Important Safety Instructions IMPORTANT INSTRUCTIONS FOR USINGYOUR IMPORTANT INSTRUCTIONS FOR USINGYOUR OVEN COOKTOP • Use Care When Opening Oven Door or Warmer Drawer • Know which knob controls each surface heating unit. Place a equipped)--Stand to the side of the range when opening the door pan of food on the unit before...
  • Page 5: Protection Agreements

    Maintenance Agreements Congratulations on making a smart purchase. Your Your purchase has added value because new Kenmore ® product is designed and manufactured can depend on Sears HomeOentral®for service. for years of dependable operation. But like all products, With over 2400 Service Technicians and more than a...
  • Page 6: Range Features

    Range Features ........i ii_iiiiiiiiiiiii _i iiiii !_i!ii!!ii!!ii!!ii!!ii!!ii!!_!!!!_i!ii!!!!!ii!!ii!!!!!!iiiii iii: i i i iiiiiiiii iiiiiiii ..........:::i ¸ "1 ..® ® ® ..® ® SIMr_R ¢ Your Electric Range Features Include: Electronic Oven Control with Kitchen Timer. Simmer Select Element Control (some models) or Single Radiant Element Control (some models) or Single Radiant Power Boil Control (some models).
  • Page 7: Before Setting Oven Controls

    Before Setting Oven Controls OVEN VENT Oven Vent Location The oven vent is located under the left side of the control panel (See Fig. 1). When the oven is on, warm air passes through the vent. This venting is necessary for proper air circulation in the oven and good baking results.
  • Page 8: Before Setting Oven Controls

    Before Setting Oven Controls (cont'd) About the Ceramic Glass Cooktop The ceramic cooktop has radiant surface elements located below the surface of the glass. The design of the ceramic cooktop outlines the area of the surface element underneath. Be sure to match the pan size with the diameter of the element outline on the cooktop.
  • Page 9: Setting Surface Controls

    Setting Surface Controls To Operate Single Radiant Surface Elements (all models) To Operate a Single Radiant Element: Place correctly sized cookware on the radiant surface element. Push in and turn the surface control knob in either direction to the desired setting (See ELEMENT RIGHT REAR...
  • Page 10: Surface Cooking

    Setting Surface Controls (cont'd) To Operate Dual Radiant Surface Element (some models) The right front control knob offers fiexibilty for different sized cookware with the Dual Radiant surface element. The inner element alone can be used for smaller or both the inner and outer in combination for larger cookware. To operate the Dual Radiant surface element push in the control knob and turn counterclockwise to operate the small inner coil or turn clockwise to operate...
  • Page 11 Surface Cooking (cont'd) Using proper cookware *CORRECT INCORRECT The size and type of cookware used will influence the setting needed for best cooking results. Cookware should have flat bottoms that make good contact with the entire surface heating element (See Fig. 2). Check for flatness by rotating a ruler across •...
  • Page 12: Oven Control Functions

    Surface Cooking (cont'd) Using Power Element (some models) The "Power Element" feature uses a higher wattage surface radiant element which can bring food items to boil much quicker. The left front radiant element equipped feature, place with the "Power Element" the cookware to boil on the willbeclearlymarkedifthisfeatureisavailableonyourrange(SeeFig.
  • Page 13: Setting Oven Controls

    Setting Oven Controls Note: To turn the time of day display OFF or ON in the To Set the Clock When the range is first plugged in, or when the power display press and hold for 15 seconds (the control will supply to the range has been interrupted, the display will beep once) and then release.
  • Page 14 Setting Oven Controls (cont'd) Oven To Set Control for Oven Lockout Lockout Within 5 seconds, press the A or V. The display The control can be programmed to lock the oven door and will show "350°F (177°C)." By holding the A or V, lockout the oven control pads.
  • Page 15: Setting Oven Controls

    Setting Oven Controls (cont'd) To Set for Broiling: Arrange the oven rack while oven is still cool. Position the rack as suggested in the Broil Rack Position Table below. Press "°" " ---- "will appear in display. Fig. 1 Press and hold the A or V until the desired broil setting level appears in the display.
  • Page 16: Select Self-Cleaning

    Self-Cleaning • Remove any excessive spillovers in the oven cavity During the Self-Cleaning cycle, the outside of before starting the Self-Cleaning cycle. To clean, use the range can become very hot to the touch. DO NOT leave hot, soapy water and a cloth. Large spillovers can small children unattended near the appliance.
  • Page 17 Self-Cleaning (cont'd) appear in the display. Starting the Select Self-Clean Cycle or a NOTE: When the oven is cool, wipe away any residue or Delayed Start Self-Clean Cycle powdered ash with a damp cloth or paper towel. For satisfactory results, use a 2 hour Self-Clean cycle for light soils and a 3 hour cycle for average or a 4 hour cycle Stopping or Interrupting...
  • Page 18: General Care & Cleaning

    General Care & Cleaning Cleaning Table Surfaces How to Clean For general cleaning, use a soft cloth, clean with mild dish detergent & water or a 50/50 solution Glass, Painted of vinegar & water. Follow by rinsing the area with clean water; dry & polish with a soft cloth. Plastic Body Parts &...
  • Page 19 General Care & Cleaning (cont'd) Ceramic Glass Cooktop Cleaning & Maintenance Consistent and proper cleaning is essential to maintaining your Ceramic Glass cooktop, Prior to using your cooktop for the first time, apply the recommended cooktop cleaning creme (visit www.sears.com replacment cleaner) to the ceramic surface.
  • Page 20: Adjusting Your Oven Temperature

    General Care & Cleaning (cont'd) Removing & Replacing the Lift-Off Oven Door Door Hinge The door is heavy. For safe, temporary storage, lay the door flat with the inside of the door facing down. /°th t io°nS door To Remove Oven Door: fully open Open oven door completely (horizontal with floor- See Fig.
  • Page 21: Before You Call

    Before You Call Solutions to Common Problems Before call for service, review the following list. It may save you time & expense. The list includes common occurrences (shown in bold) that are not the result of defective workmanship or materials in this appliance.
  • Page 22 Get it fixed, Your Home For repair- in your home-of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it! For the replacement parts, accessories owner's manuals that you need to do-it-yourself. For Sears professional installation of home appliances...
