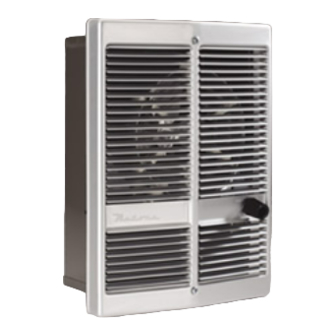

NuTone 9376N Installation Instructions

Wall Heater
MODEL: 9376N
Automatic Thermostat-Controlled – Fan forced.
1250 WATTS - 120vAC, 60Hz

DIMENSIONS:

1
HOUSING - 8 ⁄ " x 12
2
1 1
GRILLE - 10 ⁄ " x 14
8

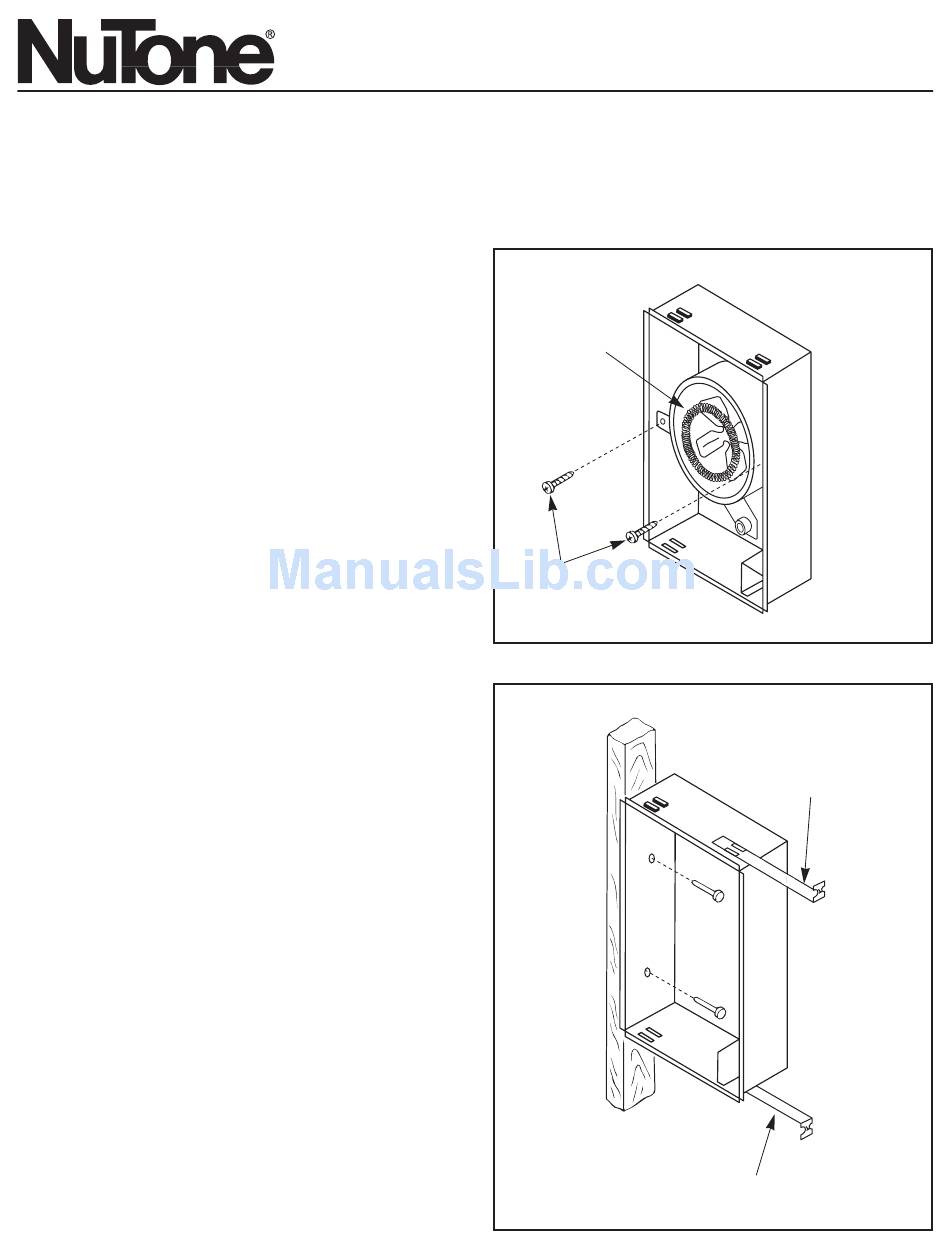

1. Refer to Figure 1. Remove heating element assembly
from housing by unscrewing from brackets on either
side of element. Keep screws.
Mount housing at least 6" above finished floor (to
provide clearance for grille).
2. Refer to Figure 2. Insert provided mounting brackets
in housing. Extend brackets so that unit will fit between
wall studs. Fasten housing to stud and brackets to
opposite stud.
NOTE: To give clearance for switch operation,
make certain housing flange is flush to finished
wall.
3. Nail or screw housing to wall stud through holes in side
of housing. If necessary, make cutout - 8
along side of wall stud.
IMPORTANT: Do not mount over tub or in shower
stall enclosure.
4. Run 120vAC house wiring with ground to heater
location and secure to junction box with box connector
(not provided).
5. When finished wall is up, replace heating element
assembly in housing; fasten screws through brackets
on either side of element.
6. Insert heater wires into junction box. Connect house
wiring to heater wiring as follows: BLACK to BLACK;
WHITE to WHITE; GROUND to GREEN GROUND
SCREW in box.
CAUTION: Be sure all wiring conforms to local codes
and unit is properly grounded.
(Please see other side.)
1
⁄ " x 4"
2
⁄ "
8
1
⁄ " x 2
2
HEATING
ELEMENT

ASSEMBLY

SCREWS
1
⁄ " -
2
INSTALLATION INSTRUCTIONS
READ & SAVE THESE INSTRUCTIONS!
BRACKET
FIGURE 1
BRACKET
FIGURE 2
