LXV 125

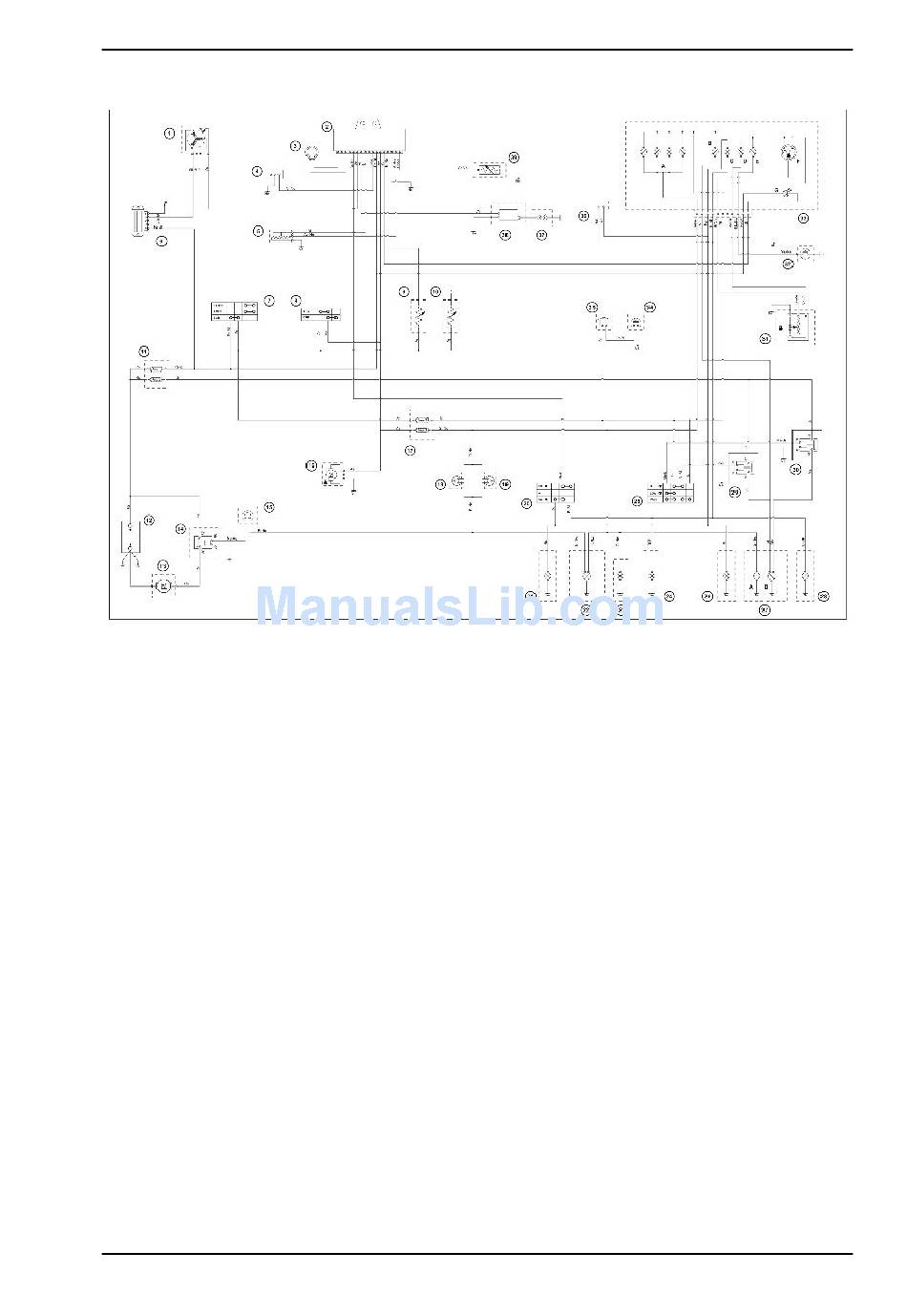

Electrical system
KEY:
1. Magneto flywheel
2. Electronic ignition device
3. Immobilizer aerial
4. Diagnostics socket
5. TPS potentiometer
6. Voltage regulator
7. Key switch
8 Engine stop switch
9. Automatic starter
10. Carburettor heater
11. Fuse-box
12. Battery
13. Starter motor
14. Starter remote control
15. Starter button
16. Fuel pump
17. Fuse-box
18. STOP button on front brake
19. STOP button on rear brake
ELE SYS - 45
