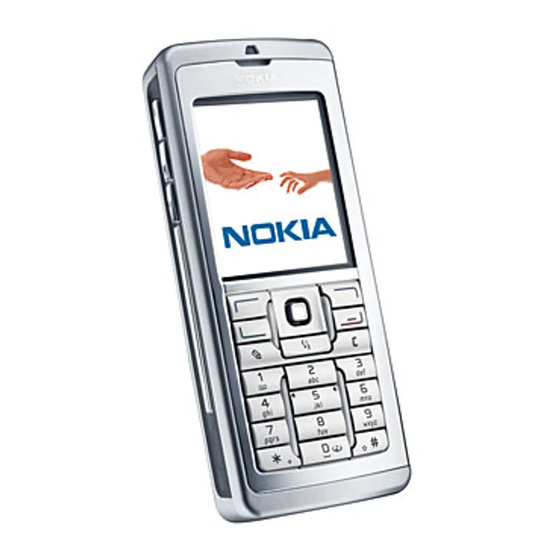

Nokia E60 Service Manual

Hide thumbs Also See for E60:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Network Manual
CMO Operations & Logistics
WW Competence Transfer
Multimedia Creation & Support
Service Manual E60 RM-49
Page
CONFIDENTIAL
SERVICE MANUAL
Level &2
RM-49

(25)
Transceiver characteristics:
Dual Mode:
- GSM: Tri band phone for GSM 900/1800/1900MHz
- WCDMA: 2100MHz
Display: Active matrix color display with 16 Million colors,
resolution 352 x 416 pixel
Bluetooth
Vibra Alert
CARD TYPE: MMC
Connector: Pop-Port™ connector
Transceiver with BL-5c 970mAh Li-Ion battery pack
Standby time (estimated)
GSM
WCDMA
GSM/WCDMA and WLAN
Talk time (estimated)
GSM
WCDMA
VoIP
*In GSM/WCDMA network; WLAN network supporting 11-54 Mbx; 1-10
users Operation times may vary depending on radio access technology,
network and usage.
Environmental characteristics:
•
Lead-free soldered
Copyright © 2006 NOKIA Corporation. All rights reserved.
Approved 2.0
29.03.2006
Up to
6.4 - 8.3 days
6.3 - 8.4 days
4.5 - 5.4 days*
Up to
3.2 - 6.4 days
2.2 - 3.4 days
3.8 - 6 days*
MGR

Advertisement

Table of Contents
loading

Related Manuals for Nokia E60

Summary of Contents for Nokia E60

  • Page 1 3.8 - 6 days* *In GSM/WCDMA network; WLAN network supporting 11-54 Mbx; 1-10 users Operation times may vary depending on radio access technology, network and usage. Environmental characteristics: • Lead-free soldered Service Manual E60 RM-49 Copyright © 2006 NOKIA Corporation. All rights reserved.

  • Page 2: Table Of Contents

    BLUETOOTH & INFRARED TEST BATTERY TEST CHANGE HISTORY Status Version No. Date Comments Draft 25.11.2005 Initial draft Approved 28.03.2006 Approval Approved 29.03.2006 POS Flash Concept and Service Tools chapter updated Service Manual E60 RM-49 Copyright © 2006 NOKIA Corporation. All rights reserved.

  • Page 3: Introduction

    INTRODUCTION The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to carry out service to NOKIA products. This Service Manual is to be used only by authorized NOKIA service suppliers, and the content of it is confidential.

  • Page 4: General Repair Information

    There are several documents available on NOL, which have to be followed: • • First, take care for the latest content pages of Service Bulletins, which are always available for each folder on NOKIA Online. This is also important to recognize, if existing documents have become invalid. •...

  • Page 5: Pathfinder For Workshop Staff

    NOKIA Online Care Services Training Phone Models Level 1&2 e-learning courses offer a quick overview of the NOKIA phone and support for how to repair and use the phone: Overview & Guides Disassembly & Assembly Troubleshooting Basic information about the phone,...

  • Page 6: Exploded View And Component Disposal

    EXPLODED VIEW AND COMPONENT DISPOSAL Recommendation for the ecologically friendly disposal of components. Colorized components show the different catego- ries. See corresponding ITEM/CIRCUIT REF in the Spare Parts Service Bulletins on NOL. Service Manual E60 RM-49 Copyright © 2006 NOKIA Corporation. All rights reserved.

  • Page 7: Spare Parts Overview

    Page (25) Approved 2.0 CMO Operations & Logistics WW Competence Transfer 29.03.2006 Multimedia Creation & Support CONFIDENTIAL SPARE PARTS OVERVIEW Service Manual E60 RM-49 Copyright © 2006 NOKIA Corporation. All rights reserved.

  • Page 8: Spare Parts List

    (spare parts, SWAP units and service tools) from NOL! This will ensure, that you are using up-to-date order codes only. Therefore Service Bulletins have to be checked from NOL on daily basis. Service Manual E60 RM-49 Copyright © 2006 NOKIA Corporation. All rights reserved.

  • Page 9: Service Tools

    FM radio or music player. RJ-70 Soldering Jig Lead-free Solder Wire Mandatory for lead-free products (Level 2 only). Service Manual E60 RM-49 Copyright © 2006 NOKIA Corporation. All rights reserved.

  • Page 10: Approved 2.0

    Wetec tweezers 13 SA-SMD ESD • Wetec tweezers PSF SA-ESD • Wetec ESD brush E1211 • Kaiser Fototechnik airbrush 6315 • Wetec dental tool DEM83266/0 • Components Scissors 323-5732 Service Manual E60 RM-49 Copyright © 2006 NOKIA Corporation. All rights reserved.

  • Page 11: Sw-Update

    To use FLS-5S Flash Dongle you have to follow the user guide inside the sales package. Please check always for the latest version of flash software, which is available on NOKIA Online. Service Manual E60 RM-49 Copyright © 2006 NOKIA Corporation. All rights reserved.

  • Page 12: Disassembly Instruction 2

    6.) Remove the Keymat T9. 5.) Protect the LCD Shield with a plastic film. 8.) Unscrew the 6 Torx Plus size 6 screws in the shown 7.) Remove the Joystick Button. order. Service Manual E60 RM-49 Copyright © 2006 NOKIA Corporation. All rights reserved.

  • Page 13: Approved 2.0

    13.) Separate the parts. 14.) Flip the LCD as shown. 16.) Always use a new shield when reassembling. 15.) Gently remove the LCD Connector Shield with the SRT-6. Service Manual E60 RM-49 Copyright © 2006 NOKIA Corporation. All rights reserved.

  • Page 14: Approved 2.0

    21.) Unlock the clip of the Antenna Module Assy in shown 22.) Use a screwdriver to unlock the Earpiece Cover. direction. 23.) Unlock both clips as shown to release the 24.) Remove the Earpiece Contact PWB. Earpiece Cover. Service Manual E60 RM-49 Copyright © 2006 NOKIA Corporation. All rights reserved.

  • Page 15: Approved 2.0

    28.) Remove the DC Jack with the DC Plug. 29.) Ease out the Microphone with a slotted screwdriver. 30.) Remove it with tweezers. Always use a new microphone when reassemble. Service Manual E60 RM-49 Copyright © 2006 NOKIA Corporation. All rights reserved.

  • Page 16: Assembly Instruction 6

    6.) Place the Earpiece Contact PWB. Earpiece Adhesive when replacing the Earpiece. 7.) Mind the correct position before placing the 8.) Fix the Earpiece guide at the Antenna Module Assy. Earpiece Cover. Service Manual E60 RM-49 Copyright © 2006 NOKIA Corporation. All rights reserved.

  • Page 17: Approved 2.0

    14.) Note the correct position before continuing. 13.) Flip the LCD and place it into its housing. 16.) Check the LCD and Display Shield before placing it to 15.) Assemble the parts. the assembly. Service Manual E60 RM-49 Copyright © 2006 NOKIA Corporation. All rights reserved.

  • Page 18: Approved 2.0

    (1), then tighten them slightly (2). 21.) Place the Joystick Button. 22.) Place the T9 Keymat. 23.) Remove the plastic film. 24.) Glue the Grounding Foam onto the Display Shield. Service Manual E60 RM-49 Copyright © 2006 NOKIA Corporation. All rights reserved.

  • Page 19: Approved 2.0

    26.) Click all snaps into their places. 27.) Protect the window with a plastic film. 28.) Glue the MMC READER LABEL onto the MMC reader. 29.) At least place the BATTERY COVER. Service Manual E60 RM-49 Copyright © 2006 NOKIA Corporation. All rights reserved.

  • Page 20: Legend For Quick Trouble Shooter

    Page (25) Approved 2.0 CMO Operations & Logistics WW Competence Transfer 29.03.2006 Multimedia Creation & Support CONFIDENTIAL LEGEND FOR QUICK TROUBLE SHOOTER Service Manual E60 RM-49 Copyright © 2006 NOKIA Corporation. All rights reserved.

  • Page 21: Quick Trouble Shooter Part

    Page (25) Approved 2.0 CMO Operations & Logistics WW Competence Transfer 29.03.2006 Multimedia Creation & Support CONFIDENTIAL QUICK TROUBLE SHOOTER PART  Service Manual E60 RM-49 Copyright © 2006 NOKIA Corporation. All rights reserved.

  • Page 22: Quick Trouble Shooter Part 3

    Page (25) Approved 2.0 CMO Operations & Logistics WW Competence Transfer 29.03.2006 Multimedia Creation & Support CONFIDENTIAL QUICK TROUBLE SHOOTER PART 2 Service Manual E60 RM-49 Copyright © 2006 NOKIA Corporation. All rights reserved.

  • Page 23: Approved 2.0

    Page (25) Approved 2.0 CMO Operations & Logistics WW Competence Transfer 29.03.2006 Multimedia Creation & Support CONFIDENTIAL QUICK TROUBLE SHOOTER PART 3 Service Manual E60 RM-49 Copyright © 2006 NOKIA Corporation. All rights reserved.

  • Page 24: Bluetooth & Infrared Test

    Test was successful, if you get the message “Business card received” on the Reference unit. • Press red End key of the Test unit to reach the Home Menu Note: If the Bluetooth is activated, switch it off! Service Manual E60 RM-49 Copyright © 2006 NOKIA Corporation. All rights reserved.

  • Page 25: Battery Test

    WW Competence Transfer 29.03.2006 Multimedia Creation & Support CONFIDENTIAL BATTERY TEST A battery tester lets you test the capacity of NOKIA batteries. Please refer to the actual information on NOKIA Online. http://www.astratec.co.uk/ http://www.cadex.com/ Service Manual E60 RM-49 Copyright © 2006 NOKIA Corporation. All rights reserved.
