Kenmore 790. 3017 Use And Care Manual

Gas built-in oven.
Hide thumbs
Most useful pages: More

Advertisement

®

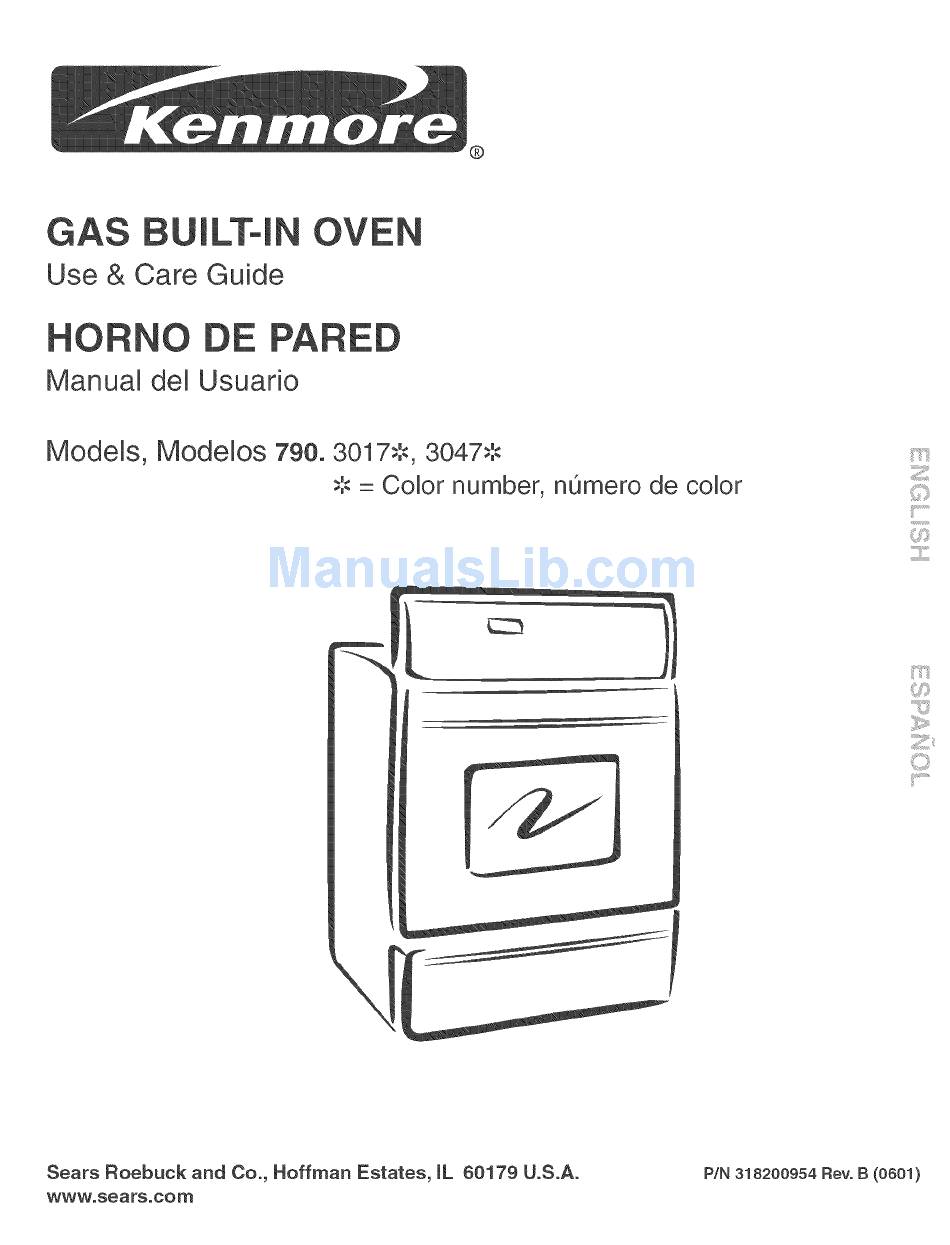

G
Use & Care Guide
Manual del Usuario
Models, Modelos
790. 3017,',.', 3047,b"
.,. = Color number, numero de color
Sears Roebuck
and Co., Hoffman
Estates,
mL 60179 U.S.A.
www.sears.com
P/N 318200954 Rev. B (0801)

Advertisement

Table of Contents

   Related Manuals for Kenmore 790. 3017

   Summary of Contents for Kenmore 790. 3017

  • Page 1 ® Use & Care Guide Manual del Usuario Models, Modelos 790. 3017,',.', 3047,b" .,. = Color number, numero de color Sears Roebuck and Co., Hoffman Estates, mL 60179 U.S.A. P/N 318200954 Rev. B (0801) www.sears.com...
  • Page 2: Table Of Contents

    ... Oven ignition ... Liquefied Petroleum (Propane) Gas Conversion Wait Oven Features ... Kenmore Appliance Warranty OneYear Limited Warranty When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect in material or workmanship within one year from the date of purchase, call 1=800-4=MY-HOME ® to arrange for free repair.
  • Page 3: Important Safety Instructions

    Never modify or alter the construction appliance other part of the product. edition and tocal code Remove the oven door from any unused appliance it is to be stored or discarded. repair service for down on the door of this appliance serious injuries and may also cause damage to the appliance.
  • Page 4 Do not cover the broiler grid or oven bottom aluminum o Do not touch a hot oven light butb with a damp ctoth. Doing so could cause the bulb to break, Disconnect the appliance or shut off the power to the appliance before removing and replacing the bulb, of the oven.
  • Page 5: Protection Agreements

    U.S.A. Master Protection Agreements CongratuUations on making a smart purchase, Your new Kenmore ® product is designed and manufactured for years of dependabb operation, But like aH products, it may require preventive maintenance or repair from time to time, That's when having a Master Protection...
  • Page 6: Grounding Instructions

    Oven ignition When you turn the oven on, the glow bar igniter begins to heat, When the lighter is hot enough, in less than 1 minute, the gas flows into the burner and is ignited, The igniter glows bright orange when hot, it cycles on and off with the thermostat and wiii glow whenever the burner is on, Do not attempt to light the oven burners during a power failure.
  • Page 7: Wait Oven Features

    At a G_ance Manual or Seff=Cban Oven depending on your mode[ BroH Pan insert BroH Pan Wail Oven Features of your wall oven will vary according Ebctronb Oven Controls with Cbck and Kitchen Timer (Features wHU vary according to model' Glass Front...
  • Page 8: Oven Vent And Racks

    ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO OPERATING To remove an oven rack, pull the rack forward until it stops. Lift up front of rack and slide out. To reptace an oven rack, fit the rack onto the guides on the oven walls. Tilt the front of the rack upward and slide the rack back into place.
  • Page 9: Control Pad Features

    *Note: The OVEN indicator light on the electronic display wi[[ turn ON and OFF when using the Bake feature and during preheat. This is normal and indicates that the oven is cycling to maintain the selected baking temperature.
  • Page 10: Setting The Clock

    Note: The minute timer does not start or stop cooking, it serves as an extra timer in the kitchen that will beep when the set time has run out, The minute timer can be used alone or during any of the other oven functions, When the...
  • Page 11 To Set Contro_ for Continuous The oven control has a built-in 12 Hour Energy Saving feature that will shut off the oven if the control is left on for more than 11 hours and 59 minutes, The oven can be programmed to override this feature for continuous baking,...
  • Page 12 The oven will turn ON and begin heating, Note: When the control is set for this function the oven temperature will be displayed, To see the cook time remaining press (_o_ and to see the time of day press (C) _)
  • Page 13 Setting Oven Controls Oven Baking For best cooking resuUts, heat the oven before baking cookies, breads, cakes, pies or pastries, etc,_ There is no need to preheat the oven for roasting meat or baking casserobs, The cooking times and temperatures needed to bake a product may vary sHghtUyfrom your previousUy owned appliance,...
  • Page 14 Should an oven fire occur, close the oven door and turn off the oven. If the fire continues, throw baking soda on the fire or use a fire extinguisher. DO NOT put water or flour on the fire. Flour may be explosive and water can cause a grease fire to spread and cause personal injury.
  • Page 15 NOT cover the broiler grid with foil, To prevent grease from baking on, remove the broiler pan from the oven as soon as cooking is completed, Use hot pads because the broiler pan is extremely hot, Pour off grease, Soak the pan in HOT, soapy water,...
  • Page 16 ON the Warm & HoHdfeature and wHH maintain an oven temperature of 170 ° F (77°C), The Warm & HoJd feature wHH keep oven baked foods warm for serving up to 3 hours after cooking has finished, After 3 hours the Warm &...
  • Page 17: To Set Sabbath Feature

    5°F increments (1°C if the control is set to display Celsius), if you desire to set the oven control for a Timed Bake or Delayed Start Bake do so at this time, if not, skip this...
  • Page 18: Self-cleaning

    DO NOT clean the oven door gasket, The woven material of the oven door gasket is essential for a good seal, Care should be taken not to rub, damage or remove the gasket, DO NOT use any cleaning materials on the oven door gasket,...
  • Page 19 "Door Locked" indicator light will flash. DO NOT open the oven door while the light is flashing (it takes about 15 seconds for the oven door to lock). "CLn" will appear in the display during the Self-Clean cycle and the "Door Locked"...
  • Page 20 Care & CReaning Cleaning Various Parts of Your Oven Before cbaning any part of the oven, be sure aH controUs are turned OFF and the oven is COOL, REMOVE SPULLOVERS AND HEAVY SOUUNG AS SOON AS POSSBLE, DiFFiCULTY OF MAJOR CLEANING LATER,...
  • Page 21 _ 3, Clean any soil from the oven frame, the door liner outside the oven door gasket and the small area at the front center of the oven bottom, Clean with hot, soapy water, Rinse well using clean water and a cloth,...
  • Page 22 Changing the Oven Light On some models an interior oven light will turn automatically door is opened, The oven light may be turned on when the door is closed by pushing located on the control covered...
  • Page 23: General Care & Cleaning

    Your oven thermostat has been precisely set at the factory. This setting may differ from your previous oven, however, so your recipe times may not give you the results you expect. If you think that the oven is cooking too hot or cool for your recipe times, you can adjust the thermostat so that the oven cooks hotter or cooler than the temperature displayed.
  • Page 24 The door was left open and controls set for self-cleaning cycle, Close the door and push CANCEL pad, Place oven rack in center of oven, Place a level on the oven rack, Contact installing agent if rack and cabinet cutout flooring are not level,...
  • Page 25 Follow steps under "Stopping or interrupting a Self-Cleaning Cycle" in this Use & Care Guide. Failure to clean bottom, from top of oven, frame of oven or door area outside oven seal. These areas are not in the self-cleaning area, but get not enough to burn on residue.
  • Page 26: Call

    For repair-in your home-of lawn and garden equipment, no matter who made it, no matter who sold it! For the replacement owner's manuals that you need to do-it-yourself. For Sears professional and items ike garage door openers and water heaters. Call anytime, www.sears.corn For repair of carry-in items like vacuums,...
