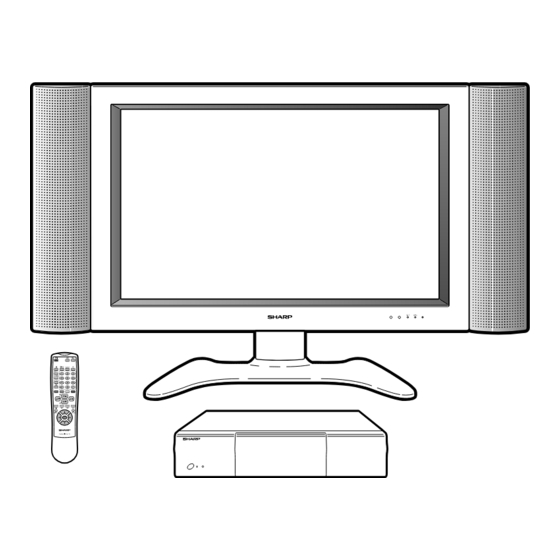

LC-30HV4E SERVICE MANUAL S32X6LC30HV4E LCD COLOUR TELEVISION LC-30HV4E MODEL In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its original condition and only parts identical to those specified should be used.
LC-30HV4E IMPORTANT SERVICE SAFETY PRECAUTION Ë Service work should be performed only by qualified service technicians who are thor- oughly familiar with all safety checks and the servicing guidelines which follow: » Connect the resistor connection to all exposed metal...
Page 3
LC-30HV4E Precautions for using lead-free solder 1 Employing lead-free solder "PWBs" of this model employs lead-free solder. The LF symbol indicates lead-free solder, and is attached on the PWBs and service manuals. The alphabetical character following LF shows the type of lead-free solder.
LC-30HV4E REMOVING OF MAJOR PARTS Ë Ë Ë Ë Ë AVC System 1. Remove the five top cabinet retaining screws and slide the top cabinet backward to remove it. 2. Remove the four side cover retaining screws on both the right and left sides and slide the side covers backward to remove them.
Page 14
LC-30HV4E 7. Remove the system/control terminal retaining: 7-1. Remove the four hex head screws securing the terminals of the system and control cables (white). 7-2. Remove the two screws securing the terminal of the system cable (gray). 7-3. Remove the two rear chassis retaining screws.
Page 15
LC-30HV4E 11. Remove the AV unit: 11-1. Remove the five AV unit retaining screws and remove the AV unit. 11-2. Remove the three AV unit angle retaining screws and remove the angle. 12. Remove the fan: 12-1. Remove the two cooling fan retaining screws and remove the cooling fan.
Page 16
LC-30HV4E Ë Ë Ë Ë Ë Display 1. Take off bottom terminal cover. 2. Take off the speaker by removing 4 screws and disconnecting speaker terminals. 3. Take off the table stand by removing 6 screws. 4. Take off the rear cabinet by removing 18 screws and releasing the front cabinet's 6 hooks.
Page 17
LC-30HV4E 7. Take off the LCD control PWB by detaching 7 connectors and removing 4 screws. 8. Take off the R/C, LED PWB by detaching one connector and removing 2 screws. 9. Take off the speaker (L) PWB by detaching one connector and removing one screw.
Page 18
LC-30HV4E 15.Take off the inverter GND PWB by removing 2 screws. 16.Take off the power PWB by removing 7 screws. Remove insulation sheet. 17.Take off the inverter-1 PWB by removing 3 screws. 18.Take off the inverter-2 PWB by removing 3 screws 19.Take off the 4 reinforcement angles by removing 2 screws from each angle.
Page 19
LC-30HV4E 23.Take off the LCD panel with panel shield by removing 4 screws. 24.Take off D-BEF sheet, prism sheet and diffusion sheet. Take off ITO sheet and diffusion panel by removing 2 screws. 25.Take off the panel shield by removing 6 screws.
LC-30HV4E ADJUSTMENT PROCEDURES (AVC SYSTEM) Preparation for adjustment 1. The product has been adjusted and optimized in the factory. If the product needs to be readjusted for some reason, e.g., after parts replacement, follow the instructions shown below. 2. Control parameter values set in the in-process adjustment mode has been stored in the corresponding registers.
Page 21
LC-30HV4E 2. In-process adjustment screen layout Page Program version Source of input Colour system HDCP Main unit AV unit 1/13 TUNER NO SIG HDCP:ON EUROPE EUROPE CENTER Version 2001 06 21A OSD Version XXXXXXXX CVIC Version XXXXXXXX TTXP Version XXXXXXXX ∫...
Page 22
LC-30HV4E Ë Ë Ë Ë Ë Adjustment parameters 1) Analog adjustment (1) AVC System voltage adjustment Adjustment items Adjustment conditions Adjustment procedures In-process adjustment Enter the in-process adjustments mode. mode Check that the destination is EUROPE. (Check the destination.) AVC System 3.3V Connect a DC voltmeter to TP4 Move the cursor to the [Ë+Badj3.3V] line and adjust...
Page 23
LC-30HV4E (3) PAL signal adjustment Adjustment items Adjustment conditions Adjustment procedures MAIN PAL Y LEVEL Adjust pin (1) of P801 to 0.70 ±0.025 Vp-p. adjustment MAIN PAL COLOR Adjust pin (3) of P801 to GAIN adjustment 0.53 ±0.025 Vp-p. 0.53V...
Page 24
LC-30HV4E (5) N358 signal adjustment Adjustment items Adjustment conditions Adjustment procedures Setup 1. Set colour system to N358. 2. Select N358 source. 100% SMPTE colour bar or similar colour bar signal including 100% white. MAIN N358 Y Adjust pin (1) of P801 to 0.70 ±0.025 Vp-p.
Page 25
LC-30HV4E (7) Component HDTV signal adjustment Adjustment items Adjustment conditions Adjustment procedures Setup 1. Input HDTV (1080i) component signal. 2. Select component source. 100% colour bar signal including 100% white, like split field colour bar MAIN COMP HDTV Adjust the TP815 to have 0.90 ±0.025 Vp-p from the CONTRAST pedestal level.
Page 26
LC-30HV4E Ë Ë Ë Ë Ë Adjustment Mode Menu List (AVC System) Do not change items, the adjustment procedure of which is not described in this manual. Inadvertent changes of such items may result in unexpected or unrecoverable errors. Page...
LC-30HV4E UPGRADING INSTALLED PROGRAMS Programs installed in the product are mainly divided into the following two categories: ∫ Main programs (for AVC system) ∫ Monitoring program (for display) CAUTON: Exercise great care to hide the procedure in entering the in-process adjustment mode from the customer.
LC-30HV4E ADJUSTMENT PROCEDURES (DISPLAY) See "Adjusting mode" for the steps to go into adjustment process mode. NOTE: When IC2203 is replaced, it is needed to Initialization first then Background adjustment and Common bias adjustment. 1) +B adjustment (Digital PWB: R4648) 1.
Page 30
LC-30HV4E 3. Adjusting Mode 1. Overview The controller IC can be adjusted in this mode. Adjustment is done while controlling the setting of the resistor corresponding to the selected adjustment item. When monitor is used independently, it is adjusted using the OSD simple display function incorporated in LCD controller.
Page 31
LC-30HV4E b) Adjustment on the TEST items 1 2 3 4 5 6 7 8 9 10 11 12 13 14 1 T E S T 2 O L E R R L C D D A T A 0 0 0 0...
Page 32
LC-30HV4E ADJUSTMENT MODE MENU LIST First layer item PAGE ITEM SETTING RANGE INITIAL VALUE DATA SETTING MODE 50HZ/60HZ/PC 50HZ Toggle 0 ~ 255 No Toggle REF0 0 ~ 255 No Toggle VL64 0 ~ 255 No Toggle REF64 0 ~ 255...
LC-30HV4E MAJOR IC FUNCTIONS INFORMATIONS ∫ IC2501 (MSP4418G) IC for decoding audio signals. It serves as an S-IF audio signal decoder and an audio data selector. ∫ IC2510 (IXA385WJ) IC for controlling audio delay. LC-30/37HV4E uses a frame buffer to process video signals. This results in delay in outputting video signals.
Page 34
LC-30HV4E ∫ IC801/IC802 (TB1274AF) IC for synchronous processing of video and chroma demodulation for PAL/NTSC/SECAM colour TV. Color demodulation is provided by a high-performance image compensation circuit in the video section, a PAL/ NTSC/SECAM auto discrimination circuit in the chroma section, and a crystal that generates 4.43 MHz, 3.58 MHz and M/N-PAL clock signals.
Page 35
LC-30HV4E » PC I/F unit ∫ IC10004 (CX3506R) 3-channel, 8-bit, 120 MSPS A/D converter incorporating AMP and PLL. This IC is for video signals inputted to the PC I/F unit and used for one-screen and two-screen applications, and for PC signals inputted to the front panel.
Page 36
LC-30HV4E ËVHiMSP4418G-1Q (ASSY:IC2501) Multi Sound Processor »Block diagram...
Page 37
LC-30HV4E » Pin mapping Pin No. Pin Name Type Description –– Not connected I2C_CL I2C clock I2C_DA I2C data I2S_CL I2S clock I2S_WS I2S word strobe I2S_DA_OUT I2S data output I2S_DA_IN1 I2S1 data input ADR_DA ADR data output ADR_WS ADR word strobe...
Page 39
LC-30HV4E » Pin mapping Pin No. Pin Name Type Description Video signal input Composite video signal input Y/C separation signal input, used for luminance signal input YIN1: Input for signal created by Y/C separation of VOUT1 output YIN1 Y/C separation signal input, used for chrominance signal input...
Page 41
LC-30HV4E » Pin mapping Pin No. Pin Name Type Description VIDEO 1-L1 D-pin connection line input VIDEO 1-L2 VIDEO 1-L3 VIDEO 2-L1 VIDEO 2-L2 VIDEO 2-L3 VIDEO 3-L1 VIDEO 3-L2 VIDEO 3-L3 4, 14, 39,45, 52, 58 VCC –– Analog power supply (9V) AVCC ––...
Page 43
LC-30HV4E » Pin mapping Pin No. Pin Name Type Description CVBS1/Y1-IN CVBS1 or Y1-IN signal input SYNC-IN Synchronization signal input CVBS-OUT CVBS or Y+C signal output Output of counted-down vertical synchronization signal COMB Y-IN Input of Y signal outputted from comb filter. Open when not used D-VDD ––...
Page 45
LC-30HV4E » Pin mapping Pin No. Pin Name Type Description IN2-H IN2-H: Independent H periodic signal input IN2-V IN2-V: Independent V periodic signal input IN2-1 IN2 system signal input IN2-2 IN2-3 Vcc-MAT –– Power supply to selector or synchronous processing modules...
Page 46
LC-30HV4E ËRH-iXA385WJZZ (ASSY:IC2510) DELAY » Pin mapping Pin No. Pin Name Type Description 1, 19, 32, 33 –– Power supply 44, 64 PLLVDC –– PLL power supply VCOIN VCO IN (used to construct external loop filter) TEST Input for testing...
Page 47
LC-30HV4E ËRH-iXA392WJZZ (ASSY:IC1901) PLD (Programmable Logic Device) » Pin mapping Pin No. Pin Name Type Description –– Non-connection SP_CP2 Input of clamp signal from synchronous separation IC (for 15K system) SP_VD Input of vertical synchronization signal from synchronous separation IC ––...
Page 48
LC-30HV4E ËVHiTC90A69++1Y (ASSY:IC402) 3 Line Digital Comb Filter (NTSC/PAL) » Pin mapping Pin No. Pin Name Type Description BIAS –– ADC bias –– ADC upper limit bias VDD1 –– ADC and DAC power supply (analog system) TESTI1 TEST Input VSS2 ––...
Page 49
LC-30HV4E ËRH-iX3270CEZZ (ASSY:IC10001) 32-bit RISC Micro Processor » Pin mapping Pin No. Pin Name Type Description 34, 36-44, D[15:0] Data bus D [15:0] 46, 48-52 23-26, 28, 30-32 D[23:16/PTA[7:0] Data bus D [23:16] / I/O port A [7:0] 13-18, 20, 22...
Page 50
LC-30HV4E » Pin mapping Pin No. Pin Name Type Description RESETP Power-on reset request RESETM Manual reset request BREQ Bus request BACK Bus ACK 2, 1, 144 MD[2:0] Clock mode select 196, 195 MD[4:3] Area 0 bus width select Endian select...
Page 51
LC-30HV4E Ë9DK001-15079 (CXA3506R) (ASSY:IC10004) 3-channel, 8-bit, 120MSPS A/D converter amplifier PLL » Pin mapping Pin No. Pin Name Type Description B/CbOUT Amplifier output signal monitor ADDRESS I2C slave addressing R/CrOUT Amplifier output signal monitor –– Not used –– Not used...
Page 52
LC-30HV4E Pin No. Pin Name Type Description R/CrIN1 R/Cr signal input 1 AVCCAMPR –– R/Cr amplifier power supply R/CrIN2 R/Cr signal input 2 AGNDAMPR –– R/Cr amplifier GND G/YOUT Amplifier output signal monitor DACTEST Input for testing amplifier control resistor DAC...
LC-30HV4E TROUBLE SHOOTING TABLE (AVC System) Power cannot be turned on. (The power LED on the front panel does not light up). Plug the power cord connector and retry to turn on the Is the power cable connected properly? power.
LC-30HV4E DESCRIPTION OF SCHEMATIC DIAGRAM VOLTAGE MEASUREMENT CONDITION: 1. When the exclusive-use AC adapter is used, the colour bar signal of colour bar generator for service is input to get the normal screen. When the audio is minimized, the voltage value is measured with the 20 kΩ/V tester.
LC-30HV4E Ref. No. Part No. Description Code Ref. No. Part No. Description Code PARTS LIST DUNTKB401FE05 PARTS REPLACEMENT MAIN Unit (AVC System) Replacement parts which have these special safety characteristics identified in this manual: electrical components having such features INTEGRATED CIRCUITS are identified by "å"...
Page 243
J Front Panel Ass’y XJPSN30P08XS0 J Screw, x53 Not Available – Front Panel — GCOVAA288WJSA J Door Cover GDORFA018WJSA J Door HBDGBA013WJSA J Badge, "SHARP" HDECQA166WJSA J LED Cover HiNDPA290WJSA J Indication Label JBTN-2074CEKB J Power Button LANGF9552CESA J Angle, for Door LANGTA024WJFW...
Page 244
LC-30HV4E CABINET AND MECHANICAL PARTS (Display)
