Summary of Contents for Oster 1694

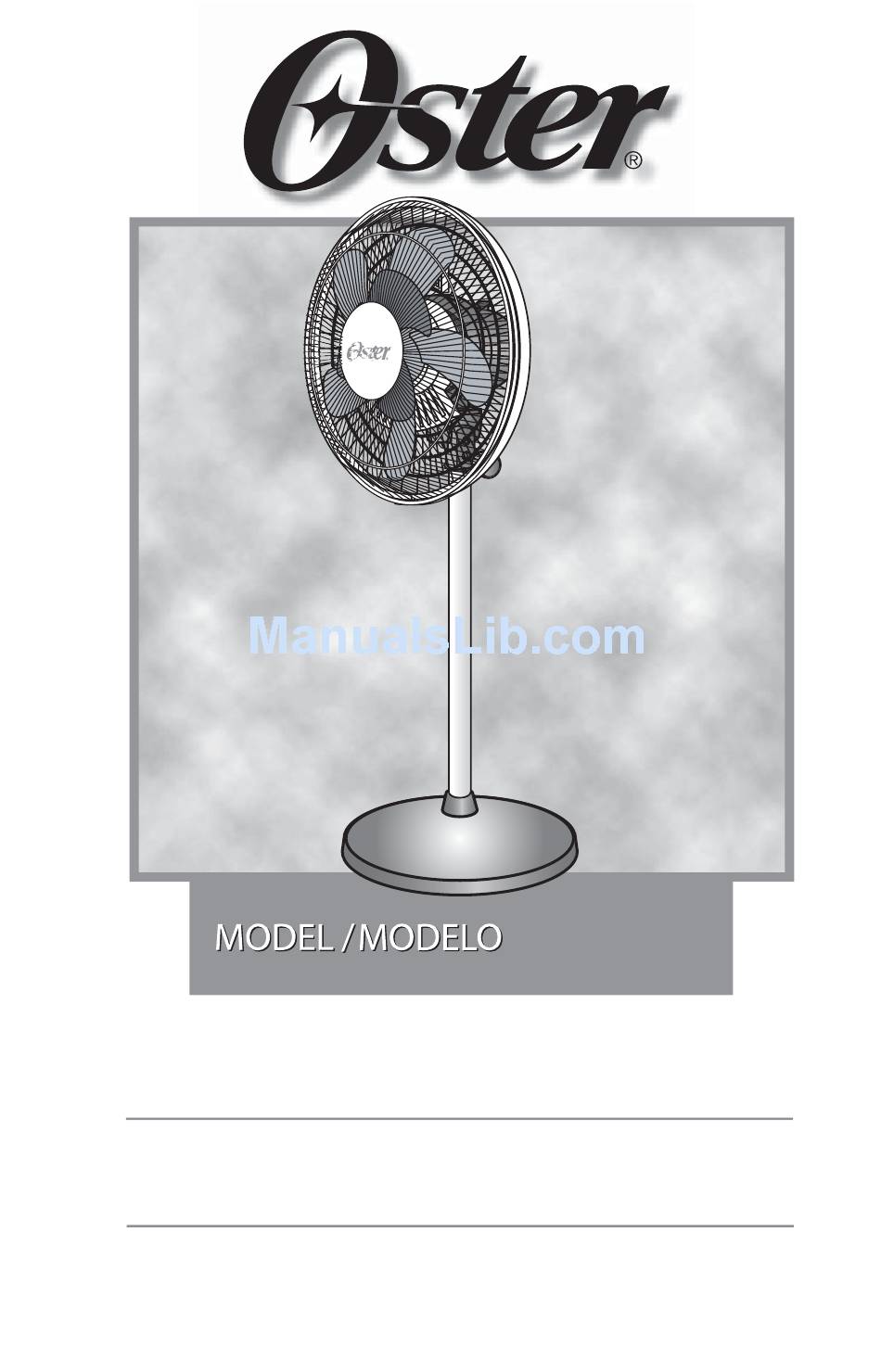

- Page 1 1694 1694 Ins t r u ct i on M a n ua l STAND FAN WITH OSCILLATION P LE A S E R E A D A LL IN S T R UCT IO N S BE F O R E U S IN G...
-
Page 2: Important Safeguards
• DO NOT operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return this appliance only to the nearest Authorized Oster Service Center for examination, repair or adjustment ®... -
Page 3: Description Of The Appliance
DESCRIPTION OF THE APPLIANCE 9 10 11 1. Logo Plate 12. Grill Mount 2. Front Grill 13. Tilt-Adjustment Knob 3. Blade Cap 14. Speed Control Knob 4. Small Fan Blade 15. Upper Pole 5. Large Fan Blade 16. Hollow End (Female) 6. -
Page 4: Assembly Instructions
Also be sure the shaft protrudes from the front of the blade. 9. Secure the fan blade onto the Motor Shaft by turning the blade cap counter-clockwise and tighten firmly. 10. Center the Front Grill by aligning the Oster logo horizontally and parallel to the floor, and ®... -
Page 5: Maintenance And Cleaning
OPERATING INSTRUCTIONS 1. Set fan base on a dry, level surface. 2. Plug cord into electrical outlet. Please make sure the Selector (Speed) control is in the off position (O). The Selector (Speed) control is located on the top of the Fan Motor Housing. -
Page 6: Year Limited Warranty
This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. Oster dealers, service centers, or retail stores ®... -
Page 7: Precauciones Importantes
• NO opere ningún artefacto con un cordón o enchufe dañados, después de que el artefacto haya fallado o si se cae al suelo o se daña de cualquier otra manera. Regrese el artefacto al Centro de Servicio Oster Autorizado más cercano para examinarlo, ®... - Page 8 DESCRIPCION DEL ARTEFACTO 9 10 11 1. Placa con el Logo 12. Montura de la Rejilla 2. Rejilla Frontal 13. Botón de Ajuste de Inclinación 3. Tapa de las Aspas 14. Botón de Ajuste de Velocidad 4. Aspa Pequeña del Ventilador 15.
- Page 9 9. Asegure el Aspa del Ventilador a la Caja del Motor girando la Tapa de las Aspas en la dirección de las manillas del reloj y apriete firmemente. 10. Centre la Rejilla Frontal del Ventilador alineando el Logo de Oster de manera horizontal ®...
-
Page 10: Mantenimiento Y Limpieza
COMO OPERAR SU VENTILADOR DE PEDESTAL 1. Coloque el Ventilador en una superficie seca y nivelada 2. Enchufe el cable en un tomacorriente. Por favor asegúrese de que el Botón de Control de Velocidad esté en la posición de apagado. 3. -
Page 11: Garantía Limitada De 1 Año
Esta garantía es válida para el comprador original al detalle desde la fecha de compra original al detalle y no es transferible. Guarde el recibo de venta original. Se requiere prueba de compra para obtener la garantía. Los concesionarios Oster , Centros de ®... - Page 12 ©2006 Sunbeam Products, Inc. doing business as Jarden Consumer Solutions. All rights reserved. Distributed by Sunbeam Products, Inc. doing business as Jarden Consumer Solutions, Boca Raton, Florida 33431. ©2006 Sunbeam Products, Inc., una empresa de Jarden Consumer Solutions. Todos los derechos reservados.
