Flip
Flips the video vertically to enable a camera to be place on its bottom instead of mounted
upside down on a ceiling which is the default.
Mirror
Flip the video horizontally.
Camera Name
The CAMERA NAME is the display name of the camera.
Enable Timestamp
Enables or Disables the camera name, date, and time stamp.

MOTION DETECTION

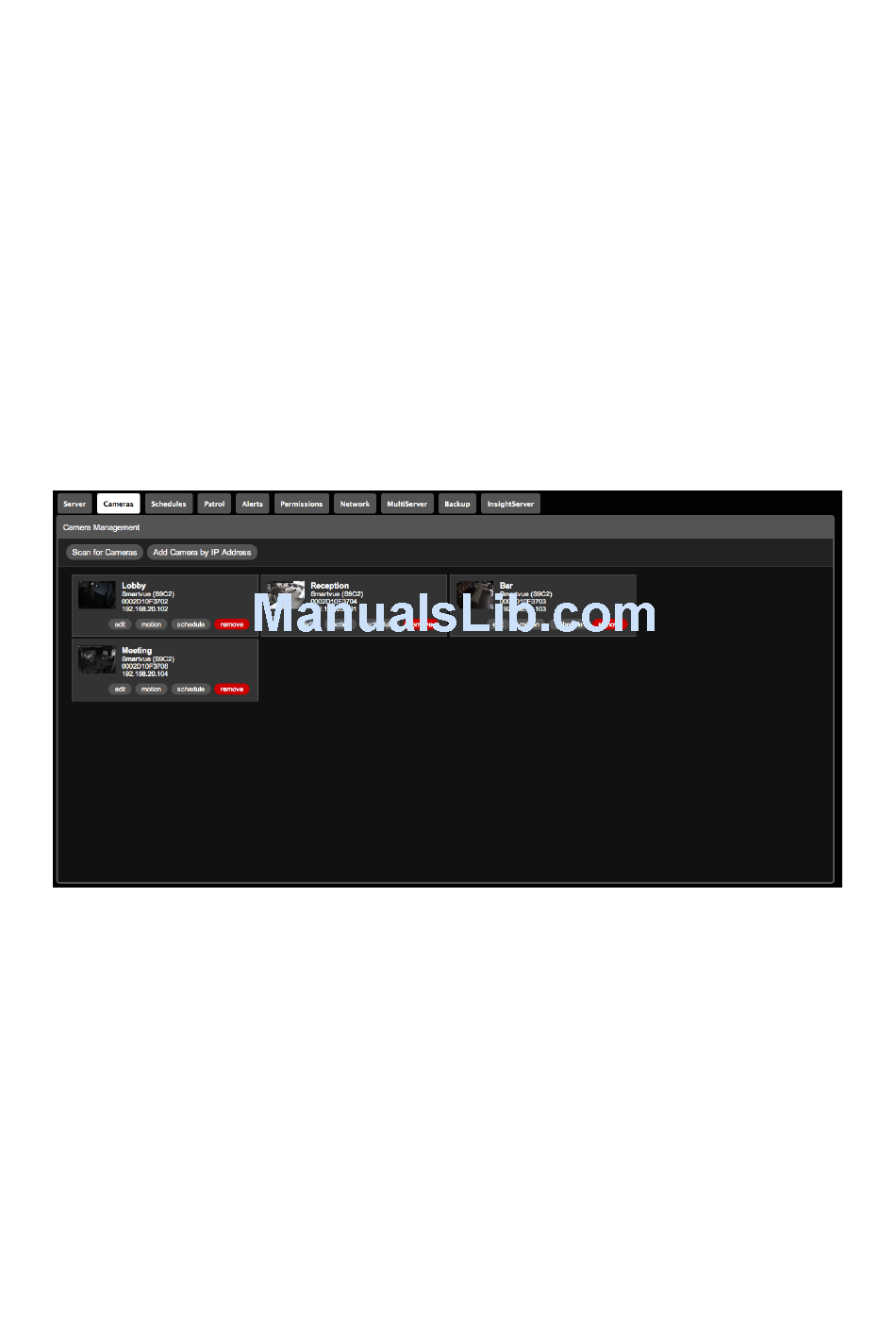

In the cameras list, click on the MOTION button associated with the camera you want to
set motion for.
The motion detection dialog will appear with a preview image of the camera. Click on
ADD button to set a new area of interest. You can set up to three areas of interest for each
camera. Click on DELETE to remove a motion area.
