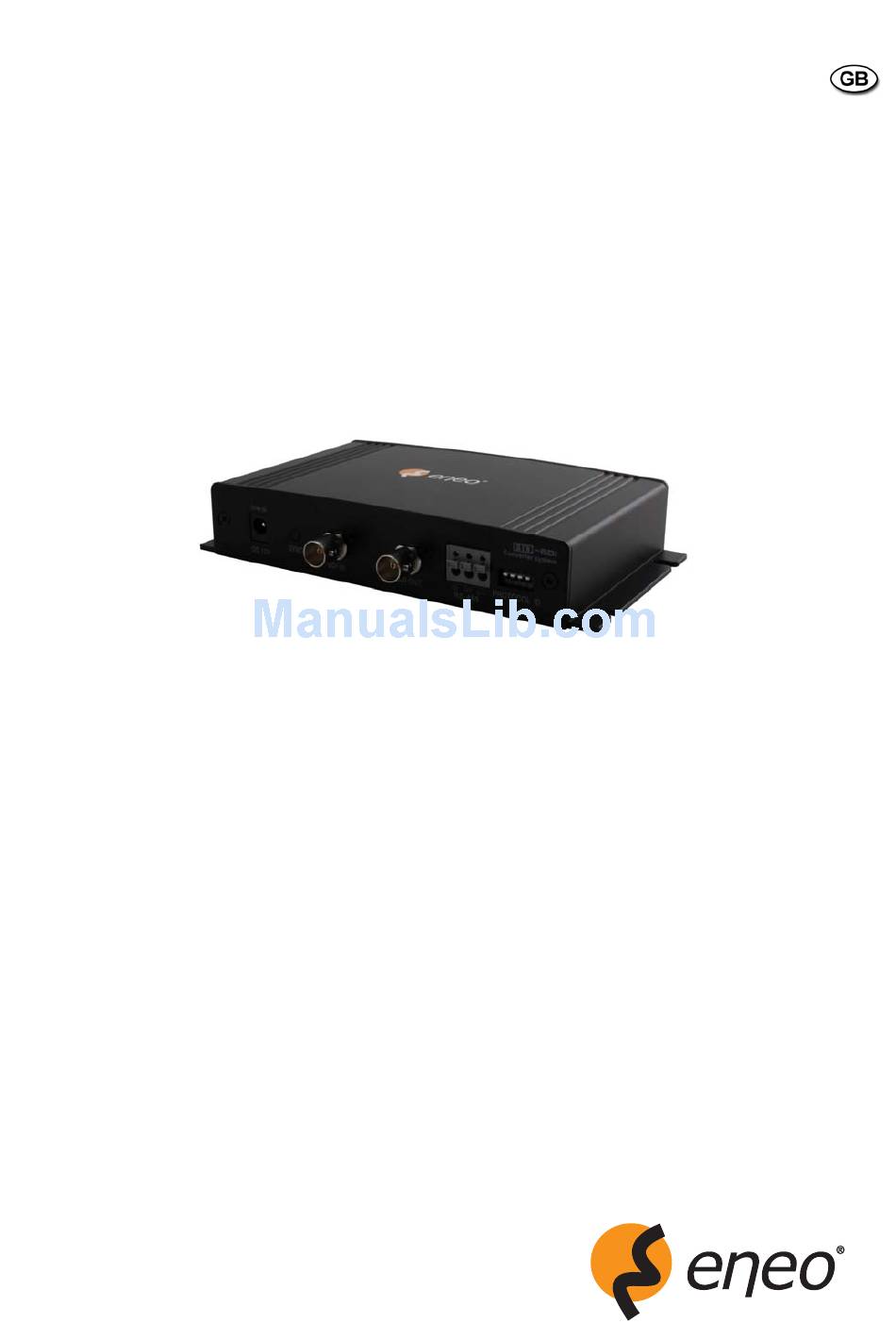

- Page 1 Instruction Manual Extender & Converter HD/SDI to HDMI HDA/1002EC...
- Page 2 WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION CAUTION RISK OF ELECTRNIC SHOCK CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
- Page 3 FCC COMPLIANCE STATEMENT FCC INFORMATION: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT.
-
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 5: Table Of Contents
TABLE OF CONTENTS CONTENTS OF PACKAGE ---------------------------------------------------------------- INTRODUCTION ------------------------------------------------------------------------------ CONVERTER OVERVIEW ----------------------------------------------------------------- CONVERTER INSTALLATION ------------------------------------------------------------- 9 KEYBOARD CONNECTION ----------------------------------------------------------------- 10 SPECIFICATIONS ------------------------------------------------------------------------------ 12... -
Page 6: Contents Of Package
CONTENTS OF PACKAGE Installation of the camera must be performed by qualified service personnel in accordance with all local and national electrical and mechanical codes. Carefully remove the color camera and its accessories from the carton and verify that they were not damaged in shipment. -
Page 7: Introduction
INTRODUCTION Converter HD-SDI to HDMI in real Time HD-SDI to HDMI OUT Features: SDI/HD-SDI to HDMI SDI/HD-SDI Looping through out Supports high definition HD-SDI digital video at 720p50/60, 1080i 50/60, 1080p25//30 formats at all frame rates HD-SDI standard SMPTE 292M, 296M at 1,485 Gb/s data rate HDMI 1.2 OUTPUT RS-485 used Camera Control... -
Page 8: Converter Overview
CONVERTER OVERVIEW ① HDMI Out ② HD-SDI Signal LED (HD-SDI Signal Detector Light) ③ DC12V IN ④ HD-SDI IN ⑤ HD-SDI OUT (HD-SDI IN Looping Through Out) ⑥ RS - 485 ⑦ PROTOCOL ID Configuration... -
Page 9: Converter Installation
CONVERTER INSTALLATION Connection Overview Starting Installation The Converter most be installed by several condition. - HD-SDI Camera / HDMI Input Monitor or TV / 75Ω BNC & HDMI Cable a. Select an appropriate location for the camera. b. Install camera to be connected (75Ω BNC Cable) to the converter. c. -
Page 10: Keyboard Connection
KEYBOARD CONNECTION RS-485 Connection XXXX PROTOCOL ID Setting XXXX 0001 0002 Down 0003 Down 0004 Down Down 0005 Down 0006 Down Down 0007 Down Down 0008 Down Down Down 0009 Down 0010 Down Down 0011 Down Down 0012 Down Down Down 0013 Down... - Page 11 Sample: PROTOCOL ID Setting XXXX...
-
Page 12: Specifications
Metal case Dimensions (WxHxD) 166 x 30 x 92.2 mm Weight 0.6kg eneo is a registered trademark of Videor E. Hartig GmbH ® Exclusive distribution through specialised trade channels only Videor E. Hartig GmbH Carl-Zeiss-Straße 8 · 63322 Rödermark, Germany Tel.
