Operation & Maintenance Manual
ST. CROIX FEATURES .......................................................................................2
INSTALLATION.................................................................................................. 3
PREVENTING CHIMNEY FIRES .....................................................................3
SATISFACTORY PERFORMANCE................................................................. 3
APPROVED FUELS .............................................................................................3
Pellets, Cherry Pits & Pellet /Corn mix ...................................................3
OPERATING INSTRUCTIONS......................................................................... 4
Control Board Features.............................................................................5
Thermostat Function - How does it work? .............................................6
Pre-Lighting Instructions..........................................................................7
Lighting Your Stove ................................................................................. 8
Shutting the Stove off ............................................................................... 9
Diagnostic Features....................................................................................9
Safety Features .........................................................................................10
Combustion Air Damper ........................................................................11
Flame Pattern Characteristics ................................................................11
MAINTAINING THE STOVE...........................................................................12
Daily Maintenance ........................................................................... 13-14
Periodic Maintenance ...................................................................... 14-15
Yearly Maintenance ......................................................................... 16-17
SAFE OPERATION ........................................................................................... 18
TROUBLESHOOTING AND FAQ ............................................................ 19-23
PARTS LAYOUT .......................................................................................... 24-25
WARRANTY....................................................................................................... 26
"Please read this entire manual before installation and use of this pellet fuel-burning
room heater. Failure to follow these instructions could result in property damage,
bodily injury or even death."
"Contact local building or fire officials about restrictions and installation inspection
requirements in your area.
Prescott Series
Table of Contents
Save these Instructions
1013
Advertisement
Table of Contents
Related Manuals for St. Croix Prescott Series
Summary of Contents for St. Croix Prescott Series
-
Page 1: Table Of Contents
Prescott Series Operation & Maintenance Manual Table of Contents ST. CROIX FEATURES ..................2 INSTALLATION....................3 PREVENTING CHIMNEY FIRES ..............3 SATISFACTORY PERFORMANCE..............3 APPROVED FUELS .....................3 Pellets, Cherry Pits & Pellet /Corn mix ...........3 OPERATING INSTRUCTIONS................. 4 Control Board Features................5 Thermostat Function – How does it work? ..........6 Pre-Lighting Instructions................7... - Page 2 St. Croix wood pellet stove. 1. Have your new St. Croix wood pellet stove installed by trained, qualified personnel. 2. Use only clean, dry quality wood pellets that are known to burn satisfactorily in your stove.
-
Page 3: St. Croix Features

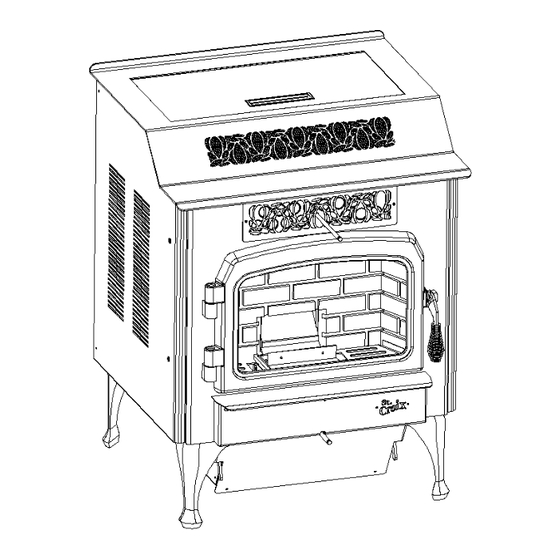

Prescott Series SAVE THIS OPERATIONS AND MAINTENANCE MANUAL Figure 1 Prescott Series Operations Manual Page 2... -
Page 4: Installation
Operation and Maintenance Prescott Series Wood Pellet Stove CAUTION: Operate this unit only with the fuel hopper lid closed. Failure to do so may result in emission of products of combustion from the hopper under certain conditions. Maintain hopper seal in good condition. -
Page 5: Operating Instructions
If these conditions exist, outside air should be used. 10. Smoke detectors, installed in the same general area as the stove, may be activated if the stove door is left open and smoke is allowed to enter the area. Prescott Series Operations Manual Page 4... -
Page 6: Control Board Features
This button is also used to make small adjustments to the combustion air and the feed rates as part of the Fine Tuning process of the control board. Prescott Series Operations Manual Page 5... -
Page 7: Thermostat Function - How Does It Work
During the cleaning cycle the Combustion Fan will run at line voltage to blow excess ash from the burn pot. This feature only functions if the unit is operating on levels 3 through 5. The ON/OFF light blinks during this cycle. Prescott Series Operations Manual Page 6... -
Page 8: Pre-Lighting Instructions
Program 4 is for Cherry Pits and in some instances may be used to “Tweak” the unit for certain qualities of fuel and installation conditions. (Ask Dealer before using program 4 for any other fuel than Cherry Pits.) Prescott Series Operations Manual Page 7... -
Page 9: Lighting Your Stove
3 - 4 minutes. After 5 minutes the board checks for “Proof of Fire” and starts feeding pellets on the #1 setting. Once the board senses P.O.F. the Igniter shuts off and the stove has started successfully. Prescott Series Operations Manual Page 8... -
Page 10: Shutting The Stove Off
30 seconds after the unit has been turned on, the control board will check to see if the switch senses negative pressure (Vacuum) in the firebox of the Stove. If there is no negative Prescott Series Operations Manual Page 9... -
Page 11: Safety Features
WARNING: The Stove has been Safety Tested by an accredited, independent laboratory. These safety features are designed to protect life and property. Bypassing these features voids all warranties and the safety listing of the stove. Prescott Series Operations Manual Page 10... -
Page 12: Combustion Air Damper
(not the burn pot reacts to the change. Adjusting the enough combustion air) and should not be damper during the break in period is very overlooked. At the other end of the spectrum; an Prescott Series Operations Manual Page 11... -
Page 13: Maintaining The Stove
Required maintenance depends content. Every St. Croix Pellet stove model will largely upon the quality of pellet fuel burned and have the same system as shown in 6 below. There is the rate of burn. -
Page 14: Daily Maintenance
CAUTION: Do not slam the door. Do not CLEANOUT operate the stove with a broken or cracked ROD PULL TOOL ASH PAN glass. Replace only with heat resistant ceramic glass supplied by the manufacturer. Figure 7 Prescott Series Operations Manual Page 13... -
Page 15: Periodic Maintenance
ASH CLEAN-OUT COVER (LEFT SIDE SHOWN) REMOVE SHIPPING SCREW & DISCARD THE LOCATION OF THE THIRD CLEAN-OUT/ASH REMOVE DECORATIVE TRAP BEHIND THE ASH PAN IN A PRESCOTT EXL GRILL (LEFT SIDE SHOWN) Figure 7 Prescott Series Operations Manual Page 14... - Page 16 Replace as needed. inner back. Figure 8 Prescott Series Operations Manual Page 15...
-
Page 17: Yearly Maintenance
Carefully clean or vacuum needed. (See fig. 9) any sawdust, cobwebs and household dust. Figure 9 Note: The Vacuum Switch may be removed to allow easier access to the combustion fan Prescott Series Operations Manual Page 16... - Page 18 “squealing” add some Anti-Seize to the Cam and Rod at both bushings. To gain access to the Versa Grate System in the Prescott Series open the right side panel when facing the stove. To locate the Rear Bushing assembly, follow the rod from the Shaft/Cage Weldment towards the front of the stove. The front bushing is located below the igniter in the front of the stove.
-
Page 19: Safe Operation
CAUTION: The Electrical Components of the stove are not Owner Serviceable. Call your dealer for proper diagnosis of electrical problems and service to those components. See Installations Manual for a copy of the Wiring Schematic. Prescott Series Operations Manual Page 18... -
Page 20: Troubleshooting And Faq
Proof of Fire Switch no longer senses a fire in the Stove. First check to see if there is Fuel in the hopper. If there is fuel in the hopper check the following items to see why the Stove went out. Prescott Series Operations Manual Page 19... - Page 21 Check the fuse on the back of the control board. Replace with a 125 Volt, 5 Amp fuse. Why is my glass dirty? Normal operation of your St. Croix Stove will produce a light build-up on the glass that wipes off with a dry paper towel. However extended burning on the low setting only will produce a tan color.
- Page 22 LED’s. The default setting is the center LED. This gives 2 adjustments increasing the voltage (LED’s 4 & 5) and 2 adjustments decreasing the voltage. (LED’s 1 & 2) The voltage is increased or decreased 2.5 volts with each adjustment. Figure 12 Prescott Series Operations Manual Page 21...
- Page 23 Program 1 flashes once, Program 2 flashes twice, Program 3 flashes three times and Program 4 flashes 4 times. Changing the Cycle Time will change the BTU Input of the Stove. The longer the Cycle time the lower the BTU rating. Figure 14 Prescott Series Operations Manual Page 22...
- Page 24 Operations Manual and perform all the maintenance issues covered in the Daily and Periodic Maintenance section of the Manual. If the stove still does not operate correctly call your Dealer for Assistance. Prescott Series Operations Manual Page 23...
-
Page 25: Parts Layout
Prescott Series Parts Layout CAUTION: The electrical components PART NUMBER DESCRIPTION 80P20003-R CONVECTION FAN 80P20038-R PROOF OF FIRE SWITCH 80P20001-R COMBUSTION FAN 80P52628-R VACUUM SWITCH 80P52629-R MANUAL RESET HIGH LIMIT 80P22348-R CONTROL BOARD 80P30045-R T-STAT WIRE TERMINAL 80P52630-R WIRING TERMINAL BLOCK... - Page 26 5/8” FLAT GLASS GASKET 80P60083-R GLASS RETAINER CLIP 08P20026-R 5/8” DOOR ROPE GASKET 80P20025-R ASH PAN DOOR GASKET 80P20004-R POWER CORD 80P21403-R WIRING HARNESS 80P52946-R ASH PAN 80P53666-R AUGER SHAFT WELDMENT 80P20057-R 125VOLT 5 AMP FUSE Prescott Series Operations Manual Page 25...
-
Page 27: Warranty
This warranty gives you specific legal rights, and you may have other rights, which vary from state to state. Prescott Series Operations Manual Page 26... -
Page 28: Serial Number
Feed Trim: Circle one (See point 8 on page 21) LED 1 LED 2 LED 3 LED 4 LED 5 Serial Number: Date of Purchase: Dealer Information: Even Temp, Inc. P.O. Box 127 Waco, NE 68460 EMAIL: support@stcroixstoves.com WEB ADDRESS: www.stcroixstoves.com Prescott Series Operations Manual Page 27...
