Tactic Anylink Instruction Manual

2.4ghz radio adapter
Hide thumbs Also See for Anylink:
Table of Contents

Advertisement

Quick Links

Download this manual

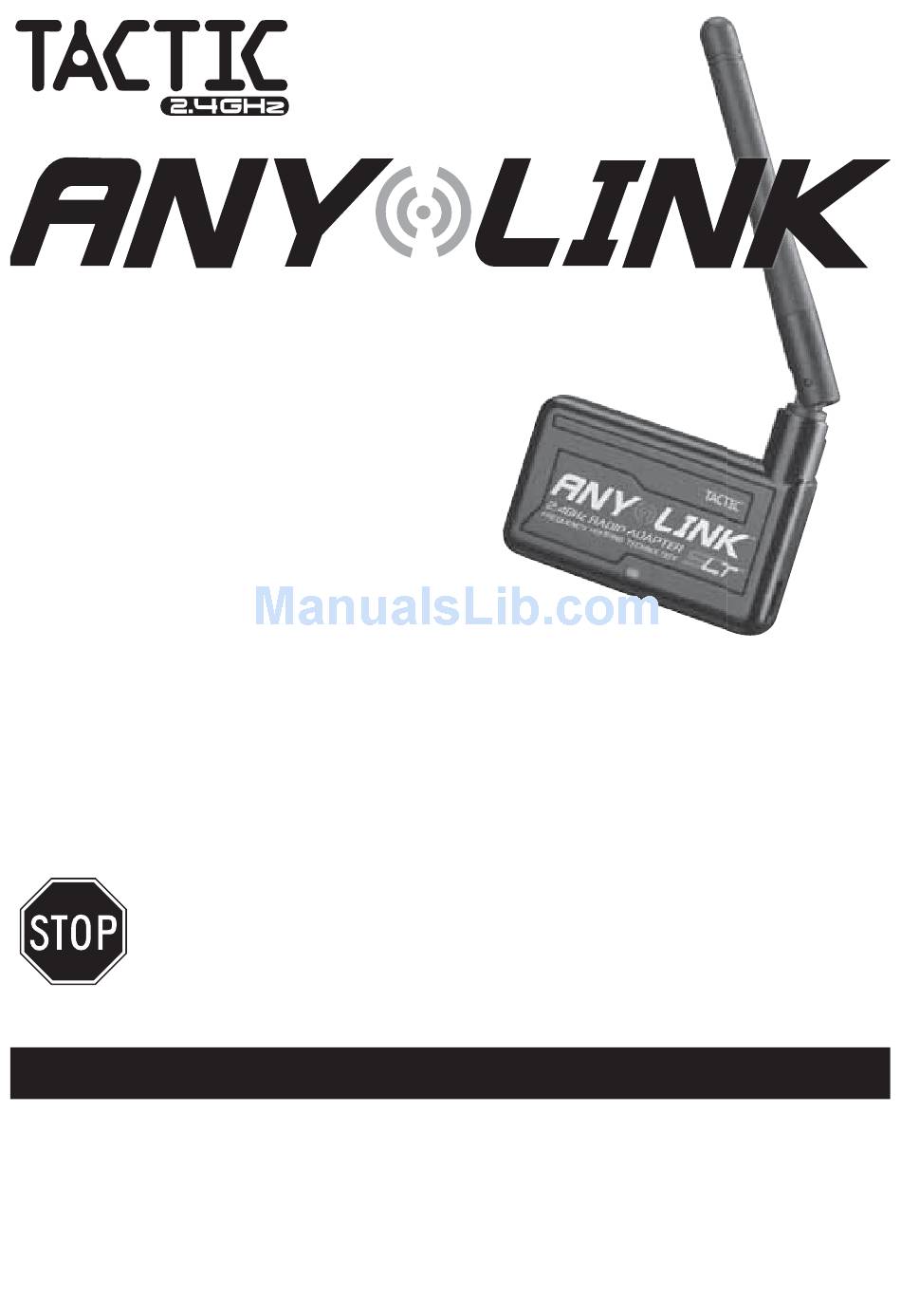

2.4GHz Radio Adapter
2.4GHz Radio Adapter
INSTRUCTION
The AnyLink SLT 2.4GHz Radio
Adapter allows nearly any R/C transmitter
(Tx) to bind with Tactic's ultra-small, lightweight,
and inexpensive 2.4GHz stand alone receivers (Rx).
®
Futaba
and Hitec
and Spektrum
16 for a Tx compatibility chart. Such transmitters can originally be
designed for use on 72MHz, 2.4GHz, FM, PCM, etc. The acceptable
flying range with AnyLink and a Tactic receiver is 1000 feet.
Read this manual in its entirety before use!
Damage resulting from misuse or modifi cation will
void your warranty.
ITEMS INCLUDED
(1) AnyLink 2.4GHz Radio Adapter
(1) Futaba Square Adapter Cable
(1) JR/Spektrum Adapter Cable
(2) Lengths of hard locking adhesive strips
1"(25.4mm) x 1.5" (38mm)
™
MANUAL
®
brand transmitters must have a trainer jack. JR
®
transmitters must have a trainer/D.S.C. jack. See page
™
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Anylink and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tactic Anylink

Summary of Contents for Tactic Anylink

  • Page 1 16 for a Tx compatibility chart. Such transmitters can originally be designed for use on 72MHz, 2.4GHz, FM, PCM, etc. The acceptable flying range with AnyLink and a Tactic receiver is 1000 feet. Read this manual in its entirety before use! Damage resulting from misuse or modifi...

  • Page 2: Preparations And Connections

    MOUNTING ANYLINK Mount AnyLink high on the rear of the Tx, and extend its antenna to point upwards from the top of the Tx as much as possible. Rotate the antenna as shown above. Two strips of hard locking fasteners are included for attaching AnyLink to the rear of the host Tx.
  • Page 3 Do NOT connect the Power Plug to the Tx at this time. Spektrum’s DX4e, DX5e, DX7s, DX8, and DX10T transmitters require an optional adapter to function with AnyLink. See your local hobby retailer for details on Tactic’s AnyLink Power Adapter (TACM0005).
  • Page 4 WARNING! Do NOT turn the JR or Spektrum Tx power switch to the ON position at any time! This will cause AnyLink to stop sending signal to the Tactic Rx and result in a loss of control of the model! The JR/Spektrum Tx power switch should ALWAYS remain in the OFF position when controlling a model with AnyLink.
  • Page 5 3. Apply power to the Rx and servos in the model. If setting up a Tx/AnyLink to the Tactic Rx for the first time, insert a small diameter screwdriver in the hole on the Rx marked “BIND”. Press and hold the button until the Rx LED turns on, then off after about one second.
  • Page 6 NOTE: If AnyLink’s Alternate Channel Mapping mode cannot be entered for any reason, changing the servo connections at the Rx to properly match the controls of the Tx can still allow AnyLink to function properly with your Tx.
  • Page 7 TACTIC RECEIVER Install the Tactic Rx as explained in the instructions included with the Rx/model. Follow these steps to bind AnyLink to the Tactic Rx: IMPORTANT! Remove the propeller from the airplane prior to checking the operation of AnyLink. Failure to do so could result in personal injury if the motor unexpectedly turns during setup.

  • Page 8: System Check And Operation

    The throttle channel will default to hold it’s last position. 1. Apply power to the Tx/AnyLink and Rx. 2a. If using an ESC, do NOT arm the ESC. Do NOT attempt to adjust the throttle’s failsafe position if the ESC is armed.
  • Page 9 Channel Mapping: If controls in the model do not function according to the control inputs from the Tx, reset the system by repeating all steps in the AnyLink Operation section on page 4. Proceed to the next step once all channels are mapped properly.
  • Page 10 INACTIVITY ALARM AND POWER-DOWN PROCEDURES Inactivity Alarm: If power is applied to AnyLink but the Tx sticks are not moved for 4 minutes, AnyLink will sound tones to alert that power is still ON and AnyLink is still transmitting a signal. Follow the step below to remove power from AnyLink.

  • Page 11: Specifications

    Weight: 24g (0.85 oz.) IMPORTANT WARNINGS AND PRECAUTIONS ● Do not allow water or moisture inside AnyLink, which could cause failure or malfunction and poor control of aircraft and pose a safety hazard. ● Do not operate R/C model aircraft near power lines, radio or cell phone towers, roads or automobiles, buildings, or pedestrians.

  • Page 12: Troubleshooting

    Interference – Check Rx installation and servo connections. Low Tx or Rx battery – Replace the batteries or recharge as needed. Any Link case and/or antenna not oriented properly – Rotate AnyLink on Tx, or re-direct position of the antenna.

  • Page 13: Fcc Statement

    FCC STATEMENT This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 14 Declaration of Conformity: Product: Tactic AnyLink SLT 2.4GHz Radio Adapter Item number: TACJ2000 Equipment class: 1 Tactic AnyLink SLT 2.4GHz Radio Adapter: The objects of the declaration described here are in conformity with the requirements of the specifi cations listed below, following the...
  • Page 15 (1) year from the date of purchase. During that period, Tactic will, at its option, repair or replace without service charge any product deemed defective due to those causes. You will be required to provide proof of purchase (invoice or receipt).
  • Page 16 tacticrc.com Tx-Ready.com Patent Pending ® © 2011 Hobbico , Inc. Made in China TACJ2000MNL...
