Tactic Any Link Instruction Manual

2.4ghz radio adapter
Hide thumbs Also See for Any Link:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
2.4GHz Radio Adapter
2.4GHz Radio Adapter
INSTRUCTION

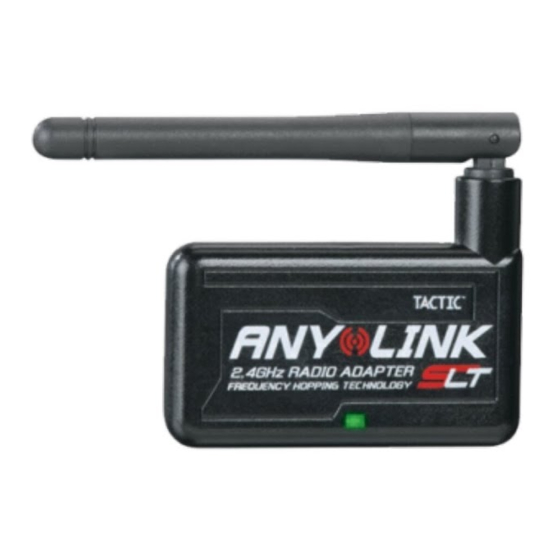

The AnyLink SLT
Adapter allows many R/C aircraft
transmitters (Tx) to link with Tactic's ultra-
small, lightweight, and inexpensive 2.4GHz receivers (Rx), and
Transmitter-Ready
originally be designed for use on 72MHz, 2.4GHz, FM, PCM, etc.
The maximum flight range in any application is 1000 feet.
Read this manual in its entirety before use!
Damage resulting from misuse or modifi cation will
void your warranty.
ITEMS INCLUDED
(1) AnyLink 2.4GHz Radio Adapter
(1) Futaba
®
(1) JR
/Spektrum
(2) Hard Locking Adhesive Strips
™
MANUAL
™
2.4GHz Radio
™
(Tx-R
®
Square Adapter Cable (TACM0001)
®
DX6, DX6i, DX7 Adapter Cable (TACM0002)
™
) aircraft. Compatible transmitters can
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Any Link and is the answer not in the manual?

Questions and answers

Related Manuals for Tactic Any Link

Summary of Contents for Tactic Any Link

  • Page 1 2.4GHz Radio Adapter INSTRUCTION MANUAL ™ The AnyLink SLT 2.4GHz Radio Adapter allows many R/C aircraft transmitters (Tx) to link with Tactic’s ultra- small, lightweight, and inexpensive 2.4GHz receivers (Rx), and ™ ™ Transmitter-Ready (Tx-R ) aircraft. Compatible transmitters can originally be designed for use on 72MHz, 2.4GHz, FM, PCM, etc.
  • Page 2 TX COMPATIBILITY AND CORDS All compatible transmitters must have a trainer/DSC jack. An adapter cable connects AnyLink to the Tx trainer jack. The ® ® included cable with two plugs is for Futaba and Tower Hobbies transmitters having a square trainer jack (except Futaba 12Z, ®...
  • Page 3 ANYLINK SETUP IMPORTANT! Remove the airplane’s propeller prior to setting up AnyLink to work with the flight system. Failure to do so could result in personal injury if the motor turns unexpectedly. Make sure all batteries are fully charged prior to operation.
  • Page 4 3. Turn the Tx power switch on. For computer radios having the option to transmit a signal when Tx power is turned ON, make sure “YES” is selected. 4. AnyLink should sound one beep and its LED should illuminate. 5. Skip to the COMPATIBLE RECEIVERS section on page 5. HITEC RADIOS 1.
  • Page 5 Skip the next section if using Futaba, Hitec, or Tower Hobbies transmitters. FLYING Tx-R AIRCRAFT WITH JR, SPEKTRUM, GRAUPNER Select Scale Tx-R aircraft include a Tactic Rx with servos already connected. Micro Tx-R aircraft include a board with an integrated Tactic receiver and servo connections. The channels in Tx-R aircraft are arranged in the following order: CH1=aileron, CH2=elevator, CH3=throttle, CH4=rudder.
  • Page 6 NOTE: If the Alternate Channel Mapping mode cannot be entered for any reason, changing the servo connections at the Tactic Rx to properly match the controls of the Tx could still allow AnyLink to function properly with your Tx (but is not possible with Micro Tx-R...
  • Page 7 5. Confirm all servo controls function properly according to inputs on the Tx sticks. 6. If you do not wish to set a failsafe in the Tactic Rx, skip to the SYSTEM CHECK AND OPERATION section on page 10.
  • Page 8 If using a JR, Spektrum, or Graupner Tx and the Rx enters failsafe, the throttle channel will go to “hold” (NOT 0% throttle), because Tactic Rx CH3 deflects to 0% position but JR, Spektrum, and Graupner transmitters use CH1 to control throttle.
  • Page 9 2. Turn on the Tx/AnyLink before applying power to the Micro Tx-R aircraft. 3. Wait for other pilots flying Tactic to remove power from their Tx/ AnyLink before attempting to link. 4. Move further away from other Tactic transmitters before powering...

  • Page 10: System Check And Operation

    6. If failsafe operation is correct, re-connect power to the system as explained earlier and prepare for fl ight. If the failsafe function does not operate correctly, re-check the LINKING WITH A TACTIC Rx and SYSTEM CHECK AND OPERATION sections and re-try.

  • Page 11: Specifications

    6 Sport and Eclipse 7 on 2.4GHz, disconnect AnyLink’s power plug from the Tx charge jack. AnyLink’s LED will turn off. Also remember to remove the plug from the Tx trainer jack. SPECIFICATIONS Compatible Rx’s: Tactic brand receivers Frequencies: 2.403 – 2.480GHz Modulation:...

  • Page 12: Troubleshooting

    Interference – Check Rx installation and servo connections. Low Tx or Rx battery – Replace the batteries or recharge as needed. Any Link case and/or antenna not oriented properly – Rotate AnyLink on Tx, or re-direct position of the antenna.

  • Page 13: Fcc Statement

    FCC STATEMENT This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 14 Declaration of Conformity: Product: Tactic AnyLink SLT 2.4GHz Radio Adapter Item number: TACJ2000 Equipment class: 1 Tactic AnyLink SLT 2.4GHz Radio Adapter: The objects of the declaration described here are in conformity with the requirements of the specifi cations listed below, following the...
  • Page 15 (1) year from the date of purchase. During that period, Tactic will, at its option, repair or replace without service charge any product deemed defective due to those causes. You will be required to provide proof of purchase (invoice or receipt).
