CARBON INFRARED HEATER CH2500 RW User’s Manual • Thank you for purchasing Veito Carbon Infrared Heater. Please read the instructions thoroughly before using your heater. • After reading the instructions, please keep it in a place accessible to all users.
CONTENTS Safety Precautions Precautions for installation and before use •Precautions for install •How to install •How to use power Configuration and name •Main body •Indication and operation part •Remote control •How to replace the remote control battery How to use •Operation and stop •Heat amount control •Off timer...
Safety Precautions These precautions are designed for keeping users safe and preventing material damage. Be sure to read them and use the product correctly. • There are 3 classifications of safety precautions and they are listed in the box below. Possiblity of death or severe injury in the event of mishandling.
Page 5
WARNING *After reading this, be sure to keep it at a place where other users can refer to it at any time. Ensure both plug and socket is Never use with a damaged Use specific 230V 16A amp clean and free from dust when power lead, plug or loose wall socket.
Page 6
*After reading this, be sure to keep it at a place where other users can WARNING refer to it at any time. Do not use the unit other than for its intended use. (do not use for drying clothing or for keeping animals or plants warm etc.) Never move the product whilst it is switched on.
Page 7
*After reading this, be sure to keep it at a place where other users can CAUTION refer to it at any time. The heater must be installed on a flat When thunder and lightning is and even surface. present, turn off the unit and disconnect from the power supply.
Precautions for installation and before use *After reading this, be sure to keep it at a place where PRECAUTIONS FOR INSTALL other users can refer to it at any time. Install the product at places that are visible to people. (frequently observe the product for safety) Never install the heater on a combustible surface.

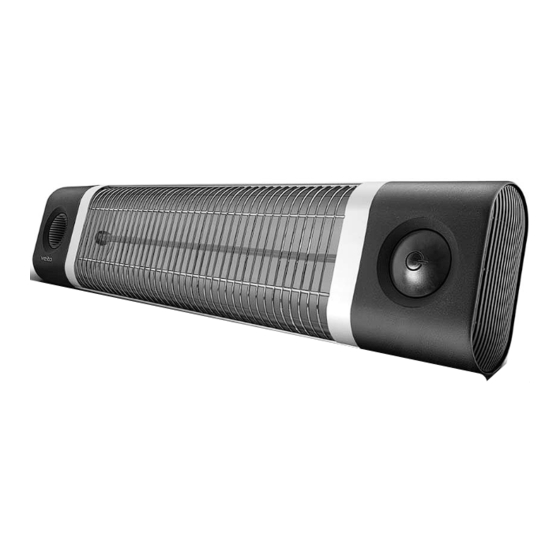

HOW TO USE POWER • When using 230V •Put plug into specific outlet for 230V with earth terminal. Configuration and Name MAIN BODY Plastic Body Base Reflector Aluminium Body Rear Reflector Power Cord Carbon Flament Control Panel Safety Grille •External appearence can be changed without prior notice for improving quality. INDICATION AND OPERATION PART 1.Control button 2.LED display...
REMOTE CONTROL • Point the remote control towards the receiver whilst using it. Power •Remote control will not work from a distance when strong lighting or sunlight is present. In this case, use the remote control just in front Setting buttons of the control panel.
How to Diagnose Safety Device Veito heater is equippped with diverse safety device, preventing a risk of fire. SAFETY DEVICE In the event that heater is not working properly, safety device is operated and heater is automatically stopped. When the heater is knocked over, it The unit will automatically stop if there will automatically shut down.
Supply cable Off timer Mainboard Tilt sensor Temperature C° sensor Blue (L) Yellow-Green (E) Specification model CH2500 RW classification Heating Capacity BTU/h 12000 Maximum Power (W) 2500 Space for use (m ) Power supply 230V 50/60Hz Size(mm) (WxLxH) 80x170x940 Product weight (kg)
WARRANTY (Applicable to first retail purchaser only) Veito Carbon Infrared Heater give more reliable performance, comfort and durability the more they are used. They are built under a strict quality assurance regime which includes inspection both during and after production and exhaustive reliability testing.
