CARBON INFRARED HEATER
CH2500 TW
User's Manual
• Thank you for purchasing Veito Carbon Infrared Heater. Please read the instructions
thoroughly before using your heater.
• After reading the instructions, please keep it in a place accessible to all users.
• Ensure you read 'Safety Precautions' in advence and use the product corectly.
• We can not be liable for any damages caused by failure to observe these instructions.
• The product is specified for use with a power supply of 230V 50/60Hz
• This manual includes the product warrantly.
• Specifications and contents of this manual may be changed without prior notice, in
accordance with our commitment to product quality, design and control.
Advertisement
Table of Contents
Related Manuals for veito CH2500 TW
Summary of Contents for veito CH2500 TW
- Page 1 CARBON INFRARED HEATER CH2500 TW User’s Manual • Thank you for purchasing Veito Carbon Infrared Heater. Please read the instructions thoroughly before using your heater. • After reading the instructions, please keep it in a place accessible to all users.
-
Page 3: Table Of Contents
CONTENTS Safety Precautions Precautions for installation and before use •Precautions for install •How to install •How to use power Configuration and name •Main body How to use •Operation and stop How to diagnose safety device Cleaning and maintenance Storage Instructions Troubleshooting Wiring diagram Specification... -
Page 4: Safety Precautions
Safety Precautions These precautions are designed for keeping users safe and preventing material damage. Be sure to read them and use the product correctly. • There are 3 classifications of safety precautions and they are listed in the box below. Possiblity of death or severe injury in the event of mishandling. - Page 5 WARNING *After reading this, be sure to keep it at a place where other users can refer to it at any time. Ensure both plug and socket is Never use with a damaged Use specific 230V 16A amp clean and free from dust when power lead, plug or loose wall socket.
- Page 6 *After reading this, be sure to keep it at a place where other users can WARNING refer to it at any time. Do not use the unit other than for its intended use. (do not use for drying clothing or for keeping animals or plants warm etc.) Never move the product whilst it is switched on.
- Page 7 *After reading this, be sure to keep it at a place where other users can CAUTION refer to it at any time. The heater must be installed on a flat When thunder and lightning is and even surface. present, turn off the unit and disconnect from the power supply.
-
Page 8: Precautions For Installation And Before Use
Precautions for installation and before use *After reading this, be sure to keep it at a place where PRECAUTIONS FOR INSTALL other users can refer to it at any time. Install the product at places that are visible to people. (frequently observe the product for safety) Never install the heater on a combustible surface. -
Page 9: How To Use Power

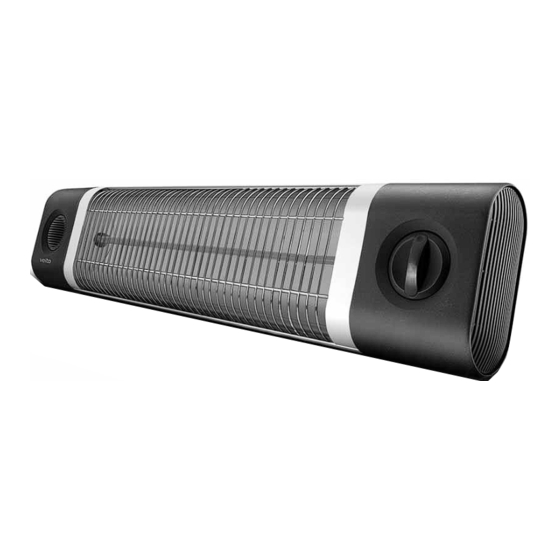

HOW TO USE POWER • When using 230V •Put plug into specific outlet for 230V with earth terminal. Configuration and Name MAIN BODY Plastic Body Base Reflector Aluminium Body Rear Reflector Power Cord Carbon Flament Control Cnob Safety Grille •External appearence can be changed without prior notice for improving quality. How to use OPERATION AND STOP The appliance is not to be used by children or persons with reduced physical,... -
Page 10: How To Diagnose Safety Device
How to Diagnose Safety Device Veito heater is equippped with diverse safety device, preventing a risk of fire. SAFETY DEVICE In the event that heater is not working properly, safety device is operated and heater is automatically stopped. When the heater is knocked over, it will automatically shut down. -
Page 11: Troubleshooting
Wiring Diagram Control Cnob Carbon Flament Brown (N) Supply cable Tilt senser Blue (L) Yellow-Green (E) Specification model CH2500 TW classification Heating Capacity BTU/h 12000 Maximum Power (W) 2500 Space for use (m ) Power supply AC 230V 50/60Hz Size(mm) (WxLxH) -
Page 12: Product Warranty
WARRANTY (Applicable to first retail purchaser only) Veito Carbon Infrared Heater give more reliable performance, comfort and durability the more they are used. They are built under a strict quality assurance regime which includes inspection both during and after production and exhaustive reliability testing. - Page 13 Notes...
- Page 14 Notes...
- Page 16 w w w . v e i t o . c o m...
