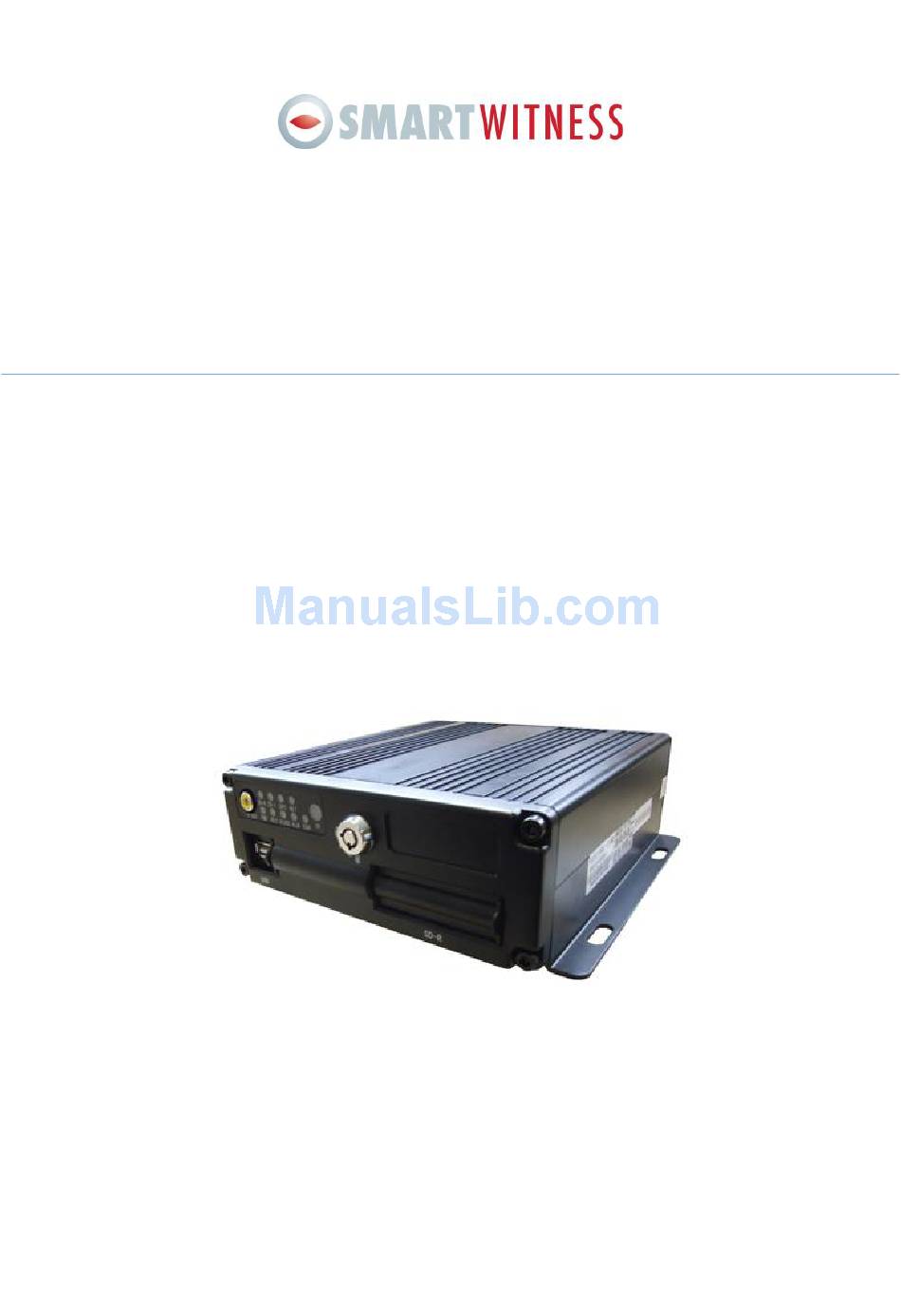

- Page 1 SVC400L 4 Camera Live Tracking Vehicle DVR Installation Manual Version 1.0...
-
Page 2: Table Of Contents
SVC400L - Installation Instructions MAIN FEATURES ................................3 PRODUCT OVERVIEW ..............................3 2.1 Front View ................................. 3 2.2 Back View ................................4 2.3 Dimensions ................................ 4 PACKAGE CONTENTS ..............................5 MOUNTING AND ENVIRONMENTAL REQUIREMENTS ....................5 4.1 Location ................................5 4.2 Power ................................. -
Page 3: Main Features
Local Recording Remote Downloading Alarm Report System Additionally the SVC400L’s CMS is set-up to provide automatic services for the protection of its data such as recovery, data- monitoring and backup for all its critical data. 2. PRODUCT OVERVIEW 2.1 Front View... -
Page 4: Back View
SVC400L - Installation Instructions 2.2 Back View Items Name Description WI-FI ANT connector WI-FI For connecting WIFI ANT GPS ANT connector For connecting GPS ANT 2G/3G ANT connector For connecting the3G/GPRS ANT Power input DC8-48V For connecting power input Network port... -
Page 5: Package Contents
SVC400L - Installation Instructions 3. PACKAGE CONTENTS Please ensure that the SVC400L box includes the following items: SVC400L Video Input/ AV output cable Power cable Screws for installing the unit A set of keys for locking and/or unlocking the HDD case ... -
Page 6: Vibration
Wire cutters and wire connectors Test for voltage and electric current 6. INSTALLATION INSTRUCTIONS Follow these guidelines when installing SVC400L: Unpack all components provided in the package. Disconnect any source of power supply and/or devices. ... -
Page 7: How To Connect Inputs And Outputs
SVC400L - Installation Instructions 7. HOW TO CONNECT INPUTS AND OUTPUTS 7.1 The A/V Cable Definition (Video Input/ AV output) Specifications for the PINs: A/V Cable interface definition: Item Name Explanation A/V input is a 4-pin female connector; 4CH machine has 4 A/V inputs, 8CH... -
Page 8: Specifications For The Sensor Box (Sensor Inputs And Outputs)
A schematic diagram of the alarm input ‘braking’ is shown below; when the brake is applied the SVA400L will detect the I/O PWL, the alarm LED will light up (or flash) and will record this event. Stoplight +24V Braking vane Connect to SVC400L sensor input... -
Page 9: Specifications For 485 And 232 Serial Ports
SVC400L - Installation Instructions All alarm outputs are PWL outputs, drive ability is 200MA, and the voltage is +12V, if you need more than that, please connect to an external relay. An alarm output photoelectric wiring diagram is as follows: Alarm output 7.3 Specifications for 485 and 232 serial ports... -
Page 10: Setup
SVC400L - Installation Instructions Please Note: If only the POWER LED is on and there is no live view output after SVA400L has started up, then please check if the SD card has been locked properly. 9. SETUP 9.1 System Login System Login for Setup: ... -
Page 11: Record Setup
SVC400L - Installation Instructions 9.3 Record Setup Setup the related parameters for Recording: Go to SETUP > RECORD > OPTIONS to setup the basic parameters such as video type, record mode etc., as detailed below: Go to SETUP > RECORD > CHANNEL SETTINGS to setup resolution, frame rate, normal recording quality and recording quality when there is an alarm, for each channel: ... -
Page 12: Playback And Backup
SVC400L - Installation Instructions 9.4 Playback and Backup Go to ALL FILES > search for the record files, and then use directional keys on the IR remote control to select the file you would like to playback and then press Enter to start the playback. The user can playback one channel at a time. You can move the cursor to SEL, select the recorded files you would like to backup, and then press EXPORT to backup the files. -
Page 13: Serial Port Setup
SVC400L - Installation Instructions 9.5 Serial Port Setup SETUP > PERIPHERAL > EXT.COM SETUP There are two options to choose ; STANDARD and BUS MODE: STANDARD mode you can select an external port for each COM BUS mode COM1 and COM2 are for station announcement and the amplifier board respectively, and these two are unchangeable;... -
Page 14: Sim Card Installation And 3G Connection
SVC400L - Installation Instructions 10. SIM CARD INSTALLATION AND 3G CONNECTION Remove the 3G/GPS module from MDVR (see below) Unscrew the 3G/GPS module and open the cover (see below) Please Note: the SD card here is other purposes and does not need to be used. SD card for recording should be inserted at the front panel of SVA400L. - Page 15 SVC400L - Installation Instructions Check the setup status: Finally, we can check the status of the SIM card by pressing ENTER in the live view after unit has restarted. You will find the status information for unit (see the screen below)which includes signal, network, dial up status and CMS connection...
