7.1 Step one: recording the dry signal

First of all you will need to get a DRY signal from the Torpedo Studio. On the following table we
have listed the various options you have with the Torpedo Studio. It is very off-putting trying to play
with a completely dry sound so we have indicated on which channel you can get a wet signal (i.e.,
with the speaker simulation on). You can choose to record the Wet signal or not, depending on your
DAW configuration and capability. You also have the option to activate the Torpedo Wall of Sound III
plugin on the DRY track and to play with a wet signal in direct monitoring.
Output mode
Dry/Dual Miking
Dual Miking/dry

7.2 Step two: re-miking the signal

You need to create a loop between the Torpedo Studio and your DAW. You can create either a
digital or an analog loop. To create a loop, connect both input and output of the Torpedo Studio to
the DAW:
1. The dry signal is sent from the DAW to the Torpedo Studio. On most sequencers, that track must
be routed to a dedicated output, not the master output track.
2. Choose the appropriate miking parameters on the Torpedo Studio; the dry signal is processed.
3. The wet, processed signal is sent to a new track on the DAW. That track can be routed to the
master track and activated for real-time listening.

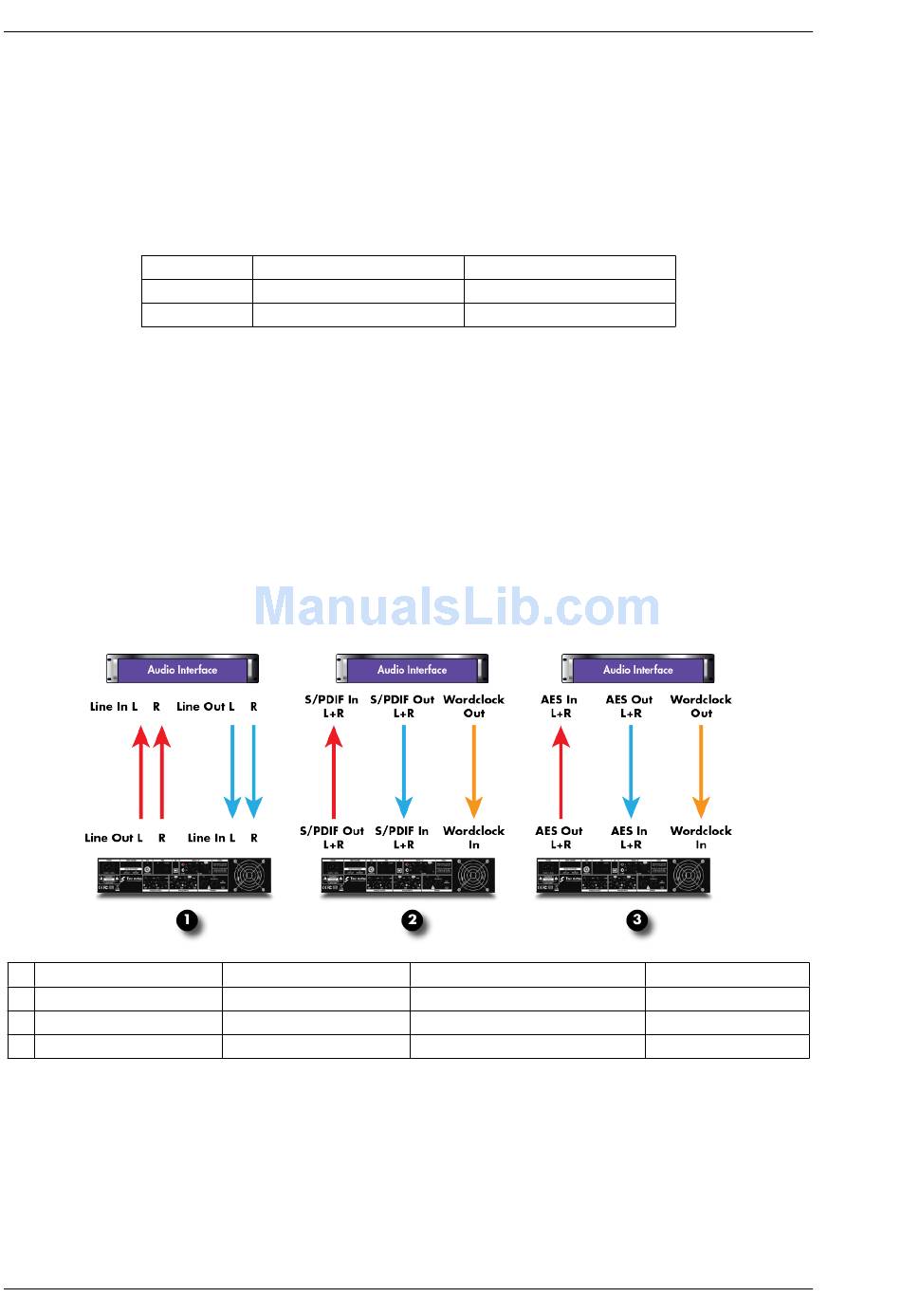

Dry send (DAW to TORPEDO)
1
Line Out to Line In
2
S/PDIF Out to S/PDIF In
3
AES Out to AES In
Note: Wordclock is optional in a digital loop. Use it if you have several digital products that need
to be synchronized to your DAW.
32
Dry channel
Analog or Digital Out LEFT
Analog or Digital Out RIGHT
Wet return (TORPEDO to DAW)
Line Out to Line In
S/PDIF Out to S/PDIF In
AES Out to AES In
Two Notes Audio Engineering
Wet channel
Analog or digital I/Os RIGHT
Analog or digital I/Os LEFT
Dry track status (DAW)
Routed to Line out (not Master)
Routed to S/PDIF Out (not Master)
Routed to AES Out (not Master)
Wet track status (DAW)
Routed to Master
Routed to Master
Routed to Master
Torpedo Studio
