Summary of Contents for Sven Lux

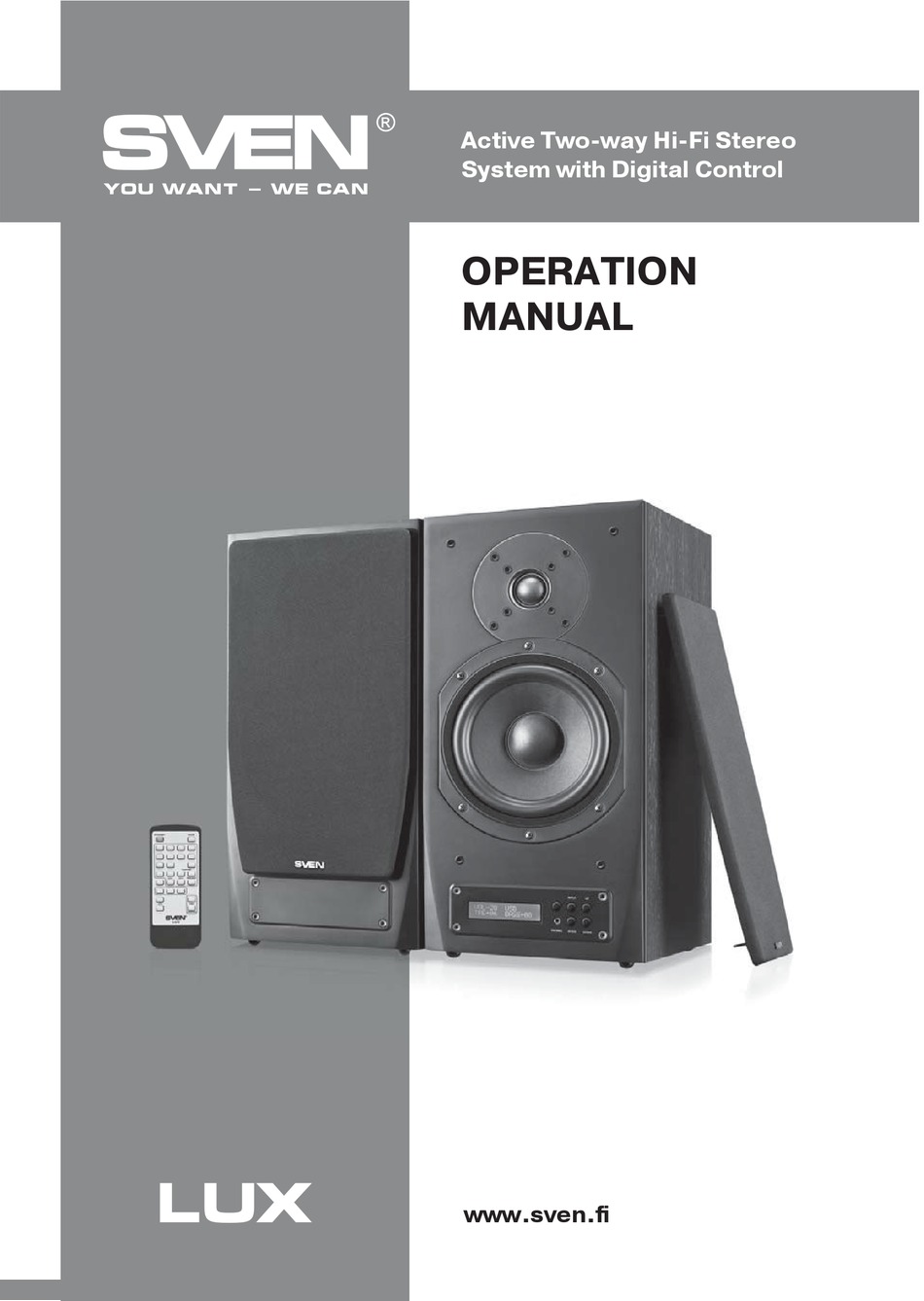

- Page 1 Active Two-way Hi-Fi Stereo System with Digital Control OPERATION MANUAL www.sven.
-
Page 2: Table Of Contents
Operation Manual Congratulations on your purchase of the Sven speaker system! Please read this operation manual before using the unit and retain this operation manual in a safe place for future reference. COPYRIGHT © 2011. SVEN Company Ltd. Version 1.0 (V 1.0). -
Page 3: Description

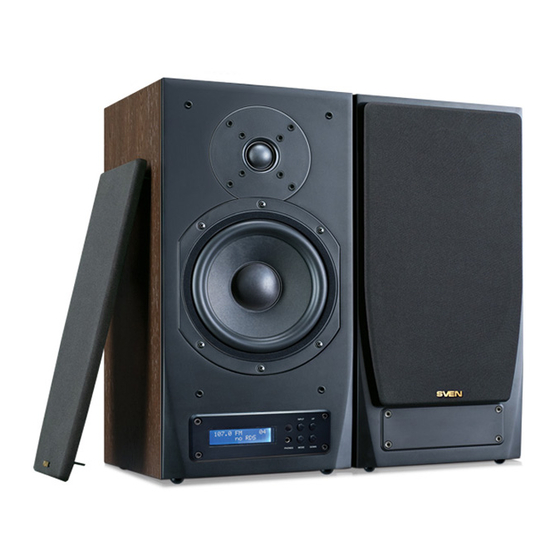

System with Digital Control 1. DESCRIPTION LUX active two-way Hi-Fi multimedia speaker system (MSS) with digital control and FM tuner is made of superior materials with implementation of advanced technologies. The MSS is designed to play music, sound games, movies, etc. The device is equipped with a high-power ampli er. The MSS has a high quality USB DAC for audio signal transmission via a USB cable. -
Page 4: Special Features
• Built-in high quality surge protector • MDF case of speakers 5. SPEAKER SYSTEM PLACEMENT • Installation of LUX speaker system graded as Hi-Fi (High Fidelity) class system is one of the most important 0,7 x factors in achieving the best sound of the system. One... -
Page 5: Control Panel
Active Two-way Hi-Fi Stereo System with Digital Control 6. CONTROL PANEL a Display screen b IR receiver c IINPUT: audio source selection button d UP: volume level up button, radio station switch button (in Tuner mode) e PHONES: headphone jack f MODE: mode selection button g DOWN: volume level down button, radio station switch button... -
Page 6: Remote Control
Operation Manual 8. REMOTE CONTROL a STANDBY: standby mode button b 0-9: numeric keyboard buttons for selecting preset radio stations c ST: MONO/STEREO mode selection button d MEM: button for presetting stations in the memory of the tuner eINPUT: audio source selection button f MODE +/–: buttons for setting parameters (balance, treble and bass, headphone volume) in various modes... -
Page 7: Connection
Active Two-way Hi-Fi Stereo System with Digital Control 9. CONNECTION MSS Connection LUX Hi-Fi MSS 2.0 can be connected to virtually any audio source (see Fig. 5). 2RCA to mini-jack signal cable 2RCA to 2RCA signal cable USB cable FM-antenna... -
Page 8: Operation
Operation Manual • To connect the MSS to a USB port of your PC or laptop, use the USB cable included in the package contents. In order to do this, attach the USB cable connector to the USB input l on the rear panel of the active speaker, and insert the other connector of the USB cable to an available USB port of your PC or laptop. - Page 9 Active Two-way Hi-Fi Stereo System with Digital Control V O L - 2 0 U S B T R E B A S S T U N I N G > Fig. 8. USB input Fig. 9. FM input MSS setting when audio sources are V O L - 2 0 U S B connected...
- Page 10 T U N I N G > the control panel. Fig. 16 FM-tuner settings • LUX multimedia speaker system has a built-in FM-tuner with RDS facility. RDS function allows to receive and display additional information H I T transmitted simultaneously with the radio station signal, for example, HIT FM (Fig.
- Page 11 Active Two-way Hi-Fi Stereo System with Digital Control Manual tuning. You can search radio stations manually by successively pressing TUNING –/+ buttons j on the remote control. Short (less A U T P R E S E T > than 0.5 sec) pressing of the button allows to adjust the frequency to 0.1 MHz.
- Page 12 Operation Manual Headphone usage. In order to switch on the headphones, connect them to the PHONES input e on the active speaker front panel. Then, using INPUT button e of the remote control or INPUT button c on the control panel, nd an audio source you’re going to listen to the music from, for example, USB.
-
Page 13: Trouble Shooting
Active Two-way Hi-Fi Stereo System with Digital Control 11. TROUBLE SHOOTING Problem Cause Solution The MSS does not The MSS isn’t connected to a mains outlet. Check the connection. turn on. Power switch is o . Turn on the switch. No sound. -
Page 14: Technical Specification
Tuner sensitivity, dB S/N ratio, dB Notes: • Technical speci cation given in this table is supplemental information and cannot give occasion to claims. • Technical speci cation is subject to change without notice due to improvement of SVEN production. - Page 15 , 15. : LUX « ». , 31. www.sven. « », 48310, , 15. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, KOTKA, Finland, 48310. Made in China. ® Registered Trademark of Oy SVEN Scandinavia Ltd. Finland.
