Summary of Contents for Thermaltake HARDCANO 13
- Page 1 HARDCANO 13 Integrate the Intelligent Fan controller and 6 in 1 Card reader Multi-function 5.25 " Drive bay P/N:A2259 User's Manual C 2003 Thermaltake Technology Co.,Ltd. All Rights Reserved. REV. A 2004.08 All other registered trademarks belong to their respective companies.
-
Page 2: Table Of Contents
P.02 P.03 1.4 Display Introduction Part II - Installation P.05 2.1 How to Install in case 2.2 Connectors from Hardcano 13 P.06 2.3 How to Connect with 3pin Fan P.07 2.4 How to Connect with 4pin Fan P.08 2.5 What is the jumper cap for P.10... -
Page 3: Part I - Introduction

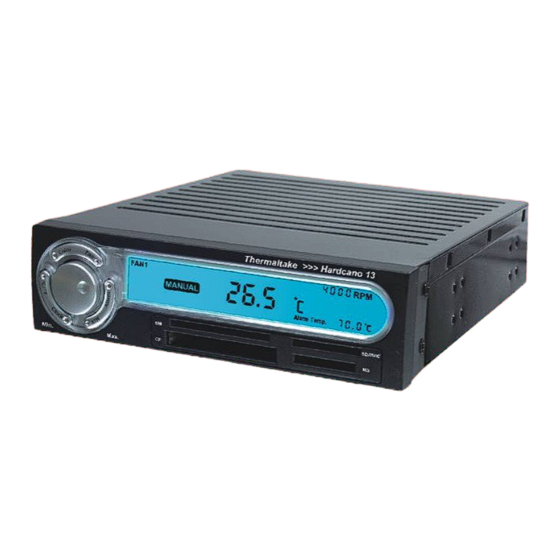

Introduction 1.1 Overview Hardcano 13 is a multi-functional media panel with Intelligent Thermal Management System and Smart Card Reader. The Intelligent Thermal Management System monitors fan speeds,temperatures at 4 different locations in real-time with "Thermal Alarm".The smart card reader supports 6... -
Page 4: Key Introduction
Introduction Introduction 1.3 Key Introduction 1.4 Display Introduction Description Icon Function Function Function Function No . Displays the current location monitored. To set the value of alarm temperature. (*Default: 40 . ** Preset Fan1~Fan4 Alarm Values: 40 Mode Display the Auto or Manual Mode. Switch the different channels circularly(Fan1/Fan2/Fan3/Fan4) CF/SD/SM/ Indicate the type of memory card in use. -
Page 5: Part Ii - Installation
Connect the Fans Connect the 3 pin connector of the fan directly to the 3 pin socket of Hardcano 13. If the cable length is not long enough, use the 3pin extension adapter. Some fan units uses 4 pin connector instead of 3 pin connector. -
Page 6: Connectors From Hardcano
+12V +5V 4pin Power Connector Signal Only, Above application shows Fan1 Fan Control Cable connected to a Not Power" Fan Control Connector most common fan connector. This setup will allow Hardcano 13 to adjust fan speed and receive RPM signal as well. -
Page 7: How To Connect With 4Pin Fan
Instruction Connect to Hardcano 13 Some fan unit may be using 4pin connector. In order for Hardcano 13 module to control, you'll need to utilize this included adaptor. Adaptor(3 pin to 4 pin) X 1 Using 3-pin to 4-pin Adapter... -
Page 8: What Is The Jumper Cap For
Hardcano 13 detect the fan speed signal properly. for recommended monitor areas. Application: Hardcano 13 includes 4 sets of Thermal Probe. Attach each Thermal Probe to different heat sources with the included thermal tape. Recommended Sensor Area: VGA card cooler CPU cooler detect VGA temp. -
Page 9: System Requirements
Drive Installation Drive Installation 3.1 System Requirements 3.3 Hardware setup One of following operating systems: STEP 1: The Windows will automatically recognize the Smart Card Reader and it will continue installing files that is required for the Smart Card Reader. - windows 98/ SE - windows 2000 - Windows ME (No drive needed) -
Page 10: Drive Installation For Mac Os
4.2 How to distinguish Auto / Manual Mode The Hardcano 13 is a drive-free device for Mac OS 10.X and up. Mac OS 10.X and up will detect the device and install all the associated files required for its use automatically. -
Page 11: How To Set Fan Speed (Only In Manual Mode)
How to set Alarm Temp. Operation 4.3 How to set Fan Speed (only in manual mode) STEP 1. Select the Fan you wish to adjust by press "Fan button" (12V) (6V) Press "Fan button" (Environment Temp.) (Alarm setting Temp.) STEP 2. Rotate the Knob to increase and decrease fan speed. Rotate clockwise for acceleration, counter clockwise for deceleration. -
Page 12: How To Set Alarm
Operation Operation 4.4 How to set Alarm 4.6 How to switch to Celsius or Fahrenheit? Press the "Alarm" bu tton repea tedly until your desired temperature is shown on the LCD. (Default: 60 STEP 1. Press switch button as shown on the picture below EX. - Page 13 5.1:The Hardcano 13 Module does not come on after system is Powered? Ans: Please make sure the main power connector is connected to Power Supply. Slide the cover Make sure all towards back to connectors are Part III remove. connected securely.
- Page 14 Ans: A portion of fan unit have built in fan speed control. Address: 8F, No.27, Lane 155, Sec.3, Pei Shen Road, Saen To allow Hardcano 13 to take control, certain steps need to be Keng Hsiang, Taipei Hsiang, Taiwan Performed. ie. Insert jumper.
- Page 15 Note - Please follow below process or your Hardcano memory function will be failed Section.1 First time using Hardcano13 When you first time use Hardcano13,you have to remove the insulation between battery and socket. 1.Open the cover case and will see a battery on PCBA.(Figure.A) 2.Remove the battery insulation from the socket.(Figure.B) 3.Cover the upper case back.(Figure.C) Section.2 Changing battery process...
